Bogen SCW20 Technical Specifications

Columns
SCW20 & SCW35
• Precisely controlled sound projection
• Directional characteristics reduce feedback
• Uniform sound level throughout area covered
Features
• Clarity and intelligibility for speech reproduction
• Lower power requirements than conventional speakers
• Fast and simple installation

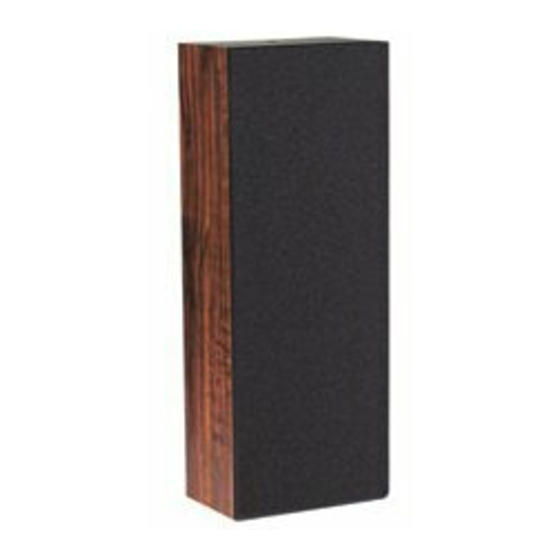

The Bogen Models SCW20 and SCW35 are heavy-
duty sound columns designed for sound reinforce-
ment in churches, theaters, auditoriums, and similar
Description
installations where it is necessary to cover a large
area with a minimum number of speakers.The sound
column consists of a vertical array of speakers in a
specially-designed rectangular enclosure, and pro-
vides a more effective length of throw than conven-
tional speakers, as well as a highly directional sound
dispersion pattern for reduced reflection from the
floor and ceiling of the hall. The precisely controlled
dispersion pattern of these sound columns makes
possible a maximum of uniformity in coverage of the
desired area with minimum sound projected into
undesired areas.
Sound
Models
SCW20
The sound columns are constructed of sturdy parti-
cle board, acoustically lined and finished in a simulat-
ed oiled walnut.The removable rear panel (for access
to the cone speakers) contains a polarized screw-
terminal strip and mounting plate for line-matching
transformers.
Specifications subject to change without notice.
© 1997 Bogen Communications, Inc.
Part No. 54-7551-06R2 Printed in U.S.A. 0109
SCW35
