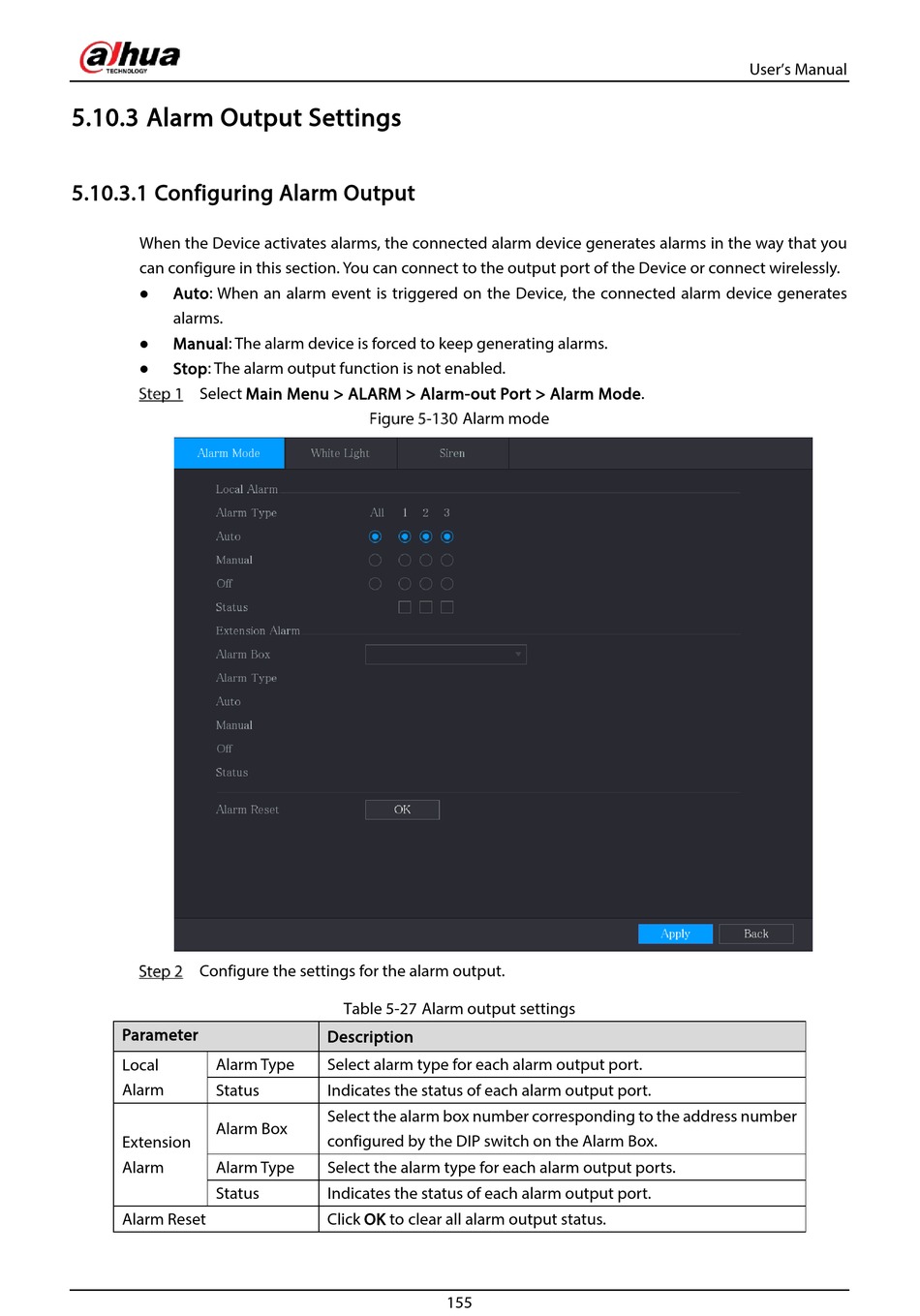

5.10.3 Alarm Output Settings

5.10.3.1 Configuring Alarm Output
When the Device activates alarms, the connected alarm device generates alarms in the way that you
can configure in this section. You can connect to the output port of the Device or connect wirelessly.
Auto: When an alarm event is triggered on the Device, the connected alarm device generates

alarms.
Manual: The alarm device is forced to keep generating alarms.

Stop: The alarm output function is not enabled.

Select Main Menu > ALARM > Alarm-out Port > Alarm Mode.
Configure the settings for the alarm output.
Parameter
Alarm Type
Local
Alarm Status
Alarm Box
Extension
Alarm Alarm Type
Status
Alarm Reset
Alarm mode
Table 5-27 Alarm output settings
Description
Select alarm type for each alarm output port.
Indicates the status of each alarm output port.
Select the alarm box number corresponding to the address number
configured by the DIP switch on the Alarm Box.
Select the alarm type for each alarm output ports.
Indicates the status of each alarm output port.
Click OK to clear all alarm output status.
