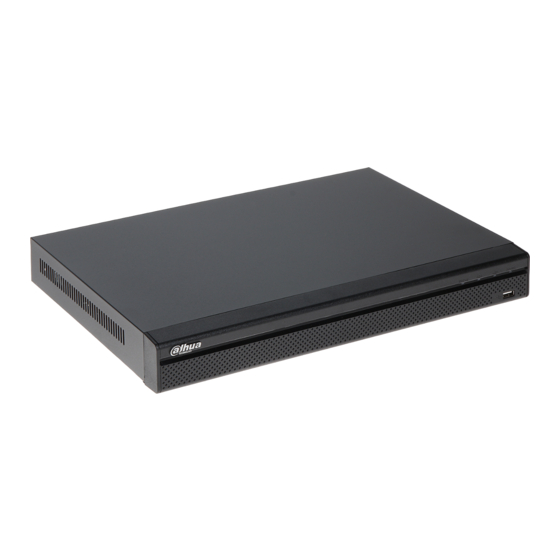

Page 1 Dahua HDCVI Standalone DVR User’s Manual Dahua HDCVI Standalone DVR User’s Manual V1.3.1...
Page 2: Table Of Contents
Table of Contents FEATURES AND SPECIFICATIONS ............8 Overview ........................... 8 Features ............................ 8 Specifications ........................... 9 1.3.1 HCVR82XXA-S3 Series ..................... 9 1.3.2 HCVR84XXL-S3 Series ....................11 1.3.3 HCVR88XXS-S3 Series ....................14 1.3.4 HCVR88XXS-URH-S3 Series ..................16 1.3.5 XVR88XXS Series ......................18 OVERVIEW AND CONTROLS ...............
Page 3 INSTALLATION AND CONNECTIONS ..........34 Check Unpacked DVR ......................34 About Front Panel and Rear Panel ..................34 HDD Installation ........................34 3.3.1 HDD Calculation ....................... 34 3.3.2 HDD Installation ........................ 35 3.3.3 Rack Installation ........................ 39 Connecting Power Supply ....................39 Connecting Video Input and Output Devices ..............
Page 4 Initial Settings ......................... 45 4.1.1 Boot up ..........................45 4.1.2 Device Initialization ......................45 4.1.3 Reset Password ........................ 48 4.1.4 Quick Settings ........................53 Preview ........................... 87 4.2.1 Preview Window ....................... 87 4.2.2 Preview Control ......................... 88 4.2.3 Right-Click Menu ....................... 91 4.2.4 Window Switch ........................
Page 5 4.7.10 Alarm Status ....................... 120 4.7.11 Channel Info ....................... 120 4.7.12 Registration ......................... 120 4.7.13 Network ........................120 4.7.14 HDD Manager ......................121 4.7.15 USB Manager ......................121 Record and Snapshot ......................121 4.8.1 Record and Snapshot Control ..................121 4.8.2 Snapshot ..........................
Page 6 4.12 Account Manager ........................ 160 4.12.1 Add User ........................160 4.12.2 Modify user ......................... 163 4.12.3 Change Password ...................... 165 4.12.4 Add/Modify Group ...................... 166 4.12.5 ONVIF User ........................ 167 4.13 Voice Manager ........................169 4.13.1 File Manager ....................... 169 4.13.2 Schedule ........................
Page 7 4.17.3 Security ........................237 4.18 System Maintain ........................239 4.18.1 Auto Maintain ......................239 4.18.2 Import/Export ......................240 4.18.3 Default ......................... 241 4.18.4 System Upgrade ......................241 4.19 Remote Device Manager ....................242 4.19.1 Connection Status ...................... 242 4.19.2 Firmware ........................243 4.19.3 Camera Upgrade ......................
Page 8 Setup ............................. 273 5.7.1 Camera ..........................273 5.7.2 Network ..........................291 5.7.3 Event ..........................313 5.7.4 Storage ..........................347 5.7.5 Setting ..........................360 5.7.6 Security ..........................384 Playback ..........................385 5.8.1 Search Record ........................ 386 5.8.2 Mark Playback ......................... 388 5.8.3 Splice Playback .......................
Page 9 APPENDIX A HDD CAPACITY CALCULATION ........413 APPENDIX B COMPATIBLE BACKUP DEVICES ........415 Appendix B-1 Compatible USB list ....................415 Appendix B-2 Compatible SD Card list ..................416 Appendix B-3 Compatible Portable HDD list ................416 Appendix B-4 Compatible USB DVD List ................... 416 Appendix B-5 Compatible SATA DVD List ..................
Page 10 Appendix H-2 RAID Level......................... 431 Appendix H-3 RAID Capacity Calculation ..................433 Appendix H-4 RAID Usage Suggestions ..................433 APPENDIX I RJ45-RS232 CONNECTION CABLE DEFINITION ....434...
Page 11 Welcome Thank you for purchasing our HDCVI DVR! This user’s manual is designed to be a reference tool for the installation and operation of your system. Here you can find information about this series standalone DVR features and functions, as well as a detailed menu tree.
Page 12 Cybersecurity Recommendations Cybersecurity Recommendations Mandatory actions to be taken towards cybersecurity 1. Change Passwords and Use Strong Passwords: The number one reason systems get “hacked” is due to having weak or default passwords. It is recommended to change default passwords immediately and choose a strong password whenever possible.
Page 13 6. Forward Only Ports You Need: ● Only forward the HTTP and TCP ports that you need to use. Do not forward a huge range of numbers to the device. Do not DMZ the device's IP address. ● You do not need to forward any ports for individual cameras if they are all connected to a recorder on site;...
Page 14 login to your system and what was accessed. 14. Physically Lock Down the Device: Ideally, you want to prevent any unauthorized physical access to your system. The best way to achieve this is to install the recorder in a lockbox, locking server rack, or in a room that is behind a lock and key.
Page 15: Important Safeguards And Warnings
Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The product must be grounded to reduce the risk of electric shock. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.
Page 16: Revision History
Icon Note Indicates a medium or low potential hazard which, if not avoided, could result in slight or moderate injury. WARNING Indicates a potential risk which, if not avoided, could result in property damage, data loss, lower performance, or unpredictable CAUTION result.
Page 17 with the Manual. The Manual would be updated according to the latest laws and regulations  of related regions. For detailed information, see the paper User's Manual, CD-ROM, QR code or our official website. If there is inconsistency between paper User's Manual and the electronic version, the electronic version shall prevail.
Page 18: Features And Specifications
FEATURES AND SPECIFICATIONS 1.1 Overview This standalone series DVR is an excellent digital monitor product designed for security field. It adopts embedded Linux OS to maintain reliable operation. Popular H.264 compression algorithm and G.711 audio compression technology realize high quality, low bit stream. Unique frame by frame play function is suitable for detailed analysis.
Page 19: Specifications
Auto recognize and work with the general analog camera and HD camera. Slight function differences may be found due to different series. 1.3 Specifications 1.3.1 HCVR82XXA-S3 Series Name Parameters HCVR8204A-S3 HCVR8208A-S3 HCVR8216A-S3 System Main Processor Industrial embedded micro controller Embedded LINUX...
Page 20 Name Parameters HCVR8204A-S3 HCVR8208A-S3 HCVR8216A-S3 Video Frame PAL:1/16~25f/s；NTSC：1/16~30f/s Rate Video Frame 32Kbps-8192Kbps， Rate For 720P: default setup is 2Mbps，max supports 4Mbps. For 1080P: default setup is 4Mbps，max supports 8Mbps. Bit Stream Type Video stream/composite stream Dual-Stream Support Audio Encode G.711A/G.711U/PCM...
Page 21: Hcvr84Xxl-S3 Series
Name Parameters HCVR8204A-S3 HCVR8208A-S3 HCVR8216A-S3 VGA and HDMI2 output of different video sources; HDMI1 supports 4K output, HDMI2 supports 1080P output. Loop Output Matrix Output Audio Port External Audio 4-chanel RCA port Input Coaxial Audio 4-channel 8-channel 16-channel Input Audio Output 1-channel RCA port.
Page 22 Name Parameters HCVR8404L-S3 HCVR8408L-S3 HCVR8416L-S3 System Main Processor Industrial embedded micro controller Embedded LINUX Video Video Encode H.264H, H.264, H.264B Parameters Standard Encode 1080P/720P/960H/D1/HD1/2CIF/CIF Resolution Video Frame PAL:1/16~25f/s；NTSC：1/16~30f/s Rate Video Frame 32Kbps-8192Kbps， Rate For 720P: default setup is 2Mbps，max supports 4Mbps. For 1080P: default setup is 4Mbps，max supports 8Mbps.
Page 23 Name Parameters HCVR8404L-S3 HCVR8408L-S3 HCVR8416L-S3 network width: 256Mbps Video Output 1-channel VGA output， 2-channel HDMI output， 1-channel VIDEO OUT, VGA and HDMI1 output of the same video source; VGA and HDMI2 output of different video sources; VIDEO OUT supports multiple-window analog channel output. HDMI1 supports 4K output, HDMI2 supports 1080P output.
Page 24: Hcvr88Xxs-S3 Series
Name Parameters HCVR8404L-S3 HCVR8408L-S3 HCVR8416L-S3 Dimensions 1.5U case，440mm（W）×410mm（D）×70mm（H） ≤6.95KG ≤6.90KG ≤7.00KG Weight Installation Desk Mode 1.3.3 HCVR88XXS-S3 Series Name Parameters HCVR8804S-S3 HCVR8808S-S3 HCVR8816S-S3 System Main Processor Industrial embedded micro controller Embedded LINUX Video Video Encode H.264H, H.264, H.264B Parameters Standard Encode 1080P/720P/960H/D1/HD1/2CIF/CIF Resolution...
Page 25 Name Parameters HCVR8804S-S3 HCVR8808S-S3 HCVR8816S-S3  Connection total Connection total network width: network width: 1200W.  256Mbps 256Mbps Decode standard: H.265. Connection total network width: 256Mbps Video Output 1-channel VGA output， 2-channel HDMI output， 1-channel VIDEO OUT, VGA and HDMI1 output of the same video source; VGA and HDMI2 output of different video sources;...
Page 26: Hcvr88Xxs-Urh-S3 Series
Name Parameters HCVR8804S-S3 HCVR8808S-S3 HCVR8816S-S3 Others Power AC90V~264V Power ≤33W ≤35W ≤40W Consumption Working -10℃－＋55℃ Temperature Working 10%~90% Humidity Dimensions 2U case，440mm（W）×460mm（D）×89mm（H） ≤7.25KG ≤7.30KG ≤7.40KG Weight Installation Desk Mode 1.3.4 HCVR88XXS-URH-S3 Series Name Parameters HCVR8808S-URH-S3 HCVR8816S-URH-S3 System Main Processor Industrial embedded micro controller Embedded LINUX Video Video...
Page 27 Name Parameters HCVR8808S-URH-S3 HCVR8816S-URH-S3 IP channels. IP channels.   The connection bandwidth The connection bandwidth is 160Mbps when there are is 160Mbps when there are some IP channels. The some IP channels. The connection bandwidth is connection bandwidth is 200Mbps when there all IP 200Mbps when there all IP channels.
Page 28: Xvr88Xxs Series
Name Parameters HCVR8808S-URH-S3 HCVR8816S-URH-S3 Working -10℃－＋55℃ Temperature Working 10%~90% Humidity Dimensions 2U case，444(W) x430 (D) x87mm(H) Weight 11.5-13.0KG(No HDD) Installation Desktop/rack installation Mode 1.3.5 XVR88XXS Series Name Parameters XVR8808S XVR8816S System Main Processor Industrial embedded micro controller Embedded LINUX Video Video Encode H.264...
Page 29 Name Parameters XVR8808S XVR8816S 256Mbps. 256Mbps. 1-ch PAL/NTSC, BNC (1.0VP- P, 75Ω) composite video signal Video Output output. 1-ch VGA output. 2-ch HDMI output. HDMI port1 has the same video source as the VGA. HDMI port2 can have different video source from the VGA, support GUI operation.
Page 30 Name Parameters XVR8808S XVR8816S Installation Desktop/rack installation Mode...
Page 31: Overview And Controls
2 Overview and Controls This section provides information about front panel and rear panel. When you install this series DVR for the first time, please refer to this part first. 2.1 Front Panel 2.1.1 HCVR82XXA-S3/ HCVR84XXL-S3/HCVR88XXS-S3/ XVR88XXS Series For HCVR82XXA-S3, the front panel is shown as below. See Figure 2-1. Figure 2-1 For HCVR84XXL-S3, the front panel is shown as below.
Page 32: Hcvr88Xxs-Urh-S3 Series
Icon Name Function USB port Connect to peripheral USB storage device, mouse and etc. 2.1.2 HCVR88XXS-URH-S3 Series The front panel is shown as in Figure 2-4. Figure 2-4 Please refer to the following sheet for detailed information. Name Icon Function Alarm ALARM Alarm indicator light...
Page 33 Here we use HCVR8216A-S3 as an example. Figure 2-5 Please refer to the following sheet for detailed information. Icon Name Note VIDEO IN Video input port Connect to analog camera to input video signal. MIC IN Audio input port Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.
Page 34: Hcvr84Xxl-S3/Hcvr88Xxs-S3/ Hcvr88Xxs-Urh-S3/Xvr88Xxs Series
Icon Name Note  NO1～NO3 Alarm output port 1～5 3 groups of alarm output ports. (Group 1 ： port NO1 ～ C1,Group 2:port NO2～C2,Group 3:port NO3～ C3） ).Output alarm signal to the alarm device. Please make sure there is C1～C3 power to the external alarm device.
Page 35 Figure 2-6 The HCVR88XXS-S3 rear panel is shown as below. See Figure 2-7. Here we use HCVR8816S-S3 as an example. Figure 2-7 The HCVR88XXS-URH-S3 rear panel is shown as below. See Figure 2-8. Here we use HCVR8816S-URH-S3 as an example. Figure 2-8 The XVR88XXS rear panel is shown as below.
Page 36 Figure 2-9 Please refer to the following sheet for detailed information. Icon Name Note AUDIO IN It is to receive the analog audio signal Audio input port output from devices such microphone. MIC IN Audio input port Bidirectional talk input port. It is to receive the analog audio signal output from the devices such as microphone, pickup.
Page 37 Icon Name Note  1～16 Alarm input port 1～16 There are four groups. The first group is from port 1 to port 4, the second group is from port 5 to port 8, the third group is from port9 to port 12, the fourth group is from port13 to port 16.
Page 38: Connection Sample
Icon Name Note HDMI1 High Definition Media High definition audio and video signal Interface 1 output port. It outputs the same video source as VGA. It supports 4K resolution output and supports mouse operation and control. Please note when the HDMI output resolution is 4K, the VGA output stops.
Page 39: Remote Control
Figure 2-10 2.4 Remote Control The remote control interface is shown as in Figure 2-11. Please note remote control is not our standard accessory and it is not included in the accessory bag.
Page 40 Figure 2-11 Name Function Power button Click it to boot up or shut down the device. Address Click it to input device number, so that you can control it. Forward Various forward speeds and normal speed playback. Slow play Multiple slow play speeds or normal playback. Next record In playback mode, playback the next video.
Page 41: Mouse Control
Name Function Direction keys Switch current activated control, go to left or right. In playback mode, it is to control the playback process bar. Aux function(such as switch the PTZ menu) Enter /menu key go to OK button go to the menu Multiple-window Switch between multiple-window and one-window.
Page 42: Virtual Keyboard & Front Panel
In input box, you can select input methods. Left click the corresponding button on the panel you can input numeral/English character (small/capitalized). Here ← stands for backspace button. ＿ stands for space button. In English input mode: _stands for input a backspace icon and ← stands for deleting the previous character.
Page 43: Front Panel
Move the cursor to the text column, the text is shown as blue, input button pops up on the right. Click that button to switch between numeral input and English input (capitalized and small), Use > or < to shift between small character and capitalized character. 2.6.2 Front Panel Move the cursor to the text column.
Page 44: Installation And Connections
3 Installation and Connections Note: All the installation and operations here should conform to your local electric safety rules. 3.1 Check Unpacked DVR When you receive the DVR from the forwarding agent, please check whether there is any visible damage. The protective materials used for the package of the DVR can protect most accidental clashes during transportation.
Page 45: Hdd Installation
Step 3: According to Formula (3) to calculate total capacity (accumulation) that is needed for all channels in the DVR during scheduled video recording. In the formula: means total number of channels in one DVR Step 4: According to Formula (4) to calculate total capacity (accumulation) that is needed for all channels in DVR during alarm video recording (including motion detection).
Page 46 Important Shut down the device and then unplug the power cable before you open the case to replace the HDD! All figures listed below for reference only! This series DVR has 1 to 8 HDDs (no limitation for capacity). Please use HDD of 7200rpm or higher.
Page 47 ○ ○ ○ Loosen the screws of the Line up the HDD to the Connect the one end of the HDD upper cover. Remove the four holes cable to the HDD. cover. bracket. Use four screws to fix HDD. ○ ○...
Page 48 ⑤ ⑥ ④ Connect the other end of the Connect the power cable to the Put the cover back and fix the HDD cable to the mainboard. HDD. screws to secure firmly. Important: If the HDD amount is less than four, you do not need to install the HDD bracket. When there is a bracket, please make sure the installation direction of HDDs is the same.
Page 49: Rack Installation
3.3.3 Rack Installation The DVR occupies 1.5U/2U rack units of vertical rack space.  Use twelve screws to fix the unit  Please make sure the indoor temperature is below 35℃ (95° f).  Please make sure there is 15cm (6 inches) space around the device to guarantee sound ventilation.
Page 50: Connecting Audio Input & Output, Bidirectional Audio
following points:  To defer aging, do not allow the pc monitor to run for a long time.  Regular demagnetization will keep device maintain proper status.  Keep it away from strong electromagnetic interference devices. Using TV as video output device is not a reliable substitution method. You also need to reduce the working hour and control the interference from power supply and other devices.
Page 51: Alarm Input And Output Details
3. How to connect PTZ decoder Ensure the decoder has the same grounding with DVR, otherwise you may not control the PTZ. Shielded twisted wire is recommended and the shielded layer is used to connect to the grounding. Avoid high voltage. Ensure proper wiring and some thunder protection measures. For too long signal wires, 120Ω...
Page 52: Alarm Input Port
485 A/B 485 communication port. They are used to control devices such as decoder. 120Ω should be parallel connected between A, B lines if there are too many PTZ decoders. T+,T-,R+,R- They are four-wire full-duplex RS485 port T+ T-: output wire R+ R-: input wire 3.7.2 Alarm Input Port Please refer to the following sheet for more information.
Page 53: Change Dvr Button Battery
Model HFD23/005-1ZS HRB1-S-DC5V switch power Maximum 125V AC/60V DC 125V AC/60V DC switch voltage Maximum switch currency Between 400VAC 1 minute 500VAC 1 minute touches Insulation Between touch 1000VAC 1 minute 1000VAC 1 minute and winding Turn-on Time 5ms max 5ms max Turn-off Time 5ms max...
Page 54: Other Interfaces
485 Port Figure 3-3 3.10 Other Interfaces There are still other interfaces on the DVR, such as USB port.
Page 55: Overview Of Navigation And Controls
4 Overview of Navigation and Controls Note  The figures listed in the following chapters for reference only. Refer to the actual product for detailed information. The operations are the same.  For some functions, please left click mouse to enter the menu contents and right click menu to go back to the previous menu.
Page 56 Figure 4-1 Step 2 Set login password of admin.  User name: The default user name is admin.  Password/confirm password: The password ranges from 8 to 32 digitals. It can contain letters, numbers and special characters (excluding “'”,“"”, “ ;” , “ :” , “&”) .
Page 57 Figure 4-2 Step 4 Set unlock pattern. After set unlock pattern, device goes to password protection interface. See Figure 4-3. Note  The unlock pattern shall at least contain 4 grids.  Device adopts unlock pattern to login by default if you have set pattern here. If there is no unlock pattern, please input the password to login.
Page 58: Reset Password
Step 5 Set security questions. Note  After setting the security questions here, you can use the email you input here or answer the security questions to reset admin password. Refer to chapter 4.1.3 Reset password for detailed information.  Cancel the email or security questions box and then click Next button to skip this step.
Page 59 Figure 4-4 Figure 4-5 Step 2 Click  If you have not input email address information when you are initializing the device, the interface is shown as in Figure 4-6. Please input an email address and then click Next button, devices goes to Figure 4-7.
Page 60  If you have input email when you are initializing the device, device goes to Figure 4-7. Figure 4-6 Figure 4-7 Step 3 Reset login password. There are two ways to reset the password: Scan QR code and reset by email/security questions (local menu only) ...
Page 61 In Figure 4-7, follow the prompts on the interface to scan the QR code, and then input the security code you get via the assigned email. WARNING  For the same QR code, max scan twice to get two security codes. Refresh the QR code if you want to get security code again.
Page 62 Figure 4-9 Step 5 Input new password and then confirm. WARNING STRONG PASSWORD RECOMMENDED-For your device own safety, please create a strong password of your own choosing. The password shall be at least 8-digit containing at least two types of the following categories: letters, numbers and symbols.
Page 63: Quick Settings
Figure 4-10 Figure 4-11 4.1.4 Quick Settings The startup wizard and the configuration wizard can guide you to complete the basic settings so that the device can work properly.
Page 64  Startup wizard: After initialize the device, system goes to the startup wizard interface. See Figure 4-12.  Configuration wizard: On the preview interface, right click mouse and then click configuration wizard. The setting items are the same as the startup wizard. Figure 4-12 Note ...
Page 65 Figure 4-13 Figure 4-14 Step 2 Draw the unlock pattern or input the user password. Device enters startup wizard after login. After setting current page, click Next to set parameters WARNING...
Page 66  Five times login failure may result in account lock. For each login failure, system pops up remain attempt amount.  In case you forgot unlock pattern, click Forgot unlock pattern in Figure 4-13. Device goes to Figure 4-14 for you to input password. 4.1.4.1 General Besides startup...
Page 67 Figure 4-15 Step 3 Click Apply or Save to complete setup. 4.1.4.1.2 Date and Time Step 1 Click Date and Time tab. Enter date and time interface. See Figure 4-16. Step 2 Set parameters.  Date format: There are three types: YYYYY-MM-DD: MM-DD-YYYYY or DD-MM-YYYY.
Page 68 Figure 4-16 Step 3 Click Apply or Save to complete setup. 4.1.4.1.3 Holiday Step 1 Click Holiday tab. Enter holiday interface. See Figure 4-17.
Page 69 Figure 4-17 Step 2 Click Add new holiday button. Enter Add new holiday interface. See Figure 4-18. Figure 4-18 Step 3 Input new holiday information. It is to set holiday name, repeat mode and start/end time.
Page 70 Note Click Add more to add more holidays if necessary. Step 4 Click Add button. Device goes back to Figure 4-17 to display the new holiday. Note  The new holiday state is on by default. Select from the dropdown list to disable.
Page 71  Main Network Card: Please select eth0/eth1 (optional).after enable multiple access function. Note: Some series support the above three configurations and supports functions as multiple-access, fault-tolerance and load balancing.  IP Version: There are two options: IPv4 and IPv6. Right now, system supports these two IP address format and you can access via them.
Page 72 Figure 4-19 Step 3 Click Apply or Save to complete setup. 4.1.4.3 P2P You can add a device via the client on the cellphone or the platform.  You can use your cell phone to scan the QR code and add it to the cell phone client. ...
Page 73 Figure 4-20 Here we use cell phone APP to continue. Step 1 Use cell phone to scan the QR code and download the APP. Step 2 After installation, run the APP and Live Preview, enter the main interface. Now you can add device to the APP. Open App;...
Page 74 Figure 4-21 4.1.4.4 Registration Note You can only see the registration interface if you have set IP channel (Chapter 4.16.3). The DVR supports ONVIF standard protocol. It is to add/delete the camera to the corresponding channel and view the corresponding information.
Page 75 You can click other items to view information conveniently. For the network device already added to the device, you can see there is a small icon “*” after the SN in case there is repeatedly add operation.  Add: Click it to connect to the selected device and add it to the Added device list. Support Batch add.
Page 76 Enter Registration interface. See Figure 4-23. Step 2 Click IP search and check the Uninitialized box. Device displays uninitialized camera. Figure 4-23 Step 3 Select a camera to be initialized and then click Initialize button. Device displays password setup interface. See Figure 4-24 and Figure 4-25.
Page 77 Figure 4-24 Figure 4-25...
Page 78 Step 4 Set camera password.  Using current device password and email: Check the box to use DVR current admin account and email information. There is no need to set password and email. Please go to step 7.  User name/password: The user name is admin. The password ranges from 8 to 32 digitals.
Page 79 Cancel the box and then click Next or Skip if you do not want to input email information here. Step 7 Click Next button. Enter Modify IP address interface. See Figure 4-27. Figure 4-27 Step 8 Set camera IP address。 ...
Page 80 Note  This series product supports the IPC from many popular manufactures such as Sony, Hitachi, Axis, Samsung, Dynacolor, Arecont, Onvif and Dahua.  System default IP address is 192.168.0.0 if you do not input IP address. System will not add current IP address.
Page 81 Figure 4-29 4.1.4.4.4 Organize videos It is to set customized preview channel sequence. Step 1 Click organize videos button. Enter Organize videos interface. See Figure 4-58. Note Click to view the camera video.
Page 82 Figure 4-30 Step 2 Select a channel. Step 3 Click Move up or Move down, Step 4 Click Save to set remote device channel sequence. In Figure 4-31, it is to move the original channel 8 to channel 9. Figure 4-31...
Page 83 4.1.4.4.5 Modify or Delete Device  Click or double click a device in the added list. Device pops up the following dialogue box. See Figure 4-32. Figure 4-32 Select a channel from the dropdown list and change the parameters. ◇ Click Copy, device pops up the following dialogue box.
Page 84  Select one or several device(s) in the added list, click Delete button to delete. Check the box before the channel number to select all channels at the same time. 4.1.4.4.6 Change IP It is to change camera IP address. Support change one by one or batch add. ...
Page 85 Figure 4-35 Click Add button and then click OK, it is to add devices to the list, 4.1.4.4.7 IP Export System can export the Added device list to your local USB device. Step 1 Insert the USB device and then click the Export button. Enter the following interface.
Page 86 Step 3 Please click OK button to exit. Note The exported file extension name is .CVS. The file information includes IP address, port, remote channel number, manufacturer, user name and password. 4.1.4.4.8 IP Import Import IP address to add the camera. Step 1 Click Import button.
Page 87 4.1.4.5 Encode It is to set video bit streams, image bit streams, and video overlay parameters. Besides startup wizard configuration wizard, from main menu->Setting->Camera->Encode, you can also go to the following interface. 4.1.4.5.1 Encode Step 1 Click Encode tab. Enter Encode interface. See Figure 4-38. Step 2 Set parameters.
Page 88 Figure 4-38 4.1.4.5.2 Snapshot It is set snapshot mode for each channel, and picture size, quality and frequency. Step 1 Click Snapshot tab, enter the following interface. See Figure 4-39. Step 2 Set parameters.  Manual snap: The manual snapshot amount. The value ranges from 1 to 5. ...
Page 89 Figure 4-39 Step 3 Click Apply or Save to complete setup. 4.1.4.5.3 Overlay It is to set preview or monitor cover-area, and time/channel title position. Step 1 Click Overlay tab, interface is shown as in Figure 4-40. Step 2 Set parameters. ...
Page 90 Figure 4-40 Figure 4-41 Step 3 Click Apply or Save to complete setup. 4.1.4.5.4 Video PIP PIP (Picture in picture) is to overlay the video from other channel(s) on current channel. It can realize PIP function during the preview or encode process. It is suitable for the realtime surveillance and record search and playback.
Page 91 Step 2 Set parameters.  P0: It means there is no overlay channel.  P1: There is one overlay channel.  P2: There are two overlay channels. Note You can set two P1 or one P2. Step 3 Click Set button, you can use your mouse to set the overlay video to the corresponding position.
Page 92 It is to manage HDD storage space. Besides startup wizard configuration wizard, from main menu->Setting->Storage->Basic, you can also go to the following interface. Step 1 From main menu->Setting->Storage->Basic. Enter Basic interface, See Figure 4-43. Step 2 Set parameters.  HDD full: It is to select working mode when hard disk is full. There are two options: stop recording or rewrite.
Page 93 4.1.4.7 Schedule Besides startup wizard configuration wizard, from main menu->Setting->Storage->Schedule, you can also go to the following interface. Note  You need to have proper rights to implement the following operations. Please make sure the HDDs have been properly installed. ...
Page 94 Figure 4-44  Set record type. See Figure 4-113. Figure 4-45  Please draw manually to set record period. There are six periods in one day. See Figure 4-46. Figure 4-46...
Page 95 Figure 4-47 Figure 4-48 Step 3 Click Apply to exit. Note After setting in the Schedule interface, please refer to the following contents to enable schedule record function.
Page 96  From main menu->Setting->Event, select corresponding event and then enable record function. Refer to chapter 4.14 Alarm events for detailed information.  From main menu->Setting->Storage->Record, set record mode as auto. Refer to chapter 4.8 Record and Snapshot for detailed information. 4.1.4.7.2 Snapshot Device snapshots images as you set here.
Page 97: Preview
 In the main menu, from Main menu->Setting->Storage->HDD Manager, you can set one or more disk(s) as redundant. You can select from the dropdown list. System auto overwrites old files once hard disk is full. Please note only read/write disk or read-only disk can backup file and support file search function, so you need to set at least one read-write disk otherwise you cannot record video.
Page 98: Preview Control
Figure 4-50 Icon Function When current channel is recording, system displays this icon. When motion detection alarm occurs, system displays this icon. When video loss alarm occurs, system displays this icon. When current channel is in monitor lock status, system displays this icon.
Page 99 Figure 4-51 Analog Channel Figure 4-52 Digital Channel 4.2.2.1 Instant playback It is to playback the previous 5-60 minutes record of current channel. Please go to the Main menu->Setting->->System->General to set instant playback time. The preview control function has the following features. ...
Page 100  Right now, system does not support slow playback and backward playback function. You can follow the contents listed below for the operation instruction. During instant playback interface:  System supports play, pause, exit and drag function.  In preview playback mode, system may shield current channel title and record information.
Page 101: Right-Click Menu
4.2.2.8 Registration (For digital channel only) It is a shortcut menu. Click it to go to the Registration interface to add/delete remote device or view its corresponding information. Please refer to chapter 4.1.4.4 for detailed information. 4.2.3 Right-Click Menu On the preview interface, right click mouse, you can view menu interface shown as in Figure 4-53.
Page 102: Window Switch
 Main menu: Go to system main menu interface. Figure 4-53 4.2.4 Window Switch System supports 1/4/8/9/16-window (The options here depend on your product channel amount). You can select from the dropdown list. See Figure 4-54. Figure 4-54 4.2.5 Video Color It is to set analog channel video color.
Page 103 If it is the IP channel, right click mouse and click Color, system pops up IPC config interface. Refer to chapter 4.16.1 for detailed information. Step 1 On the preview window, right click mouse and then select Color. Enter the following interface. See Figure 4-55. Figure 4-55 Please refer to the following sheet for detailed information.
Page 104 Item Note There are two options: Open/close.  Open: Auto exposure according to the environment light. It is to view the darkest object in the image.  Close: Close BLC. It is to set the white balance mode. It has effect on the general hue of the video.
Page 105: Image
Item Note bright section may over exposure .The recommended value ranges from 40 to 60. Saturation It is to adjust monitor window saturation. The value ranges from 0 to 100. The default value is 50. The larger the number, the strong the color is. This value has no effect on the general brightness of the whole video.
Page 106 Figure 4-56 Please refer to the following sheet for detailed information. Item Note Video standard Please select according to your actual situation. There are two options:PAL/NTSC. Resolution It is to set video resolution: 720P@25, 720P@30,1080P@25,1080P@30,4MP@25,4MP@30,4K@12,4K@15, 4M@25,4M@30. Note The loop device supports 4MP@25,4MP@30,4K@12,4K@15,4M@25,4M@30.
Page 107: Auto Focus
Item Note Contrast It is to adjust monitor window contrast. The default value is 7. The larger the number, the higher the contrast is. You can use this function when the whole video bright is OK but the contrast is not proper. Please note the video may become hazy if the value is too low.
Page 108: Preview And Display
Figure 4-57 4.2.8 Preview and Display It is to display preview video effect including image display mode, OSD and etc. 4.2.8.1 Display Output On the preview interface, right click mouse and then select video output mode, there are two options: full screen (4:3) and original scale 16:9). Current output mode is checked .
Page 109  Screen 2: It refers to the screen connected to the HDMI2 port. Check the box here to view the video from the network work camera; otherwise, it only displays the video from the analog camera.  Screen No.: Select a screen from the dropdown list and then you can set resolution. ...
Page 110 Enter TV adjust interface. See Figure 4-60. Figure 4-60 Step 2 Drag slide bar to adjust each item. Step 3 Click Apply or Save to complete setup. 4.2.8.4 Zero-Channel Encoding It is to enable and set zero-channel encoding function so that you can view several video sources at one channel from WEB.
Page 111: Tour
Figure 4-61 Step 4 Click Apply or Save to complete setup. If this function is disabled, you cannot operate zero-channel encoding function at the WEB, the video is black or null even you operate when the function is disabled. After you enabled this function, login the Web and you can select zero-channel encoding mode at the right corner of the interface .
Page 112  Add: Under specified window split mode, click it to add channel group.  Delete: Click it to remove selected channel group.  Move up: Click it to move current selected channel up.  Move down: Click it to move current selected channel down. ...
Page 113  Resolution: The resolution of the tour window. Please note this function is for HDMI only.  Split: You can select window split mode from the dropdown list. For BNC, it supports 1-split mode only. For HDMI, it supports 1/4/9/16-split mode. Some series product support 24/36-split.
Page 114: Search Human Face (Optional)
Figure 4-65 Step 3 Click Apply or Save to complete setup. 4.3 Search Human Face (Optional) Note This function is for some series product only. On the preview window, right click mouse and then select face search, or from the main menu, click Face search, you can go to the following interface.
Page 115: Fisheye
Name Function Display It is to display human face detection file list. The latest file is at the  bottom.  Click Export, you can export the selected file to the USB device. There are two types: image/record.  Image: Export the recognized human face image. ...
Page 116 There are three installation modes: ceiling mount/wall mount/ground mount. The different installations modes have different de-warp modes. Please refer to the following sheet for detailed information. Installation modes Icon Note 360° panorama original view （ Ceiling 1 de-warp window+1 panorama stretching mount）...
Page 117: Fisheye De-Warp During Playback
change the position of the small images on the right pane to realize fisheye de-warp. Please use the mouse to zoom in/zoom out, move/rotate the image. (Please note this function is not for wall mount mode) 4.4.2 Fisheye De-Warp During Playback Step 1 On the main menu, click Search button.
Page 118: Ptz Control
PTZ Control Note  Make sure the PTZ camera and the DVR network connection is OK and the corresponding settings are right.  Slight difference may be found on the user interface. 4.6.1 PTZ Settings Step 1 Set PTZ camera address. Step 2 Connect DVR and PTZ camera.
Page 119: Ptz Operation
Figure 4-70 For digital channel, the interface is shown as below. See Figure 4-71. Figure 4-71 Step 4 Click Apply or Save to complete setup. 4.6.2 PTZ Operation...
Page 120 The PTZ setup is shown as in See Figure 4-72. Please note the commend name is grey once device does not support this function. The PTZ operation is only valid in one-window mode. Here you can control PTZ direction, speed, zoom, focus, iris, preset, tour, scan, pattern aux function, light and wiper, rotation and etc.
Page 121: Coaxial Control
etc. See Figure 4-74. Figure 4-74 Please refer to the following sheet for detailed information. Please note the above interface may vary due to different protocols. The button is grey and cannot be selected once the current function is null. Right click mouse or click the ESC button at the front panel to go back to the Figure 4-72.
Page 122: Set Ptz Functions
Figure 4-75  Mode 2: For all HDCVI cameras. Click , you can view menu operation interface. See Figure 4-76. Click the Enter button; you can see the OSD menu of the HDCVI camera. See Figure 4-75. Use direction buttons to select the parameters and click the “OK” to confirm. Figure 4-76 Note Coaxial cable control is not for all cameras.
Page 123 Figure 4-77 Please refer to the following sheet for detailed information. Please note the above interface may vary due to different protocols. The button is grey and cannot be selected once the current function is null. Right click mouse or click the ESC button at the front panel to go back to the Figure 4-72.
Page 124 Preset Setup In Figure 4-78, click preset button and use eight direction arrows to adjust camera to the proper position. The interface is shown as in Figure 4-79. Click Set button and then input preset number. Click Set button to save current preset. Figure 4-79 Tour Setup In Figure 4-78, click tour button.
Page 125: Call Ptz Functions
In Figure 4-81, click End button. Figure 4-81 Scan Setup In Figure 4-78, click Scan button. See Figure 4-82. Use direction buttons to set camera left limit and then click Left button. Use direction buttons to set camera right limit and then click Right button. Now the scan setup process is complete.
Page 126: Navigation Bar
Call Tour In Figure 4-74, input tour value and then click to call a tour. Click again to stop call. Call Scan In Figure 4-74, input Scan value and then click to call a tour. Click again to stop call. Rotate In Figure 4-74, click to enable the camera to rotate.
Page 127: Main Menu
On the preview window, left click mouse, you can see the navigation bar is shown as below. See Figure 4-84. Figure 4-84 4.7.1 Main Menu Click button to go to the main menu interface. 4.7.2 Output Screen Select corresponding window-split mode and output channels. 4.7.3 Previous/Next Screen Click to go to the previous screen, click...
Page 128 Figure 4-86 In Figure 4-85, click Edit favorites; you can see an interface shown as in Figure 4-87. Check the corresponding box and then select Delete, you can remove specified item(s). Figure 4-87 Double click a name; you can change its name. See Figure 4-88. Input a new name and then click OK button.
Page 129: Channel
Figure 4-88 4.7.6 Channel It is to pop up channel tree. You can left click to select a channel on the tree and then drag it to the preview window on the left pane. See Figure 4-89. Figure 4-89...
Page 130: Ptz
4.7.7 PTZ Click , system goes to the PTZ control interface. Please refer to chapter 4.6. 4.7.8 Color Click button , system goes to the color interface. Please refer to chapter 4.2.8. 4.7.9 Search Click button , system goes to search interface. Please refer to chapter 4.9. 4.7.10 Alarm Status Click button , system goes to alarm status interface.
Page 131: Hdd Manager
Click , system goes to the network interface. It is to set network IP address, default gateway and etc. Please refer to chapter 4.11. 4.7.14 HDD Manager ， system goes to the HDD manager interface. It is to view and manage HDD Click information.
Page 132 CAUTION Please make sure you have storage right before use the manual reord function. Install the format HDD on the DVR before you use this function The record priority is: Alarm>Motion detect>Regular. 4.8.1.1 Schedule Record System can record regularly as you specified. ...
Page 133 In main menu, from Setting-> Schedule->Record interface, please enable record function and then select regular mode and set corresponding period. See Figure 4-93. Figure 4-93 4.8.1.2 Event/Alarm Record System can record video once corresponding event occurs. 4.8.1.2.1 Event record For event record function, here we use motion detection alarm to follow. From Main menu->Setting->Video detect->Motion detect, you can set motion detect alarm record function.
Page 134 Figure 4-94 4.8.1.2.2 Alarm record From Main menu->Setting->Alarm->Local, you can set local alarm record function. See Figure 4-95. Figure 4-95...
Page 135: Snapshot
4.8.2 Snapshot 4.8.2.1 Schedule Snapshot  On the preview interface, right click mouse and then select Manual->Record, or in the main menu, from Setting->Storage->Record, check the box to enable snapshot function of corresponding channels. See Figure 4-96.  In main menu, from Setting->Camera->Encode->Snapshot interface, here you can input snapshot mode as regular, size, quality and frequency.
Page 136 Figure 4-97 Figure 4-98 4.8.2.2 Trigger Snapshot Please follow the steps listed below to enable the activation snapshot function. After you enabled this function, system can snapshot when the corresponding alarm occurs.
Page 137  In main menu, from Setting->Camera->Encode->Snapshot interface, here you can input snapshot mode as trigger, size, quality and frequency. See Figure 4-99.  In main menu, from Setting->Video detect->Motion detect, please enable snapshot function for specified channels (Figure 4-100). Or In main menu, from Setting->Event->Alarm (Figure 4-101) please enable snapshot function for specified channels.
Page 138 Figure 4-100 Figure 4-101 4.8.2.3 Priority Please note the activation snapshot has the higher priority than schedule snapshot. If...
Page 139: Search And Playback
you have enabled these two types at the same time, system can activate the activation snapshot when an alarm occurs, and otherwise system just operates the schedule snapshot. 4.8.2.4 Image FTP In the main menu, from Setting->Network->FTP, you can set FTP server information. Please enable FTP function and then click save button.
Page 140 Figure 4-103 Please refer to the following sheet for more information. SN Name Function Here is to display the searched picture or file. Display Support 1/4/9/16-window playback. (It depends on the product window channel amount). Playback Please refer to chapter 4.9.2.1 for detailed information. control pane...
Page 141 SN Name Function Time bar It is to display the record type and its period in current search criteria.  In 4-window playback mode, there are corresponding four time bars. In other playback mode, there is only one time bar. ...
Page 142 SN Name Function Playback Playback mode：1/4/9/16-channel. Customized channel supports mode channel you desired. (It may vary due to different series.)  channel Select window split mode selection 1/4/9/16-channel. (It may vary due to different series.) ◇ pane. Click to go to full-screen. Right click mouse to exit ◇...
Page 143 SN Name Function Time ●The option includes: 、、和，. The unit smaller the unit, the larger the zoom rate. You can accurately set the time in the time bar to playback the record. The time bar is beginning with 0 o'clock when you are setting the configuration.
Page 144 Icon Function Click the snapshot button in the full-screen mode, the system can snapshot 1 picture. System supports custom snap picture saved path. Please connect the peripheral device first, click snap button on the full-screen mode, you can select or create path. Click Start button, the snapshot picture can be saved to the specified path.
Page 145 Figure 4-106 Step 2 Select backup device and then set channel, file start time and end time. Step 3 Click add button, system begins search. All matched files are listed below. System automatically calculates the capacity needed and remained. See Figure 4-107.
Page 146: Smart Search Playback
Step 5 Click Start button, system begins copy. At the same time, the backup button becomes stop button. You can view the remaining time and process bar at the left bottom. See Figure 4-108. Figure 4-108 Note During backup process, you can click ESC to exit current interface for other operation. The system will not terminate backup process.
Page 147: Mark Playback
（NTSC）). Step 3 Click to go to smart search and playback. System is going to playback all motion detect record footages. Step 4 Click again to stop smart search function. 4.9.4 Mark Playback When you are playback record, you can mark the record when there is important information.
Page 148: Playback Image
Click the mark manager button on the Search interface (Figure 4-103); you can go to Mark Manager interface. See Figure 4-110. System can manage all the record mark information of current channel by default. You can view all mark information of current channel by time.
Page 149: File List
For the large record file, you can use splice playback function to play the same file in several sections at the same time. It is very convenient for you to find the video footages you desire. Step 1 On the main menu, click Search button, or right click mouse and then select Search. Enter Search interface.
Page 150 Figure 4-112  Check a file name, double click file or click to play.  Input accurate time at the top column, you can search records of current day.  System max displays 128 record files in one list.  Click to go back to the calendar/channel selection interface.
Page 151: Other Aux Functions
Note The file is writing or is overwriting cannot be locked.  Click you can view the locked file. See Figure 4-113. Figure 4-113  Select a file in the above figure and then click Unlock. 4.9.8 Other Aux Functions 4.9.8.1 Digital Zoom In 1-window playback mode, left click mouse to select any zone on the screen, you can zoom in current zone.
Page 152: Usb Device Auto Pop-Up
Figure 4-114 4.10.2 USB Device Auto Pop-up After you inserted the USB device, system can auto detect it and pop up the following dialogue box. It allows you to conveniently backup file, log, configuration or update system. See Figure 4-115. Please refer to chapter 4.10.1 File backup, chapter 4.20.4 Log, chapter 4.18.2 Import/export, and chapter 4.18.4 Upgrade for detailed information.
Page 153: Network
4.11 Network 4.11.1 TCP/IP From main menu->Setting->Network->TCP/IP, you can go to the following interface. The single network adapter interface is shown as in Figure 4-116 and the dual network adapters interface is shown as in Figure 4-117. For detailed information, please go to chapter 4.1.4.2.
Page 154: Connection
4.11.2 Connection It is to set port max amount and port value. Step 1 From main menu->Setting->Network->Connection. Enter setup interface. See Figure 4-118. Step 2 Set parameters.  Max connection: The max client login amount (such as WEB, platform, cellphone and etc).
Page 155: Wifi
4.11.3 WIFI After setting WIFI, device can connect network camera via WIFI. There is no need to connect network cable. It can lower device installation difficulty and is convenient to use the device. Step 1 From main menu->Setting->Network->WIFI. Enter WIFI interface. See Figure 4-119. Step 2 Set parameters.
Page 156: G/4G
After device successfully connected to the WIFI, you can view the hotspot name, IP address, subnet mask, default gateway and etc. 4.11.4 3G/4G Step 1 From main menu->Setting->Network->3G/4G. Enter 3G/4G setup interface. See Figure 4-120. Step 2 Set parameters.  Pane 1: Display 3G/4G signal intensity after you enabled 3G/4G function.
Page 157: Pppoe
Figure 4-120 Step 3 Click Apply or Save to complete setup. 4.11.5 PPPoE Use PPPoE(Point-to-Point Protocol over Ethernet) to establish network connection. Device can get a dynamic IP address in the WAN. Before the operation, please contact your ISP (Internet service provider) for PPPoE user name and password. Step 1 From main menu->Setting->Network->PPPoE.
Page 158: Ddns
If the DDNS type is Dahua DDNS, there is no need to register DDNS.  If the DDNS type is not Dahua DDNS, please go to the corresponding DDNS website to register user name, password, domain name and etc. Note...
Page 159 Check the box to enable DDNS function and then input corresponding parameters. If the DDNS type is Dahua DDNS:  DDNS type: CN99 DDNS, NO-IP DDNS, Dahua DDNS, Dyndns DDNS and sysdns DDNS.  Address: For Dahua DDNS, the default address is www.dahuaddns.com. It is read-only.
Page 160: Sync Time
 Dyndns DDNS is members.dyndns.org.  NO-IP DDNS is dynupdate.no-ip.com.  CN99 DDNS is members.3322.org.  Domain: The domain name registered on the DDNS service provider website.  User name/password: Input the user name and password got from the DDNS service provider. Make sure you have logged in the DDNS service provider website to register an account (user name and password).
Page 161: Email
Step 4 Click Apply or Save to complete setup. Note If the DVR has enabled NTP service, the device will sync time with the NTP server regularly. The sync or change time operation of the IP address in the whitelist will be invalid, unless the NTP server and the IP address in the whitelist is the same.
Page 162: Upnp
Figure 4-124 Step 3 Click Apply or Save to complete setup. 4.11.9 UPnP The UPNP protocol is to establish a mapping relationship between the LAN and the WAN. Preparation  Login the router, set router WAN IP address.  Enable router UPnP function. ...
Page 163  Internal port：Port that has been mapped in the router.  External port：Port that has been mapped locally.  Default: UPNP default port setting is the HTTP, TCP and UDP of the DVR.  Add to the list: Click it to add the mapping relationship. ...
Page 164: Snmp
Figure 4-126 Step 4 Click Apply or Save to complete setup. After setting UPnP, open the browser and then input http://WAN IP：External IP port to access the device. Step 5 4.11.10 SNMP SNMP is an abbreviation of Simple Network Management Protocol. It provides the basic network management frame of the network management system.
Page 165: Multicast
Figure 4-127 Step 2 Set parameters.  Enable: Check the box to enable SNMP function.  Version: Check the box and then select version. DVR can process the corresponding version information.  SNMP port: The agent applications listening port on the DVR. ...
Page 166 device amount has reached the threshold. In this situation, please set multicast IP to use multicast protocol to access. Step 1 From main menu->Setting->Network->Multicast. Enter multicast interface. See Figure 4-128. Step 2 Set parameters.  Enable: Check the box here to enable multicast function. ...
Page 167: Register
Figure 4-129 4.11.12 Register This function allows the device to auto register to the proxy you specified. In this way, you can use the client-end to access the DVR and etc via the proxy. Here the proxy has a switch function. In the network service, device supports the server address of IPv4 or domain.
Page 168: Alarm Center
Figure 4-130 Step 3 Click Apply or Save to complete setup. 4.11.13 Alarm Center It is to set alarm center server. Once there is an alarm event, system can send out the alarm to the alarm center. Please refer to chapter 4.14 Alarm events to set upload function.
Page 169: P2P
Figure 4-131 Step 3 Click Apply or Save to complete setup. 4.11.14 You can use cellphone client or the management platform to access the device.  You can use your cell phone to scan the QR code and add it to the cell phone client. ...
Page 170: Account Manager
Figure 4-132 4.12 Account Manager It is to manage users, user group and ONVIF user, set admin security questions. Note  For the user name, the string max length is 31-byte, and for the user group, the string max length is 15-byte. The user name can only contain English letters, numbers and “_”...
Page 171 Figure 4-133 Step 2 Click Add user button in Figure 4-133. The interface is shown as in Figure 4-134. Figure 4-134...
Page 172 Step 3 Input the user name, password, select the group it belongs to from the dropdown list. Then you can check the corresponding rights for current user. Note For convenient user management, usually we recommend the general user right is lower than the admin account.
Page 173: Modify User
Figure 4-136 Step 7 Click OK button. 4.12.2 Modify user From main menu->Setting->System->Account->User, click , you can go to the following interface to change user information. See Figure 4-137.
Page 174 Figure 4-137 For admin user, you can change the email, enable/disable unlock pattern, change password prompt question, set security questions. See Figure 4-138. Figure 4-138...
Page 175: Change Password
 Input email information and then click Save, it is to set/change email address.  Check the box to enable unlock pattern and then click , click Save to change unlock pattern.  Set security question Step 1 Click Security question, enter the following interface. See Figure 4-139. Figure 4-139 Step 2 Input answers and then click Save button.
Page 176: Add/Modify Group
STRONG PASSWORD RECOMMENDED-For your device own safety, please create a strong password of your own choosing. We also recommend you change your password periodically especially in the high security system. 4.12.4 Add/Modify Group Step 1 From main menu->Setting->System->Account->Group. Enter add group interface. See Figure 4-140. Figure 4-140 Step 2 Click add group button in Figure 4-140.
Page 177: Onvif User
Figure 4-141 4.12.5 ONVIF User When the camera from the third party is connected with the DVR via the ONVIF user, please use the verified ONVIF account to connect to the DVR. Here you can add/delete/modify user Note The default ONVIF user is admin. It is created after you initialize the DVR. Step 1 From main menu->Setting->System->Account->ONVIF User.
Page 178 Figure 4-142 Step 2 Click Add user button. Enter Add user interface. See Figure 4-143. Figure 4-143 Step 3 Set user name, password and then select group from the dropdown list. Step 4 Click Save to complete setup.
Page 179: Voice Manager
Note Click to change user information, click to delete current user. 4.13 Voice Manager The audio function is to manage audio files and set schedule play function. It is to realize audio broadcast activation function. 4.13.1 File Manager It is to add audio file, listen to the audio file, or rename/delete audio file. Here you can also set audio volume.
Page 180: Schedule
Figure 4-145 Step 3 Click OK button. 4.13.2 Schedule It is to set schedule broadcast function. You can play the different audio files in the specified periods. Step 1 From main menu->Setting->System->Voice->Schedule. Enter Schedule interface. See Figure 4-146. Step 2 Set parameters.
Page 181: Alarm Events
Figure 4-146 4.14 Alarm Events CAUTION For the channel connected to the analog fisheye, the intelligent function is null. Please refer to the interface of your purchased product for detailed information. 4.14.1 Video Detect Video detect includes motion detect, video loss, tampering, scene changing, diagnosis.
Page 182 on by default. The motion detect event occurs when these two function are enabled at the same time. If the PIR function is disabled, check the enable box to enable the general motion detect function. Note The channel type shall be CVI if you want to enable PIR function. ◇...
Page 183  Latch: when motion detection complete, system auto delays detecting for a specified time. The value ranges from 1-300(Unit: second)  Show message: System can pop up a message to alarm you in the local host screen if you enabled this function. ...
Page 184 Figure 4-147 Figure 4-148...
Page 185 Figure 4-149 Figure 4-150...
Page 186 Figure 4-151 Step 3 Click Apply or Save to complete setup. 4.14.1.2 Video Loss This function allows you to be informed when video loss phenomenon occurred. You can enable alarm output channel and then enable show message function. Step 1 From main menu->Setting->Event->Video detect->Video loss.
Page 187 Figure 4-152 Step 2 Video loss does not have region and sensitivity. Please refer to chapter 4.14.1.1 motion detection for detailed information. Note Camera anti-dither: Once the video loss alarm disappears in the specified period, system does not trigger an alarm. Step 3 Click Apply or Save to complete setup.
Page 188 Figure 4-153 Step 2 Please refer to chapter 4.14.1.1 motion detection for detailed information. Step 3 Click Apply or Save to complete setup. 4.14.1.4 Scene Changing When the detected scene has changed, system can generate an alarm. Step 1 From main menu->Setting->Event->Video detect->Scene change. Enter scene changing interface.
Page 189 Figure 4-154 Step 2 Please refer to chapter 4.14.1.1 motion detection for detailed information. Step 3 Click Apply or Save to complete setup. 4.14.1.5 Diagnosis System can trigger an alarm when the stripe, noise, color cast, out of focus, over exposure event occurred.
Page 190 Figure 4-155 Step 2 Select a channel from the dropdown list and check the box to enable this function. Step 3 Click the Rule Set button, or move the cursor to Set button and then click the Enter button on the front panel, the interface is shown as below. See Figure 4-156.
Page 191: Smart Plan (Optional)
value is higher than the threshold you set here. Figure 4-156 Step 5 Click OK to save threshold settings. Enter diagnosis interface. Step 6 Please refer to chapter 4.14.1.1 motion detection for detailed information Step 7 Click Apply or Save to complete setup. 4.14.2 Smart Plan (Optional) The smart plan is for the smart network camera.
Page 192: Ivs (Optional)
Figure 4-157 Step 2 Select a channel number from the dropdown list and set the smart plan. Step 3 Click Apply or Save to complete setup. 4.14.3 IVS (Optional) Please contact your service engineer or local retailer if you cannot use IVS function. Once any object violate the rule, the DVR can trigger an alarm and alert you as the specified alarm mode.
Page 193 Figure 4-158 Step 2 Select a channel from the dropdown list. Step 3 Click Add button to add a rule and then select a rule type from the dropdown list. Step 4 Set corresponding parameters. Step 5 Check the box to enable current rule. Step 6 Click Apply or Save to complete setup.
Page 194 Figure 4-159 Step 2 Draw tripwire. Click Draw button to draw the tripwire. See Figure 4-160. Figure 4-160...
Page 195 Select direction, and then input customized rule name.  Name: Input customized rule name.  Direction (L→R/R→L/Both): System can generate an alarm once there is any object crossing in the specified direction.  Target filter: Click , you can set filter object size. Each rule can set two sizes (min size/max size).
Page 196  Tour: Here you can enable tour function when an alarm occurs. Please go to main menu->Setting->System->Display->Tour to set tour type and interval (chapter 4.2.9)  Snapshot: You can enable this function to snapshot image when a motion detect alarm occurs. ...
Page 197 Figure 4-162 Step 5 Click OK button in Figure 4-161. Device goes back to Figure 4-159. Step 6 Check the Enable box to enable tripwire function. Click Apply or Save to complete setup. Device begins tripwire detection. 4.14.3.2 Intrusion (Cross warning zone) (Optional) System generates an alarm once there is any object entering or exiting the zone in the specified direction.
Page 198 Figure 4-163 Step 2 Draw the zone. Click draw button to draw the zone. See Figure 4-164. Figure 4-164...
Page 199 Select direction, and then input customized rule name.  Name: Input customized rule name.  Action: You can set intrusion action: appear/cross.  Direction (Entry/Exit/Both): System can generate an alarm once there is any object crossing in the specified direction. ...
Page 200 Figure 4-165 Step 2 Draw the zone. Click draw button to draw the zone. See Figure 4-166. Figure 4-166...
Page 201 Set parameters.  Name: Input customized rule name.  Period: System can generate an alarm once the object is in the zone for the specified period.  Target filter: Click , you can set filter object size. Each rule can set two sizes (min size/max size).
Page 202 Figure 4-167 Step 2 Draw the zone. Click Draw button to draw a zone. See Figure 4-168. Figure 4-168...
Page 203: Face Detection (Optional)
Set parameters.  Name: Input customized rule name.  Period: System can generate an alarm once the object in the zone is missing for the specified period.  Target filter: Click , you can set filter object size. Each rule can set two sizes (min size/max size).
Page 204: People Counting (Optional)
Figure 4-169 4.14.5 People Counting (Optional) System can calculate the entry/exit people amount in the specified zone. It can generate an alarm when the amount has exceeded the threshold. Step 1 From main menu->Setting->Event->People counting. Enter people counting interface. See Figure 4-170. Step 2 Set parameters.
Page 205: Audio Detect
Figure 4-170 Step 3 Click Apply or Save to complete setup. Note After you set the people counting function, from main menu->Info->Event->People counting, you can view people counting statistics report. Please refer to chapter 4.20.2.2 for detailed information. 4.14.6 Audio Detect System can generate an alarm once it detect the audio input is abnormal or audio volume changes.
Page 206: Smart Track (Optional)
 Intensity change: Check the box here, system can generate an alarm once the audio volume becomes strong.  Sensitivity: It refers to the audio recognition sensitivity. The higher the value is, the higher the sensitivity is.  Threshold: It is to set intensity change threshold. The smaller the value is, the higher the sensitivity is.
Page 207 Step 1 From Main menu->Setting->Event->Smart track. Enter smart track interface. See Figure 4-172. Figure 4-172 Step 2 Add monitor position and set fisheye+PTZ camera relationship. Click Add button. Enter add interface. See Figure 4-173.
Page 208 Figure 4-173 Select fisheye channel and PTZ camera channel, set monitor position name and set parameters.  Type: Here you can select smart track mode. It includes: 1 fisheye+1 PTZ camera/1 fisheye+2 PTZ cameras/1 fisheye+3 PTZ cameras.  Monitor name: It is the monitor position. Input customized monitor position name.
Page 209 Figure 4-174 On the fisheye displayed zone, left click mouse or move to confirm the position. On the PTZ camera displayed zone, use the following buttons to adjust the PTZ camera position. Button Function Zoom 、 Focus 、 Iris 、 Electronic mouse, move it on the interface to control the PTZ direction.
Page 210: Alarm Settings
Click add button and then click to save. One group position setting is complete; you can view at the list. See Figure 4-175. Figure 4-175 Repeat the above steps (Step 2-4) to set at least three group positions. Note  For one PTZ camera, there must be four calibration groups.
Page 211 are two ways for you to set periods. There are max 6 periods in one day. There are four record types: regular, motion detection (MD), Alarm, MD & alarm.  In Figure 4-178, Select icon of several dates, all checked items can be edited together.
Page 212 activation snapshot when alarm occurs, and otherwise system just operates the schedule snapshot.  Video matrix: Check the box here to enable this function. When an alarm occurs, VIDEO OUTPUT port displays device video output. It displays video (1-window tour) from alarm activation channel you select at the Record channel interface.
Page 213 Figure 4-177 Figure 4-178...
Page 214 Figure 4-179 4.14.8.2 Network Alarm Network alarm refers to the alarm signal from the network. Step 1 From Main menu->Setting->Event->Alarm->Net. Enter network alarm interface. See Figure 4-180. Figure 4-180...
Page 215 Step 2 Refer to chapter 4.14.8.1 Local alarm to set parameters. Step 3 Click Apply or Save to complete setup. 4.14.8.3 HDCVI Alarm System can get the camera temperature, smoke, external alarm and set corresponding alarm activation operation. This function is null if the camera does not support the alarm function.
Page 216 Figure 4-182 Step 3 Check the box to add alarm input channel. The displayed alarm input channel amount here depends on the camera amount. Step 4 Click Add button to add alarm and then click Exit button. System goes back to Figure 4-181. Check to set alarm parameters.
Page 217 Figure 4-183 Step 2 Please refer to chapter 4.14.8.1 Local alarm to set parameters. Step 3 Click Apply or Save to complete setup. 4.14.8.5 IPC Offline Alarm Once you select this item, system can generate an alarm when the front-end IPC disconnects with the local DVR.
Page 218: Abnormality
Figure 4-184 Step 2 Please refer to chapter 4.14.8.1 Local alarm to set parameters. Step 3 Click Apply or Save to complete setup. 4.14.9 Abnormality Step 1 From main menu->Setting->Event->Abnormality. Enter abnormality interface. See Figure 4-185. Step 2 Click the corresponding tab, select event type and set corresponding actions. ...
Page 219  Show message: system can pop up the message in the local screen to alert you when an alarm occurs.  Alarm upload: System can upload the alarm signal to the network (including alarm center) if you enabled current function. For disconnection event, IP conflict event and MAC conflict event, this function is null.
Page 220 Figure 4-186 Figure 4-187...
Page 221 Figure 4-188 Figure 4-189...
Page 222: Alarm Output
4.14.10 Alarm Output It is to set alarm output mode. There are three modes: Auto/manual/stop. Step 1 From Main menu->Setting->Event->Alarm output. Enter alarm output interface. See Figure 4-190. Step 2 Set parameters.  Auto: The corresponding event triggers the alarm output or cancels alarm. ...
Page 223: Ftp
 To prevent files be overwritten in the future, you can set HDD as read-only.  To backup recorded video file, you can set HDD as redundant HDD. Figure 4-191 4.15.2 FTP It is to backup record file or image to the FTP to storage or view. Before the operation, please download or purchase the FTP service tool and install on the Note For the FTP user, please set FTP folder write right, otherwise system cannot upload the...
Page 224  If there is remote directory, system can create corresponding folder under the FTP root path and then create different folders according to IP address, time and channel.  File length: File length is upload file length. When setup is larger than the actual file length, system will upload the whole file.
Page 225: Hdd Group
Figure 4-192 4.15.3 HDD Group 4.15.3.1 Advanced It is to set HDD group, and HDD group setup for main stream, sub stream and snapshot operation 4.15.3.1.1 HDD CAUTION HDD group and quota mode cannot be valid at the same time. System needs to restart once you change the mode here.
Page 226 Figure 4-193 Step 3 Select the correspond group from the dropdown list. Step 4 Click main stream/sub stream/snapshot button to set corresponding HDD group information. See Figure 4-194.
Page 227 Figure 4-194 Figure 4-195...
Page 228: Quota
Figure 4-196 Step 5 Click Apply or Save to complete setup. 4.15.4 Quota It is to set channel storage capacity. CAUTION HDD group and quota mode cannot be valid at the same time. System needs to restart once you change the mode here. Step 1 From main menu->Setting->Storage->Quota.
Page 229: Hdd Detect
Figure 4-197 Step 2 Select a channel from the dropdown list and then select corresponding HDD quota. Step 3 Click Apply or Save to complete setup. Step 4 Click Statistics to view HDD capacity you set for each channel. See Figure 4-198. Figure 4-198 4.15.5 HDD Detect...
Page 230 The HDD detect function is to detect HDD current status so that you can clearly understand the HDD performance and replace the malfunction HDD. 4.15.5.1 Detect Step 1 From main menu->Setting->Storage->HDD Detect->Detect. Enter detect interface. See Figure 4-199. Figure 4-199 Step 2 Select detect type and HDD.
Page 231 Figure 4-200 Step 2 Click View, you can see the detailed information such as detect result, backup and S.M.A.R.T. See Figure 4-201 and Figure 4-202 . Figure 4-201...
Page 232: Raid
Click Backup to USB device to save detection result to the connected UDB device. Figure 4-202 4.15.6 RAID Note RAID function is for some series product only. The RAID (redundant array of independent disks) management can compost the independent HDDs together to provide larger space as the logic HDD. It can enhance system I/O performance, data usage and data security.
Page 233 Step 1 From main menu->Setting->Storage->RAID->RAID. Enter RAID interface. See Figure 4-203. Step 2 Select to create RAID manually or use one click to create RAID, and then set RAID type.  One click to create RAID Click it to automatically create RAID5. ◇...
Page 234 Figure 4-203 4.15.6.2 RAID Info It is to display RAID name, space, type, member HDD, hotspare HDD, status and etc. From main menu->Setting->Storage->RAID->RAID info, enter RAID info interface. See Figure 4-204.
Page 235 Figure 4-204 4.15.6.3 Hotspare Disk In this interface you can add/delete hotspare HDD if you have set RAID. Step 1 From main menu->Setting->Storage->RAID->Hotspare disk. Enter hotspare disk interface. See Figure 4-205.
Page 236 Figure 4-205 Step 2 Click to set corresponding disk to the hotspare disk. See Figure 4-206.  Private hotspare: Please select the RAID disk to be added. It becomes the hotspare disk of the specified RAID. Please note only the RAID5 supports private hotspare. ...
Page 237: Iscsi
Click the to delete the hotspare disk. 4.15.7 iSCSI Note iSCSI function is for some series product only. Comparing with traditional HDD storage, iSCSI has large storage space and is easy to manage. You can set the network mapping HDD so that device can storage audio/video on the network HDD.
Page 238: Channel Manager
Step 3 Click Ok button. Add the information to the iSCSI list. Note Click the modify/delete button to change or remove the iSCSI HDD. Step 4 Click Save to complete the add process. From the main menu->setting->Storage-> HDD manage, you can see the corresponding interface.
Page 239  Mirror: It is to switch video up and bottom limit. This function is disabled by default.  Flip: It is to switch video left and right limit. This function is disabled by default. If you want to flip 90° , the resolution shall not be higher than 720P. ...
Page 240: Channel Name
Figure 4-208 Figure 4-209 4.16.2 Channel Name...
Page 241: Channel Type
It is to change channel name. Please note for digital channel, you can only modify the channel name of the connected network camera. Step 1 From main menu->Setting->Camera->CAM name. Enter channel name interface. See Figure 4-210. Figure 4-210 Step 2 Input new channel name. Step 3 Click Apply or Save to complete setup.
Page 242 Figure 4-211 Figure 4-212  Analog channel (CVBS signal or HDCVI signal and etc.): Please select the corresponding cable and then save. There is no need to reboot.
Page 243: System Settings
 Device supports IP channel. The network camera connection shall begin with the last channel. Please note DVR needs to restart to activate new setup. Note Add IP channel function refers to the extra IP channel amount except current channel total amount (analog+IP).
Page 244: Pos
Figure 4-213 4.17.2 POS Connect the DVR with the POS, the DVR can receive the POS information and overlay corresponding info on the video. Note  For the local-end, this function supports one-window display and playback only. For the Web, it supports multiple-window display and payback. ...
Page 245 Figure 4-214 Step 2 Click Add button. Enter config interface. See Figure 4-215. Step 3 Check the box to enable POS function and set parameters.  Name: Input POS name. Note The POS device name shall be unique. ◇ POS device name max supports 63-digit. ◇...
Page 246 Figure 4-215 Figure 4-216...
Page 247: Security
Figure 4-217 Step 4 Click Apply or Save to complete setup. Note In Figure 4-214, click to change setup, click to delete POS setup. 4.17.3 Security To enhance device network security and protect device data, please set the access right of the IP host (IP host here refers to the IP PC or the server).
Page 248 before the item, and then current item is not in the list. System max supports 64 items. Address column supports IPv4 or IPv6 format. If it is IPv6 address, system can optimize it. For example, system can optimize aa:0000: 00: 00aa: 00aa: 00aa: 00aa: 00aa as aa:: aa: aa: aa: aa: aa: aa.
Page 249: System Maintain
Figure 4-219 4.18 System Maintain 4.18.1 Auto Maintain It is to set auto-reboot time during the spare period if the device is running for a long time. It is to enhance device operation speed. Step 1 From main menu->Setting->System->Auto maintain. Enter auto maintain interface.
Page 250: Import/Export
4.18.2 Import/Export It is to import/export system configuration. You can use this function when there are several devices need the same setup. Step 1 From main menu->Setting->System->Import/export. Enter Import/export interface. See Figure 4-221. Step 2 Insert peripheral device.  Export: Please connect the peripheral device first and then go to the following interface.
Page 251: Default
4.18.3 Default Note The default function is for admin user only. It is to restore system to the factory default user. (Select item(s) on the interface to restore specified data.) From main menu->Setting->System->Default. Enter Default interface. See Figure 4-222. Figure 4-222 ...
Page 252: Remote Device Manager
Figure 4-223 4.19 Remote Device Manager It is to view remote device running status and upgrade the network camera. 4.19.1 Connection Status It is to view the status of the corresponding network camera channel such as motion detect, video loss, tampering, alarm and etc. From main menu->Setting->Camera->Remote->Status, enter status interface.
Page 253: Firmware
Figure 4-224 4.19.2 Firmware It is to view channel, IP address, manufacturer, type, system version, SN, video input, audio input, external alarm and etc. From main menu->Setting->Camera->Remote->Firmware, you can see the following interface. See Figure 4-225. Figure 4-225...
Page 254: Camera Upgrade
4.19.3 Camera Upgrade It is to update the network camera. Step 1 From main menu->Setting->Camera->Upgrade. Enter upgrade interface. See Figure 4-226. Step 2 Click Browse button and then select the upgrade file. Note Insert the peripheral device than contain the upgrade file. Step 3 Select a channel (or you can select device type filter to select several devices at the same time.)
Page 255 From main menu->Info->System->HDD, enter HDD information interface. See Figure 4-227.  SN: You can view the HDD amount the device connected to. ﹡ means it is current working HDD.  Type: The corresponding HDD properties.  Total space: The HDD total capacity. ...
Page 256 Figure 4-228 4.20.1.2 Record Info It is to view record start time and end time From main menu->Info->System->Record, enter record interface. See Figure 4-229. Figure 4-229 4.20.1.3 Record Estimate...
Page 257 System can calculate the record time based on the HDD space, or you can input the record time you want to calculate the HDD space you need. Step 1 From main menu->Info->System->Record estimation. Enter record estimate interface. See Figure 4-230. Figure 4-230 Step 2 Click...
Page 258 Figure 4-231 Step 3 Record Calculation  Calculate the record period based on the HDD space Check the channel you want to record file. Click Known Space and then click the button to set HDD. Click OK button. Now you can see the record period (such as 5 days). See Figure 4-232. Figure 4-232 ...
Page 259 4.20.1.4 BPS It is to view current video data stream (KB/s) and resolution From main menu->Info->System->BPS, enter BPS interface. See Figure 4-234. Figure 4-234 4.20.1.5 Device Status Note This function is for some series product only. It is to view fan status, power status, CPU usage, temperature and etc. From main menu->Info->System->Status, enter device status interface.
Page 260 Figure 4-235 4.20.1.6 Version It is to view some version information such as version number, built date, serial number and etc From main menu->Info->System->Version, enter version interface. See Figure 4-236. Note The following figure for reference only.
Page 261: Event Info
Figure 4-236 4.20.2 Event Info 4.20.2.1 Event it is to display device status and channel status. From main menu->Info->Event->Event, enter event interface. See Figure 4-237. Figure 4-237...
Page 262 4.20.2.2 People Counting It is to search and view the people counting results of each channel. System can export people counting report. The export file extension name is .bmp. Step 1 From main menu->Info->Event->People Counting. Enter people counting interface. See Figure 4-238. Step 2 Set parameters.
Page 263: Network Info
4.20.3 Network Info 4.20.3.1 Online Users It is to display the connected network user information. Click to disconnect one user or block one user if you have proper system right. Max disconnection setup is 65535 seconds. System detects there is any newly added or deleted user in each five seconds and refresh the list automatically.
Page 264 Figure 4-240 4.20.3.3 Network Test It is to test destination address, backup sniffer packet files. From main menu->Info->Network->Test, network test interface is shown as in Figure 4-241.  Destination IP: Please input valid IPV4 address or domain name.  Test: Click it to test the connection with the destination IP address. The test results can display average delay and packet loss rate and you can also view the network status as OK, bad, no connection and etc.
Page 265: Log Info
name+time”. You can use software such as Wireshark to open the packets on the PC for the professional engineer to solve complicated problems. Figure 4-241 4.20.4 Log Info Note  If there is no HDD, system max supports 10,000 logs. ...
Page 266 Figure 4-242 Figure 4-243 Step 2 Select log type and set start time, end time. Step 3 Click Search. Device displays log information.
Page 267: Shutdown
Step 4 Double click a log. Device displays detailed information. See Figure 4-243. Note Use rolling bar to view information, or use Previous/Next to view other log information. 4.21 Shutdown CAUTION  When device displays “System is shutting down…”, do not press the power on-off button.
Page 268 Auto Resume after Power Failure The system can automatically backup video and resume previous working status after power failure.
Page 269: Web Operation
5 WEB OPERATION Note Slightly difference may be found in the interface due to different series. 5.1 Network Connection Before web client operation, please check the following items: Step 1 Network connection is right Step 2 DVR and PC network setup is right. Please refer to Chapter 5.7.2 Network (main menu->Setting->Network) Step 3 Use order ping ***.***.***.***(* is DVR IP address) to check connection is OK or...
Page 270 Figure 5-1 Step 3 Set login password of admin.  User name: The default user name is admin.  Password/confirm password: The password ranges from 8 to 32 digitals. It can contain letters, numbers and special characters (excluding “'”, “ "”,“;”,“:”, “...
Page 271 Figure 5-2 Step 5 Set security questions. Note  After setting the security questions here, you can use the email you input here or answer the security questions to reset admin password Refer to chapter 5.4 Reset password for detailed information. ...
Page 272: Login
Figure 5-3 5.3 Login Step 1 Open IE and input DVR address in the address column. System pops up warning information to ask you whether install control or not. See Figure 5-4. Figure 5-4 Step 2 Please click Install button, system can auto run the installation. Or follow the prompts to save the installation package and install.
Page 273: Reset Password
Figure 5-5 Step 3 Please input user name and password. Note  Device factory default user name is admin. The password is that you set during initialization process. For your device safety, please change the admin password regularly and keep it well. ...
Page 274 Figure 5-6 Step 2 Click Forgot password, enter the following interface. See Figure 5-7. Figure 5-7 Step 3 Follow the prompts on the interface and then scan the QR code to get the security code. WARNING  For the same QR code, max scan twice to get two security codes. Refresh the QR code if you want to get security code again.
Page 275: Preview
minutes. Step 4 Input the security code on the email and then click Next button. Step 5 Input new password and then confirm. WARNING STRONG PASSWORD RECOMMENDED-For your device own safety, please create a strong password of your own choosing. The password shall be at least 8-digit containing at least two types of the following categories: letters, numbers and symbols.
Page 276 Please refer to chapter 5.5 Preview,, chapter 5.7 setup , chapter 5.8 search, chapter 5.9 Alarm, chapter 5.6 Face search and chapter 5.11 Logout for detailed information. Figure 5-9 5.5.1.2 Real-time Monitor Left click the channel name on the left pane of the main interface; you can see the corresponding video in current window.
Page 277 Name Function Snapshot You can snapshot important video. All images are memorized in system client folder PictureDownload (default). Audio Turn on or off audio. Note: It has no relationship with system audio setup. Close video Close video Fisheye de-warp There are three installation modes: ceiling mount/wall mount/ground mount(180° fisheye supports wall mount only).
Page 278 Installation modes Icon Note 1 360° panorama view+8 de-warp windows 360° panorama original view （Wall mount） Panorama stretching 1 panorama unfolding view+3 de-warp windows 1 panorama unfolding view +4 de warp windows 1 panorama unfolding view +8 de warp windows Open All Open all button is to enable/disable all-channel real-time monitor.
Page 279 In Figure 5-14, you can adjust the color pane on the left pane or use your mouse to change the position of the small images on the right pane to realize fisheye de-warp. Please use the mouse to zoom in/zoom out, move/rotate the image. (Please note this function is not for wall mount mode) 5.5.1.3 Start dialogue You can click this button to enable audio talk.
Page 280 5.5.1.6 Switch monitor window From the left to the right ,you can see video quality/fluency/ full screen/tilt sync/1-window/4-window/6-window/8-window/9-window/13-window/16-window/20-windo w/25-window/36-window.. You can set video fluency and real-time feature priority. See Figure 5-18. Note The following interface may vary due to different series product. Figure 5-18 5.5.1.7 PTZ Before PTZ operation, please make sure you have properly set PTZ protocol.
Page 281 Parameter Function You can turn on or turn off the light/wiper. Light and wiper 3D Intelligent Positioning You can click this icon to display or hide the PTZ control platform. Figure 5-19 5.5.1.8 Image Here you can adjust its brightness, contrast, hue and saturation. (Current channel border becomes green).
Page 282: Wan Login
This function allows you to view several-channel in one window. It supports 1/4/8/9-channel mode. Please go to chapter4.2.8.4(local menu) or chapter 5.7.5.2.4 (Web) to enable zero-channel encoding function first. 5.5.2 WAN Login In WAN mode, after you logged in, the interface is shown as below. See Figure 5-22. Figure 5-22 Please refer to the following contents for LAN and WAN login difference.
Page 283: Setup
On the main interface, click Face search button, you can see an interface shown as below. See Figure 5-23. Figure 5-23 Please refer to the following sheet for detailed information. Name Function Display  It is to display human face detection file list. The latest file is at the bottom.
Page 284 information and upgrade network camera. From main window->Setup->Camera->Registration, registration interface is shown as below. See Figure 5-24. Figure 5-24 5.7.1.1.1 Initialize Camera It is to initialize connected remote device and change its login password and IP address. Steps: Step 1 From main interface->Setting->Camera->Registration.
Page 285 Device displays password setup interface. See Figure 5-26. Figure 5-26 Step 4 Set camera password.  Using current device password and email: Check the box to use DVR current admin account and email information. There is no need to set password and email.
Page 286 Figure 5-27 Step 6 Click Next button. Enter Modify IP address interface. See Figure 5-28. Figure 5-28 Step 7 Set camera IP address。  Check DHCP, there is no need to input IP address, subnet mask, and default gateway. Device automatically allocates the IP address to the camera. ...
Page 287 Note  If it is to change several devices IP addresses at the same time, please input incremental value. Device can add the fourth address of the IP address one by one to automatically allocate the IP addresses.  If there is IP conflict when changing static IP address, device pops up IP conflict dialogue box.
Page 288 Function Manufacturer Please select from the dropdown list. System supports manufactures such as Panasonic, Sony, Dynacolor, Samsung, AXIS, Arecont, LG, Watchnet, PSIA, AirLive, Dahua and Onvif standard protocol. Note Different series products may support different manufacturers, please refer to the actual product.
Page 289 Parameter Function After getting the remote device channel amount, click Setup to select a channel. Remote channel No. Note Click to select one or more remote channel numbers here. The local channel number you want to add. One channel name has Channel corresponding one channel number.
Page 290 Figure 5-31 Step 2 Select a channel. Step 3 Click Move up or Move down, Step 4 Click Save to set remote device channel sequence. In Figure 5-32, it is to move the original channel 17 to channel 18. Figure 5-32 5.7.1.1.5 Modify or Delete Device ...
Page 291 dialogue box. See Figure 5-33. Figure 5-33 Select a channel from the dropdown list and change the parameters. ◇ Click Copy, device pops up the following dialogue box. It is to copy the user name and ◇ password to the selected channel(s). See Figure 4-33. Figure 5-34 ...
Page 292 Step 2 Select the directory and then click the OK button. System pops up a dialogue box to remind you successfully exported. Step 3 Please click OK button to exit. Note The exported file extension name is .CVS. The file information includes IP address, port, remote channel number, manufacturer, user name and password.
Page 293 Figure 5-35 Figure 5-36 Step 2 Set parameters. Parameter Function Channel Please select a channel from the dropdown list. Period It divides one day (24 hours) to two periods. You can set different hue, brightness, and contrast for different periods. It is to adjust monitor video brightness and darkness level.
Page 294 Parameter Function Brightness It is to adjust monitor window brightness. The default value is 50. The larger the number is , the bright the video is. When you input the value here, the bright section and the dark section of the video will be adjusted accordingly.
Page 295 Parameter Function Profile It is to set the white balance mode. It has effect on the general hue of the video. This function is on by default. You can select the different scene mode such as auto, sunny, cloudy, home, office, night, disable and etc to adjust the video to the best quality.
Page 296 Figure 5-37 Step 2 Set parameters. Parameter Function Channel Please select a channel from the dropdown list. SVC is so called scaled video coding. Check the box to enable this function. During the network transmission process, system discards unimportant frames when the bandwidth is not sufficient or the decode capability is low. It is to guarantee video quality and transmission fluency.
Page 297 Parameter Function Compression: System supports H.264H, H.264, H.264B, and MJPEG. Compression  H.264H: It is the High Profile compression algorithm. It has the high encode compression rate. It can achieve high quality encode at low bit stream. Usually we recommend this type. ...
Page 298 Figure 5-38 Step 2 Set parameters. Parameter Function There are two modes: Regular (schedule) and Trigger. Snapshot type  Regular snapshot is valid during the specified period you set.  Trigger snapshot only is valid when motion detect alarm, tampering alarm or local activation alarm occurs. Image size It is the same with the resolution of the main stream.
Page 299 Step 2 Set parameters. Parameter Function Cover-area Check Preview or Monitor first. Click Set button, you can privacy mask the specified video in the preview or monitor video. System max supports 4 privacy mask zones. Time Title You can enable this function so that system overlays time information in video window.
Page 300 Figure 5-41 Step 2 Set parameters. Step 3 Click Save to complete the setup. 5.7.1.5 Channel Type Note Please note this function is for some series product only. Slight different maybe found on the user interface. From main menu->Setting->Camera->Channel type, the interface is shown as below. See Figure 5-42 (HCVR series product) or Figure 5-43(XVR series product).
Page 301: Network
Figure 5-42 Figure 5-43 Note Different channel types support different signal input modes.  Auto: It supports self-adaptive function.  CVI: It supports HDCVI signal input.  AHD: It supports AHD signal input.  CVBS: It support standard definition CVBS signal input. ...
Page 302  If there is a router, please set corresponding gateway and subnet mask. Step 1 From main window->Setup->Network->TCP/IP. Enter TCP/IP interface. The single-Ethernet port interface is shown as in Figure 5-44. The dual-Ethernet port interface is shown as in Figure 5-45. Figure 5-44 Figure 5-45 Step 2...
Page 303 Parameter Function Network mode It includes: single multiple-address, fault tolerance, load balance.  Multiple-address: eth1/eth2 operates separately. You can use the services such as HTTP, RTP service via eth1/eth2. Usually you need to set one default card (default setup is eth1) to request the auto network service from the device-end such as DHCP, email, FTP and etc.
Page 304 Parameter Function It is to set MTU value of the network adapter. The value ranges from 1280-7200 bytes. The default setup is 1500 bytes. The following MTU value is for reference only.  1500: Ethernet information packet max value and it is also the default value.
Page 305 Parameter Function HTTP port The default value is 80. You can input the actual port number if necessary. HTTPS The default value is 443. You can input the actual port number if necessary.  RTSP port The default value is 554. Please leave it in blank if you are using default value.
Page 306 Step 1 From main window->Setup->Network->Connection->HTTPS. Enter HTTPS interface. See Figure 5-47. Figure 5-47 5.7.2.2.3 Create Server Certificate If it is your first time to use this function, please follow the steps listed below. Step 1 From main window->Setup->Network->Connection->HTTPS. Enter HTTPS interface. Step 2 In Figure 5-47, click button, input country name, state...
Page 307 Enter HTTPS interface. Step 2 Click button, system pops up a dialogue box. See Figure 5-50. Figure 5-50 Step 3 Click Open button. Enter Certificate interface. See Figure 5-51. Figure 5-51 Step 4 Click Install certificate button. Enter certificate wizard. See Figure 5-52.
Page 308 Figure 5-52 Step 5 Click Next button to continue. Select a location for the certificate. See Figure 5-53. Figure 5-53 Step 6 Click Next button. Enter certificate import process is complete. See Figure 5-54.
Page 309 Figure 5-54 Step 7 Click Finish button. System pops up a security warning dialogue box. See Figure 5-55. Figure 5-55 Step 8 Click Yes button. The certificate download is complete. See Figure 5-56. Figure 5-56 5.7.2.2.5 View and set HTTPS port From Setup->Network->Connection, you can see the following interface.
Page 310 You can see HTTPS default value is 443. Figure 5-57 5.7.2.2.6 Login Open the browser and then input https://xx.xx.xx.xx:port. xx.xx.xx.xx: is your device IP or domain mane. Port is your HTTPS port. If you are using default HTTPS value 443, you do not need to add port information here.
Page 311 It is to connect to the 3G/4G network to receive alarm information, view device state, audio/video and etc. 5.7.2.4.1 CDMA/GPRS Step 1 From main window->Setup->Network->3G/4G. Enter 3G/4G interface is shown as in Figure 5-59. Note After you connected the 3G/4G module, you can view the module information and wireless signal.
Page 312 Step 4 Click Save button to connect device to 3G/4G network. View the IP address if the connection is OK. 5.7.2.4.2 Mobile Make sure the SIM card and the 3G/4G module supports SMS function. Before you set cellphone, please go to the previous chapter to enable Dial/SMS activate function.
Page 313 If the DDNS type is Dahua DDNS, there is no need to register DDNS.  If the DDNS type is not Dahua DDNS, please go to the corresponding DDNS website to register user name, password, domain name and etc. Steps Step 1 From main interface->Setup->Network->DDNS.
Page 314 3. Input full domain name on the browser and click Enter button. The setting is right if you can view device WEB interface. Otherwise, please check the parameters.  If the DDNS type is not Dahua DDNS, please refer to the following sheet for detailed information. Parameter Function...
Page 315 backup is not the same and cannot record and operate the device. So ,there is need to specify the device and IP host time synchronization mechanism and make sure the device and IP host time is the same. Steps Step 1 From main window->Setup->Network->Sync time right.
Page 316 Figure 5-64 Step 2 Set parameters. Parameter Function Please check the box here to enable email function. Enable Input server address and then enable this function. SMTP Server Port Default value is 25. You can modify it if necessary. Anonymity For the server supports the anonymity function.
Page 317 Parameter Function Please check the box here to enable this function. Health mail enable This function allows the system to send out the test email to Update period check the connection is OK or not. (interval) Please check the box to enable this function and then set the corresponding interval.
Page 318 Parameter Function When the UPNP is offline, it shows as “Searching”. When the UPNP Status works it shows “Success” It is the same information on the UPnP list of the router.  Service name：Defined by user.  Protocol： Protocol type ...
Page 319 Figure 5-66 Step 2 Check the enable box to enable SNMP function. Trap address refers to the PC address that has installed MG-SOFT MIB Browser. The rest settings adopt default setup. Parameter Function SNMP Port The listening port of the proxy program of the device. It is a UDP port not a TCP port.
Page 320 Figure 5-67 Step 2 Check the box to enable this function, input IP address and port. Refer to the following sheet for detailed information. Parameter Function IP address The multicast IP address (0.0.0.0～255.255.255.255). Port The multicast port value(1025～65000). Step 3 Click Save to complete the setup.
Page 321 Figure 5-69 Step 2 Check the box to enable register function, set proxy server address, port, and sub-device name at the device-end. Please enable the auto register function, the device can auto register to the proxy server. Parameter Function Server The server IP address or server domain name you want to address register.
Page 322 You can use cellphone client or the management platform to access the device.  You can use your cell phone to scan the QR code and add it to the cell phone client.  Via the SN from scanning the QR code, you can access the device in the WAN. Please refer to the P2P operation manual included in the resources CD.
Page 323: Event
Figure 5-72 5.7.3 Event CAUTION For the channel connected to the analog fisheye, the intelligent function is null. Please refer to the interface of your purchased product for detailed information. 5.7.3.1 Video detect The video detect includes motion detect, video loss, tampering, scene change and diagnosis.
Page 324 Figure 5-73 Figure 5-74...
Page 325 Figure 5-75 Figure 5-76 Step 2 Set parameters. Parameter Function Enable You need to check the box to enable motion detection function. Please select a channel from the dropdown list. Period Motion detection function becomes activated in the specified periods. See Figure 5-74. There are six periods in one day.
Page 326 Parameter Function System only memorizes one event during the anti-dither period. Anti-Dither The value ranges from 5s to 600s. There are six levels. The sixth level has the highest sensitivity. Sensitivity If you select motion detection type, you can click this button to set Region motion detection zone.
Page 327 Parameter Function Message When 3G/4G network connection is OK, system can send out a message when motion detect occurs. Send Email If you enabled this function, System can send out an email to alert you when an alarm occurs. Tour You need to check the box here to enable this function.
Page 328 Camera anti-dither: Once the video loss alarm disappears in the specified period, system does not trigger an alarm. Step 3 Click Save to complete the setup. 5.7.3.1.3 Tampering After analysis video, system can generate a tampering alarm when the detected moving signal reached the sensitivity you set here.
Page 329 Figure 5-79 Step 2 Refer to chapter 5.7.3.1.1 motion detect for detailed parameter information. Step 3 Click Save to complete the setup. 5.7.3.1.5 Diagnosis System can trigger an alarm when the video stripe, noise, color cast, out of focus, over exposure event occurred.
Page 330 Figure 5-81 Step 3 Select diagnosis item and set alarm threshold (default setup is 30). Parameter Function Stripe The strip occurs when the device is old or there is electronic interference. There may be cross strip, vertical strip, slanting strip and etc. Noise The video noise refers to the blurry video, poor video quality.
Page 331  The IVS, human face detection, and people counting channel amount shall not be over 6. Step 1 From main menu->Setup->Event->Smart plan. Enter smart plan interface. See Figure 5-82. Figure 5-82 Step 2 Select a channel from the dropdown list and then set the smart plan. Step 3 Click OK button to complete the setup.
Page 332 Figure 5-83 5.7.3.3.1 Tripwire System generates an alarm once there is any object crossing the tripwire in the specified direction. Please use according to your actual situation. Note  The tripwire function is valid once your connected network camera or your DVR supports this function.
Page 333 Figure 5-84 Step 3 Click Draw rule button and then left click mouse to draw a tripwire. Right click mouse to complete. See Figure 5-85. Note The tripwire can be a direct line, curve or polygon. Click Clear to delete the tripwire.
Page 334 Figure 5-85 Step 4 Set filter object. Once the object is smaller than the min size or larger than the max size, there is no alarm. After draw the rule, set max size and min size. Click Draw target to draw the rectangle zone. Note ...
Page 335 Note:  The intrusion function is valid once your network camera or your DVR supports this function.  If you want to use the IVS function of the network camera, please make sure your connected network camera supports this function. Step 1 From main menu->Setup->Event->IVS, click to add the rule.
Page 336 Figure 5-87 Step 4 Set filter object. Once the object is smaller than the min size or larger than the max size, there is no alarm. After draw the rule, set max size and min size. Click Draw target to draw the rectangle zone. Note ...
Page 337 Parameter Function Period Set tripwire valid period. System generates an alarm during the specified period. For detailed setups, please refer to chapter 5.7.3.1.1 motion detect. Step 6 Click Save to complete setup. 5.7.3.3.3 Abandoned Object Detect It is to detect there is any abandoned object in the surveillance area for the specified time. Note: ...
Page 338 Figure 5-89 Step 4 Set filter object. Once the object is smaller than the min size or larger than the max size, there is no alarm. 1. After draw the rule, set max size and min size. Click Draw target to draw the rectangle zone. Note ...
Page 339  Support objects filter function. Note:  The missing object detection function is valid once your network camera or your DVR supports this function.  If you want to use the IVS function of the network camera, please make sure your connected network camera supports this function.
Page 340 Figure 5-91 Step 4 Set filter object. Once the object is smaller than the min size or larger than the max size, there is no alarm. After draw the rule, set max size and min size. Click Draw target to draw the rectangle zone. Note ...
Page 341 Enter face detect interface. See Figure 5-92. Figure 5-92 Step 2 Set filter object. Once the object is smaller than the min size or larger than the max size, there is no alarm. After draw the rule, set max size and min size. Click Draw target to draw the rectangle zone.
Page 342 It is to set flow statistic mode and alarm activation items. Step 1 From main menu->Setup->Event->People counting. Enter people counting interface shown as in Figure 5-93. Step 2 Select a channel from the dropdown list and then check the box to enable people counting function.
Page 343 Parameter Function Video matrix Check the box here to enable this function. Right now system supports 1-window tour function and it follows “first come, first server” rule. DVR processes the new triggered tour when the previous alarm ended. Otherwise it resumes the previous tour status before the people counting. Step 5 Click Save button to complete setup.
Page 344  Intensity change: Check the box here, system can generate an alarm once the audio volume becomes strong.  Sensitivity: It refers to the audio recognition sensitivity. The higher the value is, the higher the sensitivity is.  Threshold: It is to set intensity change threshold. The smaller the value is, the higher the sensitivity is.
Page 345 Figure 5-96 Select fisheye channel and PTZ camera channel, set monitor position name and set parameters.  Type: Here you can select smart track mode. It includes: 1 fisheye+1 PTZ camera/1 fisheye+2 PTZ cameras/1 fisheye+3 PTZ cameras.  Monitor name: It is the monitor position. Input customized monitor position name.
Page 346 Figure 5-97 Step 3 Set calibration, set fisheye and PTZ camera relationship. 1. In Figure 5-97, click or double click the line. Enter calibration interface. See Figure 5-98. Figure 5-98 2. On the fisheye displayed zone, left click mouse or move to confirm the position.
Page 347 the same as the position of the fisheye. Note of the PTZ camera is the center position of the video. Button Function Zoom 、 Focus 、 Iris 、 Electronic mouse, move it on the interface to control the PTZ direction. Fast positioning button.
Page 348 the far distance to enhance the trigger accuracy. 6. Click OK button. Calibration setup is complete. Go back to the smart track interface, the status is shown as 5.7.3.8 Alarm Before operation, please make sure you have properly connected alarm devices such as buzzer.
Page 349 Figure 5-101 Figure 5-102 Step 2 Set parameters. Parameter Function Enable You need to check the box to enable this function. Please select a channel from the dropdown list. Period This function becomes activated in the specified periods. There are six periods in one day. Please draw a circle to enable corresponding period.
Page 350 Parameter Function System only memorizes one event during the anti-dither Anti-dither period. The value ranges from 5s to 600s. There are two options: NO/NC. Sensor type Record channel System auto activates motion detection channel(s) to record once an alarm occurs. Please note you need to set alarm record period and go to Storage->...
Page 351 Figure 5-103 Step 2 For setup information, please refer to chapter 5.7.3.8.1 Local alarm. The network alarm does not support anti-dither and device type. Step 3 Click Save to complete the setup. 5.7.3.8.3 HDCVI Alarm HDCVI alarm refers to the camera receive the camera voltage, motion detect and external alarm.
Page 352 Figure 5-105 Step 3 Check the box, select the alarm input channel. The alarm input channel amount depends on the connected camera amount. Step 4 Click Add. Return HDCVI alarm interface. Step 5 Select a channel number; it is to view the added alarm. Step 6 Click to set alarm activation items.
Page 353 Figure 5-106 Step 2 Set parameters. Refer to chapter 5.7.3.8.1 Local alarm for detailed information. Step 3 Click Save to complete the setup. 5.7.3.8.5 IPC Offline Alarm Once the network camera disconnect with the DVR, the device can trigger an alarm. Step 1 From main menu->Setup->Event->Alarm->IPC offline alarm.
Page 354 Step 2 Set parameters. Refer to chapter 5.7.3.8.1 Local alarm for detailed information. Step 3 Click Save to complete the setup. 5.7.3.9 Abnormality Step 1 From main menu->Setup->Event->Abnormality. It includes four types: HDD/Network/User/Device. See Figure 5-108 through Figure 5-111. Figure 5-108 Figure 5-109...
Page 355 Figure 5-110 Figure 5-111 Step 2 Set parameters. Parameter Function Event The abnormal events include: Type  HDD: No disk, disk error, disk no space;  Network: Net disconnection, IP conflict, MAC conflict.  User: Illegal login.  Device: Temperature is too high, fan speed is abnormal. Please note this function is for some series product only.
Page 356 Parameter Function item is for disk no space type only.  Max temperature: You can set max temperature value here. The device can generate an alarm once the device temperature is higher than the threshold you set. This item is for high temperature type only.
Page 357: Storage
Figure 5-112 Step 2 Set alarm mode of each channel. Set parameters. Parameter Function The corresponding event triggers the alarm output or cancels alarm. Auto Forcedly trigger alarm output. Manual Close Forcedly cancel or close alarm output. Here you can view alarm output port status. The alarm is enabled if the Status icon is highlighted.
Page 358 Parameter Function It is to select working mode when hard disk is full. There are two options: HDD full stop recording or rewrite. Stop: If current HDD is full while there is no idle HDD, then system  stops recording, Overwrite: If the current HDD is full while there is no idle HDD, then ...
Page 359 Figure 5-114 Step 2 Set parameters. Parameter Function Select the channel number first. Select “all” if you want to set for the Channel whole channels. Pre-record It is to specify record duration. There are two ways for you to set. Time length: It is to pack according to time.
Page 360 Step 3 Click Setup button. Enter Figure 5-115. Figure 5-115 Step 4 Set record period and date. Step 5 Click Save button. Click the Setup of holiday, it is to set holiday record plan. Please note holiday setting has higher priority than the ordinary date. If current date has set as the holiday, it records as the holiday settings.
Page 361 Figure 5-117. Figure 5-117 Refer to chapter 5.7.4.2.1 Schedule record for detailed information. 5.7.4.3 HDD Manage It is to view HDD information. You can also operate the read-only, read-write, redundancy (if there are more than on HDD) and format operation. From main menu->Setup->Storage->HDD manager, enter HDD manager interface.
Page 362 5.7.4.4 FTP It is to backup record file or image to the FTP to storage or view. Before the operation, please download or purchase the FTP service tool and install on the Note For the FTP user, please set FTP folder write right, otherwise system cannot upload the image.
Page 363 Parameter Function It is the image upload interval. If the image upload interval is larger than the image snapshot frequency, system just uploads the lasted image.  If the image interval is 5 seconds and the snapshot frequency is 2 seconds, system will send out the latest image at the buffer at 5 seconds.
Page 364 Step 2 Set parameters. Parameter Function Here you can view channel number. Channel The number displayed here is the max channel amount of your device. Status There are three statuses: schedule, manual and stop. System enables auto record function as you set in record schedule Schedule setup (general, motion detect and alarm).
Page 365 stream, sub stream, snapshot image to different HDD group. See Figure 5-122, Figure 5-123, Figure 5-124 Figure 5-122 Figure 5-123 Figure 5-124 Step 4 Click Save to complete the setup. 5.7.4.7 Quota...
Page 366 It is to set channel storage capacity. CAUTION HDD group and quota mode cannot be valid at the same time. System needs to restart once you change the mode here. Step 1 From main menu->Setup->Storage->Quota. Enter quota interface. See Figure 5-125. Figure 5-125 Step 2 Select a channel from the dropdown list and then select corresponding HDD...
Page 367 For create RAID function, you can select the physical HDD that does not included in the RAID group or the created disk array to create a RAID5. You can refer to the following situations:  There is no RAID, no hotspare disk: System directly creates the RAID5 and creates one hotspare disk at the same time.
Page 368 Click OK button to complete the operation. 5.7.4.8.2 RAID Info It is to display RAID name, space, type, member HDD, hotspare HDD, status and etc. From main menu->Setup->Storage->RAID->RAID info, you can go to the following interface. See Figure 5-127. Figure 5-127 5.7.4.8.3 Hotspare disks In this interface you can add/delete hotspare HDD if you have set RAID.
Page 369 The type includes two options:  Global: It is global hotspare disk. When any RAID becomes degrading, it can replace and build the RAID.  Local: It is local hotspare disk. When the specified RAID becomes degrading, it can replace and build the RAID. Step 3 Click OK to complete hotspare disk setting.
Page 370: Setting
Step 3 Click Add and then input the parameters. Click OK button. Step 4 Click Refresh to get the state as connected. Step 5 From Setup->Storage->HDD manager, go to the HDD manager interface to view iSCSI storage information. 5.7.5 Setting 5.7.5.1 General The general interface includes general, date/time and holiday setup.
Page 371 Parameter Function Here is for you to set auto logout interval once login user remains inactive Auto logout for a specified time. Value ranges from 0 to 60 minutes. You can input an interval here to synchronize the DVR time and IPC time. IPC Time Sync Navigation bar Check the box here, system displays the navigation bar on the interface.
Page 372 Parameter Function Check the box to enable NTP function. Set the time server address. NTP server  Check the NTP box to enable this function.  Host IP: Input the server IP that installed the NTP server.  Manual update: Click it, you can sync DVR time with the NTP server manually.
Page 373 Figure 5-134 Step 3 Click Save. The new holiday state is on by default. Select from the dropdown list to disable. Note  Once the holiday settings is different the general date, the holiday settings has priority.  After successfully set holiday here, you can view holiday item in Schedule interface.
Page 374 Parameter Function Please select a screen number from the dropdown list. Screen number  System supports the following resolutions: Resolution 1920×1080,1280×1024,1280×720,1024×768,2560×1440,3840× 2160@25fps,3840×2160@30fps.  The default VGA/ HDMI1/HDMI2 resolution is 1280×1024.  Please note the system needs to reboot to activate new setup. ...
Page 375 It is to set tour interval, split mode, motion detect tour and alarm tour mode. Step 1 From main menu->Setup->System->Display->Tour. Enter tour interface is shown as in Figure 5-137. Figure 5-137 Step 2 Set parameters. Parameter Function Please select a screen number from the dropdown list. Screen number Check the box here to enable tour function.
Page 376 Figure 5-138 Step 2 Set parameters. Parameter Function This function is disabled by default. Check the box here to enable Enable this function so that you can control the zero-channel encoding function at the WEB. Compression System default setup is H.264. You can set according to device capability.
Page 377 Figure 5-139 Step 2 Set parameters. Parameter Function Enable Check the box here to enable this function. Interval It is to set the interval from current channel group to the next channel group. Window split Please select from the dropdown list. Please note the different series products support different window split mode.
Page 378 Figure 5-141. You can change the setup and then click OK button. Figure 5-141 Adjust channel group sequence. Click to change channel sequence. 5.7.5.4 RS232 Step 1 From main menu->Setup->System->RS232. Enter RS232 interface. See Figure 5-142. Figure 5-142 Step 2 Set parameters.
Page 379 Parameter Function Parity There are five options: none/odd/even/space/mark. Default setup is none. Step 3 Click Save to complete the setup. 5.7.5.5 PTZ Before setup, please check the following connections are right:  PTZ and decoder connection is right. Decoder address setup is right. ...
Page 380 Parameter Function You can select control mode from the dropdown list. There are two Control mode options: Serial/HDCVI. For HDCVI series product, please select HDCVI. The control signal is sent to the PTZ via the coaxial cable. For the serial mode, the control signal is sent to the PTZ via the RS485 port.
Page 381 Enter Add interface. See Figure 5-146. Figure 5-146 Step 3 In Figure 5-146, click the Enable box to enable POS function and then set parameters. Parameter Function Name Input POS name. System max supports 63 English letters. Connection type This is for net mode only. Click Setup button, you can set source IP (POS IP address), port is the POS port.
Page 382 Figure 5-147 In Figure 5-146, click Channel button at the bottom of the interface, select a channel you want to overlay POS information and then click Save button. See Figure 5-148. Figure 5-148 Step 4 Click Save to complete the setup. Note ...
Page 383 Figure 5-149 Step 2 Click Select audio button, you can add audio file and import the audio file via the local computer. See Figure 5-150. Figure 5-150 Step 3 Click Open button. Device goes back to Figure 5-149. Click Save button. 5.7.5.7.2 Schedule It is to set schedule broadcast function.
Page 384 Figure 5-151 Step 2 Set parameters. Parameter Function There are six periods. Check the box to enable current setup. Period It is to set audio file repeat times in the specified period. Repeat It is the audio file repeated interval in the specified period. Interval There are two options: MIC (default)/audio.
Page 385 Figure 5-152 Add user It is to add a name to group and set the user rights. Step 1 Click Add user button. Enter add user interface. See Figure 5-153. Step 2 Here you can input the user name and password and then select one group for current user.
Page 386 Figure 5-154  Click Setting to set the periods. Or you can draw on the interface directly. There are six periods in one day. Or you can input start time and end time directly.  Check the box before the date, the settings are for the selected date(s). ...
Page 387 Figure 5-155 Note For admin, you can change the email information. See Figure 5-156..
Page 388 Figure 5-156 Modify password It is to modify the user password. Step 1 In Modify user interface, click Modify password box. See Figure 5-157.
Page 389 Figure 5-157 Step 2 Input old password, and then input new password and confirm. Step 3 Click Save button. Note The password ranges from 8 to 32 digitals. It can contain letters, numbers and special characters (excluding “'”,“"”,“;”,“:”,“&”) . The password shall contain at least two categories.
Page 390 Figure 5-158 Add group It is to add group and set its corresponding rights. Step 1 Click Add group button. Enter add group interface. See Figure 5-159. Figure 5-159 Step 2 Input the group name and then check the box to select the corresponding rights. It includes: system, playback, and monitor.
Page 391 Figure 5-160 Step 2 Change corresponding information and then click Save button. 5.7.5.8.3 ONVIF User When the camera from the third party is connected with the DVR via the ONVIF user, please use the verified ONVIF account to connect to the DVR. Step 1 From main menu->Setting->System->Account->ONVIF User.
Page 392 Figure 5-162 Step 3 Set user name, password and then select group from the dropdown list. Step 4 Click Save to complete setup. Note Click to change user information, click to delete current user. 5.7.5.9 Auto maintain It is to set auto-reboot time during the spare period if the device is running for a long time. It is to enhance device operation speed.
Page 393 5-164. Figure 5-164 Please refer to the following sheet for detailed information. Parameter Function It is to import the local setup files to the system. Import It is to export the corresponding WEB setup to your local PC. Export 5.7.5.11 Default Note This function is for admin user only.
Page 394: Security
 Improper upgrade program may result in device malfunction! Step 1 From main menu->Setting->System->Upgrade. Enter upgrade interface. See Figure 5-166. Figure 5-166 Step 2 Click Browser to select upgrade file. Step 3 Click Upgrade to begin. Device needs to reboot after upgrade. 5.7.6 Security To enhance device network security and protect device data, please set the access right of the IP host (IP host here refers to the IP PC or the server).
Page 395: Playback
 Edit: Click it to edit start address and end address. See Figure 5-168. System can check the IP address validity after the edit operation and implement IPv6 optimization.  Default: Click it to restore default setup. In this case, the trusted sites and blocked sites are both null.
Page 396: Search Record
Figure 5-169 5.8.1 Search Record Please set record type, record date, window display mode and channel name.  Select Date You can click the date on the right pane to select the date. The green highlighted date is system current date and the blue highlighted date means it has record files. ...
Page 397 Figure 5-171 Step 2 Select one or more channel(s) and then click to search record(s).  System supports one or more channels. The window split mode can auto adjust according to the channel amount. System max supports 16-split.  Click button to select all channels at the same time.
Page 398: Mark Playback
Check the corresponding box to select record type. See Figure 5-173. Figure 5-173  In one-window playback mode, click you can hide or display POS information.  File clip It is to clip some footages to save in the USB device or peripheral device. The interface is shown as in Figure 5-174.
Page 399 Step 1 When system is playback, click Mark button , you can go to the following interface. See Figure 5-176. Figure 5-176 Step 2 Input a name and then click OK button. You can view current file in the mark file list.
Page 400: Splice Playback
Input time at the top of the interface and then click to search mark file(s).  Play before mark time Here you can set to begin playback from previous N seconds of the mark time. Usually, system can playbacks previous N seconds record if there is such kind of record file.
Page 401: Fisheye Playback De-Warp
4-channel series product supports 4-splice mode. The 8-channel series product support 8-splice mode. The 16-channel or higher series product supports 16-splice mode. Figure 5-179 Note  The splice playback is for 1-window playback mode.  Device supports 1/4/8/16-window splice playback. ...
Page 402: Playback
Figure 5-180 5.8.6 Playback Select a file you want to play and then click Play button, system can begin playback. You can select to playback in full-screen. Please note for one channel, system cannot playback and download at the same time. You can use the playback control bar to implement various operations such as play, pause, stop, slow play, fast play and etc.
Page 403: Load More
Figure 5-181 5.8.8 Load more It is to search record or picture. Select record channel, record type and record time to download. Or you can use watermark function to verify file. 5.8.8.1 Download By File Step 1 Click Download by file tab. Enter Download by file interface.
Page 404 Step 3 Check the file(s) you want to download and there are two options for you to save the file(s).  Download to local Click Download to local, system pops up the following interface to set record format and saved path. See Figure 5-183. Figure 5-183 Click OK to download and view the download process.
Page 405 Step 1 Select channel number, bit stream type, start time, end time. Step 2 Click Download by time button. Enter download by time interface is shown as in Figure 5-185. Step 3 Select record format, and file save path. Click OK button. Device displays file download process and begins download.
Page 406: Lock Or Unlock File
Figure 5-186 5.8.9 Lock or Unlock File On the playback interface, click File list button, you can view file list (Figure 5-180.). Select a file first and then click lock button . You can lock it in case it is overwritten in the future.
Page 407: Information
Note Differen series products may support different alarm types. The following figure for reference only. Click alarm function, you can see an interface is shown as Figure 5-188. Here you can set device alarm type and alarm sound setup (Please make sure you have enabled audio function of corresponding alarm events.).
Page 408: Log
Figure 5-189 5.10.2 Log 5.10.2.1 System Log Note  If there is no HDD, system max supports 10,000 logs.  If you have connected to the formatted HDD, system max supports 500,000 logs.  System operation logs are saved in system memory. Other types of logs are saved in the HDD.
Page 409: Online User
Step 2 Set start time, end time, and type. Step 3 Click Search. Device displays log list. Note Select logs on the list and then click Backup, select save path to backup logs to the local PC. 5.10.2.2 Developer Log It is to save COM information so that the engineer can quickly find the problem.
Page 410: Hdd
5.10.4 HDD It is to view HDD information such as state, free space, total space, bad track and etc. From main menu->Info->HDD, the HDD interface is shown as in Figure 5-193. Figure 5-193 View S.M.A.R.T Info Figure 5-193, double click S.M.A.R.T icon , you can go to the following interface.
Page 411: Network Sniffer
Figure 5-195 Note Click Refresh to view the latest HDD information. 5.10.5 Network Sniffer It is to backup network sniffer files. The backup data can be used for the engineer from the R&D or the installer to analyze the network status. Step 1 From main menu->Info->Network Sniffer.
Page 412: Log Out
Step 1 From Info->Event->Report. Enter Report interface. See Figure 5-197. Figure 5-197 Step 2 Set parameters. Parameters Function Channel Select a channel from the dropdown list to search people counting result. Report type Select report type from the dropdown list. It includes daily report, monthly report, and annual report.
Page 413: Un-Install Web Control
Figure 5-198 5.12 Un-install Web Control You can use web un-install tool “uninstall web.bat” to un-install web control. Please note, before you un-installation, please close all web pages, otherwise the un-installation might result in error.
Page 414: Smartpss
6 SmartPSS Besides Web, you can use our Smart PSS to login the device. For detailed information, please refer to Smart PSS user’s manual.
Page 415: Faq
7 FAQ 1. DVR cannot boot up properly. There are following possibilities:  Input power is not correct.  Power connection is not correct.  Power switch button is damaged.  Program upgrade is wrong.  HDD malfunction or something wrong with HDD ribbon. ...
Page 416  DVR and monitor resistance is not compatible.  Video transmission is too long or degrading is too huge.  DVR color or brightness setup is not correct. 6. Cannot search local records. There are following possibilities:  HDD ribbon is damaged. ...
Page 417  PTZ decoder setup, connection or installation is not correct.  Cable connection is not correct.  PTZ setup is not correct.  PTZ decoder and DVR protocol is not compatible.  PTZ decoder and DVR address is not compatible. ...
Page 418  MAC address conflict.  PC or DVR network card is not good. 16. Burn error /USB back error. There are following possibilities:  Burner and DVR are in the same data cable.  System uses too much CPU resources. Please stop record first and then begin backup.
Page 419  Camera quality is too low. Lens is dirty. Camera is installed against the light. Camera aperture setup is not correct.  HDD capacity is not enough.  HDD is damaged. 22. Cannot playback the downloaded file. There are following possibilities: ...
Page 420 There are following possibilities:  Check the camera is online or not.  Check IP channel setup is right or not (such as IP address, user name, password, connection protocol, port number.).  The camera has set the whitelist (Only the specified devices can connect to the camera).
Page 421  Check DNS setup is right or not. Default Google DNS server is 8.8.8.8, 8.8.5.5. You can use different DNS provided by your ISP. 34. I can not use the P2P function on my cell phone or the WEB. There are following possibilities: ...
Page 422  Please use the brush to clean the board, socket connector and the chassis regularly.  The device shall be soundly earthed in case there is audio/video disturbance. Keep the device away from the static voltage or induced voltage.  Please unplug the power cable before you remove the audio/video signal cable, RS232 or RS485 cable.
Page 423: Appendix A Hdd Capacity Calculation
Appendix A HDD Capacity Calculation Calculate total capacity needed by each DVR according to video recording (video recording type and video file storage time). Step 1: According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit Mbyte. ...
Page 424 448K 196M 512K 225M 640K 281M 768K 337M 896K 393M 1024K 450M 1280K 562M 1536K 675M 1792K 787M 2048K 900M...
Page 425: Appendix B Compatible Backup Devices
Appendix B Compatible backup devices Appendix B-1 Compatible USB list Manu factor Model Capacity Sandisk Cruzer Micro 512M Sandisk Cruzer Micro Sandisk Cruzer Micro Sandisk Cruzer Freedom 256M Sandisk Cruzer Freedom 512M Sandisk Cruzer Freedom Sandisk Cruzer Freedom DataTraveler Ⅱ Kingston DataTraveler Ⅱ...
Page 426: Appendix B-2 Compatible Sd Card List
Kingston Data Traveler 32GB Aigo L8315 16GB Sandisk 16GB Kingston Data Traveler Locker+ 32GB Netac U228 Appendix B-2 Compatible SD Card list Brand Standard Capacity Card type Transcend SDHC6 16GB Kingston SDHC4 Kingston Kingston Sandisk SDHC2 Small Sandisk Small Appendix B-3 Compatible Portable HDD list Brand Model Capacity...
Page 427: Appendix B-6 Compatible Sata Hdd List
Samsung TS-H653 Ver.F Samsung SH-224BB/CHXH SONY DRU-V200S SONY DRU-845S SONY AW-G170S Pioneer DVR-217CH Appendix B-6 Compatible SATA HDD List NOTE: Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. Here we recommend HDD of 500G to 4T capacity. Port Manufacturer Series...
Page 428 Seagate Seagate Pipeline HD2 ST31000322CS SATA Seagate Seagate Pipeline HD2 ST1000VM002 SATA Seagate Seagate Pipeline HD2 ST1500VM002 SATA Seagate Seagate Pipeline HD2 ST2000VM002 SATA Seagate Seagate Pipeline HD2 ST2000VM003 SATA Seagate Seagate Constellation ST3500514NS 500G SATA Seagate Seagate Constellation ST31000524NS SATA Seagate Seagate Constellation...
Page 429 Westem Digital Cariar SE WD2500JS 250G SATA Westem Digital Cariar SE16 WD7500KS 750G SATA Westem Digital Cariar SE16 WD5000KS 500G SATA Westem Digital Cariar SE16 WD4000KD 400G SATA Westem Digital Cariar SE16 WD3200KS 320G SATA Westem Digital Cariar SE16 WD2500KS 250G SATA Westem Digital...
Page 430 Hitachi HitachiCinemaStar™ HCP725050GLA380 500G SATA 5K500 Hitachi HitachiCinemaStar™ HCT721050SLA360 500G SATA 7K1000.B Hitachi HitachiCinemaStar™ HCT721075SLA360 750G SATA 7K1000.B Hitachi HitachiCinemaStar™ HCT721010SLA360 SATA 7K1000.B Maxtor DiamondMax 20 STM3320820AS 320G SATA Maxtor DiamondMax 20 STM3250820AS 250G SATA...
Page 431 Appendix C Compatible CD/DVD Burner List NOTE: Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. And you can use the USB cable with the model recommended to set USB burner. Manufacturer Model Port Type Type Sony...
Page 432: Appendix D Compatible Displayer List
Appendix D Compatible Displayer List Please refer to the following sheet form compatible displayer list. Brand Model Dimension (Unit: inch) BENQ（LCD） ET-0007-TA 19-inch (wide screen) DELL（LCD） E178FPc 17-inch Q7T4 17-inch BENQ（LCD） BENQ（LCD） Q7T3 17-inch LXB-L17C 17-inch HFNOVO（LCD） 22 寸(wide screen) SANGSUNG（LCD）...
Page 433: Appendix E Compatible Switcher
Appendix E Compatible Switcher Brand Model network working mode D-LinK DES-1016D 10/100M self-adaptive D-LinK DES-1008D 10/100M self-adaptive Five network modes 1. AUTO 2. HALF-10M Ruijie RG-S1926S 3. FULL-10M 4 .HALF-100M 5. FULL-100M H3C-S1024 10/100M self-adaptive TP-LINK TL-SF1016 10/100M self-adaptive TP-LINK TL-SF1008+ 10/100M self-adaptive...
Page 434: Appendix F Compatible Wireless Mouse List
Appendix F Compatible Wireless Mouse List Please refer to the following sheet for compatible SD card brand. Brand Model Rapoo 3500 Logitech M215 Shuangfeiyan Tianyao G7-630...
Page 435: Appendix G Earthing
Appendix G Earthing 1. What is the surge? Surge is a short current or voltage change during a very short time. In the circuit, it lasts for microsecond. In a 220V circuit, the 5KV or 10KV voltage change during a very short time (about microseconds) can be called a surge.
Page 436  Signal lightning arrester: This device is mainly used in the PC network, communication system. The connection type is serial connection. Once you connected the signal lightning arrestor with the signal port, it can cut the channel of the thunderstorm to the device, and on the other hand, it can discharge the current to the ground to guarantee the device proper work.
Page 437 conductance of the ground conductor. In the high-frequency circuit, you need to use the multiple-point ground mode and each cable needs to connect to the ground. The length shall be less than the 1/20 of the signal wavelength. Mixed ground: The mix ground consists of the feature of the one-point ground and multiple-point ground.
Page 438  The thunder proof ground shall adopt the special ground cable from the monitor control room to the ground object. The ground cable adopts copper insulation cable or wire and its ground section shall be more than 20mm2.  The ground cable of the monitor system can not short circuit or mixed connected with the strong alternative current cable.
Page 439 For L (live cable) Turn the digital multimeter to 750V AC, use your one hand to hold the metal end, and then the other hand insert the pen to the L port of the socket. See the following figure. If the multimeter shows 120, then you can see current live cable connection is standard.
Page 441: Appendix H Raid Introduction
Appendix H RAID Introduction Appendix H-1 About RAID RAID is an abbreviation for Redundant Array of Independent Disks. It is to combine several independent HDDs (physical HDD) to form a HDD group (logic HDD) to provide more storage capacity and data redundancy. Right now system supports RAID0/RAID1/RAID5/RAID10.
Page 442 RAID Note Min HDD Level Needed you replace the first HDD, then the RAID1 is null. Because the data in the first malfunction HDD is not complete, system can not rebuild the data based on the first damaged HDD. Now you need to use the second malfunction HDD, usually you can get the all data again.
Page 443: Appendix H-3 Raid Capacity Calculation
RAID Note Min HDD Level Needed RAID1 are damaged at the same time. Appendix H-3 RAID Capacity Calculation RAID Name Total Space of the N disks. RAID0 The total amount of N*HDD=HDD space *HDD amount. RAID1 Min(capacityN) （N-1）× min(capacityN) RAID5 （N/2）×...
Page 444: Appendix I Rj45-Rs232 Connection Cable Definition
Appendix I RJ45-RS232 Connection Cable Definition Here we are going to make standard RS232 port and standard RJ45 (T568B). Please refer to the following figure for RJ45 cable definition. Please refer to the following figure for RS232 pin definition. Please refer to the following figure for connection information. Please refer to the following sheet for detailed crossover cable connection information.
Page 445 If there is any uncertainty or controversy, please refer to the final explanation of  Please visit our website or contact your local retailer for more information. ZHEJIANG DAHUA VISION TECHNOLOGY CO.,LTD. Address: No.1199, Bin'an Road, Binjiang District, Hangzhou, P.R. China Postcode: 310053...
Page 446 Email:overseas@dahuatech.com Website: www.dahuasecurity.com...
