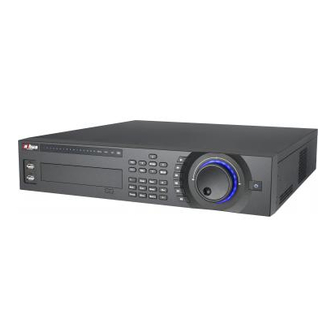

Page 1 Dahua HDCVI Standalone DVR User’s Manual Dahua HDCVI Standalone DVR User’s Manual V1.6.1...
Page 2: Table Of Contents
Table of Contents FEATURES AND SPECIFICATIONS ............1 Overview ........................... 1 Features ............................ 1 Specifications ........................... 2 1.3.1 HCVR52XXA-V2 Series ..................... 2 1.3.2 HCVR72XXA-V2 Series ..................... 3 1.3.3 HCVR42XXA-S2/4216AN-S2 Series ................5 1.3.4 HCVR4224/4232AN-S2 Series ..................6 1.3.5 HCVR52XXA-S2/HCVR5216AN-S2 Series ..............7 1.3.6 HCVR720XA-S2 Series .....................
Page 3 2.2.1 HCVR52XXA-V2/ HCVR72XXA-V2 Series ..............36 2.2.2 HCVR42XXA-S2/ HCVR4216AN-S2 Series ..............38 2.2.3 HCVR4224/HCVR4232AN-S2 Series ................40 2.2.4 HCVR52XXA-S2/ HCVR5216AN-S2 Series ..............41 2.2.5 HCVR720XA-S2 Series ....................43 2.2.6 HCVR42XXA-S3/HCVR4216AN-S3/HCVR52XXA-S3/HCVR5216AN-S3/HCVR72 XXA-S3/HCVR7216AN-S3 Series ....................45 2.2.7 HCVR52XXL-V2/ HCVR54XXL-V2/HCVR44L-S2 Series .......... 46 2.2.8 HCVR42XXL-S2 Series ....................
Page 4 HDD Installation ........................68 3.3.1 The 1U Series ........................68 3.3.2 The 1.5U Series ........................ 69 3.3.3 The 2U Series ........................70 3.3.4 Rack Installation ........................ 70 Connecting Power Supply ....................71 Connecting Video Input and Output Devices ..............71 3.5.1 Connecting Video Input....................
Page 5 Startup Wizard ........................79 Live Viewing ........................... 85 Right-Click Menu ........................87 4.5.1 Window Switch ........................88 4.5.2 Previous Screen/Next Screen ..................89 4.5.3 PTZ Control ........................89 4.5.4 Auto Focus ......................... 94 4.5.5 Color ........................... 94 4.5.6 Display ..........................96 4.5.7 Face Search ........................
Page 6 Operation ..........................101 4.9.1 Search ..........................101 4.9.2 Human Face Search ...................... 110 4.9.3 Backup..........................111 4.9.4 Shut Down ........................113 4.10 Information ..........................114 4.10.1 System Info ......................... 114 4.10.2 Event ..........................120 4.10.3 Network ........................121 4.10.4 Log ..........................123 4.11 Setting ...........................
Page 7 Setup ............................. 233 5.8.1 Camera ..........................233 5.8.2 Network ..........................242 5.8.3 Event ..........................258 5.8.4 Storage ..........................278 5.8.5 Setting ..........................282 Information ..........................300 5.9.1 Version ..........................300 5.9.2 Log ............................ 301 5.9.3 Online User ........................302 5.9.4 HDD ..........................
Page 8 APPENDIX B COMPATIBLE BACKUP DEVICES ........323 Appendix B-1 Compatible USB list ....................323 Appendix B-2 Compatible SD Card list ..................324 Appendix B-3 Compatible Portable HDD list ................324 Appendix B-4 Compatible USB DVD List ................... 324 Appendix B-5 Compatible SATA DVD List .................. 324 Appendix B-6 Compatible SATA HDD List .................
Page 9 Welcome Thank you for purchasing our HDCVI DVR! This user’s manual is designed to be a reference tool for the installation and operation of your system. Here you can find information about this series standalone DVR features and functions, as well as a detailed menu tree.
Page 10: Important Safeguards And Warnings
Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The product must be grounded to reduce the risk of electric shock. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation.
Page 11: Features And Specifications
FEATURES AND SPECIFICATIONS 1.1 Overview The hybrid standalone series DVR is an excellent digital monitor product designed for security field. It adopts embedded Linux OS to maintain reliable operation. Popular H.264 compression algorithm and G.711 audio compression technology realize high quality, low bit stream. Unique frame by frame play function is suitable for detailed analysis.
Page 12: Specifications
Support each channel real-time record independently, and at the same time it can support search, forward play, network monitor, record search, download and etc. Support various playback modes: slow play, fast play, backward play and frame by frame play. Support time title overlay so that you can view event accurate occurred time Support customized zoom function during the preview.
Page 13: Hcvr72Xxa-V2 Series
Model Parameters HCVR5204A-V2 HCVR5208A-V2 HCVR5216A-V2 Bit Stream Type Video stream/composite stream Dual-Stream Support Audio Encode Standard G.711A, G.711U, PCM Audio Sampling Rate 8KHz，16Bit Audio Bit Rate 64Kbps Video Port Analog Video Input 4-ch, BNC port 8-ch, BNC port 16-ch, BNC port Network Video Input Switch 2 analog channels to the IP channels（8Mbps）...
Page 14 Model Parameters HCVR7204A-V2 HCVR7208A-V2 Video Video Encode H.264 Standard Encode Resolution 1080P /720P/960H/D1/HD1/2CIF/CIF/QCIF (for sub-stream only) Video Frame Rate PAL:1~25f/s；NTSC：1~30f/s Video Bit Rate 2048Kbps-6144Kbps Kbps-4096Kbps， For 1080P:default value is 4Mbps，max value is 6Mbps Bit Stream Type Video stream/composite stream Dual-Stream Support Audio Encode Standard...
Page 15: Hcvr42Xxa-S2/4216An-S2 Series
Encode H.264 Standard Encode 720P(1-15fps)/960H/D1/HD1/2CIF/CIF/QCIF (for sub-stream only) Resolution Video Frame HDCVI：1～15f/s（The 1 channel supports 25/30f/s） CVBS：1~25f/s（PAL）；1~30f/s（NTSC） Rate Video Bit Rate 1024Kbps-4096Kbps， For 720P:default value is 1Mbps，max value is 4Mbps For 960H:default value is 1Mbps，max value is 3Mbps Stream...
Page 16: Hcvr4224/4232An-S2 Series
Encode H.264 Standard Encode 720P(1-15fps)/960H/D1/HD1/2CIF/CIF/QCIF (for sub-stream only) Resolution Video Frame HDCVI：1～15f/s（The 1 channel supports 25/30f/s） CVBS：1~25f/s（PAL）；1~30f/s（NTSC） Rate Video Bit Rate 1024Kbps～4096Kbps， For 720P realtime (The first two channels):default value is 2Mbps，max value is 4Mbps. For 720P non-realtime: default value is 1Mbps，max value is 2Mbps.
Page 17: Hcvr52Xxa-S2/Hcvr5216An-S2 Series
Model Parameters HCVR4224AN-S2 HCVR4232AN-S2 Network Video Max 4 IPC connections（16Mbps） Input Video Output 1-ch VGA output, 1-ch HDMI output， HDMI/ VGA video output at the same time (VGA/HDMI of the same video source) Loop Output Matrix Output Audio Port Audio Input 1-ch，RCA port, Coaxibale audio 1-ch，RCA port.
Page 18 Model Parameters HCVR5204A-S2 HCVR5208A-S2 HCVR5216A-S2 HCVR5216AN-S2 Encode 1080P(1-15fps) /720P/960H/D1/HD1/2CIF/CIF/QCIF Resolution HDCVI：1~25f/s（PAL）；1~30f/s（NTSC） Video Frame CVBS：1~25f/s（PAL）；1~30f/s（NTSC） Rate Video Bit Rate 2048Kbps-4096Kbps For 1080P/720P:default value is 2Mbps，max value is 4Mbps For 960H:default value is 1Mbps，max value is 3Mbps Stream Video stream/composite stream...
Page 19: Hcvr720Xa-S2 Series
High-performance industrial embedded micro controller Embedded LINUX Video Video Encode H.264 Standard Encode 1080P /720P/960H/D1/HD1/2CIF/CIF/QCIF Resolution HDCVI：1~25f/s（PAL）；1~30f/s（NTSC） Video Frame CVBS：1~25f/s（PAL）；1~30f/s（NTSC） Rate 2048Kbps-6144Kbps Video Bit Rate For 1080P:default value is 4Mbps，max value is 6Mbps For 720P:default value is 2Mbps，max value is 4Mbps Stream...
Page 20: Hcvr42Xxa-S3/4216An-S3 Series
Model Parameters HCVR7204A-S2 HCVR7208A-S2 Audio Port Audio Input 4-ch，RCA port, audio via coaxial cable Audio Output 1-ch，RCA port Bidirectional Support（Reuse the audio port） Talk Input Record Record Mode Auto record, manual record, motion detect record, alarm record Record Max 4-ch playback Max 8-ch playback Playback Backup Mode...
Page 21 Standard Audio 8KHz，16Bit Sampling Rate 64Kbps Audio Bit Rate Video Port Analog Video 4-ch BNC port 8-ch 16-ch 16-ch Input (HDCVI port(HDCVI HD port(HDCVI port(HDCVI video/general video/general video/general video/general standard standard standard standard definition video definition video definition video definition...
Page 22: Hcvr52Xxa-S3/5216An-S3 Series
Model Parameters HCVR4204A-S3 HCVR4208A-S3 HCVR4216A-S3 HCVR4216AN-S3 Playback Mode Instant playback, normal playback, event playback, mark playback, smart playback Record 4-ch 8-ch Max 16-ch playback Playback playback playback Backup Mode HDD, burner, flash disk, network backup. Alarm Alarm Input 8-ch alarm input 8-ch alarm input 16-ch alarm input N/A Alarm Output...
Page 23 G.711A, G.711U, PCM Standard Audio 8KHz，16Bit Sampling Rate 64Kbps Audio Bit Rate Video Port Analog Video 4-ch BNC port 8-ch 16-ch 16-ch Input (HDCVI port(HDCVI port(HDCVI port(HDCVI video/general video/general video/general standard standard definition standard video/general definition video video definition video...
Page 24: Hcvr72Xxa-S3/Hcvr7216An-S3 Series
Model Parameters HCVR5204A-S3 HCVR5208A-S3 HCVR5216A- HCVR5216AN-S Matrix Output 1-ch ， RCA Audio Port External 4-ch，RCA port, Audio Input port Coaxial Audio 4-ch 8-ch- 16-ch 16-ch Input Audio Output 1-ch RCA port Bidirectional Support（Reuse the audio port of the 1 channel） Talk Input Record Record Mode...
Page 25 G.711A, G.711U, PCM Standard Audio 8KHz，16Bit Sampling Rate Audio Bit Rate 64Kbps 4-ch BNC port 8-ch 16-ch 16-ch Video Port Analog Video (HDCVI port(HDCVI HD port(HDCVI port(HDCVI Input video/general video/general video/general video/general standard standard standard standard definition video definition video definition...
Page 26: Hcvr52Xxl-V2 Series
Model Parameters HCVR7204A-S3 HCVR7208A-S3 HCVR7216A-S3 HCVR7216AN-S3 Matrix Output Audio Port External 4-ch，RCA port, 1-ch，RCA port Audio Input Coaxial Audio 4-ch 8-ch- 16-ch 16-ch Input Audio Output 1-ch RCA port Bidirectional Support（Reuse the audio port of the 1 channel） Talk Input Record Record Mode Auto record, manual record, motion detect record, alarm record...
Page 27 Model Parameters HCVR5204L-V2 HCVR5208L-V2 HCVR5216L-V2 Encode 720P/960H/D1/HD1/2CIF/CIF/QCIF (for sub-stream only) Resolution Video Frame PAL:1~25f/s；NTSC：1~30f/s Rate Video Bit Rate 1536Kbps-4096Kbps， For 720P:default value is 2Mbps，max value is 4Mbps Stream Video stream/composite stream Type Support Dual-Stream Audio Encode G.711A, G.711U, PCM Standard Audio 8KHz，16Bit Sampling Rate...
Page 28: Hcvr54Xxl-V2 Series
Model Parameters HCVR5204L-V2 HCVR5208L-V2 HCVR5216L-V2 ≤30W（exclude HDD） Power Consumption Working -10℃－＋55℃ Temperature Working 10%~90% Humidity Dimension 1.5U case，440mm（W）×410mm（D）×70mm（H） Weight 3.0kg～3.5kg（exclude HDD） Installation Desk installation Mode 1.3.11 HCVR54XXL-V2 Series Model Parameters HCVR5404L-V2 HCVR5408L-V2 HCVR5416L-V2 System Main Processor High-performance industrial embedded micro controller Embedded LINUX Video Video...
Page 29: Hcvr4224/32L-S2 Series
Encode H.264 Standard 720P(1-15fps)/960H/D1/HD1/2CIF/CIF/QCIF (for sub-stream only) Encode Resolution Video Frame HDCVI：1～15f/s（The 1 channel supports 25/30f/s） CVBS：1~25f/s（PAL）；1~30f/s（NTSC） Rate Video Bit Rate 1024Kbps～4096Kbps， For 720P realtime (The first two channels):default value is 2Mbps，max value is 4Mbps. For 720P non-realtime: default value is 1Mbps，max value is 2Mbps.
Page 30 Model Parameters HCVR4224L-S2 HCVR4232L-S2 Bit Stream Type Video stream/composite stream Dual-Stream Support Audio Encode G.711A, G.711U, PCM Standard Audio Sampling 8KHz，16Bit Rate Audio Bit Rate 64Kbps Video Port Analog Video 24-ch, BNC port 32-ch, BNC port Input Network Video Max 4 IPC connections（16Mbps） Input Video Output 1-ch VGA output,...
Page 31: Hcvr44Xxl-S2 Series
Video Encode H.264 Standard Encode 720P/960H/D1/HD1/2CIF/CIF/QCIF (for sub-stream only) Resolution Video Frame HDCVI：1～15f/s（The 1st channel supports 25/30f/s） CVBS：1~25f/s（PAL）；1~30f/s（NTSC） Rate Video Bit Rate 1536Kbps-4096Kbps， For 720P:default value is 2Mbps，max value is 4Mbps Bit Stream Type Video stream/composite stream Dual-Stream Support...
Page 32 Encode H.264 Standard 720P/960H/D1/HD1/2CIF/CIF/QCIF (for sub-stream only) Encode Resolution Video Frame HDCVI：1～15f/s（The 1 channel supports 25/30f/s） CVBS：1~25f/s（PAL）；1~30f/s（NTSC） Rate Video Bit Rate 1024Kbps-4096Kbps， For 720P realtime (The first two channels):default value is 2Mbps，max value is 4Mbps. For 720P non-realtime: default value is 1Mbps，max value is 2Mbps.
Page 33: Hcvr48Xxs-S2 Series
Model Parameters HCVR4424L-S2 HCVR4432L-S2 Video Port Analog Video 24-ch, BNC port 32-ch, BNC port Input Network Video Switch 4 analog channels to the IP channels（16Mbps） Input Video Output 1-ch VGA output, 1-ch HDMI output， 1-ch TV output, HDMI/ VGA/TV video output at the same time (VGA/HDMI/TV of the same video source) Loop Output Matrix Output...
Page 34 Video Encode H.264 Standard Encode 720P/960H/D1/HD1/2CIF/CIF/QCIF (for sub-stream only) Resolution Video Frame HDCVI：1～15f/s（The 1st channel supports 25/30f/s） CVBS：1~25f/s（PAL）；1~30f/s（NTSC） Rate Video Bit Rate 1536Kbps-4096Kbps， For 720P:default value is 2Mbps，max value is 4Mbps Bit Stream Type Video stream/composite stream Dual-Stream Support...
Page 35 Encode H.264 Standard Encode 720P/960H/D1/HD1/2CIF/CIF/QCIF (for sub-stream only) Resolution Video Frame HDCVI：1～15f/s（The 1 channel supports 25/30f/s） CVBS：1~25f/s（PAL）；1~30f/s（NTSC） Rate Video Bit Rate 1024Kbps-4096Kbps， For 720P realtime (The first two channels):default value is 2Mbps，max value is 4Mbps. For 720P non-realtime: default value is 1Mbps，max value is 2Mbps.
Page 36: Hcvr58Xxs-V2 Series
Model Parameters HCVR4824S-S2 HCVR4832S-S2 Video Output 1-ch VGA output, 1-ch HDMI output， 1-ch TV output, HDMI/ VGA/TV video output at the same time (VGA/HDMI/TV of the same video source) Loop Output Matrix Output 16-ch ， BNC port, audio via Audio Port Audio Input 16-ch，BNC port, audio via coaxial cable...
Page 37 Model Parameters HCVR5804S-V2 HCVR5808S-V2 HCVR5816S-V2 Encode 720P/960H/D1/HD1/2CIF/CIF/QCIF (for sub-stream only) Resolution Video Frame PAL:1~25f/s；NTSC：1~30f/s Rate Video Bit Rate 1536Kbps-4096Kbps， For 720P:default value is 2Mbps，max value is 4Mbps Bit Stream Type Video stream/composite stream Dual-Stream Support Audio Encode G.711A, G.711U, PCM Standard Audio Sampling 8KHz，16Bit...
Page 38 Model Parameters HCVR5804S-V2 HCVR5808S-V2 HCVR5816S-V2 Other Power AC90~264V 50+2% Hz (Max 220W) ≤35W（exclude HDD） Power Consumption Working -10℃－＋55℃ Temperature Working 10%~90% Humidity Dimension 2U case，440mm（W）×460mm（D）×89mm（H） Weight 7.0kg～8.0kg（exclude HDD） Desk/rack installation Installation Mode...
Page 39: Overview And Controls
2 Overview and Controls This section provides information about front panel and rear panel. When you install this series DVR for the first time, please refer to this part first. 2.1 Front Panel 2.1.1 HCVR52XXA-V2/ HCVR72XXA-V2 Series The front panel is shown as below. See Figure 2-1. Figure 2-1 Please refer to the following sheet for front panel button information.
Page 40 Multiple slow play speeds or normal playback. Slow play/8 In text mode, input number 8 (English character T/U/V). One-window monitor mode, click this button to display assistant function: PTZ control and image color. Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor.
Page 41: Hcvr42Xxa-S2/ Hcvr42Xxan-S2/ Hcvr52Xxa-S2
2.1.2 HCVR42XXA-S2/ HCVR42XXAN-S2/ HCVR52XXA-S2/ HCVR5216AN-S2/HCVR720XA-S2/HCVR42XXA-S3/HCVR4216AN-S 3/HCVR52XXA-S3/HCVR5216AN-S3/HCVR72XXA-S3/HCVR7216AN -S3 Series The front panel is shown as below. See Figure 2-2. Figure 2-2 Please refer to the following sheet for front panel button information. Icon Name Function STATUS Status indicator light The blue light is on when the device is working properly.
Page 42: Hcvr52Xxl-V2/ Hcvr54Xxl-V2 Series
Icon Name Function USB2.0 port Connect to peripheral USB 2.0 storage device, mouse, burner and etc. 2.1.4 HCVR52XXL-V2/ HCVR54XXL-V2 Series The front panel is shown as in Figure 2-4. Figure 2-4 Please refer to the following sheet for front panel button information. Name Icon Function...
Page 43: Hcvr58Xxs-V2 Series
Slow play/8 Multiple slow play speeds or normal playback. In text mode, input number 8 (English character T/U/V). Assistant One-window monitor mode, click this button to display assistant function: PTZ control and image color. Backspace function: in numeral control or text control, press it for 1.5seconds to delete the previous character before the cursor.
Page 44 Figure 2-5 Please refer to the following sheet for front panel button information. Name Icon Function Power button, press this button for three seconds to boot up or Power button shut down DVR. Input Arabic number Number button Switch channel Input number If you want to input a number more than 10, please click this...
Page 45 Go to previous menu, or cancel current operation. When playback, click it to restore real-time monitor mode. Confirm current operation Enter ENTER Go to default button Go to menu One-window monitor mode, click this button to display assistant function: PTZ control and image color. Backspace function: in numeral control or text control, press it for 1.5 seconds to delete the previous character before the cursor.
Page 46: Hcvr48Xxs-S2 Series
Status indication Status The light is on if device operates properly. light Power indication Power indication light light IR Receiver It is to receive the signal from the remote control. 2.1.6 HCVR48XXS-S2 Series The front panel is shown as below. See Figure 2-6. Figure 2-6 Please refer to the following sheet for front panel button information.
Page 47 Figure 2-7 Please refer to the following sheet for detailed information. Icon Name Note Power switch Power on/off button.  Alarm input There are two types; NO (normal open)/NC 1～4 port 1～4 (normal close).  When your alarm input device is using external power, please make sure the device and the DVR have the same ground.
Page 48: Hcvr42Xxa-S2/ Hcvr4216An-S2 Series
Icon Name Note Network port 1000M Ethernet port 2.2.2 HCVR42XXA-S2/ HCVR4216AN-S2 Series This HCVR4204A-S2 rear panel is shown as below. See Figure 2-8. Figure 2-8 This HCVR4208A-S2 rear panel is shown as below. See Figure 2-9. Figure 2-9 This HCVR4216A-S2 rear panel is shown as below. See Figure 2-10. Figure 2-10 This HCVR4216AN-S2 rear panel is shown as below.
Page 49 Figure 2-11 Please refer to the following sheet for detailed information. Icon Name Note Power switch Power on/off button.  Alarm input There are two types; NO (normal open)/NC 1～8(16) port 1～8(16) (normal close).  When your alarm input device is using external power, please make sure the device and the DVR have the same ground.
Page 50: Hcvr4224/Hcvr4232An-S2 Series
Icon Name Note communicati RS485_B.It is the cable B. You can connect to the on port control devices such as speed dome PTZ. Network port 1000M Ethernet port HDMI High High definition audio and video signal output port. It Definition transmits uncompressed high definition video and Media multiple-channel data to the HDMI port of the display...
Page 51: Hcvr52Xxa-S2/ Hcvr5216An-S2 Series
Icon Name Note RS485 RS485_A port. It is the cable A. You can connect to （ RS-485 ） the control devices such as speed dome PTZ. communicatio RS485_B.It is the cable B. You can connect to the n port control devices such as speed dome PTZ. Network port 1000M Ethernet port High Definition...
Page 52 Figure 2-15 This HCVR5216AN-S2 products’ rear panel is shown as below. See Figure 2-16. Figure 2-16 Please refer to the following sheet for detailed information. Icon Name Note Power switch Power on/off button.  1～8(16) Alarm input There are two types; NO (normal open)/NC port 1～8(16) (normal close).
Page 53: Hcvr720Xa-S2 Series
Icon Name Note VIDEO IN Video input Connect to analog camera, video input signal. port Alarm input ground port. Power input Input 12V DC. port USB2.0 port Connect to USB storage device, mouse, burning DVD-ROM and etc. RS485 RS485_A port. It is the cable A. You can connect to （...
Page 54 Icon Name Note Power switch Power on/off button.  Alarm input There are two types; NO (normal open)/NC 1～8(16) port 1～8(16) (normal close).  When your alarm input device is using external power, please make sure the device and the DVR have the same ground.
Page 55: Hcvr42Xxa-S3/Hcvr4216An-S3/Hcvr52Xxa-S3/Hcvr5216An-S3/Hcvr72
2.2.6 HCVR42XXA-S3/HCVR4216AN-S3/HCVR52XXA-S3/HCVR5216AN-S 3/HCVR72XXA-S3/HCVR7216AN-S3 Series The HCVR42XXA-S3/HCVR52XXA-S3/HCVR72XXA-S3 products’ rear panel is shown as below. See Figure 2-19. The following figure is based on the HCVR4216A-S3/5216A-S3/7216A-S3 series product. Figure 2-19 The HCVR4216AN-S3/5216AN-S3/7216AN-S3rear panel is shown as below. See Figure 2-20. Figure 2-20 Please refer to the following sheet for detailed information.
Page 56: Hcvr52Xxl-V2/ Hcvr54Xxl-V2/Hcvr44L-S2 Series
Icon Name Note VIDEO IN Video input Connect to analog camera, video input signal. port AUDIO IN Audio input Connect to audio input device such as speaker. port video VGA video output port. Output analog video signal. output Can connect to the monitor to view ananlog video port output.
Page 57 Figure 2-21 The HCVR4432L-S2 rear panel is shown as below. See Figure 2-22. Figure 2-22 Please refer to the following sheet for detailed information. Icon Name Note Power switch Power on/off button. RS-232 RS-232 debug COM. It is for general COM debug to configure address transfer...
Page 58 Icon Name Note device is using external power, please make sure the device and the DVR have the same ground. NO1～NO5 Alarm output port 1～5  5 groups of alarm output ports. (Group 1 ： port C1～C5 NO1 ～ C1,Group 2:port NO2 ～...
Page 59 Icon Name Note to the devices such as the sound box. MIC OUT Audio output port. It is to Audio output port output the analog audio signal to the devices such as the sound box.  Bidirectional talk output.  Audio output 1-window video monitor.
Page 60: Hcvr42Xxl-S2 Series
Icon Name Note Power socket Power socket 2.2.8 HCVR42XXL-S2 Series The rear panel is shown as in Figure 2-23 The following figure is based on the HCVR4232L-V2 series product. Figure 2-23 Please refer to the following sheet for detailed information. Icon Name Note...
Page 61: Hcvr58Xxs-V2/Hcvr48Xxs-S2 Series
Icon Name Note  C1～C3 C：Alarm output public end. Alarm input ground port. Power switch Power on/off button. RS-232 RS-232 It is for general COM debug to configure IP address debug COM. or transfer transparent COM data. video VGA video output port. Output analog video signal. output Can connect to the monitor to view ananlog video port...
Page 62 Figure 2-24 The HCVR4832S-S2 rear panel is shown as in Figure 2-25. Figure 2-25 Please refer to the following sheet for detailed information. Icon Name Note Power socket Power socket Power switch Power on/off button. RS-232 RS-232 debug COM. It is for general COM debug to configure address transfer...
Page 63 Icon Name Note external alarm source. There are two types; (normal open)/NC (normal close).  When your alarm input device is using external power, please make sure the device and the DVR have the same ground. NO1～NO5 Alarm output port 1～5 ...
Page 64 Icon Name Note such as mike phone, pickup. AUDIO IN It is to receive the analog Audio input port audio signal output from the devices such as mike phone, pickup. VIDEO IN Connect to analog camera to Video input port input video signal.
Page 65: Connection Sample
Icon Name Note When connect the Ethernet port, please use crossover cable to connect the PC and use the straight cable to connect to the switch or router. 2.3 Connection Sample 2.3.1 HCVR52XXA-V2/ HCVR72XXA-V2 Series Please refer to the following figure for detailed information. See Figure 2-26. The following interface is based on the HCVR7204A-V2 series product.
Page 66: Hcvr4224/Hcvr4232An-S2 Series
Figure 2-27 2.3.3 HCVR4224/HCVR4232AN-S2 Series The connection sample is shown as below. See Figure 2-28. The following interface is based on the HCVR4232AN-S2 series product.
Page 67: Hcvr52Xxa-S2/ Hcvr5216An-S2 Series
Figure 2-28 2.3.4 HCVR52XXA-S2/ HCVR5216AN-S2 Series The connection sample is shown as below. See Figure 2-29. The following interface is based on the HCVR5208A-S2 series product.
Page 68: Hcvr720Xa-S2 Series
Figure 2-29 2.3.5 HCVR720XA-S2 Series The connection sample is shown as below. See Figure 2-30. The following interface is based on the HCVR7204A-S2 series product.
Page 69: Hcvr42Xxa-S3/Hcvr4216An-S3/Hcvr52Xxa-S3/Hcvr5216An-S3/Hcvr72
Figure 2-30 2.3.6 HCVR42XXA-S3/HCVR4216AN-S3/HCVR52XXA-S3/HCVR5216AN-S 3/HCVR72XXA-S3/HCVR7216AN-S3 Series Please refer to the following figure for detailed information. See Figure 2-31. following interface based HCVR4216A-S3/HCVR5216A-S3/ HCVR7216A-S3 series product.
Page 70: Hcvr52Xxl-V2/ Hcvr54Xxl-V2/Hcvr44Xxl-S2 Series
Figure 2-31 2.3.7 HCVR52XXL-V2/ HCVR54XXL-V2/HCVR44XXL-S2 Series Please refer to the following figure for detailed information. See Figure 2-32. The following interface is based on the HCVR5416L-V2 series product.
Page 71: Hcvr42Xxl-S2 Series
Figure 2-32 2.3.8 HCVR42XXL-S2 Series The connection sample is shown as below. See Figure 2-33. The following interface is based on the HCVR4232L-S2 series product.
Page 72: Hcvr58Xxs-V2/Hcvr48Xxs-S2 Series
Figure 2-33 2.3.9 HCVR58XXS-V2/HCVR48XXS-S2 Series Please refer to the following figure for detailed information. See Figure 2-34. The following interface is based on the HCVR5816S-V2 series product.
Page 73: Remote Control
Figure 2-34 2.4 Remote Control The remote control interface is shown as in Figure 2-35. Please note remote control is not our standard accessory and it is not included in the accessory bag.
Page 74 Figure 2-35 Serial Number Name Function Power button Click it to boot up or shut down the device. Address Click it to input device number, so that you can control it. Forward Various forward speeds normal speed playback. Slow play Multiple slow play speeds or normal playback.
Page 75: Mouse Control
click this button to realize normal playback. In reverse playback click this button to pause playback. Esc. Go back to previous menu or cancel current operation (close upper interface or control) Record Start or stop record manually In record interface, working with the direction buttons to select the record channel.
Page 76 When you have selected one menu item, left click mouse to view menu content. Implement the control operation. Modify checkbox or motion detection status. Click combo box to pop up drop down list In input box, you can select input methods. Left click the corresponding button on the panel you can input numeral/English character (small/capitalized).
Page 77: Virtual Keyboard & Front Panel
Right click In real-time monitor mode, pops up shortcut menu: one-window, mouse four-window, nine-window and sixteen-window, Pan/Tilt/Zoom, color setting, search, record, alarm input, alarm output, main menu. Among which, Pan/Tilt/Zoom and color setting applies for current selected channel. If you are in multiple-window mode, system automatically switches to the corresponding channel.
Page 78: Installation And Connections
3 Installation and Connections Note: All the installation and operations here should conform to your local electric safety rules. 3.1 Check Unpacked DVR When you receive the DVR from the forwarding agent, please check whether there is any visible damage. The protective materials used for the package of the DVR can protect most accidental clashes during transportation.
Page 79: The 1.5U Series
② ③ ① Loosen the screws of the upper Fix four screws in the HDD Place the HDD in accordance cover and side panel. Remove (Turn just three rounds). with the four holes in the bottom. the cover. ④ ⑤ ⑥...
Page 80: The 2U Series
○ ○ ○ Connect the other end Connect the power Put the cover back and fix the of the HDD cable to the cable to the HDD. screws to secure firmly. mainboard. 3.3.3 The 2U Series The 2U series includes HCVR58XXS-V2/HCVR48XXS-V2. This series DVR max supports 8 SATA HDDs.
Page 81: Connecting Power Supply
 Please make sure there is 15cm (6 inches) space around the device to guarantee sound ventilation.  Please install from the bottom to the top.  If there are more accessories connected in the rack, please take precaution measures in case the rack power is overload. 3.4 Connecting Power Supply Please check input voltage and device power button match or not.
Page 82: Connecting Audio Input & Output, Bidirectional Audio
 Keep it away from strong electromagnetic interference devices. Using TV as video output device is not a reliable substitution method. You also need to reduce the working hour and control the interference from power supply and other devices. The low quality TV may result in device damage. 3.6 Connecting Audio Input &...
Page 83: Alarm Input And Output Details
c. For too long signal wires, 120Ω should be parallel connected between A, B lines on the far end to reduce reflection and guarantee the signal quality. d. “485 A, B” of DVR cannot parallel connect with “485 port” of other device. e.
Page 84: Alarm Input Port
Earth cable. 485 A/B 485 communication port. They are used to control devices such as decoder. 120Ω should be parallel connected between A, B lines if there are too many PTZ decoders. T+,T-,R+,R- They are four-wire full-duplex RS485 port T+ T-: output wire R+ R-: input wire 3.7.2 Alarm Input Port Please refer to the following sheet for more information.
Page 85: Other Interfaces
Maximum switch currency Insulation Between touches with same 1000VAC 1minute polarity Between touches with different 1000VAC 1minute polarity Between touch and winding 1000VAC 1minute Between touches with same Surge voltage 1500V (10×160us) polarity Length of open 3ms max time Length of close 3ms max time Longevity...
Page 86: Overview Of Navigation And Controls
4 Overview of Navigation and Controls 4.1 Boot up and Shutdown 4.1.1 Boot up Before the boot up, please make sure:  The rated input voltage matches the device power on-off button. Please make sure the power wire connection is OK. Then click the power on-off button. ...
Page 87: Change Password
4.2.1 Change Password For your own safety, please change your administrator default password after your first login. After system booted up, you can see the following interface if it is your first login or you have restored default setup. See Figure 4-1. Please input old password and then input new password twice to confirm the change.
Page 88: Reset Password
Figure 4-2 4.2.2 Reset Password Once you forgot password, you can answer the security questions you set in chapter 4.2.1 to reset the password. In login interface, click . See Figure 4-3. Figure 4-3 System pops up the following dialogue box, please answer the security questions and then input the new password twice.
Page 89: Startup Wizard
Figure 4-4 4.3 Startup Wizard After device successfully booted up, it goes to startup wizard. Click Cancel/Next button, you can see system goes to login interface. Tips Check the box Startup button here, system goes to startup wizard again when it boots up the next time.
Page 90  Username: admin. Password: admin. (administrator, local and network)  Username: 888888. Password: 888888. (administrator, local only)  Username: default. Password: default (hidden user). Hidden user “default” is for system interior use only and can not be deleted. When there is no login user, hidden user “default”...
Page 91 Figure 4-7 Note You can only see the remote device interface if you have set IP channel (Chapter 4.11.1.3.5) Click Next button, you can go to network interface. See Figure 4-8. For detailed information, please refer to chapter 4.10.3.
Page 92 Figure 4-8 Click Next button, you can set P2P function. Scan the QR code, download the App to the cellphone, you can use the smart phone to add the device. See Figure 4-9. For detailed information, please refer to chapter4.11.2.15. Figure 4-9 Now you can go to the remote device interface to add the camera to the corresponding...
Page 93 channel. See Figure 4-10. For detailed information, please refer to chapter4.11.1.1. Please note you can not see the following interface if there is no digital channel. You can go to Main menu->Setting->Camera->Channel type to set IP channel first. Please refer to chapter 4.11.1.3.5 for detailed setup information.
Page 94 Figure 4-11 Click Next button, you can go to Schedule interface. See Figure 4-12. For detailed information, please refer to chapter 4.11.4.1. Figure 4-12...
Page 95: Live Viewing
Click Finish button, system pops up a dialogue box. Click the OK button, the startup wizard is complete. See Figure 4-13. Figure 4-13 4.4 Live Viewing After you logged in, the system is in live viewing mode. You can see system date, time, channel name and window No.
Page 96  Right now, system does not support slow playback and backward playback function.  Support digital zoom function.  Support real-time backup function. You can follow the contents listed below for the operation instruction. Preview control interface Move you mouse to the top centre of the video of current channel, you can see system pops up the preview control interface.
Page 97: Right-Click Menu
 Put the middle button at the centre of the zone you want to zoom in, and move the mouse, you can view an interface shown as in Figure 4-17. Figure 4-17 Right click mouse to cancel zoom and go back to the original interface. Manual record function It is to backup the video of current channel to the USB device.
Page 98: Window Switch
After you go to the corresponding interface, right click mouse to go back to the upper-level.  Window split mode: You can select window amount and then select channels.  PTZ: Click it to go to PTZ interface.  Auto focus: Please make sure you connected network camera supports this function. ...
Page 99: Previous Screen/Next Screen
Figure 4-19 4.5.2 Previous Screen/Next Screen Click it to go to the previous screen/next screen. For example, if you are using 4-split mode, the first screen is displaying the channel 1-4, click Next screen, you can view channel 5-8. 4.5.3 PTZ Control The PTZ setup is shown as in See Figure 4-20.
Page 100 Figure 4-20 In the middle of the eight direction arrows, there is a 3D intelligent positioning key. See Figure 4-21. Please make sure your protocol supports this function and you need to use mouse to control. Click this key, system goes back to the single screen mode. Drag the mouse in the screen to adjust section size.
Page 101 Please note the above interface may vary due to different protocols. The button is grey and can not be selected once the current function is null. Right click mouse or click the ESC button at the front panel to go back to the Figure 4-20.
Page 102 Figure 4-24 Tour Setup In Figure 4-23, click tour button. Input tour value and preset No. Click Add preset button to add current preset to the tour. See Figure 4-25. Tips Repeat the above steps to add more presets to the tour. Click Del preset button to remove it from the tour.
Page 103 Figure 4-26 Scan Setup In Figure 4-23, click Scan button. Use direction buttons to set camera left limit and then click Left button. Use direction buttons to set camera right limit and then click Right button. Now the scan setup process is complete. Figure 4-27 4.5.3.2 Call PTZ Function Call Preset...
Page 104: Auto Focus
In Figure 4-22, input tour value and then click to call a tour. Click again to stop call. Call Scan In Figure 4-22, input Scan value and then click to call a tour. Click again to stop call. Rotate In Figure 4-22, click to enable the camera to rotate.
Page 105 Figure 4-29 Please refer to the following sheet for detailed information. Item Note Period There are two periods in one day. You can set different sharpness, brightness, and contrast setup for different periods. Effective Time Check the box here to enable this function and then set period time.
Page 106: Display
Item Note from 0 to 100. The default value is 50. The larger the number, the higher the contrast is. You can use this function when the whole video bright is OK but the contrast is not proper. Please note the video may become hazy if the value is too low.
Page 107: Face Search
Figure 4-30 4.5.7 Face Search It is to display human face record list, and view human face recognition record file. 4.5.8 Search Please refer to chapter 4.9.1 for detailed information. 4.5.9 Record Control Please refer to chapter 4.11.4.3 for detailed information. 4.5.10 Alarm Output Please refer to chapter 4.11.3.6 for detailed information.
Page 108: Main Menu
Figure 4-31 4.6.1 Main Menu Click button to go to the main menu interface. 4.6.2 Output Screen Select corresponding window-split mode and output channels. 4.6.3 Previous/Next Screen Click to go to the previous screen, click to go to the next screen. For example, if you are using 4-split mode, the first screen is displaying the channel 1-4, click , you can view channel 5-8.
Page 109: Channel Info
Click button , system goes to alarm status interface. It is to view device status and channel status. Please refer to chapter 4.11.3. 4.6.11 Channel Info Click button , system goes to the channel information setup interface. It is to view information of the corresponding channel.
Page 110: Usb Device Auto Pop-Up
， system goes to the USB Manager interface. It is to view USB information, Click backup and update. Please refer to chapter 4.9.3, chapter 4.10.4, chapter 4.11.5.10, and chapter 4.11.5.12 for detailed information. 4.7 USB Device Auto Pop-up After you inserted the USB device, system can auto detect it and pop up the following dialogue box.
Page 111: Operation
Figure 4-35 4.9 Operation 4.9.1 Search Click search button in the main menu, search interface is shown as below. See Figure 4-36. Usually there are three file types:  R: Regular recording file.  A: External alarm recording file.  M: Motion detection recording file ...
Page 112 Figure 4-36 Please refer to the following sheet for more information. Name Function  Display Here is to display the searched picture or file.  window Support 1/4/9/16-window playback.  Here you can select to search the picture or the recorded file. ...
Page 113 corresponding record file trace in the time bar.  Playback mode：1/4/9/16/customized. (It may vary due to different series.)  In 1-window playback mode: you can select 1-16 channels.  In 4-window playback mode: you can select 4 channels according to your Playback requirement.
Page 114 Click it again to pause current play. In backward play mode, click ►/ to restore normal play. In playback mode, click it to play the next or the previous section. You can click continuously when you are watching the files from the same channel. │/ In normal play mode, when you pause current play, you can click │...
Page 115  Select the file(s) you want to backup from the file list. You can check from the list. Then click the backup button, now you can see the backup menu. System supports customized path setup. After select or create new folder, click the Start button to begin the backup operation.
Page 116 when playback In pane 13 of Figure 4-36, click Sync button, you can playback the files of different Sync channels occurred at the same time. Digital When the system is in full-screen playback mode, left click the mouse in the zoom screen.
Page 117  During the multiple-channel playback, system stops playback of rest channels if you implement one-channel smart search. 4.9.1.2 Accurate playback by time Select records from one day, click the list, you can go to the file list interface. You can input time at the top right corner to search records by time.
Page 118 Figure 4-39  Playback Mark During 1-window playback mode, click mark file list button in Figure 4-36, you can go to mark file list interface. Double click one mark file, you can begin playback from the mark time.  Play before mark time Here you can set to begin playback from previous N seconds of the mark time.
Page 119 Double click one mark information item, you can see system pops up a dialogue box for you to change mark information. You can only change mark name here.  Delete Here you can check the mark information item you want to delete and then click Delete button, you can remove one mark item.
Page 120: Human Face Search
On the right pane, check the box to enable splice playback function, and then set channel, date, split mode. The splice playback interface is shown as below. Each section has a small triangle; adjust time. Figure 4-42. Figure 4-42 Note Select split mode, so that the record can be spliced in several sections.
Page 121: Backup
Figure 4-43 Please refer to the following sheet for detailed information. Name Function Display It is to display human face detection file list. The latest file is at the  top. \ Click Export, you can export the selected file to the USB device. ...
Page 122 You can view backup device name and its total space and free space. The device includes CD-RW, DVD burner, USB device, flash disk, eSATA backup. Figure 4-44 Select backup device and then set channel, file start time and end time. Click add button, system begins search.
Page 123: Shut Down
button to delete √ after file serial number. Click Start button, system begins copy. At the same time, the backup button becomes stop button. You can view the remaining time and process bar at the left bottom. See Figure 4-46. Figure 4-46 When the system completes backup, you can see a dialogue box prompting successful backup.
Page 124: Information
Figure 4-47 4.10 Information 4.10.1 System Info Here is for you to view system information. There are total four items: HDD (hard disk information), record, BPS (data stream statistics), version. See Figure 4-48. Figure 4-48 4.10.1.1 HDD Information Here is to list hard disk type, total space, free space, video start time and status. See Figure 4-49.
Page 125 normal. X means there is error. - means there is no HDD. If disk is damaged, system shows as “?”. Please remove the broken hard disk before you add a new one.  SN: You can view the HDD amount the device connected to. ﹡ means the second HDD is current working HDD.
Page 126 Figure 4-50 4.10.1.2 Record Info It is to view record start time and end time. See Figure 4-51. Figure 4-51 4.10.1.3 Record Estimate System can calculate the record time based on the HDD space, or you can input the...
Page 127 record time you want to calculate the HDD space you need. See Figure 4-52. Figure 4-52 Click after the channel name, system pops up Edit dialogue box. See Figure 4-53. You can input resolution, frame rate, bit stream, record time of the corresponding channel, system can calculate the record time based on the channel setup and HDD space.
Page 128  Calculate the record period based on the HDD space Check the channel you want to record file. Click Known Space and then click the button to set HDD. Click OK button. Now you can see the record period (such as 5 days). See Figure 4-54. Figure 4-54 ...
Page 129 Figure 4-55 4.10.1.4 BPS Here is for you to view current video data stream (KB/s) and occupied hard disk storage (MB/h). See Figure 4-56. Figure 4-56...
Page 130: Event
4.10.1.5 Version Here is for you to view some version information such as version number, built date, serial number and etc. See Figure 4-57. Figure 4-57 4.10.2 Event It is to display device status and channel status. See Figure 4-58. Figure 4-58...
Page 131: Network
4.10.3 Network 4.10.3.1 Online Users Here is for you to manage online users. See Figure 4-59. You can disconnect one user or block one user if you have proper system right. Max disconnection setup is 65535 seconds. System detects there is any newly added or deleted user in each five seconds and refresh the list automatically.
Page 132 Figure 4-60 4.10.3.3 Network Test Network test interface is shown as in Figure 4-61.  Destination IP: Please input valid IPV4 address or domain name.  Test: Click it to test the connection with the destination IP address. The test results can display average delay and packet loss rate and you can also view the network status as OK, bad, no connection and etc.
Page 133: Log
Figure 4-61 4.10.4 Log 4.10.4.1 Local Log Here is for you to view system log file. System lists the following information. See Figure 4-62. Log types include system operation, configuration operation, data management, alarm event, record operation, account manager, log clear, file operation and etc. It optimized reboot log.
Page 134 Figure 4-62 Select an item on the list and then click the Details button or double click the log item, you can view the detailed information such as log time, log type, log user, IP address and etc. See Figure 4-63. Figure 4-63...
Page 135: Setting
Note  If there is no HDD, system max supports 1024 logs.  If you have connected to the unformatted HDD, system max supports 5000 logs.  If you have connected to the formatted HDD, system max supports 500,000 logs. ...
Page 136 Please note:  This series product supports the IPC from many popular manufactures such as Sony, Hitachi, Axis, Samsung, Dynacolor, Arecont, Onvif and Dahua.  System default IP address is 192.168.0.0 if you do not input IP address. System will not add current IP address.
Page 137  Show filer: It is to filter the searched device.  None: it is to display all searched devices.  IPC: It is to display all cameras.  DVR: It is to display all storage devices such as NVR, DVR. ...
Page 138 Figure 4-67  IP Export System can export the Added device list to your local USB device. Please insert the USB device and then click the Export button; you can see the following interface. See Figure 4-68. Figure 4-68 Select the directory and then click the OK button. System pops up a dialogue box to remind you successfully exported.
Page 139 Note The exported file extension name is .CVS. The file information includes IP address, port, remote channel number, manufacturer, user name and password.  IP Import Click Import button, you can see the following interface. See Figure 4-69. Figure 4-69 Select the import file and then click the OK button.
Page 140  Connection status: : Connection succeeded. : Connection failed.  Refresh: Click it to get latest front-end channel status. Figure 4-70 4.11.1.1.3 Firmware It is to view channel, IP address, manufacturer, type, system version, SN, video input, audio input, and etc. See Figure 4-71. Figure 4-71...
Page 141 4.11.1.2 Image For analog channel, the camera interface is shown as in Figure 4-72. For digital channel, the camera interface is shown as in Figure 4-73.  Channel: Select a channel from the dropdown list.  Saturation: It is to adjust monitor window saturation. The value ranges from 0 to 100. The default value is 50.
Page 142  Auto: The auto white balance is on. System can auto compensate the color temperature to make sure the vide color is proper.  Sunny: The threshold of the white balance is in the sunny mode.  Night: The threshold of the white balance is in the night mode. ...
Page 143 Figure 4-73 4.11.1.3 Encode It is to set video bit stream, picture bit stream, video overlay parameter and etc. 4.11.1.3.1 Video Video setting includes the following items. See Figure 4-74.  Channel: Select the channel you want.  SVC: SVC is so called scaled video coding. Check the box to enable this function. During the network transmission process, system discards unimportant frames when the bandwidth is not sufficient or the decode capability is low.
Page 144  Audio source: Please select from the dropdown list. There are two options: local/HDCVI. For local mode, the audio signal is from the Audio In port. For HDCVI mode, the audio signal is from the coaxial cable of the camera.
Page 145 Figure 4-75 4.11.1.3.3 Overlay Overlay interface is shown as in Figure 4-76.  Cover area: Here is for you to set cover area. You can drag you mouse to set proper section size. In one channel video, system max supports 4 zones in one channel. ...
Page 146 Figure 4-76 Figure 4-77 4.11.1.3.4 Channel Name It is to modify channel name. It max supports 31-character. See Figure 4-78. Please note for digital channel, you can only modify the channel name of the connected network camera.
Page 147 Figure 4-78 4.11.1.3.5 Channel Type It is to set channel type. Each channel supports analog standard definition connections/analog HD connection/network camera connection (Slight function difference may be found). For the IP channel, you need to set from the last channel. Please note DVR needs to restart to activate new setup.
Page 148 Important Add/cancel IP CAM function is for some 4/8/16-channel series product only.  Add IP CAM: Click it; you can add corresponding X IP channels. Here X refers to the product channel amount such as 4/8/16. System needs to restart to activate new setup.
Page 149 Figure 4-81 4.11.1.3.1 Upgrade It is to update the camera. From main menu->setting->camera->remote upgrade, the interface is shown as below. See Figure 4-82. Click Browse button and then select the upgrade file. Then select a channel (or you can select device type filter to select several devices at the same time.) Click Start upgrade button to update.
Page 150: Network
Figure 4-82 4.11.2 Network 4.11.2.1 TCP/IP The single network adapter interface is shown as in Figure 4-83 and the dual network adapters interface is shown as in Figure 4-84  Network Mode : Includes multiple access, fault tolerance, and load balancing ...
Page 151  Main Network Card: Please select eth0/eth1 (optional).after enable multiple access function. Note: Some series support the above three configurations and supports functions as multiple-access, fault-tolerance and load balancing.  IP Version: There are two options: IPv4 and IPv6. Right now, system supports these two IP address format and you can access via them.
Page 152 Figure 4-83 Figure 4-84 4.11.2.2 Connection The connection setup interface is shown as in Figure 4-85.  Max connection: system support maximal 128 users. 0 means there is no connection limit.  TCP port: Default value is 37777.  UDP port: Default value is 37778.
Page 153  HTTP port: Default value is 80.  HTTPS port: Default value is 443.  RTSP port: Default value is 554. Important: System needs to reboot after you changed and saved any setup of the above four ports. Please make sure the port values here do not conflict. Figure 4-85 4.11.2.3 WIFI The WIFI interface is shown as below.
Page 154 Figure 4-86  WIFI working status: Here you can view current connection status. Please note:  After successful connection, you can see WIFI connection icon at the top right corner of the preview interface.  When the hotspot verification type is WEP, system displays as AUTO since the device can not detect its encryption type.
Page 155  APN: It is the wireless connection server. It is to set you access the wireless network via which method.  AUTH: It is the authentication mode. It supports PAP/CHAP.  Dial number: Please input 3G network dialup number you got from your ISP. ...
Page 156 Figure 4-88 4.11.2.6 DDNS Setup DDNS setup interface is shown as in Figure 4-89. You need a PC of fixed IP in the internet and there is the DDNS software running in this PC. In other words, this PC is a DNS (domain name server). In network DDNS, please select DDNS type and highlight enable item.
Page 157 2) Function Introduction The Dahua DDNS client has the same function as other DDNS client end. It realizes the bonding of the domain name and the IP address. Right now, current DDNS server is for our own devices only. You need to refresh the bonding relationship of the domain and the IP regularly.
Page 158  Domain name：There are two modes: Default domain name and customized domain name. Except default domain name registration, you can also use customized domain name (You can input your self-defined domain name.) After successful registration, you can use domain name to login installed of the device IP. ...
Page 159  Default: Click it to restore default setup. In this case, the trusted sites and blocked sites are both null. Note:  If you enabled trusted sites, only the IP in the trusted sites list can access the device.  If you enabled blocked sites, the IP in the blocked sites can not access the device.
Page 160  Title: Please input email subject here. System support English character and Arabic number. Max 32-digit.  Receiver: Please input receiver email address here. System max supports 3 email boxes. System automatically filters same addresses if you input one receiver repeatedly.
Page 161 FTP service. Please install Ser-U FTP SERVER first. From “start” -> “program” -> Serv-U FTP Server -> Serv-U Administator. Now you can set user password and FTP folder. Please note you need to grant write right to FTP upload user. See Figure 4-93. Figure 4-93 You can use a PC or FTP login tool to test setup is right or not.
Page 162 uploads the set length and auto ignore the left section. When interval value is 0, system uploads all corresponding files. After completed channel and weekday setup, you can set two periods for one each channel. Click the Test button, you can see the corresponding dialogue box to see the FTP connection is OK or not.
Page 163  Default: UPNP default port setting is the HTTP, TCP and UDP of the DVR.  Add to the list: Click it to add the mapping relationship.  Delete: Click it to remove one mapping item. Double click one item; you can change the corresponding mapping information. See Figure 4-97.
Page 164 4.11.2.11 SNMP SNMP is an abbreviation of Simple Network Management Protocol. It provides the basic network management frame of the network management system. The SNMP widely used in many environments. It is used in many network device, software and system. You can set in the following interface.
Page 165 4.11.2.12 Multicast Multicast setup interface is shown as in Figure 4-99. Figure 4-99 Here you can set a multiple cast group. Please refer to the following sheet for detailed information.  IP multiple cast group address -224.0.0.0-239.255.255.255 -“D” address space ...
Page 166 Except the above mentioned addresses of special meaning, you can use other addresses. For example: Multiple cast IP: 235.8.8.36 Multiple cast PORT: 3666. After you logged in the Web, the Web can automatically get multiple cast address and add it to the multiple cast groups. You can enable real-time monitor function to view the view. Please note multiple cast function applies to special series only.
Page 167 in the mapping port number. The device ID here shall be the same with the ID you input in Figure 4-100. Click Add button to complete the setup. 4) Now you can boot up the proxy server. When you see the network status is Y, it means your registration is OK.
Page 168 Figure 4-102  Android: Open Google Play app in your smart phone. Search gDMSS Lite or gDMSS Plus, download it and install.  iOS: Open App Store app in your smart phone. Search iDMSS Lite or iDMSS Plus, download it and install.
Page 169: Event
Figure 4-103 4.11.3 Event 4.11.3.1 Detect In the main menu, from Setting->Event->Detect, you can see motion detect interface. See Figure 4-104.There is three detection types: motion detection, video loss, tampering.  The video loss has no detection region and sensitivity setup and tampering has no detection region setup.
Page 170  Region: Click select button, the interface is shown as in Figure 4-105. Here you can set motion detection zone. There are four zones for you to set. Please select a zone first and then left drag the mouse to select a zone. The corresponding color zone displays different detection zone.
Page 171  Record channel: System auto activates motion detection channel(s) to record once an alarm occurs. Please make sure you have set MD record in Schedule interface(Main Menu->Setting->Schedule) and schedule record in manual record interface(Main Menu->Advanced->Manual Record)  PTZ activation: Here you can set PTZ movement when an alarm occurs. Such as go to preset, tour &pattern when there is an alarm.
Page 172 Figure 4-104 Figure 4-105...
Page 173 Figure 4-106 Figure 4-107...
Page 174 Figure 4-108 Motion detect here only has relationship with the sensitivity and region setup. It has no relationship with other setups. 4.11.3.1.2 Video Loss In Figure 4-104, select video loss from the type list. You can see the interface is shown as in Figure 4-109.This function allows you to be informed when video loss phenomenon occurred.
Page 175 Figure 4-109 4.11.3.1.3 Tampering When someone viciously masks the lens, or the output video is in one-color due to the environments light change, the system can alert you to guarantee video continuity. Tampering interface is shown as in Figure 4-110. You can enable “Alarm output “or “Show message”...
Page 176 Figure 4-110 4.11.3.1.4 Diagnosis Note This function is for some series only. System can trigger an alarm when the stripe, noise, color cast, out of focus, over exposure event occurred. See Figure 4-111. Please refer to chapter 4.11.3.1.1 motion detection for detailed information.
Page 177 Figure 4-111 This function allows you to be informed when video is blurry, over exposure or color cast occurs. You can enable alarm output channel and then enable show message function. Click the Rule Set button, or move the cursor to Set button and then click the Enter button on the front panel, the interface is shown as below.
Page 178 Figure 4-112 Note Video analysis alarm can trigger PTZ preset, tour, and pattern. Please refer to chapter 4.11.3.1.1 motion detection for detailed information. 4.11.3.2 Intelligence (Optional) The intelligence function is optional. The intelligence function and the human face detection can not be valid at the same time! From main menu->Setting->Event, you can go to the intelligence interface.
Page 179 Figure 4-113 Check the Enable box to enable tripwire function. Click Rule setup to draw the tripwire. See Figure 4-114. Figure 4-114 Select SN (Line1/2/3/4) and direction, and then input customized rule name.
Page 180  Line1/2/3/4: System supports four tripwires. Each SN stands for one tripwire.  Direction ( ): System can generate an alarm once there is any object crossing in the specified direction. Now you can draw a rule. Left click mouse to draw a tripwire. The tripwire can be a direct line, curve or polygon.
Page 181  In Figure 4-107, Select icon of several dates, all checked items can be edited together. Now the icon is shown as . Click to delete a record type from one period.  In Figure 4-107. Click button after one date or a holiday, you can see an interface shown as in Figure 4-108.
Page 182 Figure 4-116 Figure 4-117 Figure 4-118 4.11.3.2.2 Intrusion (Cross warning zone) Note:  The intrusion function is valid once your network camera or your DVR supports this function.  If your purchased DVR supports the intrusion function, it supports one analog channel. It is not for the digital channel.
Page 183 Figure 4-119 Check the enable box to enable intrusion function. Click Rule setup to draw the zone. See Figure 4-120. Figure 4-120 Select SN (Area1/2/3/4) and direction, and then input customized rule name.  Area1/2/3/4: System supports four zones. Each SN stands for one zone. ...
Page 184 Tips Click to delete the corresponding rule. You can refer to the chapter 4.11.3.2.1 to set parameters. 4.11.3.2.3 Object protection (Optional) Note:  The object protection function is valid once your network camera or your DVR supports this function.  If your purchased DVR supports the object protection function, it supports one analog channel.
Page 185 Figure 4-122 Select SN (object1/2/3/4) and direction, and then input customized rule name.  Object1/2/3/4: System supports four zones. Each SN stands for one zone.  Direction ( ): For icon , system can generate an alarm once the object left in the one for the specified time. For icon , system can generate an alarm once the object is out of the zone for the specified time.
Page 186 In the main menu, from Setting->Event->Alarm, you can see alarm setup interface. For analog channel, the interface is shown as in Figure 4-124 and Figure 4-125 For HDCVI channel, there are three alarm types. See Figure 4-124 to Figure 4-126.
Page 187  IPC external alarm: It is the on-off alarm signal from the front-end device and can activate the local HDVR.  IPC offline alarm: Once you select this item, system can generate an alarm when the front-end IPC disconnects with the local HDVR. The alarm can activate record, PTZ, snap and etc.
Page 188  Alarm upload: System can upload the alarm signal to the network (including alarm centre) if you enabled current function.  Send email: System can send out email to alert you when alarm occurs.  Record channel: you can select proper channel to record alarm video (Multiple choices).
Page 189 Figure 4-124 Figure 4-125...
Page 190 Figure 4-126 Figure 4-127...
Page 191 Figure 4-128 Figure 4-129...
Page 192 Figure 4-130 Figure 4-131 4.11.3.5 Abnormality There are three types: HDD/Network/user.  HDD: HDD error, no disk, no space. See Figure 4-132 and Figure 4-133.  Network: Disconnection, IP conflict, MAC conflict. See Figure 4-134.  User:Illegal login. See Figure 4-135 . ...
Page 193  Latch: Here you can set corresponding delaying time. The value ranges from 1s-300s. System automatically delays specified seconds in turning off alarm and activated output after external alarm cancelled.  Show message: system can pop up the message in the local screen to alert you when alarm occurs.
Page 194 Figure 4-133 Figure 4-134...
Page 195 Figure 4-135 4.11.3.6 Alarm Output Here is for you to set proper alarm output such as schedule, manual. Please highlight icon to select the corresponding alarm output. After all the setups please click OK button, system goes back to the previous menu. See Figure 4-136.
Page 196: Storage
Figure 4-136 4.11.4 Storage 4.11.4.1 Schedule 4.11.4.1.1 Record Note: You need to have proper rights to implement the following operations. Please make sure the HDDs have been properly installed. After the system booted up, it is in default 24-hour regular mode. You can set record type and time in schedule interface.
Page 197  Holiday: It is to set holiday setup. Please note you need to go to the General interface (Main Menu->System->General) to add holiday first. Otherwise you can not see this item.  Pre-record: System can pre-record the video before the event occurs into the file. The value ranges from 1 to 30 seconds depending on the bit stream.
Page 198 Please highlight icon to select the corresponding function. After completing all the setups please click save button, system goes back to the previous menu. There are color bars for your reference. Green color stands for regular recording, yellow color stands for motion detection and red color stands for alarm recording. The white means the MD and alarm record is valid.
Page 199 Copy function allows you to copy one channel setup to another. After setting in channel 1, click Copy button, you can go to interface Figure 4-142. You can see current channel name is grey such as channel 1. Now you can select the channel you wan to paste such as channel 5/6/7.
Page 200 4.11.4.1.2 Snapshot 4.11.4.1.2.1 Schedule Snapshot  On the preview interface, right click mouse and then select Manual->Record, or in the main menu, from Setting->Storage->Record, check the box to enable snapshot function of corresponding channels. See Figure 4-143.  In main menu, from Setting->Camera->Encode->Snapshot interface, here you can input snapshot mode as regular, size, quality and frequency.
Page 201 Figure 4-144 Figure 4-145 4.11.4.1.2.2 Trigger Snapshot...
Page 202 Please follow the steps listed below to enable the activation snapshot function. After you enabled this function, system can snapshot when the corresponding alarm occurred.  In main menu, from Setting->Camera->Encode->Snapshot interface, here you can input snapshot mode as trigger, size, quality and frequency. See Figure 4-146. ...
Page 203 Figure 4-147 Figure 4-148 4.11.4.1.2.3 Priority...
Page 204 Please note the activation snapshot has the higher priority than schedule snapshot. If you have enabled these two types at the same time, system can activate the activation snapshot when alarm occurs, and otherwise system just operates the schedule snapshot. 4.11.4.1.2.4 Image FTP In the main menu, from Setting->Network->FTP, you can set FTP server information.
Page 205 Figure 4-150 4.11.4.3 Record 4.11.4.3.1 Record Control Note: You need to have proper rights to implement the following operations. Please make sure the HDD has been properly installed. There are three ways for you to go to manual record menu. ...
Page 206 Figure 4-151 4.11.4.3.2 Snapshot Operation Check the corresponding box to enable/disable schedule snapshot function. See Figure 4-152. Figure 4-152 Tips You can check All button after the corresponding status to enable/disable all-channel...
Page 207 snapshot function. 4.11.4.4 HDD Detect The HDD detect function is to detect HDD current status so that you can clearly understand the HDD performance and replace the malfunction HDD. There are two detect types:  Quick detect is to detect via the universal system files. System can quickly complete the HDD scan.
Page 208 Figure 4-154 4.11.4.4.2 Detect Report After the detect operation, you can go to the detect report to view corresponding information. The detect report interface is shown as below. See Figure 4-155. Figure 4-155...
Page 209: System
Click the item you can see the detailed information such as detect result. See Figure 4-156. Figure 4-156 4.11.5 System 4.11.5.1 General 4.11.5.1.1 Device General setting includes the following items. See Figure 4-157.  Device ID: Please input a corresponding device name here. ...
Page 210  Auto logout: Here is for you to set auto logout interval once login user remains inactive for a specified time. Value ranges from 0 to 60 minutes.  IPC Time Sync: You can input an interval here to synchronize the DVR time and IPC time.
Page 211 Figure 4-158 4.11.5.1.3 Holiday Holiday setup interface is shown as in Figure 4-159. Click Add new holiday button, you can input new holiday information. See Figure 4-160. Here you can set holiday name, repeat mode and start/end time. Note  When you enable Holiday settings and schedule setup at the same time, holiday setting has the priority.
Page 212 Figure 4-159 Figure 4-160 4.11.5.2 Display 4.11.5.2.1 Display Display setup interface is shown as below. See Figure 4-161.  Time display: You can select to display time or not when system is playback.  Channel display: You can select to channel name or not when system is playback.
Page 213  Image original rate: Check the box here, the video can be displayed at its actual size.  Transparency: Here is for you to adjust menu transparency. The higher the value is, the more transparent the menu is.  Resolution: There are four options: 1920×1080, 1280×1024(default),1280× 720,1024×768.
Page 214 Figure 4-162 4.11.5.2.3 Tour Here you can activate tour function. Click Setup button, you can see an interface shown as in Figure 4-163  Enable tour: Highlight box here to enable this function.  Interval: System supports 1/8/-window tour. Input proper interval value here. The value ranges from 5-120 seconds.
Page 215  On the navigation bar, click to enable/disable tour function. Figure 4-163 4.11.5.2.4 Zero-channel Encoding Click zero-channel encoding button, you can go to the following interface. See Figure 4-164. Here you can enable and set zero-channel encoding function so that you can view several video sources at one channel.
Page 216 the Web and you can select zero-channel encoding mode at the right corner of the interface . Select a mode; you can view the local preview video. Figure 4-164 4.11.5.3 Video Matrix Here you can set matrix output channel and its interval. You can set HDMI2 port tour and its interval See Figure 4-165.
Page 217  Move down: Click it to move current selected channel down.  Default: Click it to restore default setup. Figure 4-165 Figure 4-166...
Page 218 Figure 4-167 4.11.5.4 RS232 RS232 interface is shown as below. There are five items. See Figure 4-168.  Function: There are various devices for you to select. Console is for you to use the COM or mini-end software to upgrade or debug the program. The control keyboard is for you to control the device via the special keyboard.
Page 219 Control mode: You can select control mode from the dropdown list. There are two options: Serial/HDCVI. For HDCVI series product, please select HDCVI. The control signal is sent to the PTZ via the coaxial cable. For the serial mode, the control signal is sent to the PTZ via the RS485 port.
Page 220 Figure 4-169 For digital channel, the interface is shown as below. See Figure 4-170. Figure 4-170 4.11.5.6 ATM/POS...
Page 221 The ATM/POS function is for financial areas. It includes Sniffer, information analysis and title overlay function. The Sniffer mode includes COM and network. 4.11.5.6.1 COM Type The COM interface is shown as below. See Figure 4-171.  Protocol: Please select from the dropdown list. ...
Page 222  Overlay mode: There are two options: preview and encode. Preview means overlay the card number in the local monitor video. Encode means overlay the card number in the record file. You can view the corresponding information when playback.  Overlay Position: Here you can select the proper overlay position from the dropdown list.
Page 223 Figure 4-173 4.11.5.7 Voice The audio function is to manage audio files and set schedule play function. It is to realize audio broadcast activation function. 4.11.5.7.1 File List Here you can add audio file, listen to the audio file, or rename/delete audio file. Here you can also set audio volume.
Page 224 Figure 4-175 The audio file can be saved on the HDD or on the USB device.  In Figure 4-174, when it is HDD mode, the newly added audio file can be saved on the HDD automatically. You do not need to connect to the USB device if you want to use it the next time.
Page 225  The default user amount is 64 and the default group amount is 20. System account adopts two-level management: group and user. No limit to group or user amount.  For group or user management, there are two levels: admin and user. ...
Page 226 Click modify user button in Figure 4-176 , the interface is shown as in Figure 4-177. Please input the user name, password, select the group it belongs to from the dropdown list. Then you can check the corresponding rights for current user. For convenient user management, usually we recommend the general user right is lower than the admin account.
Page 227 Figure 4-178 Click Set button, you can set six periods in one day. See Figure 4-179. Check the box after the period, you can enable current setup. Figure 4-179...
Page 228 4.11.5.8.2 Modify user Click , you can go to the following interface to change user information. See Figure 4-180. For admin, 888888, and default (hidden user), you can not change period setup. Figure 4-180 4.11.5.8.3 Change Password In Figure 4-180, check the Modify password box, you can change password. Please input old password, and then input new password twice to confirm.
Page 229 Figure 4-181 Click add group button in Figure 4-181 , the interface is shown as below. See Figure 4-182. Here you can input group name and then input some memo information if necessary. There are total 98 rights such as control panel, shut down, real-time monitor, playback, record, record file backup, PTZ, user account, system information view, alarm input/output setup, system setup, log view, clear log, upgrade system, control device and etc.
Page 230 Figure 4-182 4.11.5.8.5 Security Question The security question is shown as below. See Figure 4-183. Here you can change security questions. Figure 4-183...
Page 231 4.11.5.9 Auto Maintain Here you can set auto-reboot time and auto-delete old files setup. You can set to delete the files for the specified days. See Figure 4-184. You can select proper setup from dropdown list. After all the setups please click save button, system goes back to the previous menu. Figure 4-184 4.11.5.10 Config Backup The configuration file backup interface is shown as below.
Page 232  System can not open config backup interface again if there is backup operation in the process.  System refreshes device when you go to the config backup every time and set current directory as the root directory of the peripheral device. ...
Page 233 Figure 4-186 4.11.5.12 Update Here is for you to view hardware features, software version, built date, release SN information and etc. You can also update system here. See Figure 4-187.  Start: Please insert the USB device that have the update file to the device and then click the Start button to begin the update.
Page 234 Figure 4-187...
Page 235: Web Operation
5 WEB OPERATION Slightly difference may be found in the interface due to different series. 5.1 Network Connection Before web client operation, please check the following items:  Network connection is right  DVR and PC network setup is right. Please refer to network setup(main menu->Setting->Network) ...
Page 236 Figure 5-2 System pops up the following dialogue box for you to change default administrator password. See Figure 5-3. Figure 5-3 For you own safety, please change the default password after you first login. Click Cancel button, system pops up the following dialogue box to confirm the exit. See Figure 5-4.
Page 237: Lan Mode
Figure 5-4 5.3 LAN Mode For the LAN mode, after you logged in, you can see the main window. See Figure 5-5. Figure 5-5 This main window can be divided into the following sections.  Section 1: there are five function buttons: Live（chapter 5.4）, setup (chapter 5.8), search (chapter 5.10), alarm (chapter 5.11), face search (chapter 5.11)and logout (chapter 5.13).
Page 238 Figure 5-6 Please refer to Figure 5-7 for main stream and extra stream switch information. Figure 5-7  Section 3: Start dialogue button. You can click this button to enable audio talk. Click 【▼】 to select bidirectional talk mode. There are four options: DEFAULT，G711a，G711u and PCM. After you enable the bidirectional talk, the Start talk button becomes End Talk button and it becomes yellow.
Page 239: Real-Time Monitor
Figure 5-10  Section 6: From the left to the right ,you can see video quality/fluency/ full screen/1-window/4-window/6-window/8-window/9-window/13-window/16-window/20- window/25-window/36-window.. You can set video fluency and real-time feature priority.  Section 7: PTZ operation panel. Please refer to chapter 5.5 for detailed information. ...
Page 240: Ptz
2 3 4 Figure 5-12  1: Digital zoom: Click this button and then left drag the mouse in the zone to zoom in. right click mouse system restores original status.  2: Local record. When you click local record button, the system begins recording and this button becomes highlighted.
Page 241: Image/Relay-Out
Parameter Function  Select Pattern from the dropdown list. Pattern  You can input pattern value and then click Start button to begin PTZ movement such as zoom, focus, iris, direction and etc. Then you can click Add button to set one pattern. ...
Page 242: Relay Output
Figure 5-14 5.6.2 Relay output Here you can enable or disable the alarm signal of the corresponding port. See Figure 5-15. Figure 5-15 5.7 WAN Login In WAN mode, after you logged in, the interface is shown as below. See Figure 5-16. Figure 5-16 Please refer to the following contents for LAN and WAN login difference.
Page 243: Setup
1) In the WAN mode, system opens the main stream of the first channel to monitor by default. The open/close button on the left pane is null. 2) You can select different channels and different monitor modes at the bottom of the interface.
Page 244 Figure 5-18 Please refer to the following sheet for log parameter information. Parameter Function Click Device search button, you can view the searched device Device search information on the list. It includes device IP address, port, device name, manufacturer and type. Select a device in the list and then click Add button, system can connect the device automatically and add it to the Added device list.
Page 245 Note:  System supports manufactures such as Panasonic, Sony, Dynacolor, Samsung, AXIS, Arecont, Dahua and Onvif standard protocol.  If you do not input IP address here. System uses default IP 192.168.0.0 and system does not connect to this IP.
Page 246 Figure 5-20 Please refer to the following sheet for detailed information. Parameter Function Channel Please select a channel from the dropdown list. It divides one day (24 hours) to two periods. You can set Period different hue, brightness, and contrast for different periods. It is to adjust monitor video brightness and darkness level.
Page 247 balance is not accurate. Please note the video may not be attractive if the value is too low. The recommended value ranges from 40 to 60. Color mode It includes several modes such as standard, color. You can select corresponding color mode here, you can see hue, brightness, and contrast and etc will adjust accordingly.
Page 248 Please select from the dropdown list. There are two options: Audio source Normal/HDCVI. In the normal mode, the audio signal comes from the Audio In. In the HDCVI mode, the audio signal comes from the coaxial cable of the camera.
Page 249 This function allows you to verify the video is tampered or not. Watermark enable Here you can select watermark bit stream, watermark mode and watermark character. Default character is DigitalCCTV. The max length is 85-digit. The character can only include number, character and underline.
Page 250 Figure 5-23 Please refer to the following sheet for detailed information. Parameter Function Cover-area Check Preview or Monitor first. Click Set button, you can privacy mask the specified video in the preview or monitor video. System max supports 4 privacy mask zones. Time Title You can enable this function so that system overlays time information in video window.
Page 251 5.8.1.5 Channel Type It is to set channel type. Each channel supports analog camera（analog standard definition/HDCVI） /network camera connection. Please note DVR needs to restart to activate new setup. The network camera connection shall begin with the last channel. For the 16-channel (or higher) series product, please go to the next page to set.
Page 252: Network
Figure 5-26 5.8.2 Network 5.8.2.1 TCP/IP The single-Ethernet port interface is shown as in Figure 5-27. Figure 5-27...
Page 253 The dual-Ethernet port interface is shown as in Figure 5-28. Figure 5-28 Please refer to the following sheet for detailed information. Parameter Function Mode There are two modes: static mode and the DHCP mode.  The IP/submask/gateway are null when you select the DHCP mode to auto search the IP.
Page 254 The connection interface is shown as in Figure 5-29. Figure 5-29 Please refer to the following sheet for detailed information. Parameter Function Max connection It is the max Web connection for the same device. The value ranges from 1 to 120. The default setup is 120. The default value is 37777.
Page 255 Please check the box to enable WIFI function and then click the Search SSID button. Now you can view all the wireless network information in the following list. Double click a name to connect to it. Click Refresh button, you can view latest connection status. 5.8.2.4 3G 5.8.2.4.1 CDMA/GPRS The CDMA/GPRS interface is shown as in Figure 5-31.
Page 256 Figure 5-32 5.8.2.5 PPPoE The PPPoE interface is shown as in Figure 5-33. Input the PPPoE user name and password you get from the IPS (internet service provider) and enable PPPoE function. Please save current setup and then reboot the device to get the setup activated.
Page 257 2) Function Introduction The Dahua DDNS client has the same function as other DDNS client end. It realizes the bonding of the domain name and the IP address. Right now, current DDNS server is for our own devices only. You need to refresh the bonding relationship of the domain and the IP regularly.
Page 258 Except default domain name registration, you can also use customized domain name (You can input your self-defined domain name.) After successful registration, you can use domain name to login installed of the device IP.  User name: It is optional. You can input your commonly used email address. Important ...
Page 259 Figure 5-36 Please refer to the following sheet for detailed information. Parameter Function Please check the box here to enable email function. Enable Input server address and then enable this function. SMTP Server Port Default value is 25. You can modify it if necessary. Anonymity For the server supports the anonymity function.
Page 260 Parameter Function Please check the box here to enable this function. Health mail enable This function allows the system to send out the test email to Update period check the connection is OK or not. (interval) Please check the box to enable this function and then set the corresponding interval.
Page 261 Figure 5-38 5.8.2.11 SNMP The SNMP interface is shown as in Figure 5-39. The SNMP allows the communication between the network management work station software and the proxy of the managed device. It is reserved for the 3 party to develop. Figure 5-39 Please refer to the following sheet for detailed information.
Page 262 Parameter Function and one group of the managers. Please make sure the device and the proxy are the same. The read community will read/write/access all the objects the SNMP supported in the specified name. The default setup is write. The destination address of the Trap information from the proxy Trap address program of the device.
Page 263 5.8.2.14 Alarm Centre The alarm centre interface is shown as below. See Figure 5-42. This interface is reserved for you to develop. System can upload alarm signal to the alarm centre when local alarm occurs. Before you use alarm centre, please set server IP, port and etc. When an alarm occurs, system can send out data as the protocol defined, so the client-end can get the data.
Page 264  You need to implement server certificate again if you have changed device IP.  You need to download root certificate if it is your first time to use HTTPS on current PC. Figure 5-44 5.8.2.16.1 Create Server Certificate If it is your first time to use this function, please follow the steps listed below. In Figure 5-44, click button, input country name, state name and etc.
Page 265 Figure 5-47 Click Open button, you can go to the following interface. See Figure 5-48. Figure 5-48 Click Install certificate button, you can go to certificate wizard. See Figure 5-49.
Page 266 Figure 5-49 Click Next button to continue. Now you can select a location for the certificate. See Figure 5-50. Figure 5-50 Click Next button, you can see the certificate import process is complete. See Figure 5-51.
Page 267 Figure 5-51 Click Finish button, you can see system pops up a security warning dialogue box. See Figure 5-52. Figure 5-52 Click Yes button, system pops up the following dialogue box, you can see the certificate download is complete. See Figure 5-53. Figure 5-53 5.8.2.16.3 View and set HTTPS port From Setup->Network->Connection, you can see the following interface.
Page 268: Event
You can see HTTPS default value is 443. Figure 5-54 5.8.2.16.4 Login Open the browser and then input https://xx.xx.xx.xx:port. xx.xx.xx.xx: is your device IP or domain mane. Port is your HTTPS port. If you are using default HTTPS value 443, you do not need to add port information here.
Page 269 Figure 5-55 Figure 5-56...
Page 270 Figure 5-57 Figure 5-58 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable motion detection function. Please select a channel from the dropdown list. Period Motion detection function becomes activated in the specified periods.
Page 271 Parameter Function System only memorizes one event during the anti-dither period. Anti-dither The value ranges from 5s to 600s. There are six levels. The sixth level has the highest sensitivity. Sensitivity If you select motion detection type, you can click this button to set Region motion detection zone.
Page 272 Tour You need to check the box here to enable this function. System begins 1-wiindow or multiple-window tour display among the channel(s) you set to record when an alarm occurs. Here you can set PTZ movement when alarm occurs. Such as go Activation to preset X.
Page 273 Figure 5-60 5.8.3.1.4 Diagnosis System can trigger an alarm when the stripe, noise, color cast, out of focus, over exposure event occurred. See Figure 5-61. Figure 5-61 Click Set button, you can check the corresponding box to select diagnosis type. See Figure 5-62.
Page 274 Figure 5-62 Note Video diagnosis alarm can trigger PTZ preset, tour, and pattern. For detailed setups, please refer to chapter 5.8.3.1.1 motion detect for detailed information. 5.8.3.2 Intelligence (Optional) The intelligence function is optional. The intelligence function and the human face detection can not be valid at the same time! From main menu->Setup->Event->IVS, you can go to the IVS interface.
Page 275 Figure 5-63 Check the Tripwire box to enable tripwire function. Select SN (Line1/2/3/4) and direction, and then input customized rule name.  No. and Line1/2/3/4: System supports four tripwires. Each SN stands for one tripwire.  Direction: There are three options: A->B, B->A, both. System can generate an alarm once there is any object crossing in the specified direction.
Page 276 Click to draw filter object. See Figure 5-65. Figure 5-65 Select the blue line and then use mouse to adjust zone size. Note Each rule can set two sizes (min size/max size). Once the object is smaller than the min size or larger than the max size, there is no alarm.
Page 277 Figure 5-66 Check the Intrusion box to enable intrusion function. Select SN (Area1/2/3/4) and direction, and then input customized rule name.  No. and Area1/2/3/4: System supports four zones. Each SN stands for one zone.  Direction: There are three options: A->B, B->A, both. System can generate an alarm once there is any object enter/exit (Or both) the zone.
Page 278 Figure 5-67 For detailed setups, please refer to chapter 5.8.3.1.1 motion detect for detailed information. 5.8.3.2.3 Object Detect Note:  The object detection function is valid once your network camera or your DVR supports this function.  If your purchased DVR supports the object detection function, it supports one analog channel.
Page 279 Figure 5-68 Check the Object box to enable object detect function. Select SN (object1/2/3/4) and rule type, and then input customized rule name.  No. and Object1/2/3/4: System supports four zones. Each SN stands for one zone.  Rule type: Please select from the dropdown list. There are two types: Missing object detect/abandoned object detect.
Page 280 Figure 5-69 Now you can draw a rule. Left click mouse to draw a line, until you draw a rectangle, you can right click mouse. Click Ok to complete the rule setup. For detailed setups, please refer to chapter 5.8.3.1.1 motion detect for detailed information.
Page 281 Figure 5-70 5.8.3.4 Alarm Before operation, please make sure you have properly connected alarm devices such as buzzer. The input mode includes local alarm and network alarm. 5.8.3.4.1 Local Alarm The local alarm interface is shown as in Figure 5-71. It refers to alarm from the local device.
Page 282 Figure 5-71 Figure 5-72...
Page 283 Figure 5-73 Please refer to the following sheet for detailed information. Parameter Function Enable You need to check the box to enable this function. Please select a channel from the dropdown list. Period This function becomes activated in the specified periods. There are six periods in one day.
Page 284 Parameter Function Buzzer Check the box here to enable this function. The buzzer beeps when an alarm occurs. Alarm upload System can upload the alarm signal to the centre (Including alarm centre). Send Email If you enabled this function, System can send out an email to alert you when an alarm occurs.
Page 285 please refer to chapter 5.8.3.4.1. Figure 5-75 5.8.3.4.4 IPC Offline Alarm IPC offline alarm is shown as in Figure 5-76. For setup information, please refer to chapter 5.8.3.4.1. Figure 5-76...
Page 286 5.8.3.5 Abnormality It includes three types: HDD/Network/User. See Figure 5-77 and Figure 2-22.  HDD includes: No disk, disk error, disk no space.  Network includes net disconnection, IP conflict, and MAC conflict.  User: It includes illegal login. Figure 5-77 Figure 5-78...
Page 287 Figure 5-79 Please refer to the following sheet for detailed information. Parameter Function Event The abnormal events include: No disk, disk error, disk no space, net Type disconnection, IP conflict and MAC conflict. You can set one or more items here. Less than: You can set the minimum percentage value here (For disk not space only).
Page 288: Storage
Parameter Function Send If you enabled this function, System can send out an email to alert you Email when an alarm occurs. Buzzer Check the box here to enable this function. The buzzer beeps when an alarm occurs. Check the box here, system can record the network event alarm log. 5.8.3.6 Alarm Output It is to set alarm output mode.
Page 289 Figure 5-81 Figure 5-82 Figure 5-83 Please refer to the following sheet for detailed information.
Page 290 Parameter Function Channel Please select a channel from the dropdown list. Pre-record Please input pre-record time here. The value ranges from 0 to 30. Redundancy Check the box here to enable redundancy function. Please note this function is null if there is only one HDD. Snapshot Check the box here to enable snapshot function.
Page 291 The interface is shown as in Figure 5-85. Here you can see HDD information. You can also operate the read-only, read-write, redundancy (if there are more than on HDD) and format operation. Figure 5-85 5.8.4.3 Manual Record The interface is shown as in Figure 5-86. Figure 5-86 Please refer to the following sheet for detailed information.
Page 292: Setting
It has the highest priority. Manual Enable corresponding channel to record no matter what period applied in the record setup. Stop current channel record no matter what period applied in the Stop record setup. Check the corresponding All button, you can enable or disable all Start all/ stop all channels record.
Page 293 Here is for you to select working mode when hard disk is full. There HDD full are two options: stop recording or rewrite. If current working HDD is overwritten or the current HDD is full while the next HDD is no empty, then system stops recording, If the current HDD is full and then next HDD is not empty, then system overwrites the previous files.
Page 294 Here you can set day night save time begin time and end time. You can set according to the date format or according to the week format. You can check the box to enable NTP function. You can set the time server address. NTP server It is to set the time server port.
Page 295 Please refer to the following sheet for detailed information. Parameter Function There are four options: 1920×1080,1280 × 1024(default),1280 × Resolution 720,1024×768. Please note the system needs to reboot to activate current setup. Transparency Here is for you to adjust transparency. The value ranges from 128 to 255.
Page 296 Figure 5-92 Please refer to the following sheet for detailed information. Parameter Function Check the box here to enable tour function. Enable tour Here is for you to adjust transparency. The value ranges from 5 to Interval 120s. The default setup is 5s. Here you can set window mode and channel group.
Page 297 Figure 5-93 Please refer to the following sheet for detailed information. Parameter Function This function is disabled by default. Check the box here to enable Enable this function so that you can control the zero-channel encoding function at the WEB. Compression System default setup is H.264.
Page 298 Figure 5-94 Parameter Function Enable Check the box here to enable this function. Interval It is to set the interval from current channel group to the next channel group. Window split Support 1-window split only. Delete Select a channel group and then click to delete it.
Page 299 Modify channel group Select a channel group and then double click, you can see the following interface. See Figure 5-96. You can change the setup and then click OK button. Figure 5-96 Adjust channel group sequence. Click to change channel sequence. 5.8.5.4 RS232 The RS232 interface is shown as in Figure 5-97.
Page 300 You can select control mode from the dropdown list. There are two Control mode options: Serial/HDCVI. For HDCVI series product, please select HDCVI. The control signal is sent to the PTZ via the coaxial cable. For the serial mode, the control signal is sent to the PTZ via the RS485...
Page 301 Parameter Function port. Please select protocol from the dropdown list. Protocol Set corresponding dome address. Default value is 1. Please note Address your setup here shall comply with your dome address; otherwise you can not control the speed dome. Select the dome baud rate. Default setup is 9600. Baud Rate Data Bit Default setup is 8.
Page 302 Here we take the ATM/POS protocol to continue. There are two types: with or without the protocol according to client’s requirements. With the protocol For ATM/POS with the protocol, you just need to set the source IP, destination IP (sometimes you need to input corresponding port number). Figure 5-101 Without the protocol For the ATM/POS without the protocol, the interface is shown as in Figure 5-102.
Page 303 Figure 5-102 5.8.5.7 Voice The audio function is to manage audio files and set schedule play function. It is to realize audio broadcast activation function. 5.8.5.7.1 File List Here you can add audio file, or delete audio file. See Figure 5-103. Figure 5-103 Click Add button, you can add audio file and import the audio file via the local computer.
Page 304 Figure 5-104 5.8.5.7.2 Schedule It is to set schedule broadcast function. You can play the different audio files in the specified periods. From main menu->Setup->System->Voice->.Schedule, you can see the following interface. See Figure 5-105. Figure 5-105 Please refer to the following sheet for detailed information. Parameter Function There are six periods.
Page 305 Parameter Function There are two options: MIC (default)/audio. When reuse the MIC port Output port and bidirectional talk port, the bidirectional port has the higher priority. Please note some series product does not support audio function. Note  The audio file end time depends on the audio file size and the interval setup. ...
Page 306 Here you can input the user name and password and then select one group for current user. Please note the user rights shall not exceed the group right setup. For convenient setup, please make sure the general user has the lower rights setup than the admin.
Page 307 Figure 5-108 5.8.5.8.2 Group The group management interface can add/remove group, modify group password and etc. The interface is shown as in Figure 5-109. Figure 5-109 Add group: It is to add group and set its corresponding rights. See Figure 5-110. Please input the group name and then check the box to select the corresponding rights.
Page 308 includes: shutdown/reboot device, live view, record control, PTZ control and etc. Figure 5-110 Modify group Click the modify group button, you can see an interface is shown as in Figure 5-111. Here you can modify group information such as remarks and rights. Figure 5-111...
Page 309 5.8.5.9 Auto maintain The auto maintain interface is shown as in Figure 5-112. Here you can select auto reboot and auto delete old files interval from the dropdown list. If you want to use the auto delete old files function, you need to set the file period. Click Manual reboot button, you can restart device manually.
Page 310: Information
Figure 5-114 5.8.5.12 Upgrade The upgrade interface is shown as in Figure 5-115. Please select the upgrade file and then click the update button to begin update. Please note the file name shall be as *.bin. During the upgrade process, do not unplug the power cable, network cable, or shutdown the device.
Page 311: Log
5.9.2 Log Here you can view system log. See Figure 5-117. Figure 5-117 Please refer to the following sheet for log parameter information. Parameter Function Log types include: system operation, configuration operation, data Type operation, event operation, record operation, user management, log clear.
Page 312: Online User
5.9.3 Online User The online user interface is shown as in Figure 5-118. Figure 5-118 5.9.4 HDD The HDD interface is shown as in Figure 5-119. Here you can view HDD information. Figure 5-119 5.10 Playback Click Playback button, you can see an interface is shown as in Figure 5-120.
Page 313: Search Record
Figure 5-120 5.10.1 Search Record Please set record type, record date, window display mode and channel name.  Select Date You can click the date on the right pane to select the date. The green highlighted date is system current date and the blue highlighted date means it has record files. ...
Page 314: File List
Figure 5-122 Now you can select one or more channel(s) and then click to search record(s). System supports one or more channels. The window split mode can auto adjust according to the channel amount. System max supports 16-split. Click button to select all channels at the same time. Click , system begins playback.
Page 315: Playback
Figure 5-124 5.10.3 Playback Select a file you want to play and then click Play button, system can begin playback. You can select to playback in full-screen. Please note for one channel, system can not playback and download at the same time. You can use the playback control bar to implement various operations such as play, pause, stop, slow play, fast play and etc.
Page 316: Load More
Figure 5-125 5.10.5 Load more It is for you to search record or picture. You can select record channel, record type and record time to download. Or you can use watermark function to verify file. 5.10.5.1 Download By File Select channel, record type, bit stream type and then input start time and end time. Click Search button, the download by file interface is shown as in Figure 5-126.
Page 317 Check the file(s) you want to download and there are two options for you to save the file(s).  Download to local Click Download to local, system pops up the following interface for you to set record format and saved path. See Figure 5-127. Figure 5-127 You can click OK to download and view the download process.
Page 318: Face Search
Figure 5-129 Set record format and saved path, you can click OK to download and view the download process. After the download operation, you can see corresponding dialog box. 5.10.5.3 Watermark Watermark interface is shown as In Figure 5-130. Please select a file and then click Verify button to see the file has been tampered with or not Figure 5-130 5.11 Face Search...
Page 319: Alarm
Figure 5-131 Please refer to the following sheet for detailed information. Name Function Display It is to display human face detection file list. The latest file is at the  top. \ Click Export, you can export the selected file to the USB device. ...
Page 320: Log Out
Figure 5-132 Please refer to the following sheet for detailed information. Type Parameter Function Alarm Video loss System alarms when video loss occurs. Type Motion detection System alarms when motion detection alarm occurs. Tampering System alarms when camera is viciously masking. Disk full System alarms when disk is full.
Page 321: Un-Install Web Control
Figure 5-133 5.14 Un-install Web Control You can use web un-install tool “uninstall web.bat” to un-install web control. Please note, before you un-installation, please close all web pages, otherwise the un-installation might result in error.
Page 322: Professional Surveillance System
6 Professional Surveillance System Besides Web, you can use our Smart PSS to login the device. For detailed information, please refer to Smart PSS user’s manual.
Page 323: Faq
7 FAQ 1. DVR can not boot up properly. There are following possibilities:  Input power is not correct.  Power connection is not correct.  Power switch button is damaged.  Program upgrade is wrong.  HDD malfunction or something wrong with HDD ribbon. ...
Page 324  DVR and monitor resistance is not compatible.  Video transmission is too long or degrading is too huge.  DVR color or brightness setup is not correct. 6. Can not search local records. There are following possibilities:  HDD ribbon is damaged. ...
Page 325  PTZ decoder setup, connection or installation is not correct.  Cable connection is not correct.  PTZ setup is not correct.  PTZ decoder and DVR protocol is not compatible.  PTZ decoder and DVR address is not compatible. ...
Page 326  MAC address conflict.  PC or DVR network card is not good. 16. Burn error /USB back error. There are following possibilities:  Burner and DVR are in the same data cable.  System uses too much CPU resources. Please stop record first and then begin backup.
Page 327 This series device does not support the analog camera of all brands. Please make sure the device supports general standard definition analog camera. 28. I connect the standard definition analog camera or the HDCVI camera to the device, there is no video output.
Page 328 There are following possibilities:  Check the camera is online or not.  Check IP channel setup is right or not (such as IP address, user name, password, connection protocol, port number.).  The camera has set the whitelist (Only the specified devices can connect to the camera).
Page 329 There are following possibilities:  Check the DVR supports standard definition signal or not. Only some series product supports analog standard definition signal, HDCVI signal input.  Check channel type is right or not. For the product supports analog standard definition camera/HD camera, you need to go to the main menu->Setting->Camera->Channel type to select corresponding channel type...
Page 330  Please use the brush to clean the board, socket connector and the chassis regularly.  The device shall be soundly earthed in case there is audio/video disturbance. Keep the device away from the static voltage or induced voltage.  Please unplug the power cable before you remove the audio/video signal cable, RS232 or RS485 cable.
Page 331: Appendix A Hdd Capacity Calculation
Appendix A HDD Capacity Calculation Calculate total capacity needed by each DVR according to video recording (video recording type and video file storage time). Step 1: According to Formula (1) to calculate storage capacity that is the capacity of each channel needed for each hour, unit Mbyte. ...
Page 332 448K 196M 512K 225M 640K 281M 768K 337M 896K 393M 1024K 450M 1280K 562M 1536K 675M 1792K 787M 2048K 900M...
Page 333: Appendix B Compatible Backup Devices
Appendix B Compatible backup devices Appendix B-1 Compatible USB list Manu factor Model Capacity Sandisk Cruzer Micro 512M Sandisk Cruzer Micro Sandisk Cruzer Micro Sandisk Cruzer Freedom 256M Sandisk Cruzer Freedom 512M Sandisk Cruzer Freedom Sandisk Cruzer Freedom DataTraveler Ⅱ Kingston DataTraveler Ⅱ...
Page 334: Appendix B-2 Compatible Sd Card List
Kingston Data Traveler 32GB Aigo L8315 16GB Sandisk 16GB Kingston Data Traveler Locker+ 32GB Netac U228 Appendix B-2 Compatible SD Card list Brand Standard Capacity Card type Transcend SDHC6 16GB Kingston SDHC4 Kingston Kingston Sandisk SDHC2 Small Sandisk Small Appendix B-3 Compatible Portable HDD list Brand Model Capacity...
Page 335: Appendix B-6 Compatible Sata Hdd List
Samsung TS-H653 Ver.F Samsung SH-224BB/CHXH SONY DRU-V200S SONY DRU-845S SONY AW-G170S Pioneer DVR-217CH Appendix B-6 Compatible SATA HDD List NOTE: Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. Here we recommend HDD of 500G to 4T capacity. Port Manufacturer Series...
Page 336 Seagate Seagate Pipeline HD2 ST31000322CS SATA Seagate Seagate Pipeline HD2 ST1000VM002 SATA Seagate Seagate Pipeline HD2 ST1500VM002 SATA Seagate Seagate Pipeline HD2 ST2000VM002 SATA Seagate Seagate Pipeline HD2 ST2000VM003 SATA Seagate Seagate Constellation ST3500514NS 500G SATA Seagate Seagate Constellation ST31000524NS SATA Seagate Seagate Constellation...
Page 337 Westem Digital Cariar SE WD2500JS 250G SATA Westem Digital Cariar SE16 WD7500KS 750G SATA Westem Digital Cariar SE16 WD5000KS 500G SATA Westem Digital Cariar SE16 WD4000KD 400G SATA Westem Digital Cariar SE16 WD3200KS 320G SATA Westem Digital Cariar SE16 WD2500KS 250G SATA Westem Digital...
Page 338 Hitachi HitachiCinemaStar™ HCP725050GLA380 500G SATA 5K500 Hitachi HitachiCinemaStar™ HCT721050SLA360 500G SATA 7K1000.B Hitachi HitachiCinemaStar™ HCT721075SLA360 750G SATA 7K1000.B Hitachi HitachiCinemaStar™ HCT721010SLA360 SATA 7K1000.B Maxtor DiamondMax 20 STM3320820AS 320G SATA Maxtor DiamondMax 20 STM3250820AS 250G SATA...
Page 339 Appendix C Compatible CD/DVD Burner List NOTE: Please upgrade the DVR firmware to latest version to ensure the accuracy of the table below. And you can use the USB cable with the model recommended to set USB burner. Manufacturer Model Port Type Type Sony...
Page 340: Appendix D Compatible Displayer List
Appendix D Compatible Displayer List Please refer to the following sheet form compatible displayer list. Brand Model Dimension (Unit: inch) BENQ（LCD） ET-0007-TA 19-inch (wide screen) DELL（LCD） E178FPc 17-inch Q7T4 17-inch BENQ（LCD） BENQ（LCD） Q7T3 17-inch LXB-L17C 17-inch HFNOVO（LCD） 22 寸(wide screen) SANGSUNG（LCD）...
Page 341: Appendix E Compatible Switcher
Appendix E Compatible Switcher Brand Model network working mode D-LinK DES-1016D 10/100M self-adaptive D-LinK DES-1008D 10/100M self-adaptive Five network modes 1. AUTO 2. HALF-10M Ruijie RG-S1926S 3. FULL-10M 4 .HALF-100M 5. FULL-100M H3C-S1024 10/100M self-adaptive TP-LINK TL-SF1016 10/100M self-adaptive TP-LINK TL-SF1008+ 10/100M self-adaptive...
Page 342: Appendix F Compatible Wireless Mouse List
Appendix F Compatible Wireless Mouse List Please refer to the following sheet for compatible SD card brand. Brand Model Rapoo 3500 Logitech M215 Shuangfeiyan Tianyao G7-630...
Page 343: Appendix G Earthing
Appendix G Earthing 1. What is the surge? Surge is a short current or voltage change during a very short time. In the circuit, it lasts for microsecond. In a 220V circuit, the 5KV or 10KV voltage change during a very short time (about microseconds) can be called a surge.
Page 344  Signal lightning arrester: This device is mainly used in the PC network, communication system. The connection type is serial connection. Once you connected the signal lightning arrestor with the signal port, it can cut the channel of the thunderstorm to the device, and on the other hand, it can discharge the current to the ground to guarantee the device proper work.
Page 345 conductance of the ground conductor. In the high-frequency circuit, you need to use the multiple-point ground mode and each cable needs to connect to the ground. The length shall be less than the 1/20 of the signal wavelength. Mixed ground: The mix ground consists of the feature of the one-point ground and multiple-point ground.
Page 346  The thunder proof ground shall adopt the special ground cable from the monitor control room to the ground object. The ground cable adopts copper insulation cable or wire and its ground section shall be more than 20mm2.  The ground cable of the monitor system can not short circuit or mixed connected with the strong alternative current cable.
Page 347 For L (live cable) Turn the digital multimeter to 750V AC, use your one hand to hold the metal end, and then the other hand insert the pen to the L port of the socket. See the following figure. If the multimeter shows 120, then you can see current live cable connection is standard.
Page 348 If there is any uncertainty or controversy, please refer to the final explanation of  Please visit our website or contact your local retailer for more information. Dahua Technology Co.,Ltd Address：No.1199 Bin’an Road, Binjiang District, Hangzhou, China. Postcode: 310053 Tel: +86-571-87688883 Fax: +86-571-87688815 Email:overseas@dahuatech.com...

Dahua HDCVI User Manual

1 Features and Specifications

2 Overview and Controls

3 Installation and Connections

4 Overview of Navigation and Controls

5 Web Operation

6 Professional Surveillance System

7 Faq

Appendix A Hdd Capacity Calculation

Appendix B Compatible Backup Devices

Appendix B-2 Compatible SD Card List

Appendix B-6 Compatible SATA HDD List

Appendix B-1 Compatible USB List

Appendix B-3 Compatible Portable HDD List

Appendix B-4 Compatible USB DVD List

Appendix B-5 Compatible SATA DVD List

Appendix C Compatible CD/DVD Burner List

Appendix D Compatible Displayer List

Appendix E Compatible Switcher

Appendix F Compatible Wireless Mouse List

Appendix G Earthing

Quick Links

Related Manuals for Dahua HDCVI

Summary of Contents for Dahua HDCVI

Table of Contents
