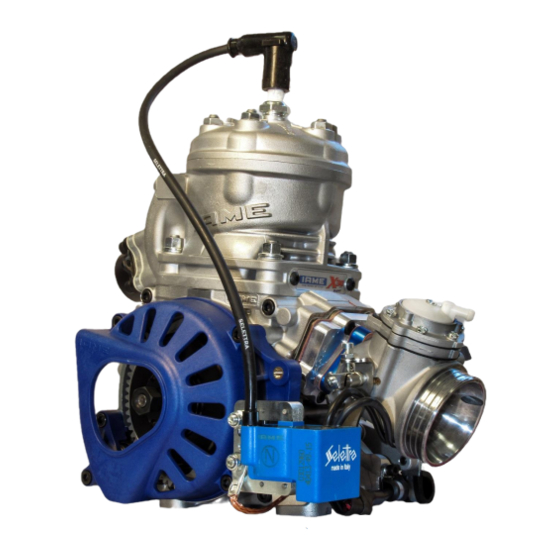

BASIC MANUAL
"X30 SUPER 175
"
CC
MAN-78

Advertisement

loading
Need help?

Need help?

Do you have a question about the X30 SUPER 175CC and is the answer not in the manual?

Questions and answers

Summary of Contents for IAME X30 SUPER 175CC

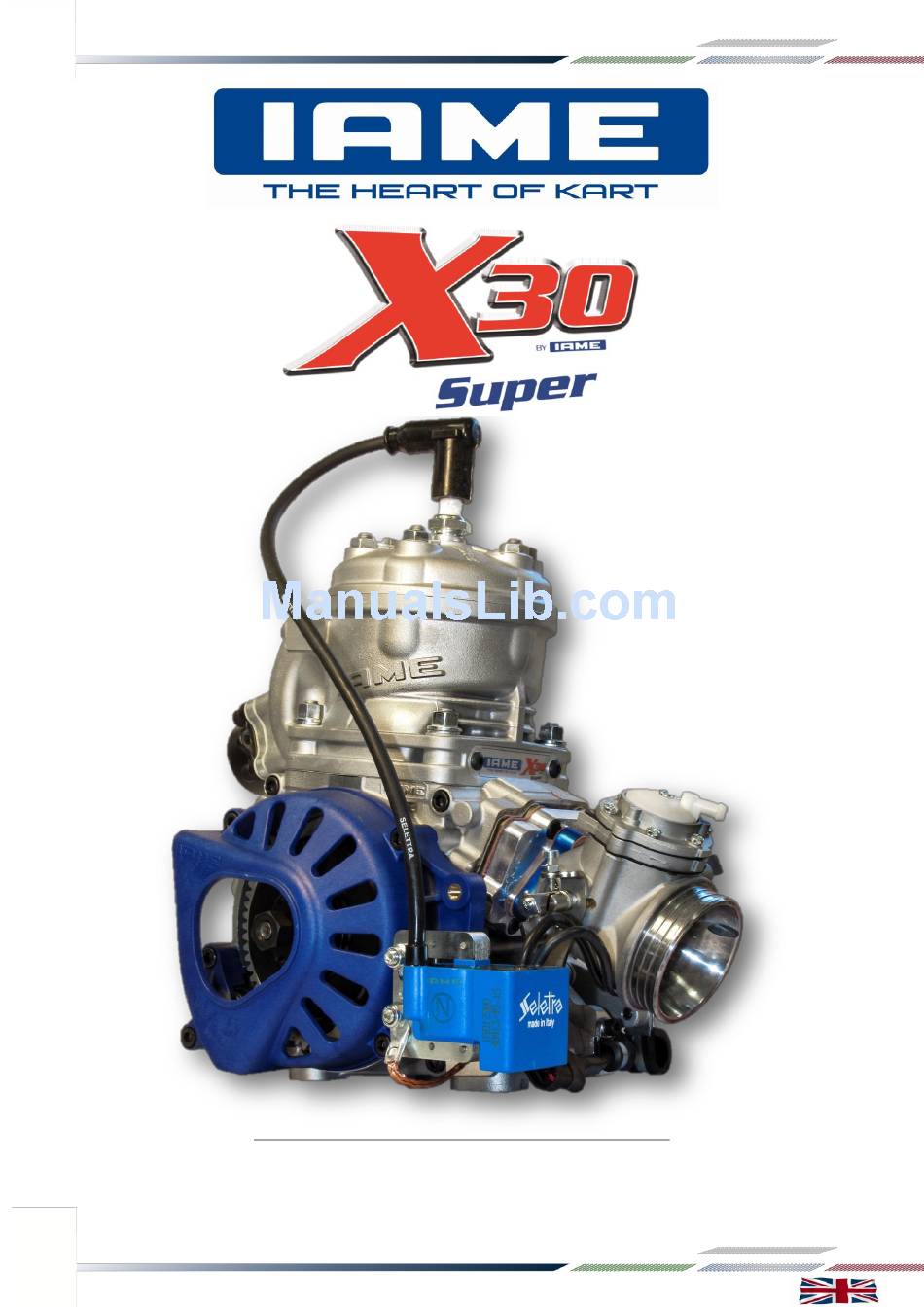

  • Page 1 BASIC MANUAL “X30 SUPER 175 ” MAN-78...
  • Page 2 GEARS OIL CHARGING Before use, remove the breather plug and add oil through the hole on the crankcase about 40ml with specific EP 100, as WLADOIL IAME GEAR OIL or generic motor oil SAE 30. In order to check the prescribed correct quantity of oil in the crankcase, unscrew the...
  • Page 3: Cooling System Connections

    COOLING SYSTEM CONNECTIONS CONNECT THE SYSTEM AS SHOWN IN FIGURE FROM HEAD PIPE FITTING TO THE CRANKCASE Once the system is filled (with pure water), provide to the proper air venting. We recommend the use of a 3 way-thermostat (opening temperature 48°C±2), as shown on the drawing, especially during the wintertime.
  • Page 4: Electric System

    ELECTRIC SYSTEM The engine mounts ignition of the digital type with fixed advance at 22°. When the piston is at T.D.C. the notches of the rotor and stator coincide. ATTENTION: VERY IMPORTANT IS CONNECT TO CRANKCASE THE COPPER WIRE TO ENGINE AND COIL’S BODY. MAN-78...
  • Page 5 CARBURETTOR ADJUSTEMENT ( I ) TROTTLE SPEED SCREW ( L ) LOW SPEED FUEL MIXTURE ( H ) HIGH SPEED FUEL MIXTURE RICH LEAN 1 T.O. ¼ ¾ T.O. T.O. ½ T.O. = TURNS OPEN T.O. Normally the correct setting of the mixture screws, after engine run-in, is the following: ...
  • Page 6: Exhaust Gas Temperature Probe

    In general, by shortening the total exhaust length the low RPM an improvement at high RPM is achieved and vice versa, by lengthening the exhaust length the low RPM is improved. For shortening or lengthen the exhaust, the only thing permitted is use of more spacers 5mm and seals provided by "IAME". MAN-78...
  • Page 7 (so to reach the better performance) or not competitive. IAME suggests to replace the piston during the competitive use any 100lt, or before whenever the clearance between piston and cylinder exceeds 0.15mm.
  • Page 8 CONROD BIG END CAGE, CRANKPIN, SHIM AND MAIN BEARING During the competitive use we suggest the replacement every 200lt . For NOT competitive use the replacement can be made about every 250lt. CONROD SMALL END CAGE The replacement must be made every 100lt. CONROD During the competitive use we suggest the replacement every 400lt.
  • Page 9 FUEL MIXTURE / FUEL 4,5 % OF OIL Oil CIK homologated advised: EP 100 GEARBOX OIL 33 ml (WLADOIL IAME GEAR OIL) or motor oil SAE 30 OPERATING TEMPERATURE ENGINE min.48°C / max.54°C EXHAUST ANGLES TIMING REFERENCE 186°±2° Feeler gauge 0.2x5mm TIMING ADVANCE 22°...
