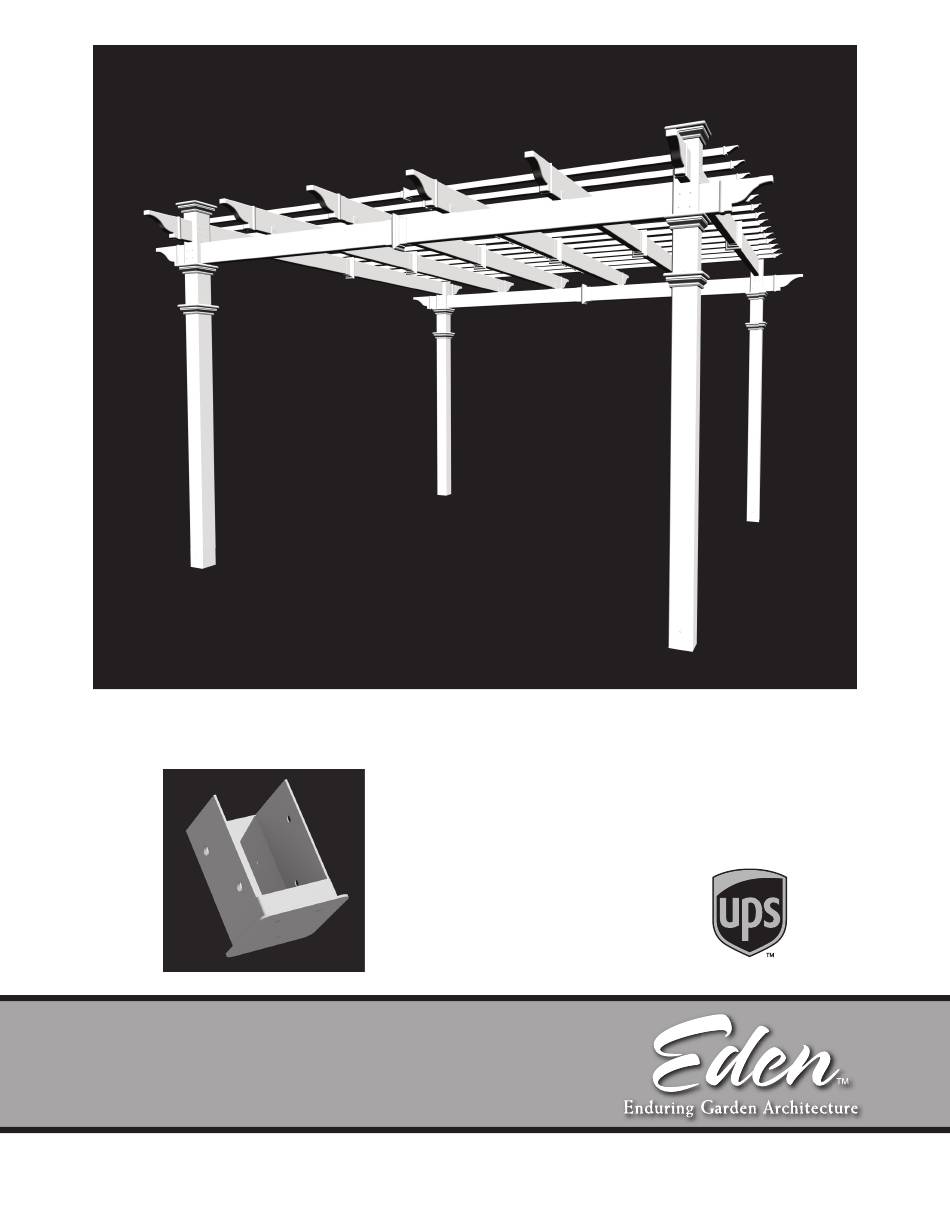

- Page 1 12 x 12 Flat Top Pergola A S S E M B L Y G U I D E Regency Model: O P T I O N A L A C C E S S O R Y • Bolt Down Bracket Kit...
- Page 2 Ta b l e o f Co n t e n t s PAGE 12 x 12 Flat Top Pergola Introduction & Overview……………………………..........………..Pergola Materials Overview……………………….
- Page 3 Planning & Preparing to 4:00 P.M. EST). The Regency Pergola is made to stand independent of your home and you can either locate it near your house or let it stand alone in the garden. By keep- ing it unattached from your home you will not have to deal with moving exis- ting gutters or matching eave heights.
- Page 4 Regency Pergola Materials Overview www.edenarbors.com 1. Post Caps (4) 2. Main Column Tops (4) 3. Post Trims (8) 171 1/2 in 4. Rafter & Beam Decorative End Caps (16) 5. Main Support Beams (4) 6. Beam & Rafter Joiners (8) 7.
- Page 5 Regency Pergola Materials Breakdown www.edenarbors.com Check Boxes (Total of 6) for These Contents In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
- Page 6 Pergola Additional Materials List www.edenarbors.com Hardware (in plastic bag) NOTE: WE HAVE INCLUDED 10% EXTRA SCREWS BEYOND WHAT IS IDENTIFIED BELOW. All Screws Included with this Kit are Self-Auguring. A. Vinyl Weld Glue (2) B. 2 1/2” Self-Auguring Stainless Steel Screws (16) (to lock vinyl column and wood post together at bottom of each post) C.
- Page 7 Wood Post Layout & Installation for In-Ground Application www.edenarbors.com This pergola can also be installed on a pre-existing wood or concrete surface using our bolt down bracket system with Overhead View a 4x4 wood post (sold separate). See page eight for more details. 135 1/2 in.
- Page 8 O P T I O N A L S T E P www.edenarbors.com 135 5/16 in. 343.7 cm. Wood Post Layout & Installation Using Bolt Down Brackets for Concrete or Wood Surface Measure and mark out the location of the pergola posts using string or chalk line.
- Page 9 *Ensure that holes at top of column are orientated correctly for S T E P T H R E E future beam and rafter placement. Vinyl Column Assembly & Installation Over Wood Posts Using the vinyl weld glue, insert the One Way 4”x4” Internal Wood Post Guide in the one end of the main column posts.
- Page 10 At this stage, the columns should be properly installed as per the following illustration, with the columns 134” in. (340.4 cm) apart. Also, notice that the holes at the top of each www.edenarbors.com post should be facing the same direction. Four holes 134 in.
- Page 11 S T E P F I V E www.edenarbors.com Four holes facing up Vinyl Rafter Assembly Insert one 2x6x12 pressure treated wood into a rafter section followed by the joiner and another rafter section. Temporarily insert the pergola ends into both end of the rafter as shown aside.
- Page 12 S T E P S I X Vinyl Beams & Rafter Placement Using a helper and two ladders proceed to complete the following steps: Slide the vinyl beam with rafter clips pre-installed through both holes of the vinyl column (overshooting), and then back through both holes of the opposite column.
- Page 13 S T E P S E V E N Fastening Vinyl Beams, Rafters & Caps Using 5/8” self-auguring stainless steel screws attach the pergola rafters to the rafter brackets. Install decorative pergola end caps using vinyl weld. Install the post caps using vinyl weld. Final position your post trims.
- Page 14 S T E P E I G H T www.edenarbors.com Shade Slat Assembly Assemble shade slats by inserting the two slats into one joiner. Push firmly until extrusion bottoms out inside joiner. No screws are necessary. Shade Slats Installation The 1 1/2 x 1 1/2 shade slats are designed to be installed with 8 11/16”...
