Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Keystone Top Lid (2)
2. Keystone Insert (2)
3. Keystone Body (2)
4. Keystone Bottom Lid (2)
5. Right Arch (2)
6. Left Arch (2)
7. Arch Rafters (8)
8. Right Post Caps (2)
9. Left Post Caps (2)
10. Side Panel Horizontal Rails (4)
11. Side Panel Square Lattice (4)
12. Side Panel Vertical Rail (2)
13. Posts (4)
14. Hardware
a)
1 1/2" Self-Auguring Stainless Steel Screws (8 for Arch to Post)
b)
1 1/2" Self-Auguring Stainless Steel Screws (8 for Keystone to Arch)
c)
1 1/2" Self-Auguring Stainless Steel Screws (8 for Ground Anchors)
15. Ground Anchor Stakes (4)
Tools You Will Need
• Cordless Drill
• Tape Measure
• Level
• Stool or Short Ladder
• Shovel
General Information
• Read Instructions through carefully before beginning assembly.
• When assembling components, place on a non-abrasive surface (i.e. shipping box) to avoid scratching.
• We recommend an area approx 10'x 8' for unobstructed assembling.
• You should not need to use excessive force when assembling components.

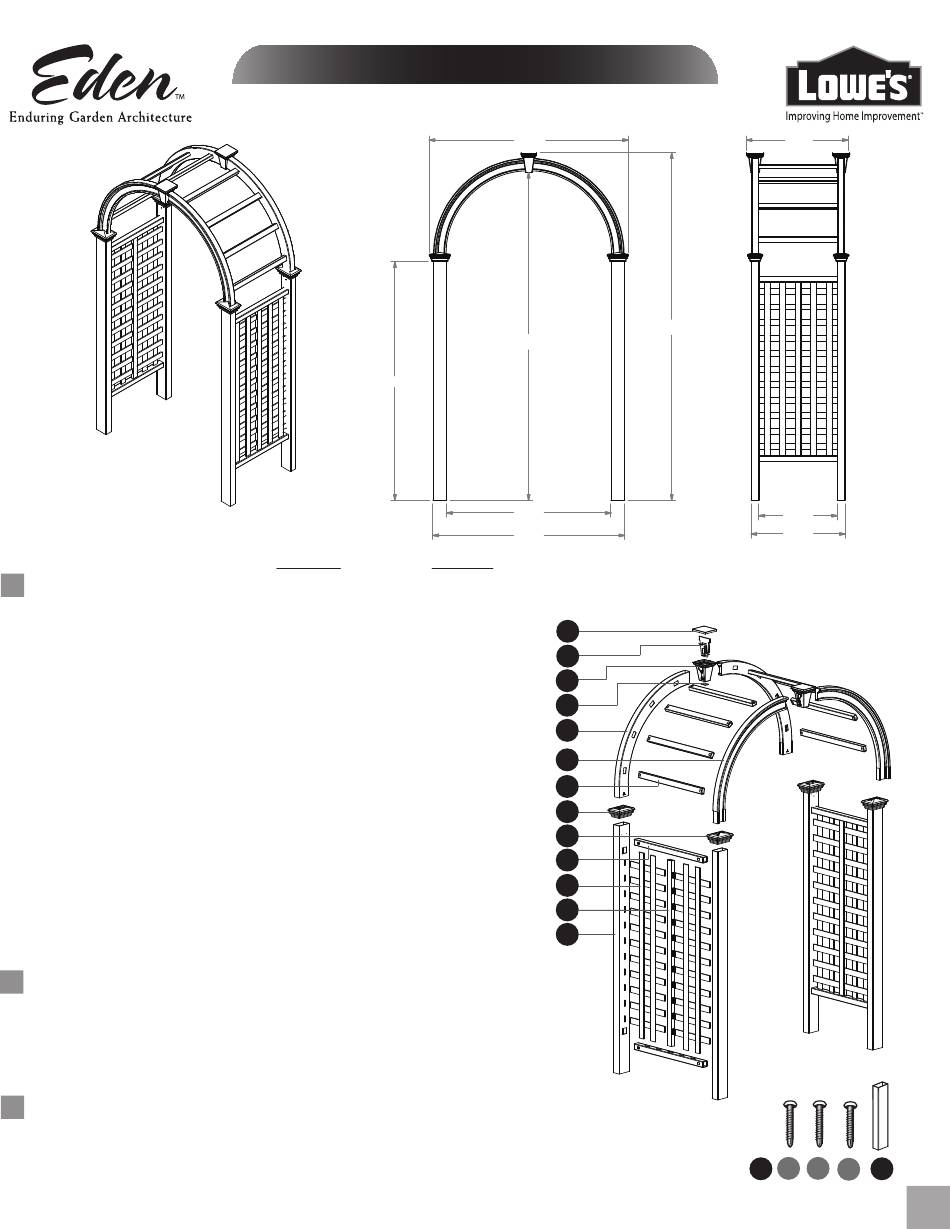

A S S E M B LY I N S T R U C T I O N S
The Stockport Arbor
60.8 in
51 in
88.6 in
83.6 in
42 in
49 in
1
2
3
4
5
6
7
8
9
10
11
12
13
Reverso en español
26 in
20 in
24 in
14 a
b
c
15
1
Not to Scale
MARCH 2012
Advertisement
Table of Contents
Related Manuals for Eden The Stockport Arbor
Summary of Contents for Eden The Stockport Arbor
- Page 1 Reverso en español A S S E M B LY I N S T R U C T I O N S The Stockport Arbor www.edenarbors.com 26 in 51 in 88.6 in 83.6 in 60.8 in 42 in 20 in Please read through before starting assembly.
- Page 2 Install post caps on the bottom of all arches. Slide up into temporary position until they hit the first rafter. Slide up to the first rafter. The Stockport Arbor...
- Page 3 Pull the post caps down into final position over the posts and fasten the arch system to the posts by installing 2 short ( 1 1/2” ) screws per post as illustrated. Note: Vertical slats to face outwards The Stockport Arbor...
- Page 4 S T E P F O U R Ground Anchors Installation Arbors must be well secured to prevent tipping over from wind load etc. We have provided four ground anchors for securing the arbor either into the ground or a concrete footing. In some cases it may be acceptable to secure the arbor to an existing structure such as a fence post.
