Please read through before starting assembly.
IMPORTANT: CHECK THE INSIDE OF YOUR POSTS FOR ALL MATERIALS.
Check Box for These Contents
In the event of missing or defective parts please call our customer service dept. at 1 800 282 9346, ext #20 (Mon. to Fri. 8:00 AM to 4:00 PM EST).
1. Arches (2)
2. Arch Rafters (5)
3. Post Caps (4)
4. Left Posts (2)
5. Right Posts (2)
6. Side Panel Top Horizontal Rails (2)
7. Side Panel Bent Vertical Spindles (4) 56.448 in.
8. Side Panel Middle Straight Vertical Spindles (2) 55.375 in.
9. Side Panel Middle Horizontal Rail (2)
10. Side Panel Bottom Horizontal Rail (2)
11. Ground Anchoring Stakes (4)
12. 1 1/4 in (3.17cm) Self Augering Screws (34)
Tools You Will Need
Assembly Time
General Information
Read Instructions through carefully before beginning assembly.
(i.e. shipping box) to avoid scratching.
A S S E M B LY I N S T R U C T I O N S
The London Arbor
(2 People)
219.7 cm
42 in
45 in
114.3 cm
1
2
3
4
5
6
7
9
11
56 in
142.2 cm
11 in
27.9 cm
45.7 cm
21 in
53.3 cm
12
Not to Scale
1
Advertisement
Table of Contents
Related Manuals for Eden London Arbor
Summary of Contents for Eden London Arbor

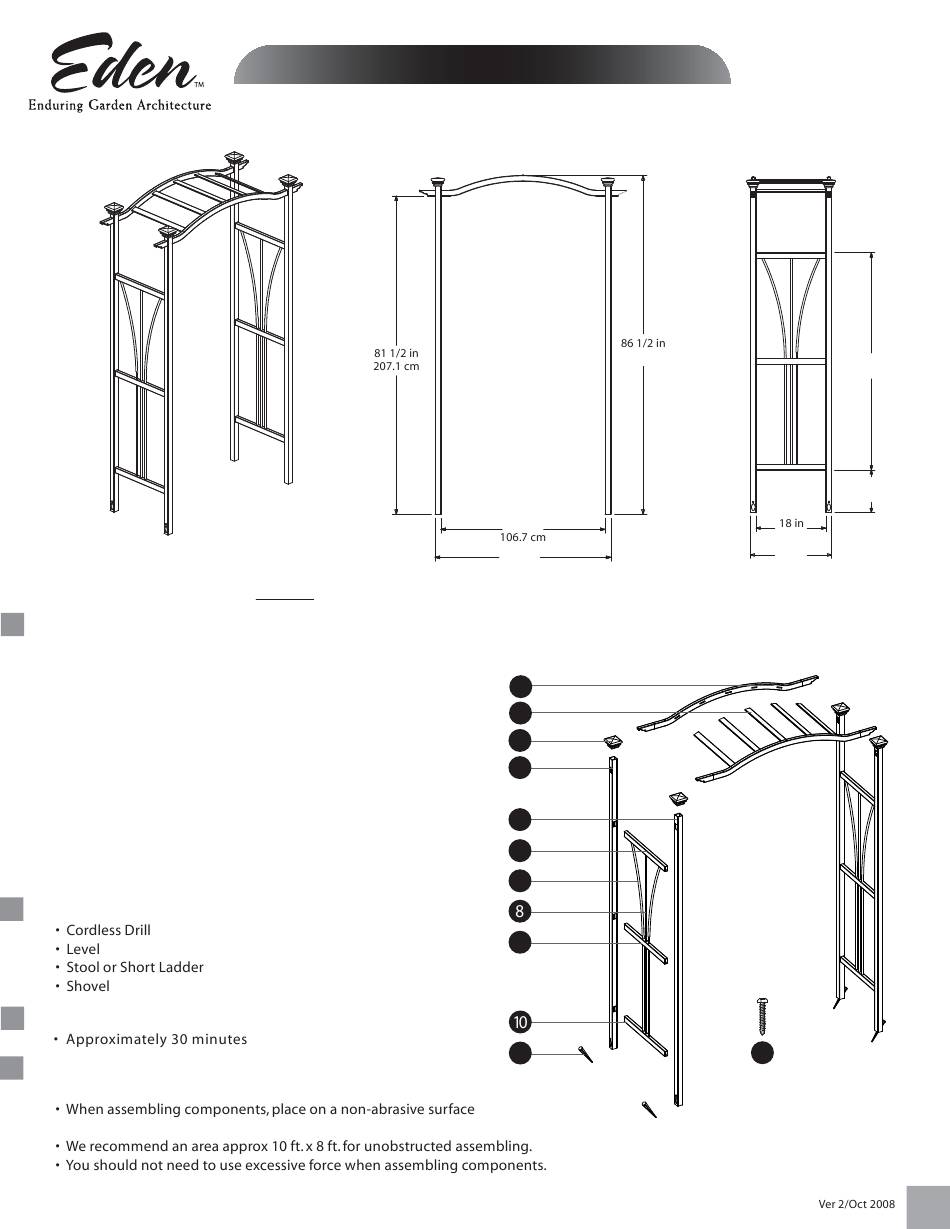

- Page 1 A S S E M B LY I N S T R U C T I O N S The London Arbor 219.7 cm 56 in 142.2 cm 11 in 27.9 cm 42 in 45.7 cm 21 in 45 in Please read through before starting assembly.
- Page 2 Position the Side Panel Top Horizontal Rail and insert the Middle Vertical Spindle. Tension bend into place the two outer vertical spindles. The assembled side panel will need to be held together until it is inserted into the post. (Continued on following page...) The London Arbor...
- Page 3 Fasten the arch system to the posts by installing four screws as illustrated at each post. Place post caps on top of posts. 42 in. Face holes for 106 3/4 cm. anchors outwards. The London Arbor...
- Page 4 S T E P F O U R Temporary Arbor Installation Arbors must be well secured to prevent tipping over from wind load etc. We have provided four ground anchors for securing the arbor in a temporary application like a wedding, etc. These anchors are not designed to permanently mount your arbor.
