HOT AND COOKING
HOBS AND COMBINATIONS
PI8022, PI8023, MO9722
Cooktops and combinations
EN
Installation and Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PI8022 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Dometic PI8022

Summary of Contents for Dometic PI8022

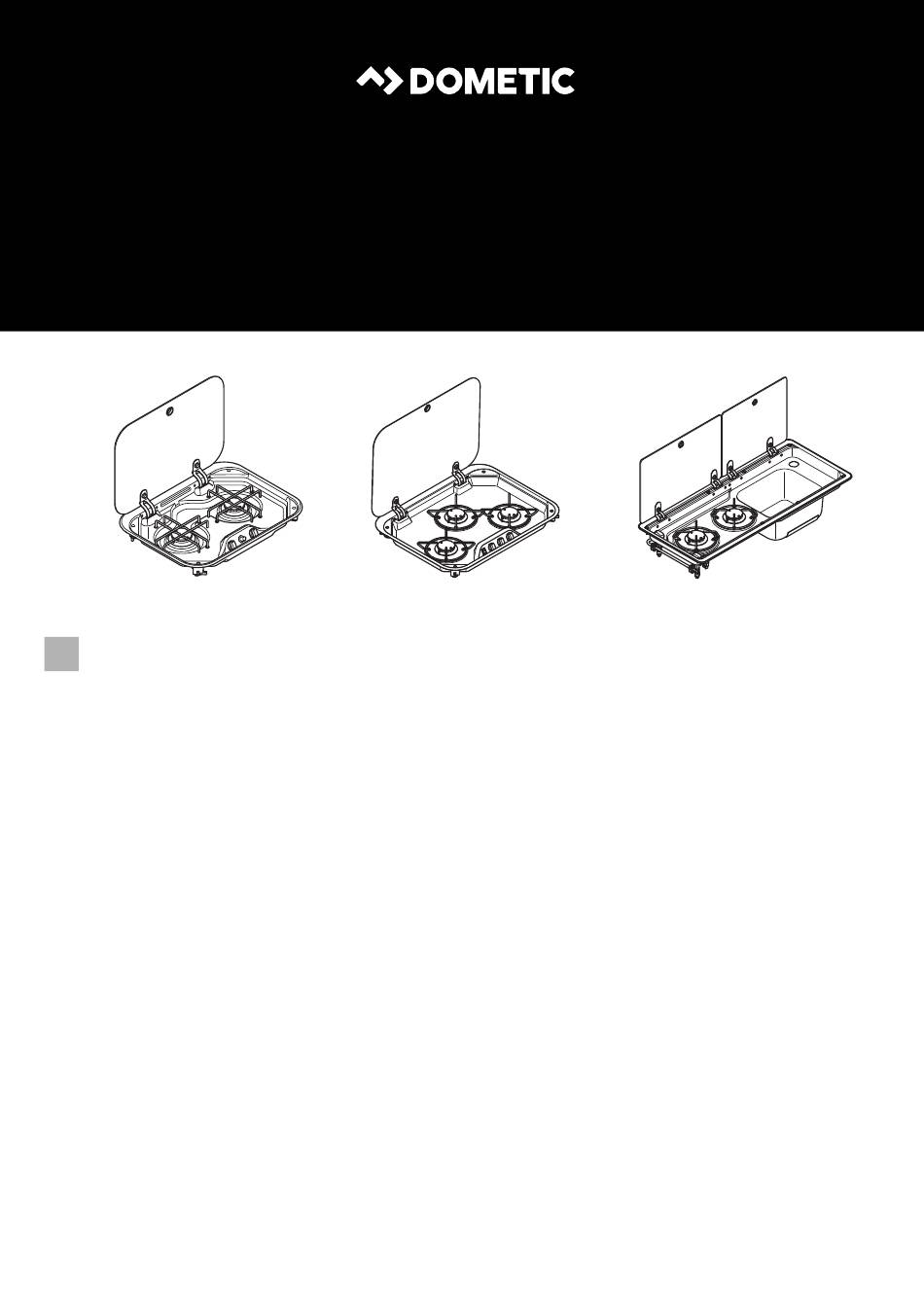

  • Page 1 HOT AND COOKING HOBS AND COMBINATIONS PI8022, PI8023, MO9722 Cooktops and combinations Installation and Operating Manual...
  • Page 2 © 2022 Dometic Group. The visual appearance of the contents of this manual is protected by copyright and design law. The underlying technical design and the products contained herein may be protected by design, patent or be patent pending. The trademarks mentioned in this manual belong to Dometic Sweden AB.

  • Page 3: Table Of Contents

    PI8022, PI8023, MO9722 Please read these instructions carefully and follow all instructions, guidelines, and warnings included in this product manual in order to ensure that you install, use, and maintain the product properly at all times. These instructions MUST stay with this product.

  • Page 4: Explanation Of Symbols

    Explanation of symbols PI8022, PI8023, MO9722 Explanation of symbols WARNING! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in death or serious injury. CAUTION! Safety instruction: Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

  • Page 5: General Safety Instructions

    PI8022, PI8023, MO9722 General safety instructions General safety instructions General safety WARNING! • This device must only be repaired by qualified personnel. Improper repairs can result in considerable danger or damage to the device. • DO NOT MODIFY THIS DEVICE.
  • Page 6 General safety instructions PI8022, PI8023, MO9722 • Suffocation hazard! Before switching on the device, ensure that the area is sufficiently ven- tilated. • Only operate the device at the pressure specified on the type plate. Only use pressure regulators with a fixed setting that comply with the national regulations.
  • Page 7 PI8022, PI8023, MO9722 General safety instructions • Only use pots and pans with an even base and a diameter no larger than the grids on the device. The pots and pans must be large enough to cover the flame. If the flames are not covered, items of clothing could catch fire.

  • Page 8: Scope Of Delivery

    Scope of delivery PI8022, PI8023, MO9722 • If the device is installed outdoors and is stowable, it shall be stowed away when no longer in use to protect it from damage. Wait until device has cooled before stowing. NOTE • To minimize corrosion and prolong the life of the device ensure that you clean the device with a damp cloth and warm soapy water after it has been operated in areas close to salt water.

  • Page 9: Intended Use

    • Incorrect maintenance or use of spare parts other than original spare parts provided by the manufacturer • Alterations to the product without express permission from the manufacturer • Use for purposes other than those described in this manual Dometic reserves the right to change product appearance and product specifications.

  • Page 10: Technical Description

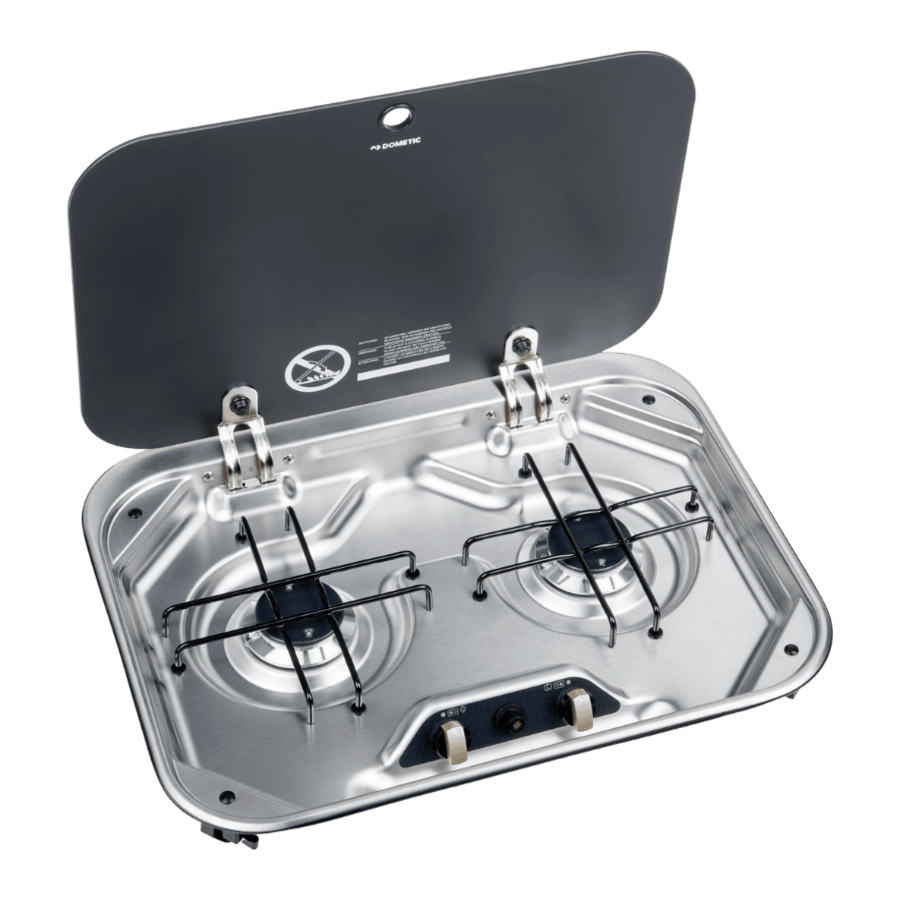

    Specifications for the different models The devices are available in different versions: • PI8022: Cooktop with two burners and safety glass cover • PI8023: Cooktop with three burners and safety glass cover • MO9722: Combination with two burners, safety glass cover and a sink...
  • Page 11 PI8022, PI8023, MO9722 Technical description Control panel Icon in fig. 2 Explanation Button for spark ignition Push button for spark ignition Low flame High flame...

  • Page 12: Installing The Device

    200 mm NOTE * For PI8022 and PI8023 with glass lid the distance between the edge of the cooktop to the back wall can be reduced up to 0 mm. • Ensure that there are no drafts at the installation location.
  • Page 13 PI8022, PI8023, MO9722 Installing the device Installing the device 1. Create a cutout according to the installation drawing: – PI8022: fig. 4 PI8022 – PI8023: fig. 5 PI8023...
  • Page 14 Installing the device PI8022, PI8023, MO9722 – MO9722: fig. 6 MO9722R MO9722L...
  • Page 15 PI8022, PI8023, MO9722 Installing the device 2. Affix the device to the worktop using the screws: – PI8022, PI8023: fig. 7 – MO9722: fig. 8 h= t 21 mm d 25 mm PI8022 PI8023 h= t 16 mm d 21 mm...
  • Page 16 Installing the device PI8022, PI8023, MO9722 Connecting the device to the gas supply WARNING! Beware of injury! Only use LP gas cylinders with a certified pressure regulator. Compare the pressure information on the type plate with the pressure information on the regulator.
  • Page 17 PI8022, PI8023, MO9722 Installing the device 1. Connect the pipes as shown (fig. 9). The connection of the gas pipe to the appliance (1/4 BSPT female) must be made with a rigid metal pipe. The pipe work and fittings shall be free from defects and of an approved type.
  • Page 18 Installing the device PI8022, PI8023, MO9722 Connecting the device to the power supply (PI8023) 1. Connect the device as shown (fig. 0). 200 cm 2 x 0,5 mm 12 V black 2. Add a 1 A fuse in the plus line near the battery.

  • Page 19: Using The Device

    PI8022, PI8023, MO9722 Using the device Test point NOTICE! Damage hazard The burner and its bottom are made of aluminum. The fixing screws are made of stainless steel. Do not loosen the screws in hot conditions as you may damage the screw hole of the aluminum components.
  • Page 20 Using the device PI8022, PI8023, MO9722 1. Choose a pot according to the following table: Burner (fig. b) Pot diameter 9 – 15 cm 10 – 18 cm 16 – 22 cm PI8022 PI8023 D D C C C B...
  • Page 21 PI8022, PI8023, MO9722 Using the device 2. Ignite a burner as shown (fig. c). max. 10 s...
  • Page 22 Using the device PI8022, PI8023, MO9722 Switching off the device ➤ Switch off the device as shown (fig. d). Replacing the gas cylinder WARNING! Beware of injury! Only replace the gas cylinder when there is good ventilation. Make sure that there is no source of ignition nearby.

  • Page 23: Cleaning The Device

    PI8022, PI8023, MO9722 Cleaning the device Cleaning the device CAUTION! Hot surface The surface may still be hot. Keep children away. Let the device cool down to ambient temperature before you touch it with bare hands. NOTICE! Do not use any sharp or hard objects for cleaning since they may damage the device.

  • Page 24: Maintaining The Device

    Maintaining the device PI8022, PI8023, MO9722 Maintaining the device Abnormal Operation Gas valves, which are difficult to turn are considered to be abnormal operation and may require servicing. ➤ In case the device fails to operate correctly, contact an authorized service agent in your area.
  • Page 25 PI8022, PI8023, MO9722 Maintaining the device Replacing the nozzles WARNING! Beware of injury! The nozzles must only be replaced by qualified personnel. Incorrect assembly and installation can result in serious hazards due to the escape of gas. ➤ Replace the nozzles as shown:...
  • Page 26 Maintaining the device PI8022, PI8023, MO9722 – Assembly: fig. g...

  • Page 27: Troubleshooting

    PI8022, PI8023, MO9722 Troubleshooting Troubleshooting WARNING! Beware of injury! Servicing of the cooktop must only be done by an qualified personnel and the cooktop must not be modified. Power must be disconnected before any servicing or maintenance is conducted. ➤ Contact an authorized service agent if you observe one of the following abnor- mal conditions: –...

  • Page 28: Warranty

    Warranty If the product does not work as it should, please contact your retailer or the manufacturer's branch in your country (see dometic.com/dealer). The warranty applicable to your product is 3 year(s). For repair and warranty processing, please include the following documents when you send in the device: •...

  • Page 29: Disposal

    This warranty policy is subject to the conditions and guarantees which are mandatory as implied by the Consumer Guarantees Act 1993(NZ). Local support Please find local support at the following link address: dometic.com/dealer Disposal ➤ Place the packaging material in the appropriate recycling waste bins wher- ever possible.

  • Page 30: Technical Data

    Technical data PI8022, PI8023, MO9722 Technical data Cooktop Gas category: ULPG Gas connecting pressure: 2.75 kPa Connection voltage (PI8023): 12 Vg (1 A fuse) Inspection/certification: DO NOT REMOVE ® AUSTRALIA AND NEW ZEALAND GAS SAFETY CERTIFICATION See fig. b, page 20:...
