Bloomfield MOD-200 Installation Instructions

ELECTRICAL
MODELS VOLTS WATTS
MOD-200 208
MOD-200 240
MOD-200T 208
MOD-200T 240
SUFFIX HAVE THE SAME ELECTRICAL
ALL MODELS WITH A 'D' OR 'DM'

CUTOUT DETAILS

4 1/8
(105)
28 1/2
(725)
TOP CUTOUT

CLEARANCES

MINIMUM CLEARANCE REQUIRED FROM
UNIT TO THE NEAREST SURFACE
BACK SIDE
1 1
(25) (25)
INSTALLATION INSTRUCTIONS
NOTE:
THE DRAIN MANIFOLD WITH 1" INTERNAL NPT VALVE
IS SUPPLIED FOR DM AND TDM MODELS ONLY.
INSTALLER MUST MEET CONDITIONS OF ACCEPTABILITY
OUTLINED BELOW UPON INSTALLATION:

1. Required Installation Clearances:

Wooden and Metal Installation: DO NOT install closer than
4 1/8 inches to front wall, 1 inch to back and side walls,
and 6 3/4 inches to a surface below the unit. If the
control box is located below the unit, the front clearance
may be 1 inch.
2. Unit shall be accessible for servicing from the bottom.
3. If storage is to be used underneath the unit, it is
recommended that a baffle be placed 8 1/2 inches below
the unit to avoid contact with elevated temperatures.

TO FABRICATE:

1. Layout "cutout" dimensions on countertop and front
apron.
2. Layout and fabricate control panel holes in counter
apron using control box as a template.
3. Cut out holes.
4. Unit shall be accessible for servicing from the bottom.

TO INSTALL:

IMPORTANT - DO NOT disconnect "lead wires" from the
Master Control Panel when making installation.
1. Tilt and pass Control Panel and electrical box through
countertop cutout, then through apron cutout. Lower
modular section into countertop cutout and position.
RECOMMENDATION: Before final seating of modular section
to countertop, apply a bead of silicone adhesive/sealant
to underside of gray gasket material supplied on mounting
flange.
2. From underneath, insert screwdriver into "slots" in
Wellslok frame and twist "ears" outward (clockwise) as
required to secure flange tightly to countertop.
3. Mount Control Box to apron cutout as shown in drawing.
AMPS PHASE
1800 8.7 SINGLE
2400 10.0 SINGLE
2480 11.9 SINGLE
3300 13.8 SINGLE
SPECIFICATIONS AS THE STANDARD
3 1/8
(79)
22 1/2
(572)
12 7/8
(325)
FRONT PANEL CUTOUT
BOTTOM FRONT
6 3/4 4 1/8
(171) (105)
FIELD
TEMP.
WIRING
RATING
GAUGE
12 AWB Cu 75°C
12 AWB Cu 75°C
14 AWB Cu 90°C
14 AWB Cu 90°C
MOD-200 OR MOD-200T MODELS.

PRODUCT DIMENSIONS

5
(127)
14
(356)
29 1/2
(749)
14
(356)
4. Mount Control Panel onto electrical box using screws
supplied.

TO PLUMB:

1. A drain manifold complete with valve is supplied on all Model
"DM" and "TDM" units. Location of valve handle is at the
discretion of the fabricator. Install and tighten pipe plug in one
end of the manifold.
2. Warmers with 'D' suffix are supplied with individual 1/2''
female N.P.T. drains.
3. Connect 1'' drain connection to suitable drain line.

TO WIRE:

1. Final connection is accomplished by bringing proper power
supply leads (see 'wiring requirements' label) through conduit
knockout to terminal block supplied within the Master Control
Panel. Check nameplates for voltage and phase.
2. Do not connect to a circuit operating at more than 150
volts to ground.
NOTE: INSTALLATION MUST MEET LOCAL PLUMBING AND
ELECTRICAL CODES.
WARMER FLANGE
GASKET
SCREWDRIVER
COUNTERTOP
WELLS/BLOOMFIELD * VERDI, NV
INSTALLATION INSTRUCTIONS

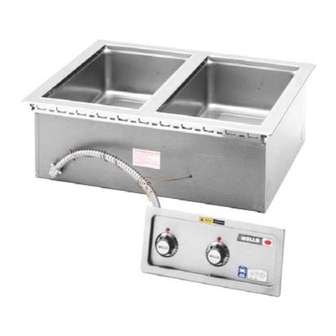

BUILT-IN MODULAR WARMERS
MOD 200 SERIES (T, TD, TDM)
INCHES
(MM)
23 5/8
2 1/4
(600)
(57)
7 3/4
(197)
6 1/4
(159)
9 3/4
(248)
1/2 INCH
INTERNAL N.P.T.
'D' MODELS ONLY
WELLSLOK
IMPORTANT:
MOUNT APPLIANCE SO THAT BOTH
THE CONTROL PANEL AND DRAIN
MANIFOLD ARE LOCATED TO THE
FRONT OF THE FIXTURE.
1 3/4
(44)
MASTER
CONTROL
PANEL
37099-2 REV (-)
