BE QUIET! sTRX4 Product Information

www.bequiet.com/bz008
Scope of delivery
Name
1
AMD sTRX4 / TR4 mounting frame
2
AMD sTRX4 / TR4 spacer nut
3
AMD sTRX4 / TR4 fastening
screws
4 4
Thermal paste
Introduction: If you do encounter installation problems,
please don't hesitate to contact our customer services by
mailing service@bequiet.com. Please note that be quiet!
cannot accept liability for damage caused by compatibility
problems. This manual should be used for:
Silent Loop 2 series
Warranty:
• 3-year manufacturer guarantee for consumers (original
purchase from authorized be quiet! dealers only)
• Guarantee work can only be processed with a copy included
of the purchase receipt from an authorized be quiet! dealer
• Manipulation and structural changes of any kind, including
any damage caused by external mechanical force, will lead to
a complete voiding of the guarantee
• Our General Warranty Conditions apply, which can be
viewed on bequiet.com
Contact
Listan GmbH . Wilhelm-Bergner-Straße 11c . 21509 Glinde
Germany
» Product information
» Produktinformationen
» Informations produit
» Información del producto
» Informacje produktowe
» Engelstallige productinformatie
NL
» Produktinformation
SE
» подробная информация
» 產品信息
» 产品信息
» 商品情報
AMD sTRX4 / TR4
Quantity The following parts are needed for this:
Silent Loop 2 CPU cooler, AMD sTRX4 / TR4 mounting frame
(1), AMD sTRX4 / TR4 spacer nuts (2), AMD sTRX4 / TR4
1
fastening screws (3), thermal paste (4)
4
4
1

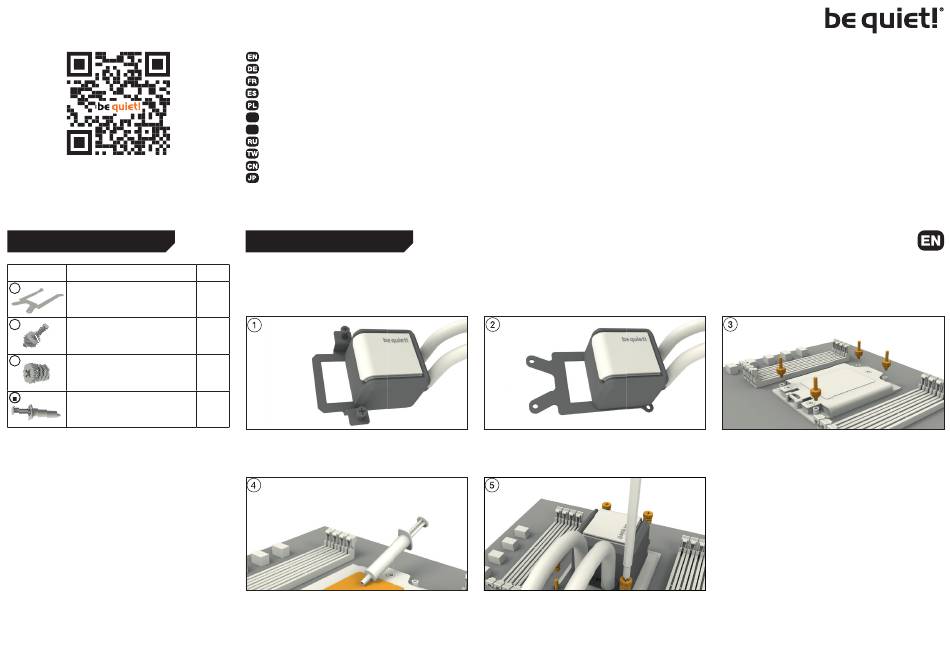

Disassembly of the cooler mounting frame
First remove the Intel / AMD mounting. For that, push the
mounting kit away from the sleeved tubes of Silent Loop 2.
Mounting of the CPU block
Remove the protective foil from the underside of the cooler.
Spread the thermal paste (4) on the surface of the CPU.
AMD sTRX4 / TR4 Mounting Kit
Assembly of the cooler mounting frame
Fix the AMD sTRX4 / TR4 mounting frame (1) by sliding them
in from the opposite site of the sleeved tubes.
Assembly of the mounting bracket
Place the CPU block of Silent Loop 2 over the CPU. Take care
for the AMD sTRX4 / TR4 mounting frame (1) to lie on the
spacer nuts. Next fi x the CPU block with the fastening screws (3).
Screw the AMD sTRX4 / TR4 spacer nuts (2) in the socket of
the motherboard.
Version: V1/21
