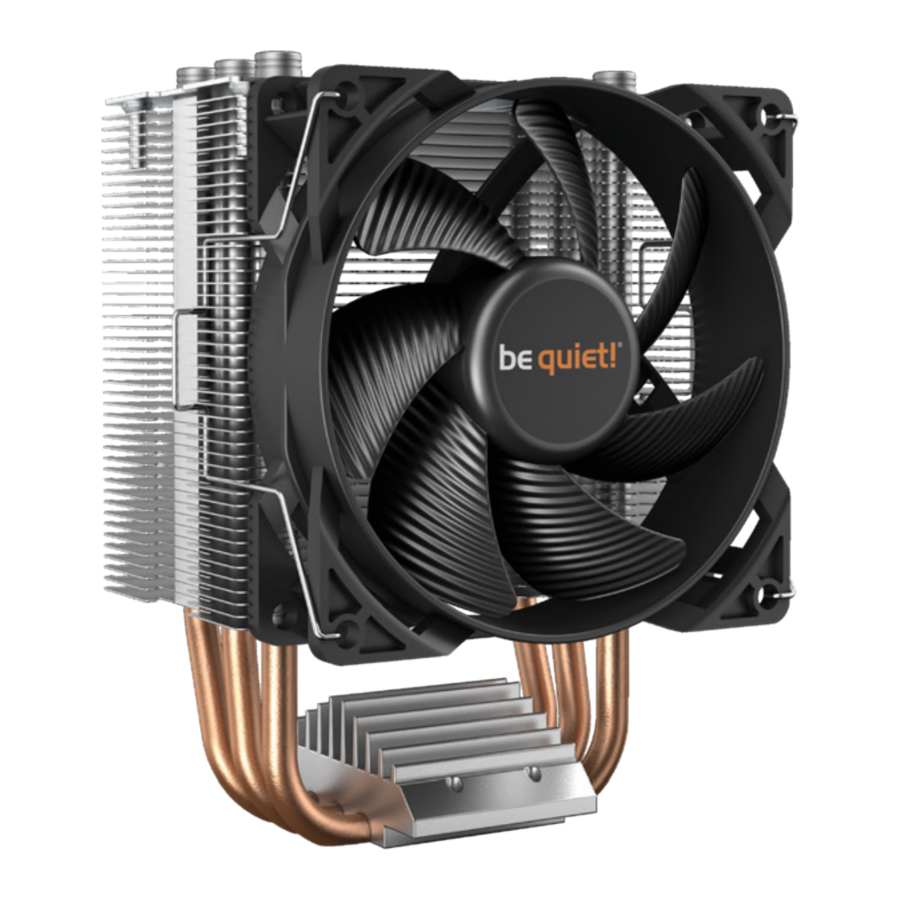

BE QUIET! PURE ROCK SLIM 2 Manual

Introduction

The following instructions will guide you through the installation process. If you do encounter installation problems, please don't hesitate to contact our customer services by mailing service@bequiet.com. Please note that be quiet! cannot accept liability for damage caused by compatibility problems.

SCOPE OF DELIVERY

The following parts are needed for this:
1x Pure Rock Slim 2 (1), 1x 92mm fan (2), 1x Intel push-pins (3), 2x fan clips (4)

1. Mounting the CPU cooler
   The protective covering on the underneath of the cooler must be removed prior to installation against the CPU.

   The preapplied thermal paste is not suitable for human consumption. If swallowed, drink lots of water and urgently seek medical attention. Keep it out of the reach of children. Avoid contact with skin and eyes.

2. Mounting the CPU cooler
   To mount the CPU cooler unit on an Intel motherboard, first remove the preassembled AMD mounting unscrewing the recessed M3x3 screws in the underside. You can use any crosstip screwdriver for this.

3. Fasten the Intel push-pins mounting on the cooler. You can use any cross-tip screwdriver for this.

4. Place the cooler onto the CPU unit. Make sure that the Intel push-pins are precisely located within the motherboard holes.

5. To install the be quiet! Pure Rock Slim 2 press the Intel push-pins into the matching sockets. To remove the cooler unit, first rotate the Intel push-pins counter-clockwise and then lift them up.

6. Mounting the fan
   Fasten the 92mm fan onto the cooler unit using the fan clips. Connect the fan to the motherboard´s PWM signal. When dismantling the 92mm fan, push the notches of the fan clips away from the fan.


The following parts are needed for this:
1x Pure Rock Slim 2 CPU cooler (1), 1x 92mm fan (2), 2x fan clips (4)

1. The protective covering on the underneath of the cooler must be removed prior to installation against the CPU.

   The preapplied thermal paste is not suitable for human consumption. If swallowed, drink lots of water and urgently seek medical attention. Keep it out of the reach of children. Avoid contact with skin and eyes.

2. Mount the CPU cooler by rotating the AMD levers on both sides.

3. Mounting the fan
   Fasten the 92mm fan onto the cooler unit unsing fan clips. Connect the fan to the motherboard´s PWM signal. When dismantling the fan, push the notches of the fan clips away from the fan.
