BE QUIET! Shadow Rock Manual

Intel LGA 2011 square ILM
General
We recommend preparatory mounting of the
Installation video
cooler outside the PC case for subsequent
installation.
The following parts are needed for this:
1x Shadow Rock LP CPU cooler (1), 1x 120mm fan (2), 2x Intel
mounting brackets (4), 1x cooler mounting bridge (5), 4x spacer
nuts (6), 4x mounting bracket fastening screws (8), 2x Intel/AMD
mounting bridge fastening screws (9), 2x fan clips (12), 1x open-
end wrench (14)
2011 square ILM
Assembly of the cooler mounting frame
Screw the spacer nuts (6) into the threads of the socket frame.
Place the Intel mounting brackets (4) onto the spacer nuts
and screw these tight with the mounting bracket fastening
screws (8).
The protective covering on the underneath of the cooler must
be removed prior to installation against the CPU.
Caution: The thermal past supplied is not suitable for human
consumption. If swallowed, drink lots of water and urgently
seek medical attention. Keep it out of the reach of children.
Avoid contact with skin and eyes.
Mounting the CPU cooler
Place the cooler mounting bridge (5) centrally on the cooler
(1). Insert from above the Intel/AMD mounting bridge fastening
screws (9) into the cooler mounting bridge.
Next position the cooler (1) on the CPU. Then alternately
tighten the Intel/AMD mounting bridge fastening screws (9).
For this you can use the open-end wrench (14) or any cross-tip
screwdriver.
Fitting and connecting the fan
Mount the 120mm fan (2) onto the cooler unit (1) using the
fan clips (12). Connect the fan to the CPU fan connector on
the motherboard.
When dismantling the 120mm fan (2), push the notches of
the fan clips (12) away from the fan.
Introduction: Thank you for deciding to purchase a be quiet!
product. The following instructions will guide you through the
installation process. If you do encounter installation problems,
please don't hesitate to contact our customer services by
mailing service@bequiet.com. Please note that be quiet!
cannot accept liability for damage caused by compatibility
problems.
Warranty:
• 3-year manufacturer guarantee for consumers (original
purchase from authorized be quiet! dealers only)
• Guarantee work can only be processed with a copy
included of the purchase receipt from an authorized
be quiet! dealer
• Manipulation and structural changes of any kind, including
any damage caused by external mechanical force, will
lead to a complete voiding of the guarantee
• Our General Warranty Conditions apply, which can be
viewed on bequiet.com
Listan GmbH & Co.KG . Biedenkamp 3a . 21509 Glinde
Germany
For further information contact us via e-mail:
service@bequiet.com
SCOPE OF DELIVERY
Part name

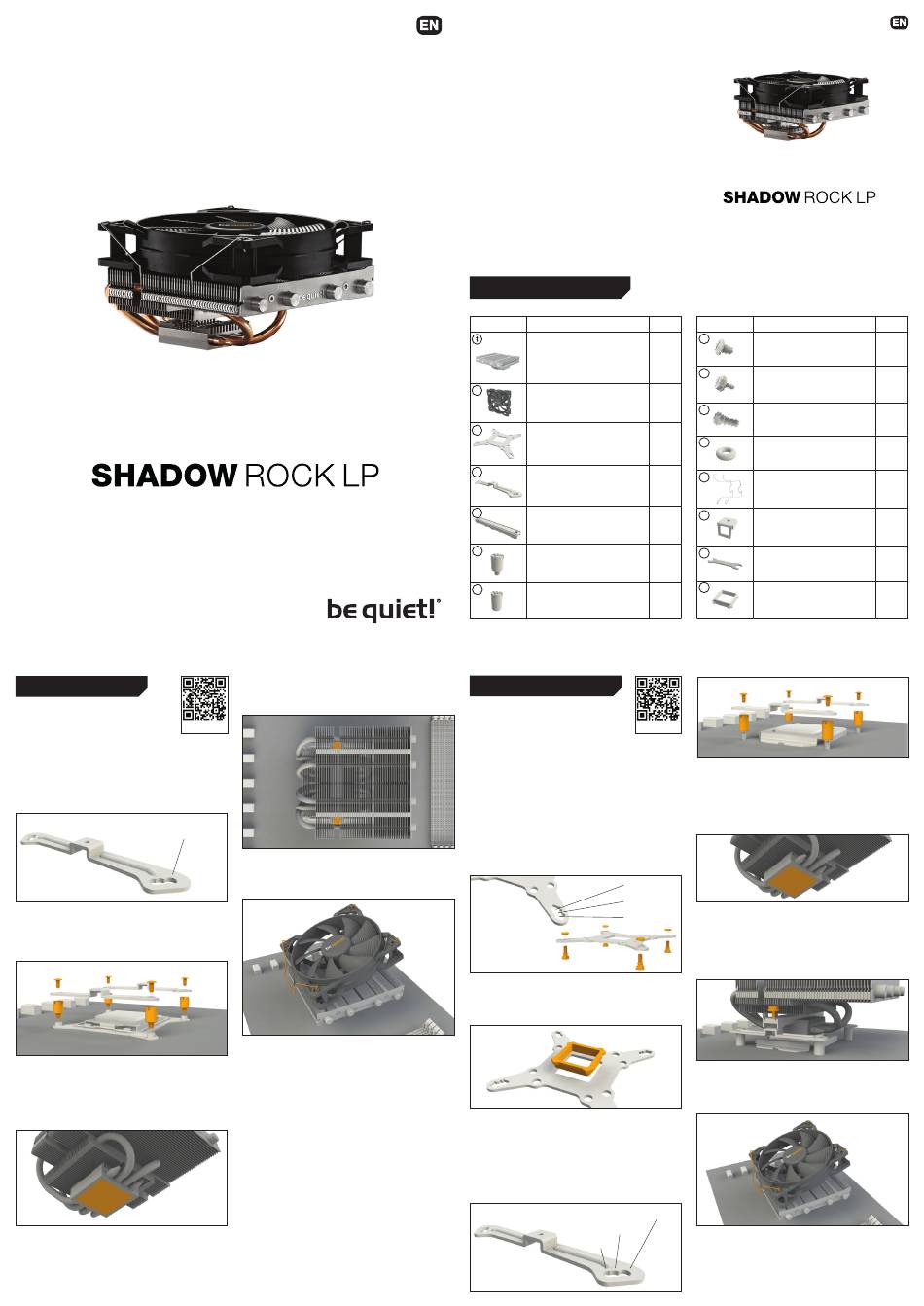

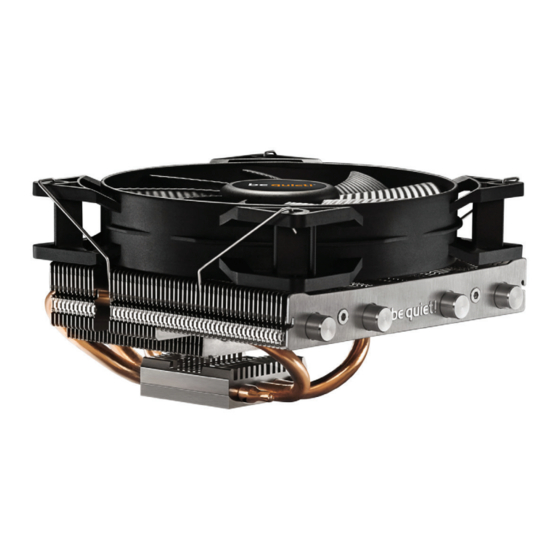

be quiet! Shadow Rock LP
CPU cooler
2
120mm fan
3
Intel backplate
4
Intel mounting brackets
5
Cooler mounting bridge
6
Spacer nuts
7
Intel 775/115X/1366 nuts
Intel LGA 775 / 1150 / 1151 / 1155 / 1156 / 1366
General
We recommend preparatory mounting of the
cooler outside the PC case for subsequent Installation video
installation.
The following parts are needed for this:
1x Shadow Rock LP CPU cooler (1), 1x 120mm fan (2), 1x
Intel backplate (3), 2x Intel mounting brackets (4), 1x cooler
mounting bridge (5), 4x Intel 775/115X/1366 nuts (7), 4x
mounting bracket fastening screws (8), 2x Intel/AMD mounting
bridge fastening screws (9), 4x Intel backplate screws (10), 4x
O-rings (11), 2x fan clips (12), 1x open-end wrench (14), Intel
LGA 775 backplate cap (15)
Mounting the backplate
Position the Intel backplate screws (10) in the notches situated
on the rear side of the Intel backplate (3). Pay attention in so
doing to align with the holes drilled for each socket. For fi xing the
backplate screws onto the Intel backplate use the O-rings (11).
775
1150, 1151,
1155, 1156
1366
Once assembly of the Intel backplate (3) for the respective
Intel socket has been completed, position it under the
motherboard. In so doing make sure that the backplate screws
are precisely located within the motherboard holes.
Please note: When installing on a 775 socket, the Intel LGA
775 backplate cap (15) must be inserted into the middle of the
Intel backplate (3).
Assembly of the cooler mounting frame
Screw the Intel 775/115X/1366 nuts (7) onto the previously
positioned Intel backplate. Then position the Intel mounting
brackets (4) onto the Intel 775/115X/1366 nuts, in order to
then affi x this with the mounting bracket fastening screws (8).
1150, 1151, 1155, 1156
775
Quantity Part name
8
Mounting bracket fastening
screws
1
9
Intel/AMD mounting bridge
fastening screws
1
10
Intel backplate screws
11
1
O-rings
12
2
Fan clips
13
1
AMD clips
14
4 Open-end wrench
15
Intel LGA 775 backplate cap
4
The protective covering on the underneath of the cooler must
be removed prior to installation against the CPU.
Caution: The thermal past supplied is not suitable for human
consumption. If swallowed, drink lots of water and urgently
seek medical attention. Keep it out of the reach of children.
Avoid contact with skin and eyes.
Mounting the CPU cooler
Place the cooler mounting bridge (5) centrally on the cooler (1).
Insert from above the Intel/AMD mounting bridge fastening
screws (9) into the cooler mounting bridge (5). Next position
the cooler on the CPU. Then alternately tighten the Intel/AMD
mounting bridge fastening screws (9). For this you can use the
open-end wrench (14) or any cross-tip screwdriver.
Fitting and connecting the fan
Mount the 120mm fan (2) onto the cooler unit (1) using the
fan clips (12). Connect the fan to the CPU fan connector on
the motherboard.
1366
When dismantling the 120mm fan (2), push the notches of the
fan clips (12) away from the fan.
Glinde, 05/2018
Quantity
4
2
4
4
2
2
1
1
