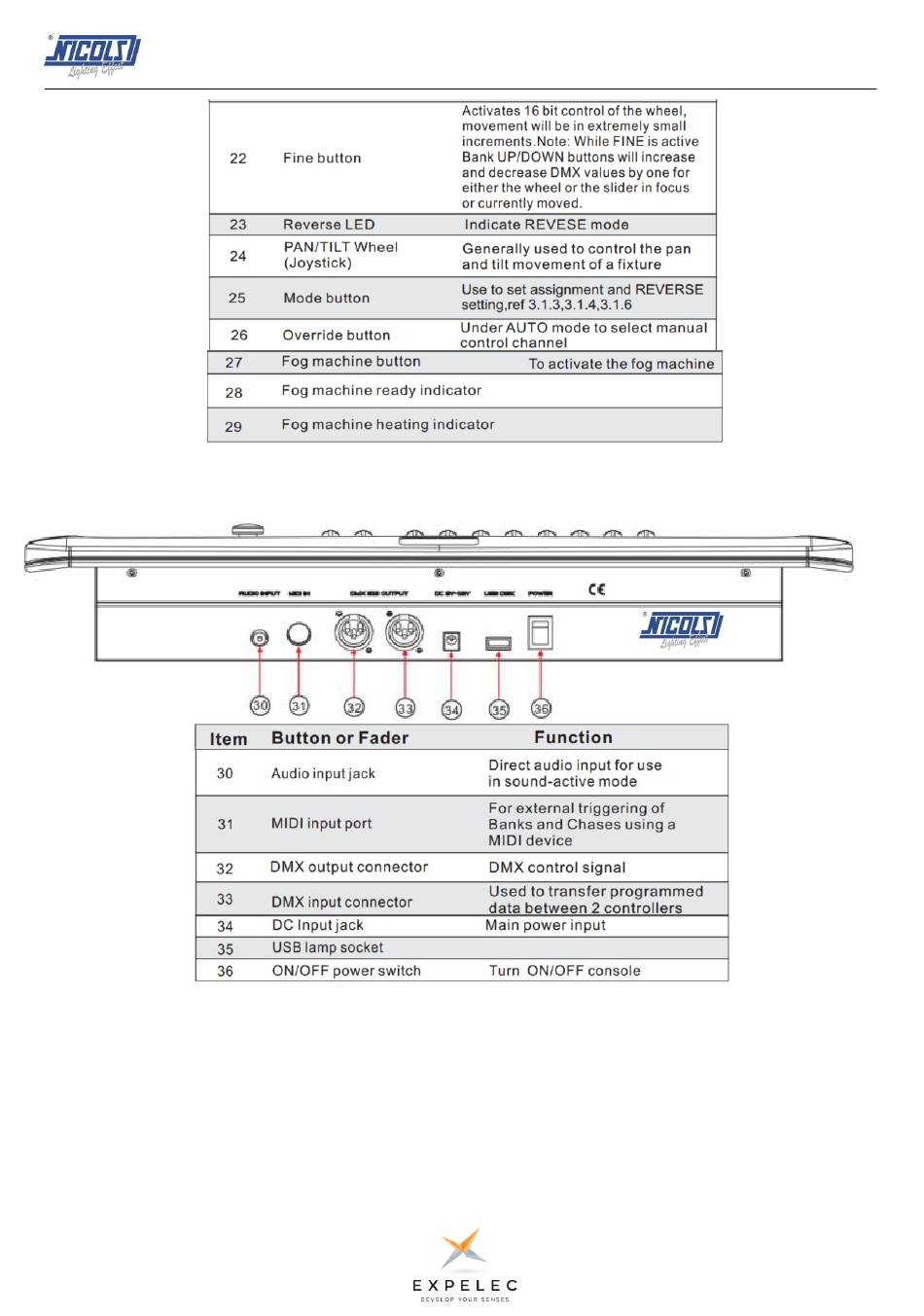

2.4 Product Overview (rear panel)

2.5 Common Terms

The following are common terms used in intelligent light programming.
Blackout is a state by where all lighting fixtures light output are set to 0 or off, usually on a temporary basis
DMX-512 is an industry standard digital communication protocol used in entertainment lighting equipment.
For more information read Sections" DMX Primer" and " DMX Control Mode" in the Appendix.
Fixture refers to your lighting instrument or other device such as a fogger or dimmer of which you can control.
Programs are a bunch of scenes stacked one after another. It can be programmed as either a single scene or
multiple scenes in sequence
Scenes are static lighting states.
Sliders also known as faders.
