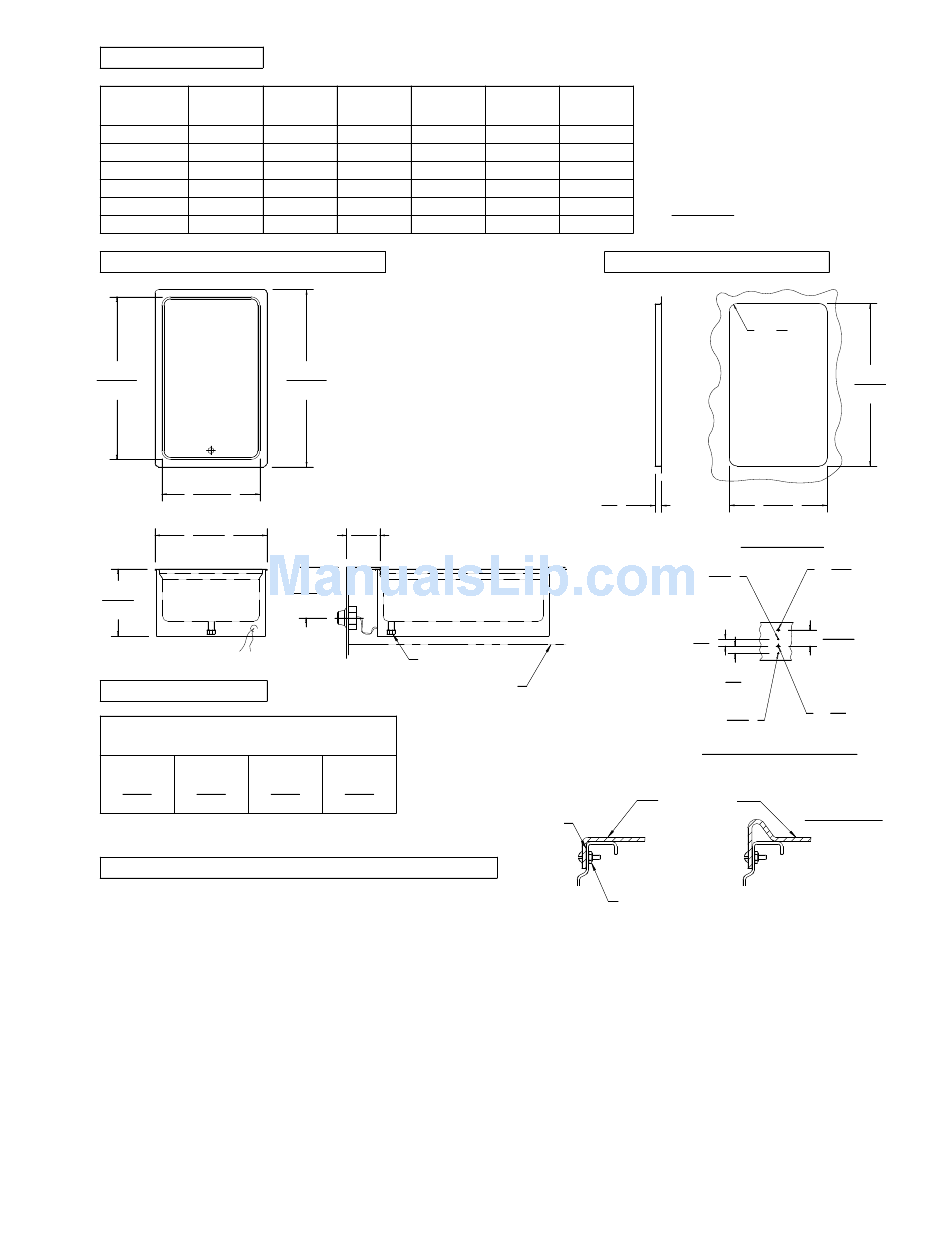

Bloomfield BMW-206RT Installation Instructions

ELECTRICAL
MODEL VOLTS
BMW-206RT 120
BMW-206RT 208
BMW-206RT 240
BMW-206RTD 120
BMW-206RTD 208
BMW-206RTD 240
PRODUCT DIMENSIONS
20 5/32
(512)
12 5/32
(309)
13 7/8
(352)
8 5/16
(211)
CLEARANCES
SUGGESTED CLEARANCE
FROM UNIT TO THE NEAREST SURFACE
BACK SIDE BOTTOM
1 1 6 3/4
(25) (25) (171)
SEE CONDITIONS OF ACCEPTABILITY BELOW

INSTALLATION INSTRUCTIONS

UNIT MUST BE INSTALLED IN AN ALL METAL COUNTER
THE INSTALLATION OF RECOGNIZED COMPONENT UNITS REQUIRES
ADDITIONAL EVALUATIONS TO UNDERWRITERS LABORATORIES
STANDARDS.
INSTALLER MUST MEET CONDITIONS OF ACCEPTABILITY
OUTLINED BELOW UPON INSTALLATION:
1. This appliance must be installed in an all metal counter with
suitable wiring and control enclosures conforming to national and
local electrical codes.
2. Electrical component temperatures, including wiring, within and
surrounding the appliance must be monitored in the end use
installation for suitability.
3. Electrical grounding of all dead metal parts must be reliably
connected to the grounding means of the appliance and must
comply with requirements outlined in the appropriate Underwriters
Laboratories Inc. classification, national and local electrical codes.
4. Increased clearances are required if storage of combustible
materials is in close proximity to this appliance.
5. Unit shall be accessible for servicing from bottom.
6. The name/rating plate information shall be accessible.
7. For water and waste connections: This appliance is to be
installed to comply with applicable federal, state and local
plumbing codes.
WATTS AMPS PHASE
1200 10.0 SINGLE
1240 6.0 SINGLE
1650 6.9 SINGLE
1200 10.0 SINGLE
1240 6.0 SINGLE
1650 6.9 SINGLE
21 15/16
(557)
4 1/8
(105)
6 5/16
(160)
1/2 IN DRAIN NPT
BMW-206RTD
METAL SHIELD
FRONT
4 1/8
(105)
WELLS/BLOOMFIELD * VERDI, NV
BUILT-IN (BOTTOM MOUNT) INSULATED
"ROUND CORNER" FOOD WARMERS
FIELD
TEMP.
WIRING
RATING
GAUGE
#14 AWG Cu 90°C MIN.
#14 AWG Cu 90°C MIN.
#14 AWG Cu 90°C MIN.
#14 AWG Cu 90°C MIN.
#14 AWG Cu 90°C MIN.
#14 AWG Cu 90°C MIN.
CUTOUT DETAILS
3/4
(19)
(MAX TURN DOWN)
COUNTERTOP
SEALANT
NO.8X5/8 LONG
STAINLESS STEEL PAN
HEAD SCREW. LOCK
WASHER & NUT
TO FABRICATE AND INSTALL:
1. Lay out cutout dimensions on countertop and control
panel as shown in cutout details.
2. Cut and/or drill holes as required in countertop and apron.
3. Turn down flange with round corners (maximum 3/4 inch).
4. To install, position warmer underneath so that turn down is
positioned onto embossed shoulders of warmer. Drill as required.
5. Remove warmer and apply a bead of silicone sealant to
shoulder area. Remount and secure warmer to fixture with
stainless steel screws (see Detail "A" above).
6. Mount control to apron.
7. Connect supply connection wiring to thermostat. Check
nameplate for correct voltage.
NOTE: The BMW-206RTD warmer is supplied with a drain hole at
one end and a 1/2 inch female N.P.T. drain nipple.
NOTE: INSTALLATION MUST MEET LOCAL AND NATIONAL PLUMBING
ELECTRICAL CODES.
INSTALLATION INSTRUCTIONS
MODELS BMW-206RT (D)
INCH
(MM)
1
R
(25)
20 1/8
(511)
12 1/8
(308)
TOP CUTOUT
5/16
5/32
Ø
(8)
Ø
(4)
PILOT
LIGHT
2 1/32
7/8
(52)
(22)
7/8
(22)
3/8
5/32
Ø
(10)
Ø
(4)
FRONT PANEL CUTOUT
DETAIL 'A'
NOTE: DRILL SCREW
CLEARANCE HOLES
IN ASSEMBLY
SEAL HOLES AND
FASTENERS WITH
SILICONE SEALANT
46034-1 REV (-)
