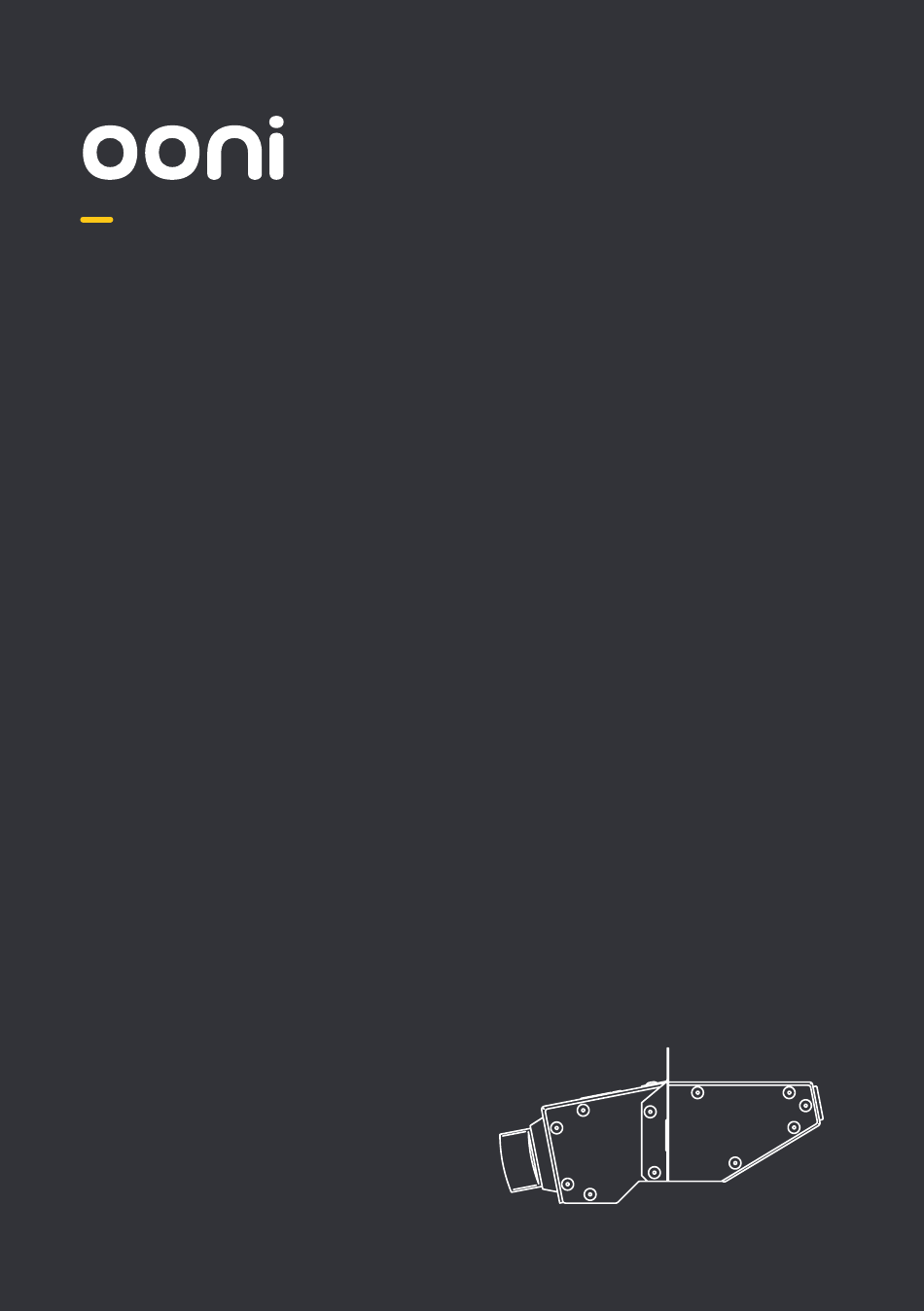

GAS BURNER
FOR OONI 3 & OONI KARU
MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3 and is the answer not in the manual?

Questions and answers

Related Manuals for Ooni 3

Summary of Contents for Ooni 3

  • Page 1 GAS BURNER FOR OONI 3 & OONI KARU MANUAL...
  • Page 2 For use with LPG (Propane) Gas only. Use only with supplied Gas regulator. Register your Ooni Karu Gas Burner FSD at ooni.com For the full user guide, cooking instructions, tips and tricks please visit ooni.com...
  • Page 3 Please read the present legal disclaimer fully before assembling, installing and using/servicing your Ooni Karu Gas Burner FSD attachment part in connection with your Ooni 3/Ooni Karu oven. Failure to comply with all the provisions of the present legal disclaimer could result in property damage, serious bodily injury or even death, or in a fire causing damage to property.

  • Page 4: Safety Information

    When changing the gas canister, ensure that the Ooni Karu Gas Burner FSD knob is turned to the off position, disconnect the regulator from the gas canister and remove the canister. Throughout this process, ensure that the canister is kept a minimum of 1 meter (3.5ft) away from the oven to avoid ignition risks.
  • Page 5 • Use 6 kg to 13 kg gas tanks with a maximum height including the regulator of 570mm and a maximum diameter including the regulator of 310 mm. In case of smell of gas, close the gas container tap and test the airtightness.
  • Page 6 Diagrammatical Representation of Outdoor Areas • OUTDOOR AREA - EXAMPLE 1 • OUTDOOR AREA - EXAMPLE 2 • This appliance shall only be used in an above ground open-air situation with natural ventilation, without stagnant areas, where gas leakage and products of combustion are rapidly dispersed by wind and natural convection.
  • Page 7 Step 1a Parts required: Ooni Karu Gas Burner Install hose pipe Hose pipe Tools required: Wrench x2 USA / CAN tighten with suitable wrenches...
  • Page 8 tighten with suitable wrenches...
  • Page 9 If using Ooni 3 skip to Page 7 If using Ooni Karu skip to Page 13...
  • Page 10 Ooni 3 - Step 1 Parts required: Assembled Ooni Install Ooni Karu Gas Burner Ooni Karu Gas Burner M5 10mm bolts x2...
  • Page 11 Step 2 Parts required: Assembled Ooni with Ooni Secure Ooni Karu Gas Burner Karu Gas Burner Allen key Gas bottle Secure but do not over tighten bolts...
  • Page 12 Step 3 Parts required: Assembled Ooni with Ooni Remove the door, flame guard Karu Gas Burner and insert chimney cap The door should removed at all times during use with the Ooni Karu Gas Burner...
  • Page 13 Step 4 Parts required: Assembled Ooni with Ooni Turn the button anticlockwise Karu Gas Burner until it clicks Click! Max. power Min. power...
  • Page 14 Assembled Ooni with Ooni Verify that Ooni Karu Gas Burner Karu Gas Burner is on If not, turn off the gas and go back to step 4 If Ooni Karu Gas Burner still does not ignite go to step 6...
  • Page 15 Step 6 Parts required: Assembled Ooni with Ooni If Ooni Karu Gas Burner still does Karu Gas Burner not ignite Turn the gas on and light using a match and the supplied match holder through the front of the oven...
  • Page 16 Ooni Karu: Step 1 Parts required: Assembled Ooni Karu Remove the door The door should removed at all times during use with the Ooni Karu Gas Burner...
  • Page 17 Step 2 Parts required: Assembled Ooni Karu Remove the chimney...
  • Page 18 Step 3 Parts required: Assembled Ooni Karu Add chimney cap...
  • Page 19 Step 4 Parts required: Assembled Ooni Karu Remove fuel tray / grate...
  • Page 20 Step 5 Parts required: Assembled Ooni Karu Remove draft plate Allen key...
  • Page 21 Step 6 Parts required: Assembled Ooni Karu Add Ooni Karu Gas Burner Ooni Karu Gas Burner Allen key Secure but do not over tighten bolts...
  • Page 22 Step 7 Parts required: Assembled Ooni Karu with Turn the button anticlockwise Ooni Karu Gas Burner until it clicks Click! Max. power Min. power...
  • Page 23 Assembled Ooni with Ooni Verify that Ooni Karu Gas Burner Karu Gas Burner is on If not, turn off the gas and go back to step 7 If Ooni Karu Gas Burner still does not ignite go to step 9...
  • Page 24 Step 9 Parts required: Assembled Ooni with Ooni If Ooni Karu Gas Burner still does Karu Gas Burner not ignite Match holder Turn the gas on and light using a match and the supplied match holder through the front of the oven...
  • Page 25 An LPG cylinder shall be of a maximum nominal 20 lb (9.1 kg) fuel capacity. • Use a suitable provided regulator certified to ANSI Z21.18/CSA 6.3 and a flexible hose certified to ANSI Z21.54/CSA 8.4. • The regulator shall be installed in such a location that it will not attain a temperature above 130°F (54.5°C) •...
  • Page 26 POL gas regulator This is an anticlockwise threaded gas fitting. Ensure the tank is fully turned off and screw the regulator on to the gas tank valve fitting until tight. Gas Safety Information • The appliance must be installed at least 1 meter from any flammable materials. •...

  • Page 27: Product Technical Information

    Product Technical Information Model number: Ooni Karu Gas Burner FSD Product label Ooni Limited, Unit 5, Bishopsgate Business Centre, 189 West Main Street, Broxburn, UK. EH52 5LH Ooni Fyra Gas Burner FSD 5.0 kW (357 g/h) 2531CT-0100 Propane (G31) US & CANADA Model a) Use outdoors only.
  • Page 28 Si vous sentez une odeur de gaz (1) coupez le gaz de l’appareil, (2) éteignez toute flamme nue, (3) ouvrez la porte et (4) Si l’odeur persiste, éloignez-vous de votre four Ooni Pro et appelez immédiatement votre fournisseur de gaz ou les pompiers.
  • Page 29 L’appareil doit être tenu à l’écart de tout matériau inflammable pendant l’utilisation. • Lorsque vous changez la bouteille de gaz, assurez-vous que le bouton du Brûleur à gaz Ooni est en position d’arrêt, débranchez le détendeur de la bouteille de gaz et retirez la bouteille. Tout au long de ce processus, assurez-vous que la bouteille soit maintenue à...
  • Page 30 4 s’appliquent : Si le Brûleur à Gaz Ooni Karu ne s’allume toujours pas, passez à l’étape 6 (i) au moins 25 % de la superficie totale des murs Pièces nécessaires: doit être complètement ouverte ;...
  • Page 31 Ooni Karu - Étape 4 Renseignements de Sécurité relatifs au Gaz Retirer le bac à carburant L’appareil doit être installé à au moins 3.5ft (1 mètre) Pièces nécessaires: de tout matériau inflammable. Ooni assemblé Le four doit être placé sur une surface non Ooni Karu - Étape 5...
  • Page 32 Lorsque le diamètre de l’injecteur est de 0,96 mm, AVERTISSEMENT : N’utilisez que la porte pour pizza utiliser le détendeur de 28 mbar fourni avec la que lorsque le Brûleur à gaz Ooni-Pro est allumé. La bouteille de propane GPL. porte avec thermomètre ne doit pas être utilisée.
  • Page 36 © 2019 Ooni Ooni is a registered trademark of USA v2.0 Ooni Limited. All rights reserved...
