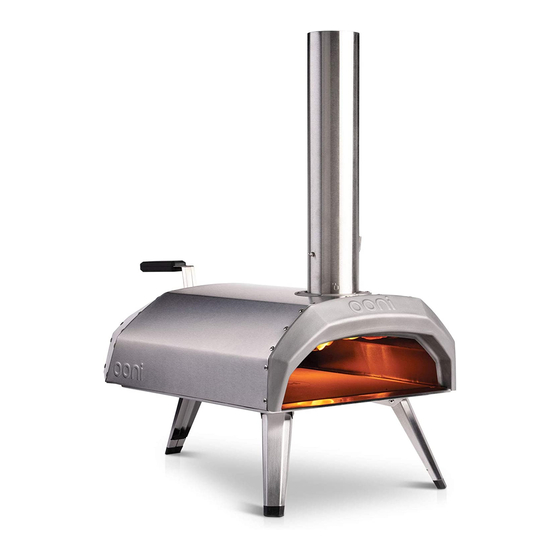

Gas Burner
for Ooni Karu 12
Manual
AUS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Karu 12 and is the answer not in the manual?

Questions and answers

Related Manuals for Ooni Karu 12

Summary of Contents for Ooni Karu 12

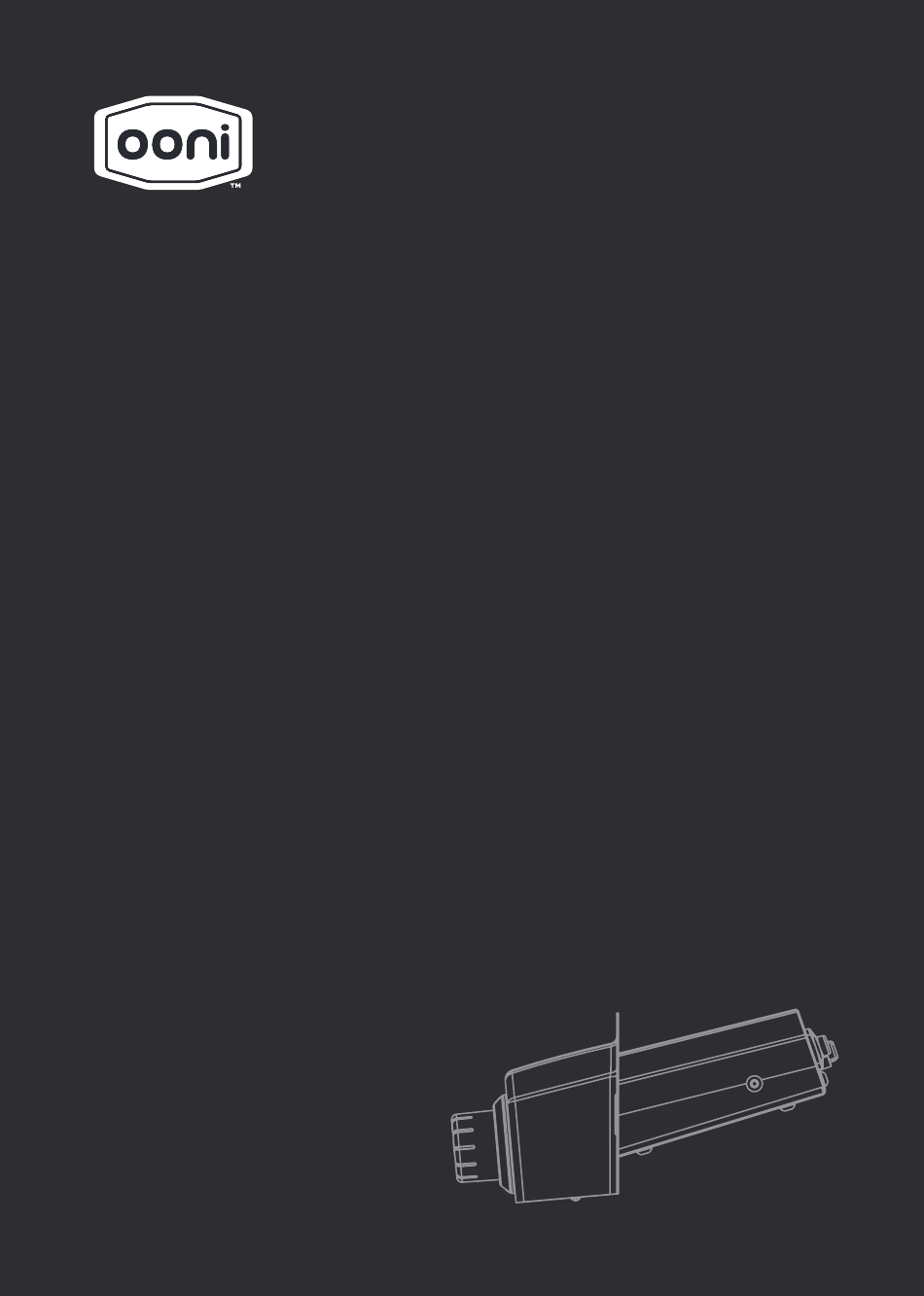

  • Page 1 Gas Burner for Ooni Karu 12 Manual...
  • Page 2 Stand to side when relighting - never look directly into the oven or at the flame.
  • Page 3 WARNING WARNING To reduce the risk of fire, burn hazard or other injury, read This appliance is not intended to be installed in or on this safety manual carefully and completely before using this recreational vehicles and/or boats. appliance. WARNING WARNING Check all gas supply fittings for leaks before each use.
  • Page 4 10ft (3m) from any structure or combustible material. DO NOT MODIFY THIS APPLIANCE. WARNING WARNING Make sure the legs on Ooni Karu 12 are fully extended before The replacement hose assembly must be certified to AS/ use. NZS1869 and AS4621, with 5/8-18 UNF thread.
  • Page 5 APPENDIX G APPENDIX G DIAGRAMMATICAL REPRESENTATIONS OF OUTDOOR AREAS Diagrammatical Representation of Outdoor Areas DIAGRAMMATICAL REPRESENTATIONS OF OUTDOOR AREAS (Informative) (Informative) The following figures are diagrammatical representations of outdoor areas, as defined in Clause 1.3.90. Rectangular areas have been used in these figures; the same principles apply The following figures are diagrammatical representations of outdoor areas, as defined in to any other shaped area.
  • Page 6 AS 5263.0—2013 AS 5263.0—2013 B oth e n d s o p e n B oth e n d s o p e n FIGURE G3 OUTDOOR AREA—EXAMPLE 3 • Outdoor Area - Example 3 FIGURE G3 OUTDOOR AREA—EXAMPLE 3 O p e n s i d e a t l e a s t 25% of tot a l wa ll a r e a...
  • Page 7 If your Ooni Gas Burner for Ooni Karu 12 has a threaded female hose end follow Step 1a. If your Ooni Gas Burner for Ooni Karu 12 has a threaded barb and regular hose with a hose clip follow Step 1b then 1c.
  • Page 8 Step 2 Remove the door and fuel tray and ensure the chimney vent is open...
  • Page 9 Step 3 Remove draft defender plate...
  • Page 10 Step 4 Add Ooni Gas Burner for Ooni Karu 12 Secure but do not over-tighten screws...
  • Page 11 Step 5 Connect to gas canister WARNING • Please always keep the gas bottle in upright position. • If the appliance is not in use, the gas must be turned off at the supply cylinder. • The cylinder used must include a collar to protect the cylinder valve. •...

  • Page 12: Leak Testing

    Leak testing General Although the gas connections of the appliance are leak tested prior packing and shipment, a complete test must be performed at the installation site. Before each use, check all the gas connections for leak testing using the procedure listed below. If the smell of gas is detected at any time, you should immediately stop using and check the entire system for leaks.

  • Page 13: Maximum Power

    Step 6 Ignition 1. Turn on the gas at the gas canister. 2. Push in and turn the button counter-clockwise until it clicks. Do not turn too quickly. From press to click should take about 3 seconds 3. Hold in button for 5 seconds, then release. Maximum power Minimum power Stand clear of the oven when igniting - ensure nobody is within 1 metres (3ft) of the front of the oven.
  • Page 14 Step 7 Verify that the gas burner has on 1. If not, turn off the gas and go back to Step 6. 2. If the burner still does not ignite go to Step 8.
  • Page 15 Step 8 Ignition – using a match If the burner still does not ignite; turn the gas on and light using a match and the supplied match holder through the front of the oven. Hold it in front of the burners. Press and turn the knob as described in Step 6.

  • Page 16: Troubleshooting

    2. Oven placed on an uneven surface Pro to encourage better airflow through the oven 2. If your Ooni is on a slant when set up, the oxygen will not flow as well. Try to set up on a flat surface.

  • Page 17: Product Technical Information

    Ooni Karu 12 Product Label IAPMO R&T Oceana Certificate Number AS/NZS 5263.1.7 GMK10751 Propane Ooni Limited, Unit 5 Bishopsgate Business Park, 189 West Main Street, Broxburn, West Lothian, 2.8 kPa Scotland, EH52 5LH 18.5 MJ/h Ooni Karu 12 Gas Burner 0.85 mm Minimum clearance from sides of unit to combustible construction is 915mm (36 inches).
  • Page 18 DO NOT OPERATE IN AN ENCLOSED AREA DO NOT OPERATE THIS APPLIANCE BEFORE LEAK CHECKING HOSES AND GAS CYLINDER CONNECTION OONI KARU 12 GAS BURNER IGNITION INSTRUCTIONS 1. READ INSTRUCTIONS BEFORE USE 2. ENSURE HOSE AND SEAL ARE LEAK TIGHT 3. ENSURE HATCH IS OFF 4.
