I.
F9A INTRODUCTION
T
he RICON MirageF9A Series Automatic Transit Use Wheelchair and Standee Lift provides wheelchair access
to mass transit vehicles. The patented movement ensures smooth, safe entry and exit and easily lifts up to 660
pounds (300 kilograms). It is designed to be operated by a trained attendant or vehicle driver. After activating
the vehicle manufacturer installed safety interlock and by using the lift control switches, the lift extends OUT (or de-
ploys) from the vehicle and rises to the vehicle floor height. The user boards the large non-skid platform and the op-
erator uses the control switches to gently lower the platform to the ground. After the user departs, the platform is
raised and retracted IN (stowed).
If there are questions about this manual, or additional copies are needed, please contact Ricon Product Support at
one of the following locations:
Ricon Corporation
7900 Nelson Road
Panorama City, CA 91402 .......................................................................................................... (818) 267-3000
Outside (818) Area Code ............................................................................................................ (800) 322-2884
World Wide Website ..........................................................................................................www.riconcorp.com
Ricon U.K. Ltd.
Littlemoss Business Park, Littlemoss Road
Droylsden, Manchester
United Kingdom, M43 7EF .................................................................................................. (+44) 161 301 6000
A.
RICON ONE-YEAR LIMITED WARRANTY
The F9A Series Lift is an underfloor, electro-hydraulic wheelchair
lift with a powerful electric motor and electrical hydraulic pump,
and a powered rollstop. The lift also contains a built-in manual
backup pump and rollstop manual control knob. If the lift loses
electrical power, two or more people can extend the lift and raise
and/or lower the lift manually.
This manual contains operation and maintenance instructions and
a troubleshooting guide for the lift. It is important to user safety
that the lift operator(s) be completely familiar with the Operating
Instructions chapter of this manual. Once the lift is installed, it is
very important that the lift be properly maintained by following the
Ricon recommended cleaning, lubrication, and inspection instruc-
tions.
(refer to following page)
32DF9AA02.A
1-1
Advertisement
Related Manuals for Ricon MirageF9A Series
Summary of Contents for Ricon MirageF9A Series
- Page 1 Ricon recommended cleaning, lubrication, and inspection instruc- tions. If there are questions about this manual, or additional copies are needed, please contact Ricon Product Support at one of the following locations: Ricon Corporation 7900 Nelson Road Panorama City, CA 91402 ......................
- Page 2 A Ricon rate schedule determines the parts covered and labor allowed. If You Need to Return a Product: Return this product to Ricon. Please give as much advance notice as possible, and allow a reasonable amount of time for repairs.
-
Page 3: Shipment Information
Ricon Product Support Department. The warranty and owner's registration cards must be completed and returned to Ricon within 20 days for the warranty to be valid. NOTE: The Sales/Service Personnel must review the Warranty and Service Manual with the user to be cer- tain that they understand the safe operation of the product. -
Page 4: Major Lift Components

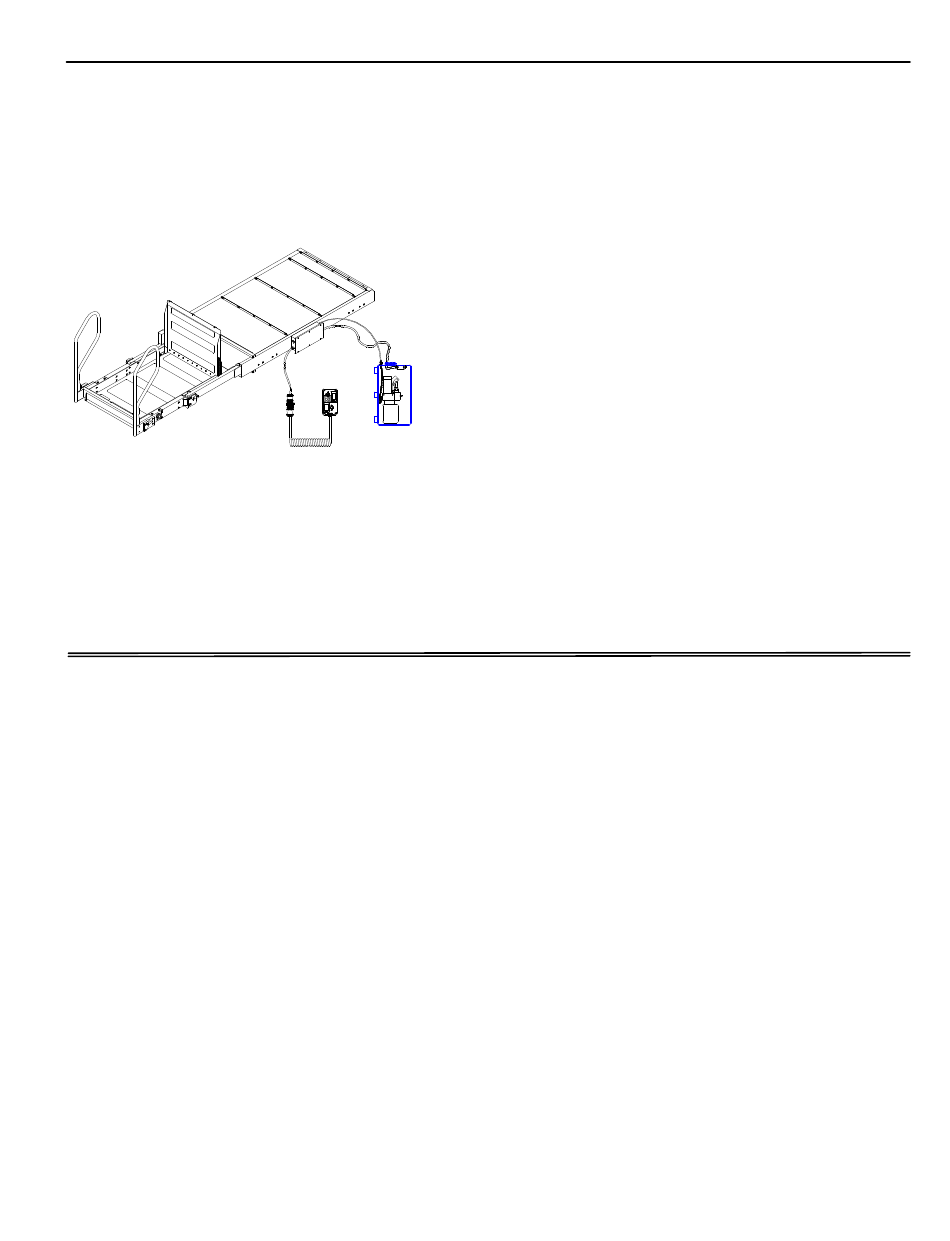

MAJOR LIFT COMPONENTS The references used throughout this manual are illustrated in Figure 1-1 and defined in Table 1-1. Refer to Chapter IV for more details. FIGURE 1-1: F9A SERIES AUTOMATIC TRANSIT USE WHEELCHAIR AND STANDEE LIFT 32DF9AA02.A... - Page 5 TABLE 1-1: F9A SERIES AUTOMATIC TRANSIT LIFT COMPONENTS REF. NAME DESCRIPTION Left Right Reference points from outside vehicle looking inward at lift. Front Rear Cassette type structure, rigidly attached to the vehicle, which con- Lift Enclosure tains the lift. Optional enclosure that contains the lift electrical and hydraulic Pump Enclosure control components.
