Blodgett CB42D-10-6K Specifications

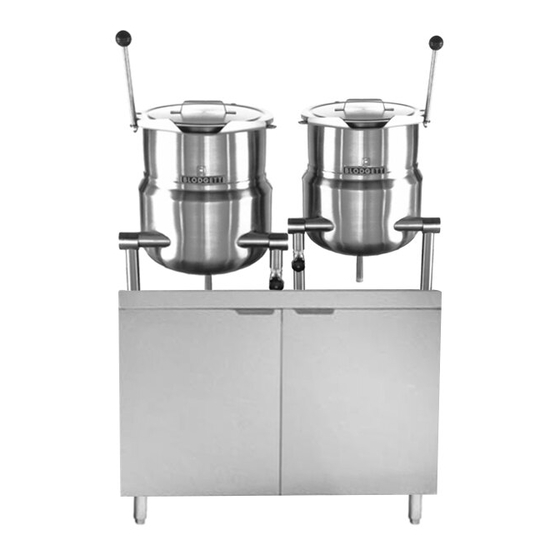

CB42D-10-6K
Two Direct Steam Kettles
on a 42" Cabinet Base
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Etched kettle markings
Gallon markings
Litre markeing
Correctional package
Pressure reducing valve
One piece stainless steel lift off cover
Lift-out perforated stainless steel basket
Graduated measuring strip
Ball float trap
Pour lip strainer
Stainless steel back panel
Stainless steel frame
One year extended warranty
44 Lakeside Avenue, Burlington, VT 05401 Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
Project
Item No.
Quantity
Model CB42D-10-6K (one 10 gallon and one 6 gallon direct steam kettle
on a 42" cabinet base)
KETTLES
Water resistant, 304 stainless steel construction
316 stainless steel interior cooking surface for corrosion resistance
2/3 jacketed, hemispherical design on bottom for superior heat circulation
Tilt mechanism permits kettle to tilt forward past 90° to empty
Tubular stainless steel legs containing steam control valve and conden-
sate return pipes
Reversible operating handle with heat proof knob
CABINET BASE
Steam supply manifold with safety relief valve
Condensate return manifold with steam traps for each kettle
Hot and cold water faucet with control valves
3" (76 mm) deep sinks with drains
Two splash guards
#4 finish stainless steel
Removable side panels
Hinged doors with magnetic latches
6" (152 mm) stainless steel legs
Adjustable bullet feet on the front
Flanged adjustable feet on the rear for securing to the floor
STANDARD FEATURES
Startup inspection service by factory autorized service agent
One year parts and labor warranty*
* For all international markets, contact your local distributor
BLODGETT
www.blodgett.com
