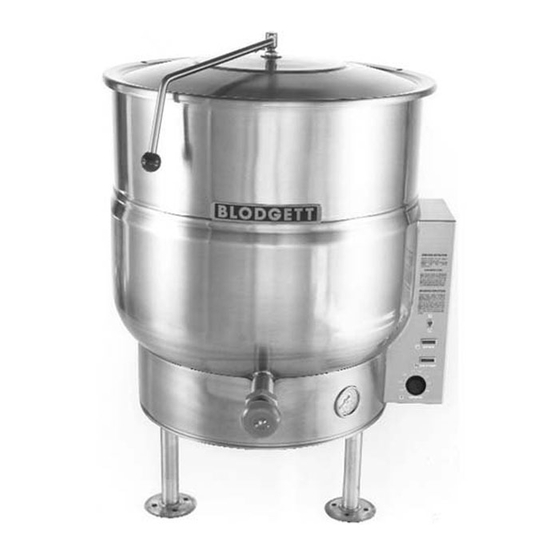

Blodgett KLS-100E Parts List
Direct steam kettles
Hide thumbs
Also See for KLS-100E:
- Installation operation & maintenance (25 pages) ,
- Specifications (2 pages) ,
- Installation & operation manual (25 pages)
Advertisement
Quick Links
PARTS LIST
DIRECT STEAM KETTLES
MODELS: KLS 20, 30, 40, 60, 80, 100
KPS 20, 30, 40, 60, 80, 100
KLT 20, 30, 40, 60, 80, 100
KPT 20, 30, 40, 60, 80
April 6, 2007
BLODGETT OVEN CO ▪ 44 lakeside Ave ▪ Burlington, VT 05446
Tel. 800-331-5842 ▪ Fax 802-860-3732 ▪ www.blodgett.com
1
2007-06-25
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Blodgett KLS-100E
Summary of Contents for Blodgett KLS-100E
-
Page 1: Parts List
KPS 20, 30, 40, 60, 80, 100 KLT 20, 30, 40, 60, 80, 100 KPT 20, 30, 40, 60, 80 April 6, 2007 BLODGETT OVEN CO ▪ 44 lakeside Ave ▪ Burlington, VT 05446 Tel. 800-331-5842 ▪ Fax 802-860-3732 ▪ www.blodgett.com 2007-06-25... - Page 2 ITEM Part Number 40550 40246 40278 41474 43394 40612 40613 41044 * NOT SHOWN. ** SELECT AS REQUIRED. DESCRIPTION Ball Valve Tilt Console Console Cover Adjustable Foot Screw 10 - 32 x ½ Relief Valve 35 PSI Relief Valve 50 PSI (Optional) Down Tube for Relief Valve FIGURE 1 QUANTITY...
- Page 3 2007-06-25...
- Page 4 ITEM Part Number 41554 40101 41556 40258 41090 41095 40082 40266 40113 40132 40249 41564 * 13 41857 41558 40108 40206 41584 42124 42125 41583 40141 42123 DESCRIPTION Hand wheel Set Screw, 3/8 - 16 x 1/2 Tilt Shaft Jam Nut, 3/4 - 16 UNF Thrust Bearing Segment Gear and Worm Gear Kit (Includes Items 7 to 12)
- Page 5 ITEM Part Number 40103 40100 41587 41789 41783 41821 41786 40609 40606 42342 41091 41092 40150 43395 41099 DESCRIPTION Bolt, 3/8 - 16 UNC x 1 Lock Washer, 3/8 Block Bearing 90E Elbow, 3/4" Nipple, 3/4 x 2-1/2 Coupling, 3/4 x 2-1/2 Pipe-Steam Supply, 3/4 x 12-1/2 Control Valve, 3/4"...
- Page 6 2007-06-25...
- Page 7 Handle Assembly, 80 Gal. Handle Assembly, 100 Gal. Rotary Disc End Stop Plate Cap Screws Knob Mounting Plate - Tilting Kettles Only Covers, 20 Gallon Kettle Covers, 30 Gallon Kettle Covers, 40 Gallon Kettle Covers, 60 Gallon Kettle Covers, 80 Gallon Kettle...
- Page 8 2007-06-25...
- Page 9 ITEM Part Number 40259 ** 2 42158 42159 42161 40109 43389 40111 ** 6 41512 41513 41514 ** SELECT AS REQUIRED. DESCRIPTION Knob Handle Assembly, 20 Gallon Kettle Handle Assembly, 30 Gallon Kettle Handle Assembly, 40 Gallon Kettle Bolt Fiber Washer Cover, 20 Gallon Kettle Cover, 30 Gallon Kettle Cover, 40 Gallon Kettle...
-
Page 10: Draw-Off Valve
ITEM Part Number 40553 41809 40662 40559 40560 40562 40561 43246 DRAW-OFF VALVE DESCRIPTION 1-1/2" DRAW OFF VALVE ASSEMBLY Acorn Nut 10-24 UNC Handle, Stainless Steel Gland Nut Bonnet “O” Ring Stem Assembly Valve Body FIGURE 6 QUANTITY 2007-06-25... - Page 11 ITEM Part Number 40554 41809 40662 40563 40564 40566 40565 42481 ITEM Part Number 40556 40567 40568 40569 40570 40572 40571 43248 DESCRIPTION 2" DRAW OFF VALVE ASSEMBLY Acorn Nut 10-24 UNC Handle, Stainless Steel Gland Nut Bonnet “O” Ring Stem Assembly Valve Body DESCRIPTION...
