KLS-30E
Electric Tri-Leg Stationary Kettle
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Voltage options
220 VAC, 1 phase, 50/60 Hz
220 VAC, 3 phase, 50/60 Hz
380 VAC, 3 phase, 50/60 Hz
415 VAC, 3 phase, 50/60 Hz
480 VAC, 3 phase, 50/60 Hz
220/380 VAC, 3 phase, 4 wire
240/415 VAC, 3 phase, 4 wire
600 VAC, 3 phase, 60 Hz
Faucets
Single pantry faucet with swing spout
Double pantry faucet with swing spout
Covers
Spring assist hinged stainless steel cover
Draw Off valves and accessories
3" (76mm) draw off valve
2" (50mm) dairy valve
3" (76mm) dairy valve
Etched markings
Gallons
Litres
Correctional package
Tri-basket assembly
Graduated measuring strip
Strainer hook
Project
Item No.
Quantity

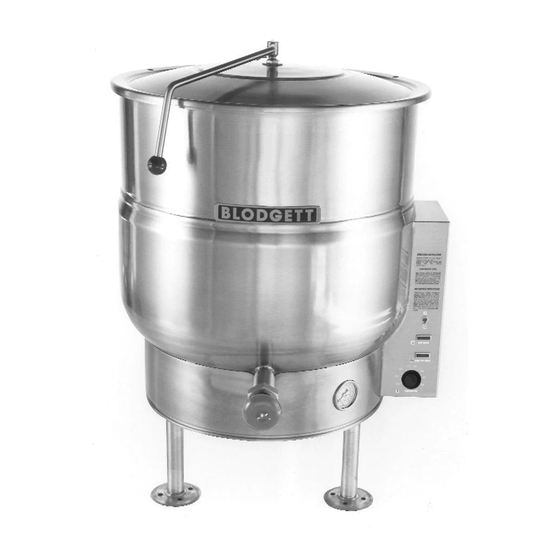

Model KLS-30E - 30 gallon (114 litres) electric tri-leg stationary kettle
CONSTRUCTION
304 stainless steel construction
316 stainless steel liner
2/3 jacketed with factory sealed distilled water enclosure
Hemispherical design on bottom of kettle for superior heat circulation
Three stainless steel legs fitted with four hole adjustable flanged feet for
securing to floor
Stainless steel control housing
Removable elements
OPERATION
Electrically self-generated closed steam system
Integrally mounted controls
Power switch
Thermostat
Cook indicator light
Pressure gauge
Safety valve
Low water light
Low water shut off
165-285°F (74-140°C) temperature range
STANDARD FEATURES
Manual control
2" tangent draw off
Hinged cover
Perforated strainer disc for draw off
Stainless steel faucet bracket
Standard voltage options
208 VAC, 3 phase, 60 Hz
240 VAC, 3 phase, 60 Hz
208 VAC, 1 phase, 60 Hz
240 VAC, 1 phase, 60 Hz
Eighteen months parts and labor warranty*
*
For all international markets, contact your local distributor.
44 Lakeside Avenue, Burlington, VT 05401
Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
BLODGETT
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Blodgett KLS-30E
Summary of Contents for Blodgett KLS-30E
- Page 1 Project Item No. Quantity KLS-30E Electric Tri-Leg Stationary Kettle Model KLS-30E - 30 gallon (114 litres) electric tri-leg stationary kettle CONSTRUCTION 304 stainless steel construction 316 stainless steel liner 2/3 jacketed with factory sealed distilled water enclosure Hemispherical design on bottom of kettle for superior heat circulation...
- Page 2 SHORT FORM SPECIFICATIONS Provide Blodgett model KLS-30E (30 gallon) electrically heated tri-leg stationary kettle. The unit shall have a double wall interior to form a steam jacket around the lower 2/3 of the kettle. The jacket enclosure shall contain distilled water which is factory sealed. The bottom of the kettle shall be of hemispherical design for superior heat circulation. The kettle shall be sup- ported on stainless steel legs fitted with 4 hole adjustable flanged feet for securing to floor.
