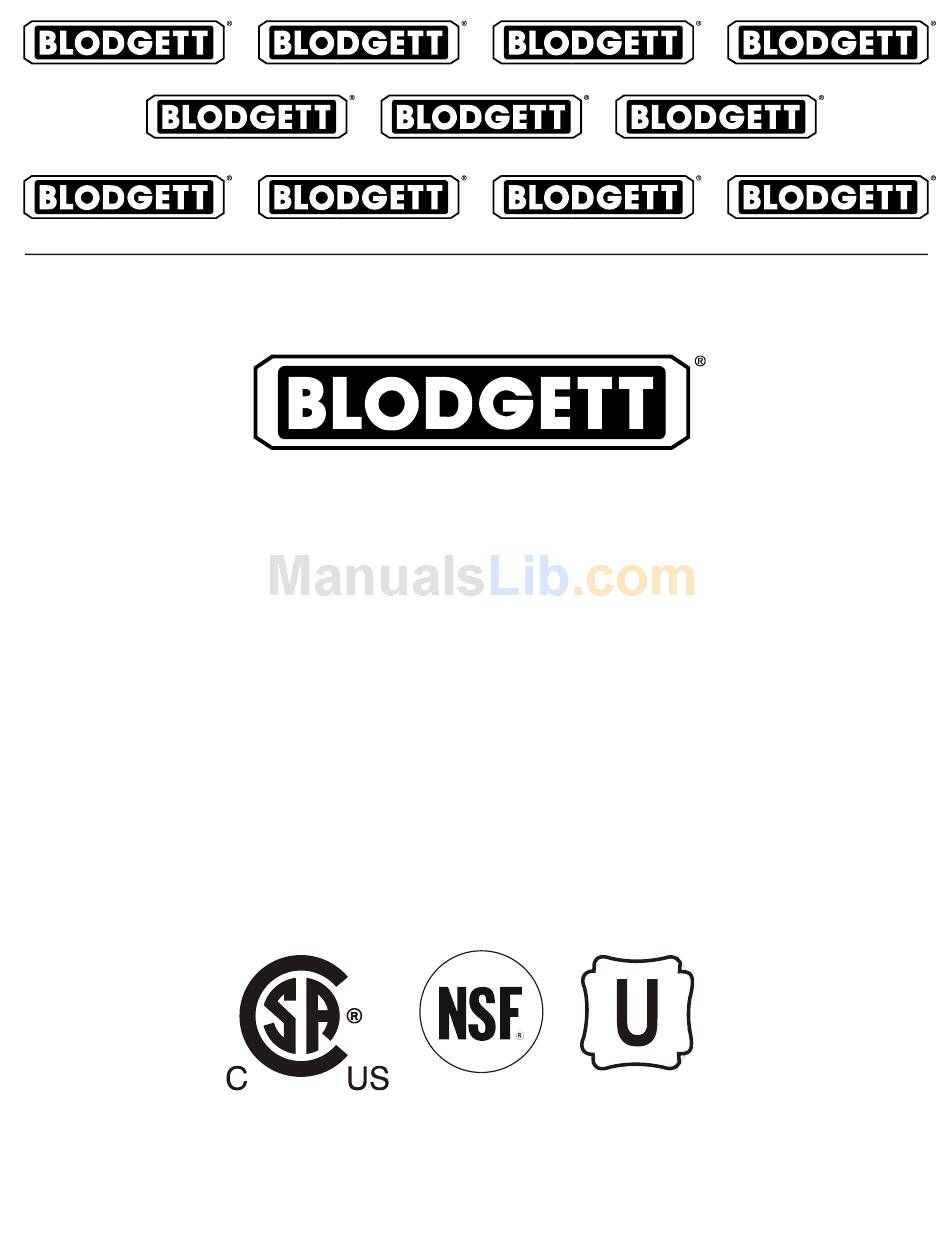

- Page 1 KTT-E Series ELECTRIC TABLE TOP TILTING KETTLE INSTALLATION – OPERATION – MAINTENANCE BLODGETT OVEN COMPANY www.blodgett.com 44 Lakeside Avenue, Burlington, Vermont 05401 USA Telephone: (802) 658-6600 Fax: (802) 864-0183 S00063 Rev B (7/11)
-
Page 2: Important Notes For Installation And Operation
IMPORTANT NOTES FOR INSTALLATION AND OPERATION It is recommended that this manual be read thoroughly and that all instructions be followed carefully. This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death. -
Page 3: Table Of Contents
TABLE OF CONTENTS DESCRIPTION PAGE IMPORTANT NOTES FOR INSTALLATION AND OPERATION ... 2 SERVICE CONNECTIONS ... 4 1.0 INSTALLATION INSTRUCTIONS ... 5 2.0 INTRODUCTION ... 7 3.0 OPERATION INSTRUCTIONS ... 8 4.0 CLEANING INSTRUCTIONS ... 10 5.0 TROUBLESHOOTING ... 11 APPENDIX A Material Safety Data Sheet ... -
Page 4: Service Connections
SERVICE CONNECTIONS ELECTRICAL CONNECTION TO BE AS SPECIFIED ON DATA PLATE MODEL PHASE KTT-6E KTT-10E & KTT-12E 12.0 MODEL CAPACITY UNITS inches 6 gallons KTT-6E 23 litres inches 10 gallons KTT-10E 38 litres inches 12 gallons KTT-12E 45 litres SAFETY RELIEF VALVE A ID 14.50 [368] 4X WELD NUTS... -
Page 5: Installation Instructions
1.0 INSTALLATION INSTRUCTIONS Immediately after unpacking, check for possible shipping damage. If the kettle is found to be damaged, save the packaging materials and contact the carrier within 15 days of delivery. 1. The kettle must be installed in accordance with: 2. - Page 6 1.0 INSTALLATION INSTRUCTIONS (Continued) WARNING: Disconnect electrical power supply and place a tag at the disconnect switch to indicate you are on the circuit. 1. A waterproof electrical connection for power supply to console housing must be provided. 2. Ground appliance to terminal provided inside console housing. 3.
-
Page 7: Introduction

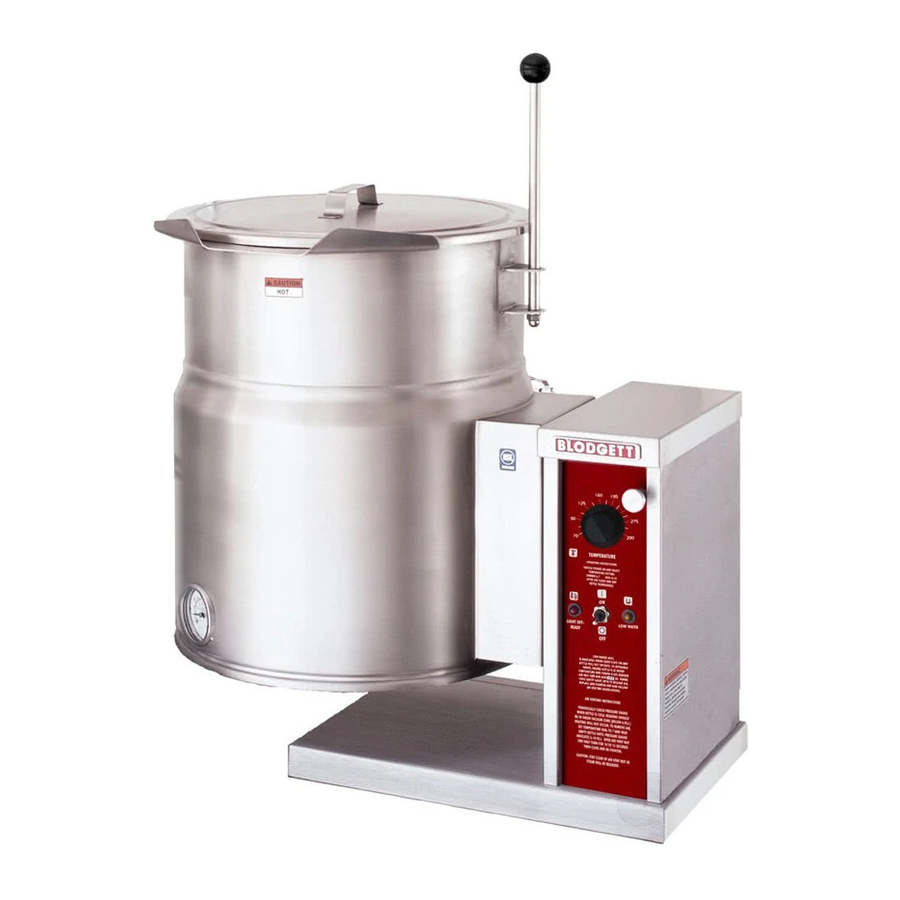

2.0 INTRODUCTION DESCRIPTION Models KTT-6E (6 gallon capacity) and KTT-10E (10 gallon capacity) and KTT-12E (12 gallon capacity) electrically powered, self-contained, countertop, tilting kettles. Each model has a jacket of double-wall construction forming a sealed reservoir around the lower two-thirds of the kettle. -
Page 8: Operation Instructions
3.0 OPERATION INSTRUCTIONS 1. Ensure that the external electrical shut-off to the kettle is on. 2. Check pressure gauge for correct cold kettle reading. Reading should be in the green vacuum zone. If reading is not in the vacuum zone, follow VENTING INSTRUCTION prior to using the kettle. -
Page 9: Tilting Instructions
3.0 OPERATION INSTRUCTIONS (Continued) TILTING INSTRUCTIONS Your kettle has the standard “Clean Lock” feature and may not be tilted without disengaging the tilt knob located on the console at the top right. This feature locks the kettle in the upright position and also allows the operator to lock the kettle at 105°... -
Page 10: Cleaning Instructions
4.0 CLEANING INSTRUCTIONS The kettle interior and exterior should be thoroughly washed after each use in preparation of a different food. 1. Add water and mild detergent to the kettle immediately after use. 2. Scrub kettle interior with nylon brush. NOTE: Never scrape the inside of the kettle with metal tools, steel scouring pads, or abrasive cleaners. -
Page 11: Troubleshooting
5.0 TROUBLESHOOTING 5.1 GENERAL MAINTENANCE No general maintenance is required other than adhering to the Cleaning Procedure Instructions. 5.2 LOW WATER LEVEL Proper water level must be maintained within the jacket for the kettle to operate. Depletion of water may occur from excessive opening of, or leakage through the safety relief valve. If water is below required operating level, either initially at start-up or during use, the kettle will automatically shut off, and the LOW WATER signal light will come on. -
Page 12: Appendix A Material Safety Data Sheet
APPENDIX ‘A’ PREPARATION INFORMATION: Prepared for use in Canada by: 1. CHEMICAL PRODUCT AND COMPANY IDENTIFICATION IN CASE OF EMERGENCY: Product:: DOWFROST* HD HEAT TRANSFER FLUID, DYED Product Code: 04632 Effective Date: 2/20/01 DOW CHEMICAL CANADA INC. P.O. Box 1012 Sarnia, Ontario, N7T 7K7 Prepared for use in Canada by the E H &... - Page 13 S HAZARDS IDENTIFICATION EMERGENCY OVERVIEW Clear yellow liquid. Odourless. Avoid temperatures above 450 F, 232 POTENTIAL HEALTH EFFECTS (See Section 11 for toxicological data.) EYE: May cause slight transient (temporary) eye irritation. Corneal injury is unlikely. Mists may cause eye irritation. SKIN CONTACT: Prolonged contact is essentially nonirritating to skin.
- Page 14 4. FIRST AID EYES: SKIN: INGESTION: INHALATION: NOTE TO PHYSICIAN: 5. FIRE FIGHTING MEASURES FLAMMABLE PROPERTIES FLASH POINT: METHOD USED: AUTOIGNITION TEMPERATURE: NOT DETERMINED FLAMMABILITY LIMITS LFL: Not determined UFL: Not determined HAZARDOUS COMBUSTION PRODUCTS: During a fire, smoke may contain the original material in addition to unidentified toxic and/or irritating compounds.
- Page 15 EXTINGUISHING MEDIA: Water fog or fine spray, carbon dioxide, dry chemical, foam. Alcohol resistant foams (ATC type) are preferred if available. General purpose synthetic foams (including AFFF) or protein foams may function, but much less effectively. Do not use direct water stream.
-
Page 16: Personal Protective Equipment
airborne levels below the exposure guidelines. PERSONAL PROTECTIVE EQUIPMENT EYE/FACE PROTECTION: Use safety glasses. Safety glasses should be sufficient for most operations; however, for misty operations wear chemical goggles. SKIN PROTECTION: Use gloves impervious to this material. RESPIRATORY PROTECTION: Atmospheric levels should be maintained below the exposure guideline. - Page 17 11. TOXICOLOGICAL INFORMATION (See Section 3 for Potential Health Effects. For detailed toxicological data, write or call the address or non-emergency number shown in Section 1). SKIN: The LD50 for skin absorption in rabbits is >10,000 mg/kg. SKIN: The LD50 for skin absorption in rabbits is >10,000 mg/kg. INGESTION: The oral LD50 for rats is 20,000 - 34,000 mg/kg.
-
Page 18: Transport Information
FOR UNUSED & UNCONTAMINATED PRODUCT, the preferred options include sending to a licensed, permitted: recycler, reclaimer, incinerator or other thermal destruction device. As a service to its customers, Dow can provide names of information resources to help identify waste management companies and other facilities which recycle, reprocess or manage chemicals or plastics, and that manage used drums. - Page 19 U.S. REGULATIONS SARA 313 INFORMATION: To the best of our knowledge, this product contains no chemical subject to SARA Title III Section 313 supplier notification requirements. SARA HAZARD CATEGORY: This product has been reviewed according to the EPA “Hazard Categories” promulgated under Sections 311 and 312 of the Superfund Amendment and Reauthorization Act of 1986 (SARA Title III) and is considered, under applicable definitions, to meet the following categories: Not to have met any hazard category.
-
Page 20: Canadian Regulations
CANADIAN REGULATIONS WHMIS INFORMATION: The Canadian Workplace Hazardous Materials Information System (WHMIS) Classification for this product is: This product is not a “Controlled Product” under WHMIS. CANADIAN ENVIRONMENTAL PROTECTION ACT (CEPA) This product contains one or more substances which are not listed on the Canadian Domestic Substances List (DSL).
