Zamel Ledix WDN-01 Quick Manual

Touch switch
with brightening/dimming function
WDN-01
Surface Indoor mounting
mounting only

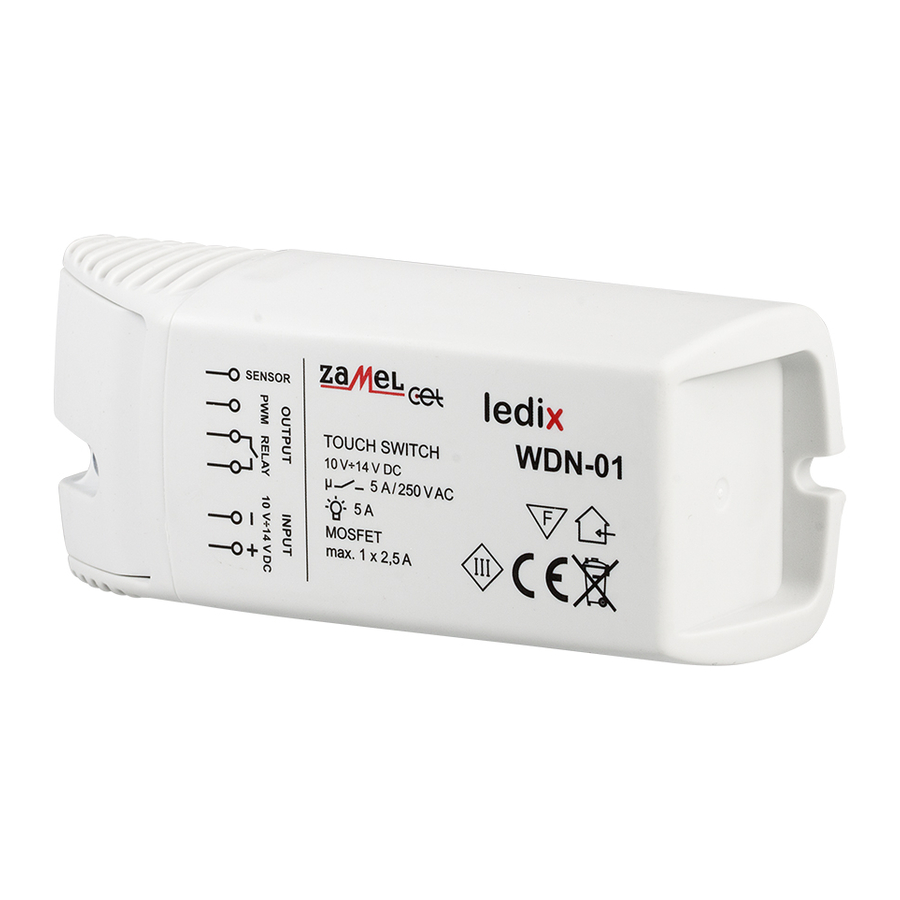

The WDN-01 touch switch is used to switch on or switch off the light by means of a touch. Using the
PWM output the brightening /dimming function of LED diodes is additionally available. WDN-01 switch
can control the traditional lighting source (halogens, incandescent lighting, fluorescent) or LED diodes.
WDN-01 touch switch is designed to be mounted on surfaces such as wood and wood-based imitation
materials thicker than 2 mm, and they are also designed for plasterboard mounting.
The touch switch fulfils the requirements of harmonized standards in the scope of safety use or
electromagnetic compatibility. The construction solutions allow for a safe use of WDN-01 switch
even by persons with an implanted artificial pacemaker.
Features:
• brightening/dimming function,
• low power consumption during stand-by mode (0,25 W) - the device is suitable for a continuos opera-
tion mode,
• PWM output for a direct connection of LED diodes,
• output of NO free relay with a maximum load of 5 A,
• automatic calibration process referring to the change of a sensor's connection place or the touch sur-
face.
APPLICATION
The application shows the use of WDN-01
touch switch. The sensor of the touch switch
is connected to the aluminium LED strip
mounted under the top part of the kitchen
cupboards. The LED strip is directly connected
to the PWM output of the WDN-01 switch.
The WDN-01 relay output switches on the
halogen spotlight powered by an electronic
transformer (ETZ or ETW series). Switching on/
switching off the light is realised by means of
touching the aluminium LED strip. Addition-
ally the WDN-01 switch enables brightening/
dimming of a lighting source connected to
PWM output.
A detailed mounting description is inside the packaging
10÷14 V DC / 0,25 W; IP20
weight: 55 g
