Zamel RWS-311D/Z Manual

ZAMEL Sp. z o.o.
43-200 Pszczyna, ul. Zielona 27
tel.: +48 32 210 46 65; fax: +48 32 210 80 04
e-mail: marketing@zamel.pl
www.zamel.com
TWO-CHANNEL
RADIO POWER SWITCH
RWS-311D/Z
• remotely controlled switch of household electrical
devices such as: lighting, fans, air conditioners,
pumps, gates, optical and acoustic signalling devices
as well as devices with difficult access
• unidirectional radio transmission (f = 868,32 MHz)
• coding in accordance with exta free system protocol
• cooperation with exta free system transmitters
• a possibility of control by means of mobile devices
(in cooperation with EFC-02 Mini or EFC-01 controller)
• designed to be mounted both indoor and outdoor
• designed to operate in difficult weather conditions
• independent control of maximum 2 circuits
• a possibility of operation with several remote
controllers (maximum 113)
• designed for continuous operation
• supplied by 230 V AC
• wide operation range – up to 350 m in the open area
• a possibility of increasing the operation range by
means of RTN-01 retransmitter.
The symbol means selective collecting
of electrical and electronic equipment.
It is forbidden to put the used
equipment together with other waste.
RWS-311D_Z_inter.indd 2-3
SCAN
the technical
data

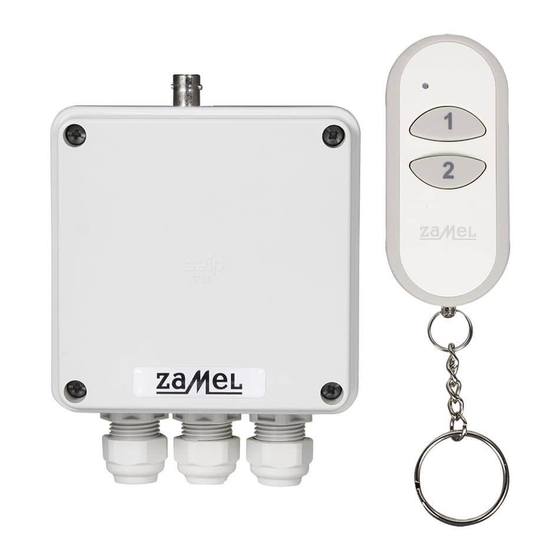

Radio power switch RWS-311D/Z is used for a remote (radio)
control of all kinds of electrical devices such as: motors, lighting
fittings, driveway gates, pumps, garden lighting, etc. The device
operates on a protocol compatible with wireless exta free system
and cooperates with the system transmitters.
Radio waves on 868.32 MHz frequency were used for the
transmission between a transmitter and a receiver. The receiver
has a hermetic casing (IP56) and therefore it can be mounted
outdoor and can operate in difficult weather conditions. The
RWS-311D/Z switch is supplied directly by 230 V AC.
It is equipped with 1 NO relay outputs. The relay output capacity
is 16 A / 250 V AC 4000 VA AC1. By means of RWS-311D/Z it is
possible to control independently two electric circuits maximally.
Cooperation with wireless exta free system gives a wide range of
control possibilities. For example, after the application of EFC-02
Mini or EFC-01 controller, the switch can be controlled by means
of mobile devices (tablets, smartphones) and the same it can
automate certain control processes.
In case of RWS-311C/Z, the set includes in addition to the
switch a 2-channel remote control P-257/2. Other transmitters
(maximum number is 113) can be assigned to the receiver.
ZAMEL hereby declares that the device is compatible with the essential requirements and
all poza SRP-01
other relevant provisions of Directive 1999/5/EC. Declaration of Conformity can be found
on the web page www.zamel.com
Registered design © ZAMEL
Made in EU
Receiver: 230 V AC / 3,2 VA; IP56
Remote control: 3 VDC (1 x CR2032); IP20
Product net weight: 0,435 kg
PN-EN 60950-1
PN-ETSI-EN 300 220-1
PN-ETSI-EN 300 220-2
ROP-01
ROP-02
ROM-01
ROM-10
1471
RWG-01
RWL-01
all
all poza SRP-01
all poza SRP-01
ROP-01 RDP-01 SRP-01
ROP-02 SRP-02
ROM-01 SRP-03
ROM-10
RWG-01
RWL-01
ROP-01 RDP-01 SRP-01
ROP-02 SRP-02
ROM-01 RNK-02 SRP-03
all
ROM-10 RNK-04
RWG-01 RNP-02
RWL-01 P-256
P-257
RDP-01 SRP-01
RNK-02
all
SRP-02
RNK-04
Tryby pracy:
SRP-03
RNP-02
The ZAMEL company devices
tylko włącz tylko wyłącz włącz/wyłącz włącz - trzymaj P-256 włącz, wyłącz
jednym klawiszem puść - wyłącz automatyczne
P-257
which are characterised with this
po czasie
sign can cooperate with each other.
Tryby pracy:
RNK-02
RNK-04 tylko włącz tylko wyłącz włącz/wyłącz włącz - trzymaj włącz, wyłącz
RNP-02 jednym klawiszem puść - wyłącz automatyczne
P-256 po czasie
Kanał 1 P-257 Kanał 2
