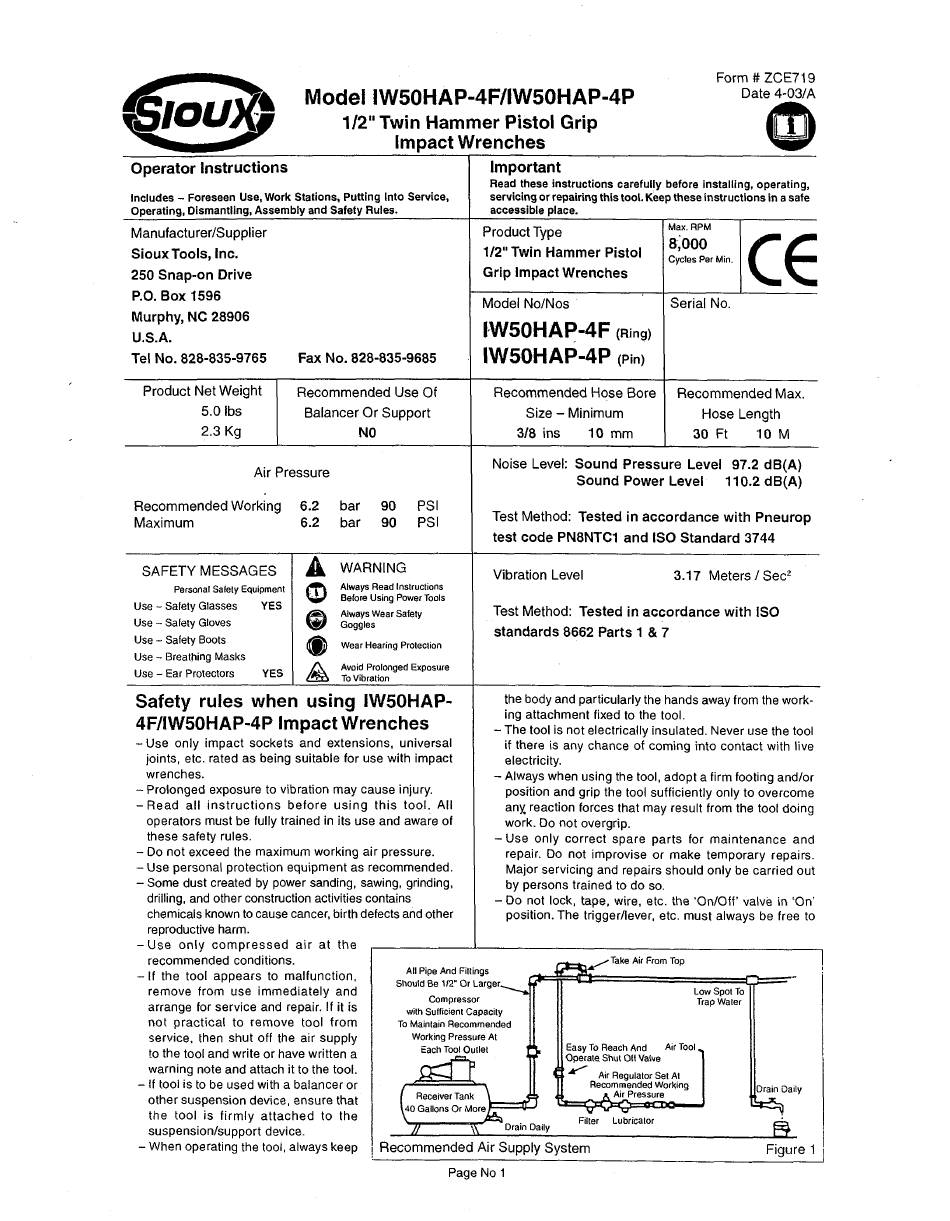

Sioux Tools IW5OHAP-4F Operator Instructions

9

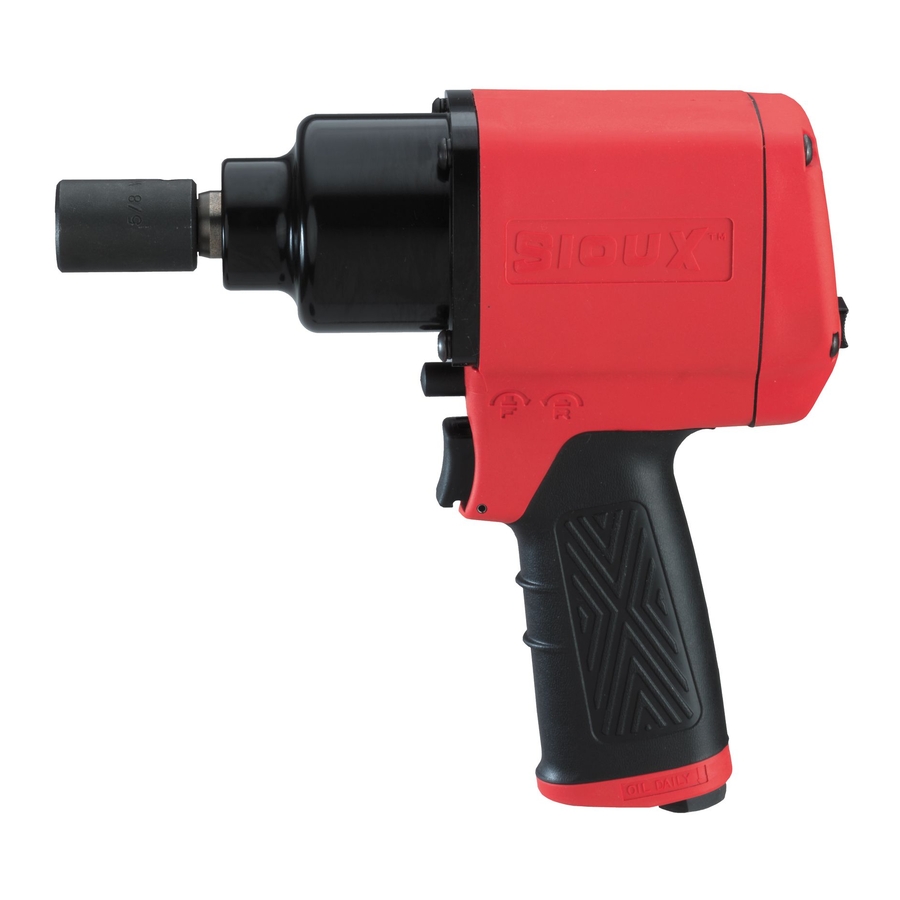

112" Twin Hammer Pistol Grip
Operator Instructions
Includes
-
Foreseen Use, Work Stations, Putting Into Service,
Operating, Dismantling, Assembly and Safety Rules.
ManufacturerISupplier
Sioux Tools, Inc.
250 Snap-on Drive
P.O. Box 1596
Murphy, NC 28906
U.S.A.
Tel No. 828-835-9765 Fax No. 828-835-9685
Air Pressure
Product Net Weight
5.0 Ibs
2.3 Kg
Recommended Working
Maximum
Recommended Use Of
Balancer Or Support
N O
6.2 bar 90 PSI
6.2
bar
90
PSI
SAFETY MESSAGES
Personal Safety Equipment
Use
-
Safety Glasses
YES
Use
-
Safety Gloves
Use
-
Safety Boots
Use
-
Breathing Masks
Use
-
Ear Protectors YES
A
WARNING
Q
; ! : : ; : ; ;
' g ; ; ; ; : ; ;
Always Wear Safety
Goggl e s
@
Wear Hearing
Protecti o n
Avoi d
Prolonged Exposure
To Vibration
_1_
Safety rules when using IW50HAP-
4F/IW50HAP-4P Impact Wrenches
-Use only impact sockets and extensions, universal
joints, etc. rated as being suitable for use with impact
wrenches.
-
Prolonged exposure to vibration may cause injury.
-Read all instructions before using this tool. All
operators must be fully trained in its use and aware of
these safety rules.
-
Do not exceed the maximum working air pressure.
- Use personal protection equipment as recommended.
- Some dust created by power sanding, sawing, grinding,
drilling, and other construction activities contains
chemicals known to cause cancer, birth defects and other
reproductive harm.
- U s e only compressed air at the ,
recommended conditions.
1
- I f the tool appears to malfunction,
remove from use immediately and
arrange for service and repair. If it is
not practical to remove tool from
service, then shut off the air supply
to the tool and write or have written a
warning note and attach it to the tool.
- If tool is to be used with a balancer or
other suspension device, ensure that
the tool is firmly attached to the
suspension/support device.
-When operating the tool, always keep
Important
Read these instructions carefully before installing, operating,
servicing or repairing this tool. Keep these instructions in a safe
accessible olace.
- -
Product Type
112'' Twin Hammer Pistol
cycles per M,n.
Grip Impact Wrenches
Model NoINos
IW5OHAP-4F
(Ring)
I W ~ O H A P - 4 ~
(pin)
Test Method: Tested in accordance with Pneurop
test code PN8NTC1 and IS0 Standard 3744
Serial No.
Recommended Hose Bore
Size
-
Minimum
318 ins 10 mm
Vibration Level 3.17 Meters / Sec2
Recommended Max.
Hose Length
3 0 F t 1 0 M
Test Method: Tested in accordance with IS0
standards 8662 Parts 1 & 7
Noise Level: Sound Pressure Level 97.2 dB(A)
Sound Power Level
11 0.2 dB(A)
the body and particularly the hands away from the work-
ing attachment fixed to the tool.
-The tool is not electrically insulated. Never use the tool
if there is any chance of coming into contact with live
electricity.
-Always when using the tool, adopt a firm footing and/or
position and grip the tool sufficiently only to overcome
any reaction forces that may result from the tool doing
work. Do not overgrip.
-Use only correct spare parts for maintenance and
repair. Do not improvise or make temporary repairs.
Major servicing and repairs should only be carried out
by persons trained to do so.
-
Do not lock, tape, wire, etc. the 'On/OffV valve in 'On'
position. The triggerllever, etc. must always be free to
All Pipe And
Fittings
Should Be 112" Or Larger
Easy To Reach And Air Tool
!
Recommended Air Supply System
Figure
1
Page No 1
