3.11.
Calibrating the Compass
When the drone is transported between flight locations (more than 300 miles), it could
be necessary to recalibrate the compass to account for changes in magnetic field

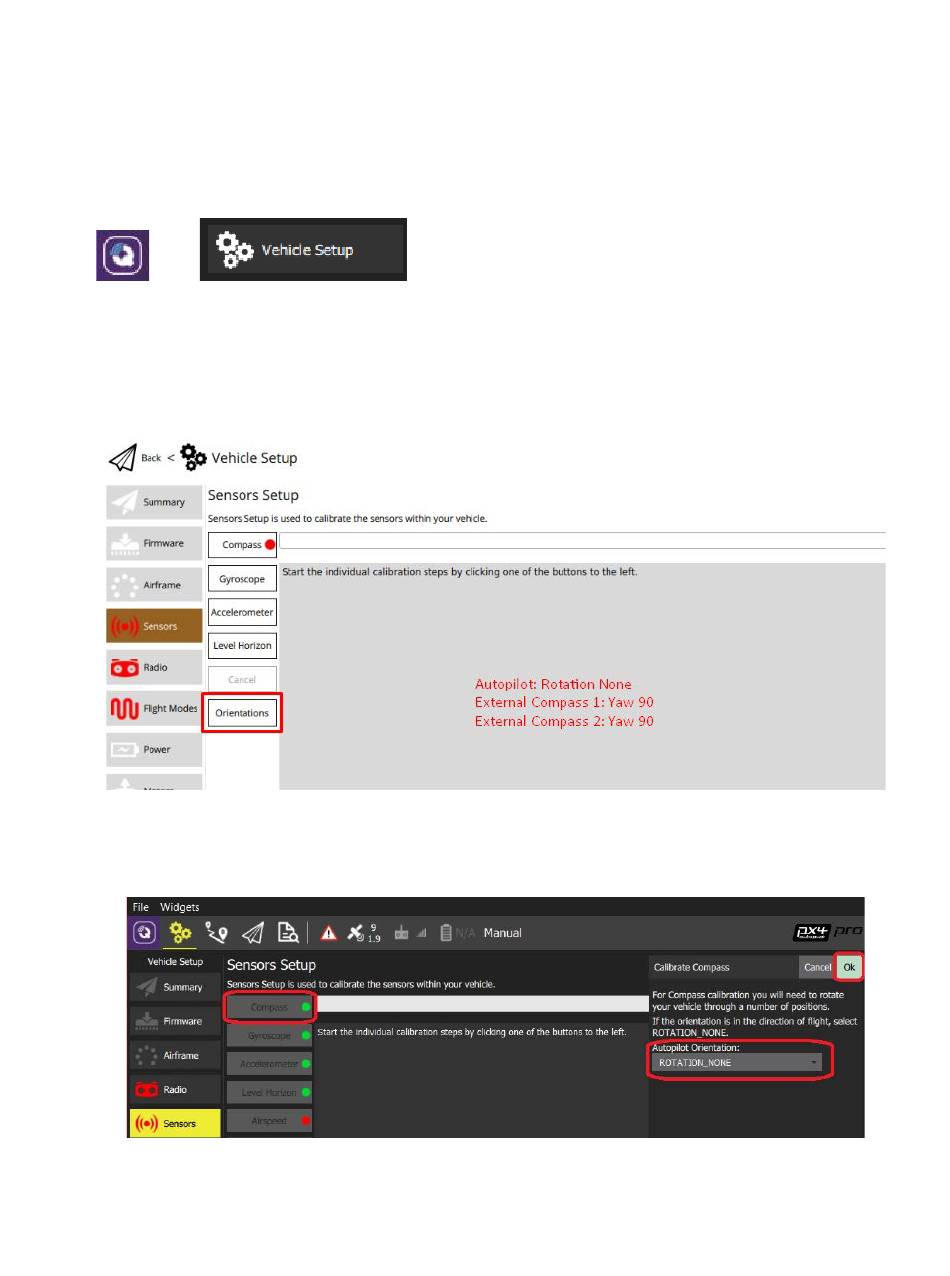

strength. This process can be accomplished through the Vehicle Setup menu
highlighted below. (Gear Icon)
--->
Under the 'Orientations' Tab, set the following orientations:
Autopilot: Rotation None
External Compass 1: Yaw 90
External Compass 2: Yaw 90
Click the 'Compass' tab, and ensure orientation is set to 'ROTATION_NONE'.
54
