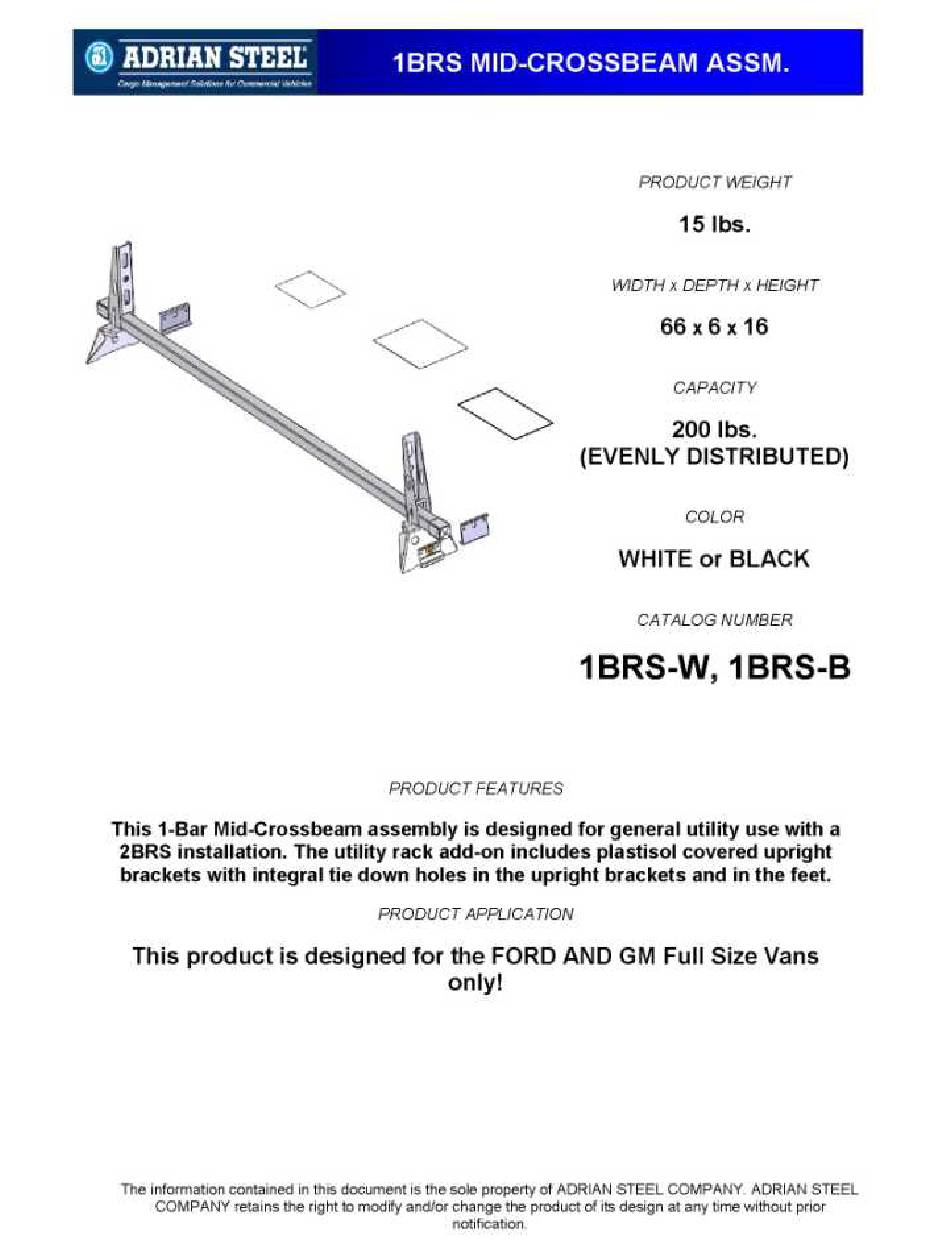

- Page 2 Assembly/Installation Instructions and Owners Manual Assembly/Installation Instructions and Owners Manual 2BRS-W SHOWN 1BRS-B, -W, 2BRS-B, -W UTILITY RACKS FOR FULL SIZE VANS ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 40296 14949 Publication Number: Revision Level: ECN Release:...
- Page 3 MEASURING TAPE STOP AND/OR WRENCHES ADDITIONAL TOOLS MAY BE NEEDED FOR THIS INSTALLATION AND THEY WILL BE IDENTIFIED IN THE STEPS THAT FOLLOW. ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 40296 14949 Publication Number: Revision Level:...
- Page 4 CW to draw plus nut flanges up (set the plusnut). Plusnuts Remove hex bolt, washer, and plusnut. Inspect installation. ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 40296 14949 Publication Number:...
- Page 5 BAR. PLACE FOOT ONTO U-BOLT AND INSTALL LOCKNUTS (DO NOT FUL- LY TIGHTEN AT THIS TIME). REPEAT ON BOTH ENDS OF THE CROSSBAR(S). ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 40296 14949 Publication Number: Revision Level: ECN Release:...
- Page 6 LADDER STOP TO FRONT CROSSBAR USING U- BOLT AND LOCKNUTS AS SHOWN. LOCATION AND HEIGHT ARE ADJUSTA- BLE. TORQUE NUTS TO 12 FT.LBS. ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 40296 14949 Publication Number: Revision Level: ECN Release:...
- Page 7 THE 3/8” LOCK NUT TO SECURELY ANCHOR THE ASSEMBLY. REPEAT THIS PROCESS FOR ALL (2 PER CROSS BAR) FOOT CLAMP ASSEMBLIES. ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 40296 14949 Publication Number: Revision Level: ECN Release:...
- Page 8 CESS FOR ALL FOOT AS- SEMBLIES. RECOMMENDED POSI- TION FOR REAR CROSS BOW IS 7’ FROM THE FRONT BOW POSITIONED ABOVE B-PILLAR. ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 40296 14949 Publication Number: Revision Level: ECN Release:...
- Page 9 THE END CAP ONTO THE CROSS BAR TUBE AND ENSURE THAT IT IS FULLY SEATED. REPEAT THIS PROCESS FOR ALL ENDS OF THE TUBE(S). ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 40296 14949 Publication Number: Revision Level: ECN Release:...
