Adrian Steel RK130FTS Installation Instructions Manual

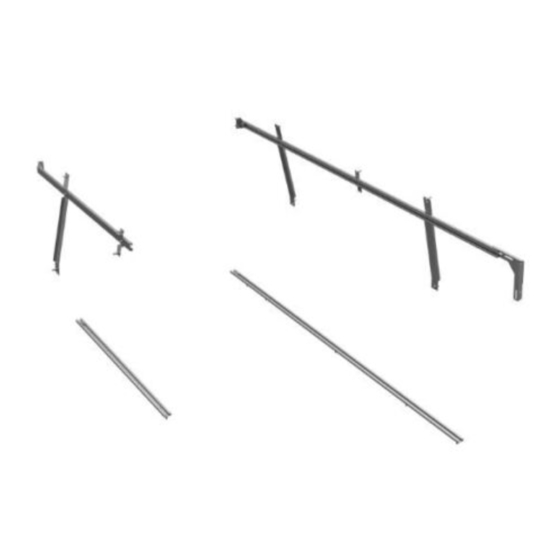

Rail kit, 130 wb for ford transit
Hide thumbs

Advertisement

Quick Links

Download this manual

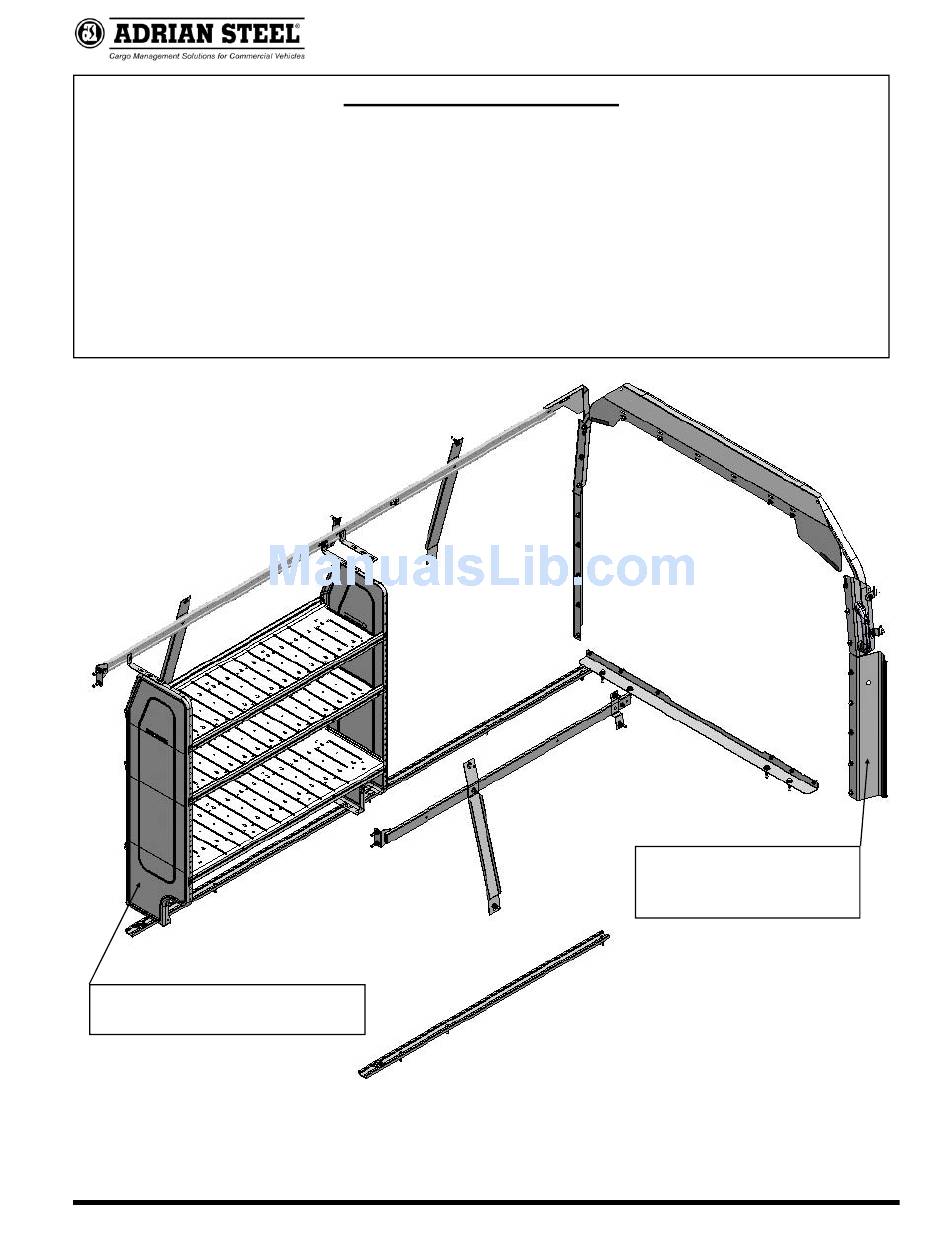

This rail kit is designed to fit in your 130 wheel base Ford Transit, Standard roof.
This rail kit will not work with the OEM liner kit, if you have this liner kit in your vehicle, the top
Note:
It is advised that all fasteners used in this assembly and installation should be checked for
tightness at the following intervals: @ 2-weeks and again @ 6-weeks of operation. This pre-
ventive maintenance step must be completed to ensure your Partition gives you long service
life.
AD44FP, ADAPTIVE SHELFING,
NOT INCLUDED IN THIS RAIL KIT
ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726
45336
Publication Number:
RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF
Introduction / Comments:
panels will need to be removed.
RK130FTS
RAIL KIT, 130 WB
FORD TRANSIT
Revision Level:
WKC1FDTS, WING KIT,
NOT INCLUDED IN THIS
RAIL KIT
E
1
17160
ECN Release:

Advertisement

loading
Need help?

Need help?

Do you have a question about the RK130FTS and is the answer not in the manual?

Questions and answers

Related Manuals for Adrian Steel RK130FTS

Summary of Contents for Adrian Steel RK130FTS

  • Page 1 NOT INCLUDED IN THIS RAIL KIT AD44FP, ADAPTIVE SHELFING, NOT INCLUDED IN THIS RAIL KIT RK130FTS RAIL KIT, 130 WB FORD TRANSIT ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 2 MEASURING TAPE STOP AND/OR WRENCHES ADDITIONAL TOOLS MAY BE NEEDED FOR THIS INSTALLATION AND THEY WILL BE IDENTIFIED IN THE STEPS THAT FOLLOW. ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level:...
  • Page 3 Using a 9/16” combination wrench of plusnut tool body and a second hand wrench, ratchet, or air tool, rotate the hex bolt head CW to draw plus nut flanges up (set the plusnut). ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336...
  • Page 4 RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF Assembly and Installation Fastener Identification Sheet ( BAG45340) ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 5 STEP 1A —VEHICLES WITH OEM LINER KITS—NEED TO REMOVE UPPER PANELS ON THE STREET AND CURB SIDE. GENERIC PICTURE OF VEHICLE AND LINER KIT. ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level:...
  • Page 6 BRACKET— 47007-G (2) BRACKET— 47097—G 47084, RAIL X 100.94 BRACKET— 47078-G 35335-0 SLIDE FAS0165— HEX HEAD (1) FAS0085—STAR WASHER (1) FAS0086—FLAT WASHER (1) ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 7 OPEN HOLE UP TO 1/2” DIA WITH DRILL STOP ADD PLUSNUTS FAS0091—5/16 PLUSNUT (3) ADD PLUSNUT TO THE TOP HALF OF THE EXISTING SLOT ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 8 OPEN HOLE UP TO 1/2” DIA WITH DRILL STOP ADD PLUSNUTS FAS0093— HEX HEAD (5) FAS0091—5/16 PLUSNUT (2) FAS0098—LOCK WASHER (5) FAS0086—FLAT WASHER (5) ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 9 RK130FTS, RAIL KIT, TRANSIT 130 WB, STD ROOF STEP 1E- STREET SIDE UPPER RAIL BRACKET— 46861-G FAS0062—1/4-20 PHILIPS SCREW (1) FAS0055—1/4-20 NYLOCK NUT (1) ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level:...
  • Page 10 OPEN HOLE UP TO 1/2” DIA WITH DRILL STOP ADD PLUSNUTS FAS0091—5/16 PLUSNUT (2) FAS0093— HEX HEAD (2) FAS0098—LOCK WASHER (2) FAS0086—FLAT WASHER (2) ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 11 FAS0048— BUTTON HD (5) FAS0085—STAR WASHER (5) WITH FLOORING USE TALL SPACERS 03927-2 (5) 47084, RAIL X 100.94 UP AGAINST WHEEL WELL ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 12 (3RD AND 5TH) IMPORTANT: DO NOT USE FRONT TWO HOLES FOR UPPER RAIL INSTALLATION FLOOR RAIL HOLE LOCATIONS (1ST, 5TH AND 6TH) ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 13 35335-0 SLIDE FAS0055—1/4-20 NYLOCK NUT (1) FAS0165— HEX HEAD (1) FAS0085—STAR WASHER (1) FAS0086—FLAT WASHER (1) BRACKET— 47078 –G BRACKET— 47077-G ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 14 - INSERT RAIL ASSEMBLY INTO VEHICLE, TRANSFER HOLES TO ADD PLUSNUTS EXISTING M8 INSERT TRANSFER HOLES WITH DRILL STOP ADD PLUSNUTS FAS0091—5/16 PLUSNUT (3) MARK AND ADD PLUSNUT ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 15 FAS0098—LOCK WASHER (3) FAS0086—FLAT WASHER (3) EXISTING M8 INSERT FAS0091—5/16 PLUSNUT FAS0741— M8 1.25 BUTTON SCREW (1) FAS0098—LOCK WASHER (1) FAS0086—FLAT WASHER (1) ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 16 OPEN HOLE UP TO 1/2” DIA WITH DRILL STOP ADD PLUSNUTS FAS0091—5/16 PLUSNUT (2) FAS0093— HEX HEAD (2) FAS0098—LOCK WASHER (2) FAS0086—FLAT WASHER (2) ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 17 47085, RAIL X 53.63 FAS0091—PLUSNUT (3) FAS0048— BUTTON HD (3) FAS0085—STAR WASHER (3) APPROX 11/16” FROM SEAM LINE UP WITH TOP RAIL ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 18 35335-0 SLIDE (6) 4 UPPER STREET SIDE FAS0165— HEX HEAD (6) FAS0085—STAR WASHER (6) 2 UPPER CURB SIDE FAS0086—FLAT WASHER (6) ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 19 36496-0 END CAPS (2) 35335-0 SLIDES (2) EACH BOTH CURB SIDE RAILS BEFORE CAPS 35335-0 SLIDES (4) EACH BOTH STREET SIDE RAILS BEFORE CAPS ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
  • Page 20 DOUBLE CHECK ALL FASTENERS LOCATIONS TO BE SURE THAT ALL FASTENERS ARE TIGHTENED TO SPECIFICATIONS. YOUR INSTALLATION IS NOW COMPLETE! STOW THIS COPY IN THE VEHICLE FOR FUTURE REFERENCES! ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number:...
  • Page 21 FAS0086—FLAT WASHER (5) FAS0091—5/16 PLUSNUT (5) EXISTING M8 INSERT FAS0741— M8 1.25 BUTTON SCREW (1) FAS0098—LOCK WASHER (1) FAS0086—FLAT WASHER (1) ADRIAN STEEL COMPANY WWW.ADRIANSTEEL.COM 906 JAMES STREET ADRIAN, MI 49221 800-677-2726 45336 17160 Publication Number: Revision Level: ECN Release:...
