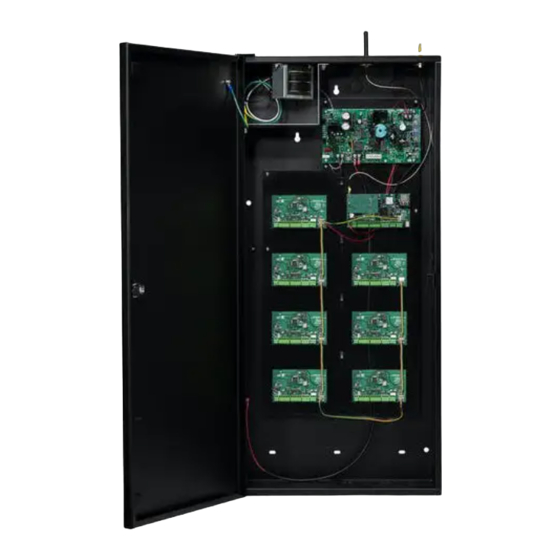

MOUNT THE SYSTEM
The metal enclosure for the X1-8 system must be mounted to a wall, backboard,
or other flat surface. It is not necessary to remove the PCB when installing the
enclosure.
WIRE THE ELECTRONIC LOCK
This section only applies to the X1 Door Controller and the XD Door Controller
Modules.
Form C Relay
The X1 system provides a Form C (SPDT) relay that is rated for 1 Amp.
Diode
Connect the included diode as close to the magnetic lock or door strike as
possible to prevent inductive kickback to the Door Controller. Observe polarity
when connecting the diode.
Wet/Dry Jumper
Putting the jumper on the top two terminals will place it in the dry condition.
Putting the jumper on the bottom two terminals will place it in the wet condition.
Note: The XD Door Controller only wires dry because it does not have a
wet/dry jumper.

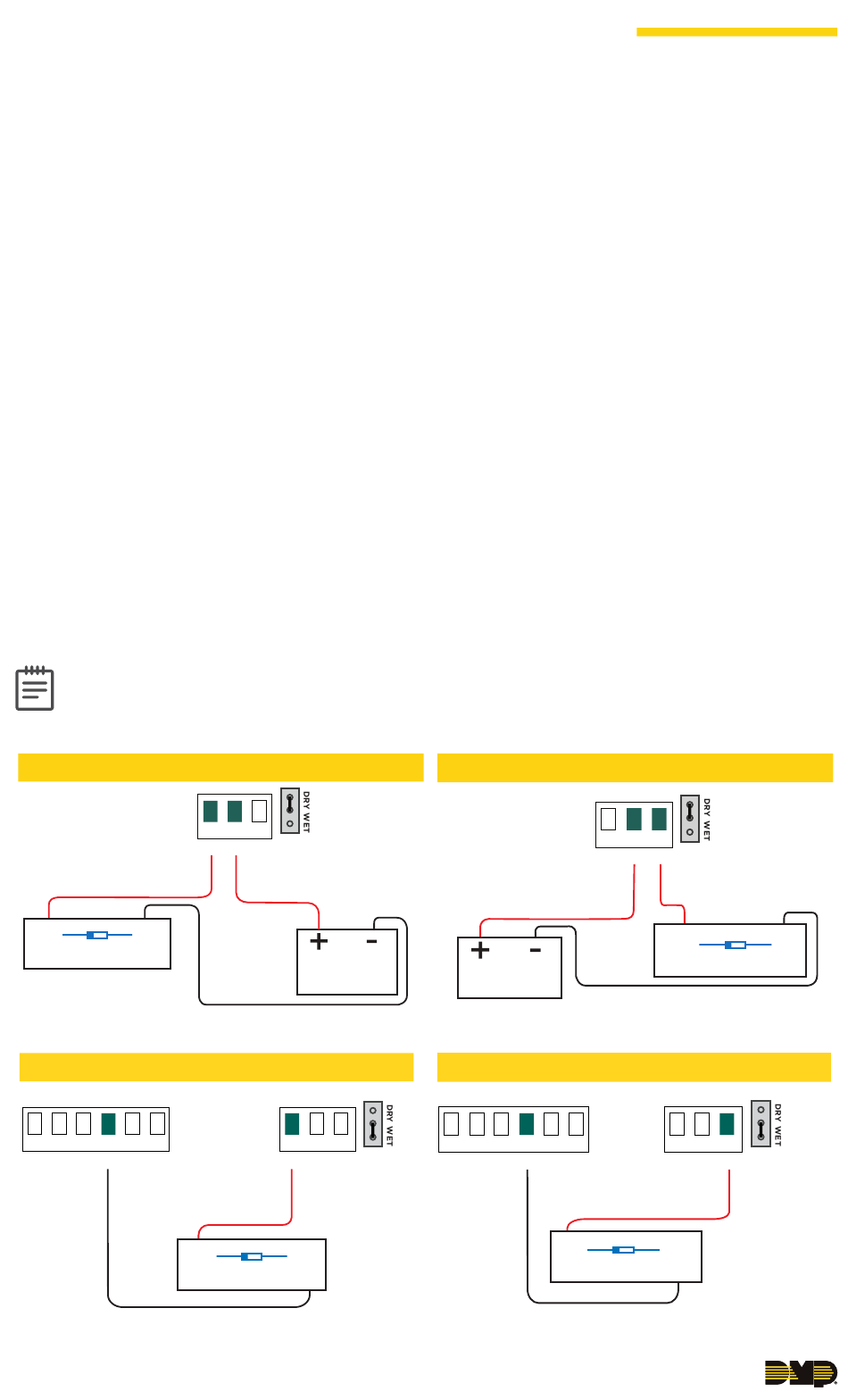

Magnetic Lock - Normally Closed and Dry
Magnetic Lock positive
to Terminal NC
+ –
Diode
Magnetic Lock
Magnetic Lock - Normally Closed and Wet
Reader 2
R2 W2 G2 LC BC
B2
Magnetic Lock positive
to Terminal NC
Magnetic Lock negative to
X1 terminal B2
LT-2268 21042 © 2021 Digital Monitoring Products, Inc.
Jumper set
to Dry
NC C NO
Power Supply positive
to Terminal C
Power Supply
Magnetic Lock negative to
Power Supply negative
NC C NO
Jumper set
to Wet
+ –
Diode
Magnetic Lock
Door Strike - Normally Open and Dry
NC
Power Supply positive
to Terminal C
Power Supply
Door Strike - Normally Open and Wet
Reader 2
R2 W2 G2 LC BC
B2
Door Strike positive
to Terminal NO
+
DC Door Strike
Door Strike negative to
X1 terminal B2
Jumper set
to Dry
C NO
Door Strike positive
to Terminal NO
+
Diode
DC Door Strike
Door Strike negative to
Power Supply negative
Jumper set
NC C NO
to Wet
–
Diode
–
