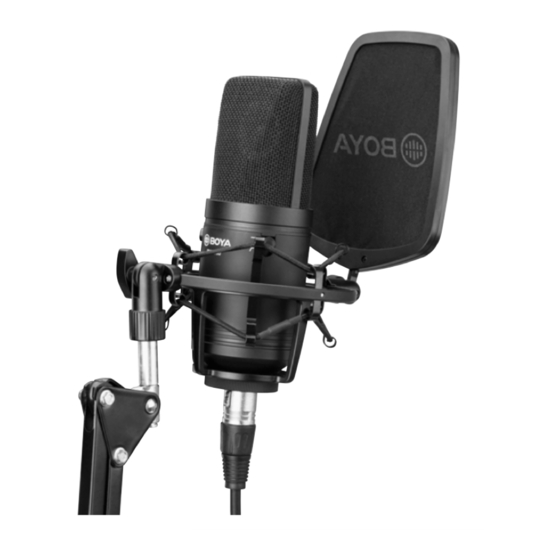

Boya BY-M800 Instruction Manual

Boya BY-M800 Instruction Manual

Mikrofon condenser cardioid
Hide thumbs Also See for BY-M800:

Advertisement

Quick Links

BY-M800
Mikrofon Condenser Cardioid
Instruction Manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the BY-M800 and is the answer not in the manual?

Questions and answers

Summary of Contents for Boya BY-M800

  • Page 1 BY-M800 Mikrofon Condenser Cardioid Instruction Manual...
  • Page 2 -10dB dan 2 tombol switch filter low-cut. BY-M800 berbahan metal yang kokoh, memiliki suber tenaga tersembunyi sebesar 24-48V, yang ditenagai oleh output XLR. BY-M800 juga termasuk sebuah shockmount, pop filter, Kable XLR 3m, dan case.
  • Page 3 Pengenalan Fungsi - Polar Pattern Cardioid The cardioid polar pattern is focusing audio capture in front of the capsule, minimizes unwanted ambient sound from the other sides and back of the microphone. This polar pattern is suitable for such situations when you want to pick up specific sund sources, such as recording vocals, guitar, pianos, stringed instruments, and more.
  • Page 4: Cara Menggunakan

    Cara Menggunakan 1. Mount BY-M800 on 3/8" and 5/8" microphone stands or tripods. Note: When changing the mic position, always be sure to loosen the adjustment knob first to ensure you do not damage the shock mount. 2. Rotate locking knob to adjust microphone fits your position.
  • Page 5 3. Mounted the supplied pop filter in front of microphone. Note: The “BOYA” Logo on the face of the BY-M800 indicates the front of the microphone, and the pickup area of the capsule. The “BOYA” Logo should always be facing towards...
  • Page 6 4. Insert supplied XLR cable to microphone...
  • Page 7 Fitur • Large gold-sputtered diaphragm • Great for studio and broadcast • Flat, wide-range frequency response • Cardioid pickup pattern • Controlled by low-cut filter switch • A selectable -10dB pad • Included shockmount & pop filter • 24V or 48V phantom power •...
  • Page 8 Frekuensi Rekam Pola Rekam Cardioid...
  • Page 9: Informasi Penting

    Perawatan • Keep your microphone away from dust, moisture, or water. • To clean the housing, wipe with a dry micro-fiber cloth to remove dust. • Store your microphone in the included pouch to protect it from dirt and dust. Informasi Penting •...
  • Page 10 SHENZHEN JIAYZ PHOTO INDUSTRIAL., LTD. The BOYA logo is a trademark which is registered and owned by Shenzhen Jiayz Photo Industrial., Ltd. COPY RIGHT 2010-2020 Email: sales@boya-mic.com www.boya-mic.com / www.jiayz.com...
