Boya BY-M3-OP Manual

Boya BY-M3-OP Manual

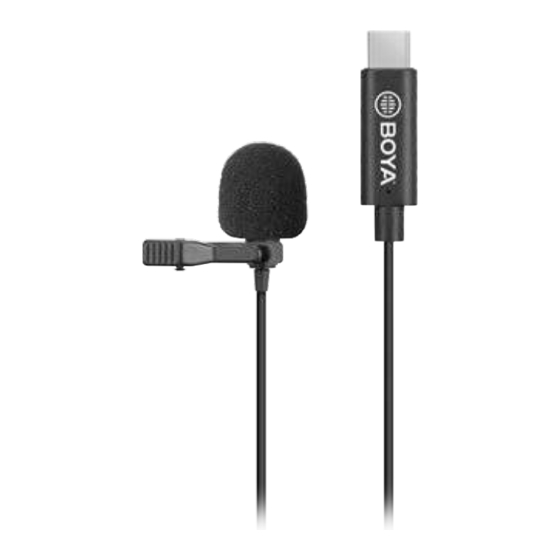

Clip-on digital lavalier microphone for dji osmo pocket

Advertisement

BY-M3-OP
Clip-on Digital Lavalier Microphone
for DJI OSMO™ Pocket
Buku Panduan

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BY-M3-OP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Boya BY-M3-OP

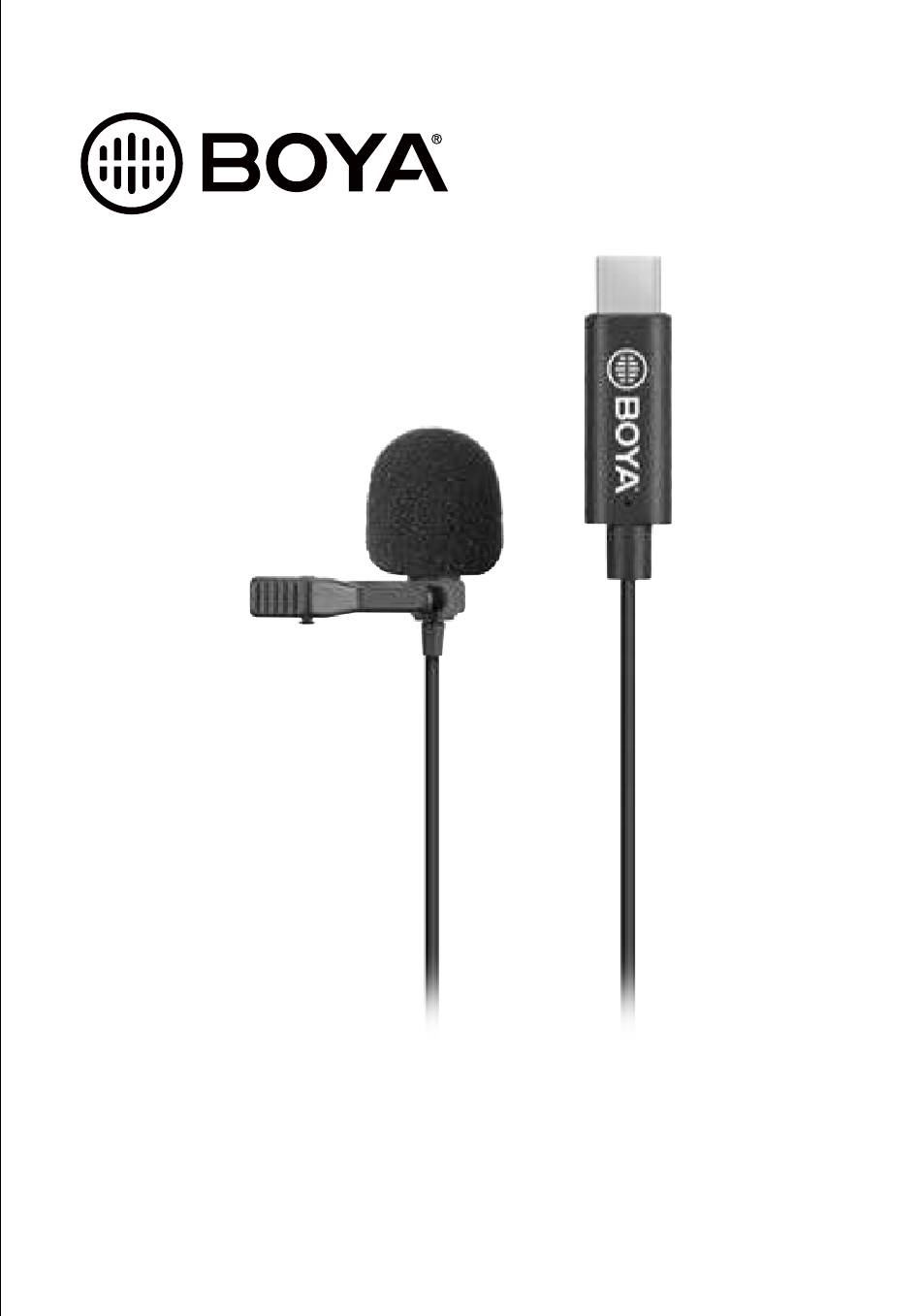

  • Page 1 BY-M3-OP Clip-on Digital Lavalier Microphone for DJI OSMO™ Pocket Buku Panduan...
  • Page 2 Panduan Thanks for purchasing BOYA! The BOYA BY-M3-OP is a digital omnidirectional lavalier microphone, specially designed for DJI OSMO™ Pocket. resolution with a frequency response of 50Hz to 20kHz that captures crisp and pristine sound. With the foam windscreen, it allows to prevent the...
  • Page 3 Bagian Produk ①USB Type-C connector (Only for DJI OSMO™ Pocket) ②Microphone ③Clothing clip ④Foam windscreen...
  • Page 4 Cara Penggunaan 1. Connect BY-M3-OP to your DJI OSMO™ Pocket. 2. When the DJI OSMO™ Pocket shows ”Audio Adapter Connected and Microphone Connected,“ the microphone gets ready to work.
  • Page 5 3. Mounting the microphone to your Clothing • Attach the microphone to the front of your clothing with the clothing clip, keeping 20cm (8 inches) from your face. 1) Attach the microphone upside down to reduce excessive breath noises and tonal inconsistencies due to head movements.
  • Page 6 Catatan: The BY-M3-OP only supports the DJI Pocket OSMO™ to use while taking video. It is not suited for DJI other series or any Type-C device. Fitur: • USB Type-C connector specially designed for DJI OSMO™ Pocket • Omnidirectional digital lavalier microphone •...
  • Page 7 Spesi kasi: Output USB Type-C Connector Polar Pattern Omnidirectional Frequency Response 50Hz-20kHz Signal to Noise Ratio 78dB and more Gain 12 dB Sensitivity -32±3dB (0dB=1v/Pa,at 1kHz) Sampling Frequency 44.1kHz/48kHz/96kHz Bitrate 16Bit/24Bit Power Requirement Supplied by DJI OSMO™ Pocket Weight 20g (0.7 oz) Cable Length 2m (3.3ft)
  • Page 8 SHENZHEN JIAYZ PHOTO INDUSTRIAL., LTD. The BOYA logo is a trademark which is registered and owned by Shenzhen Jiayz Photo Industrial., Ltd. COPY RIGHT 2010-2020 TEL: 400 6131096 Email: sales@boya-mic.com www.boya-mic.com / www.jiayz.com...
