Boya BY-M1 Instruction Manual

Boya BY-M1 Instruction Manual

Lavalier microphone
Hide thumbs Also See for BY-M1:

Advertisement

Omni-directional microphone

Using the microphone

For Smartphone
Switch o the microphone. Slide the ON/OFF up to OFF/Smartphone.
The power is shut down.
For DSLR, Camcorders, Audio recorders, PC ect
Switch on the microphone. Slide the ON/OFF up to ON.

Features

Clip-On Mic for Smartphones, DSLR, Camcorders, Audio recorders, PC etc.
Omni directional condenser microphone
High-quality condenser is ideal for video use
Low handling noise
Includes lapel clip, LR44 battery, foam windscreen, 1/4" adapter

Specifications

Transducer:
Polar pattern
Frequency Range
Signal/Noise
Sensitivity
Output Impedance
Connector
ACCESSORIES FURNISHED
Battery Type
Dimensions
Weight

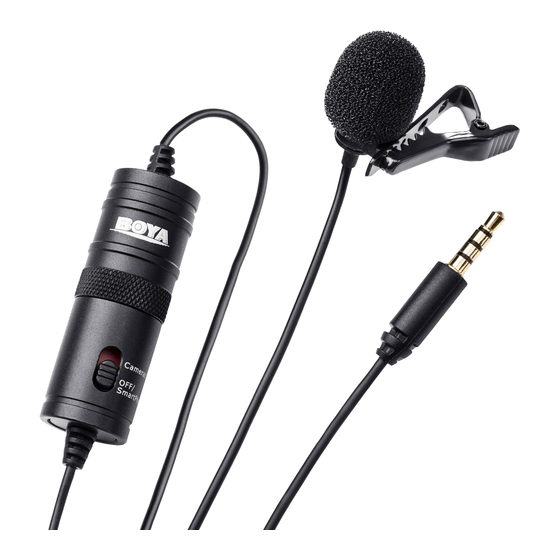

BY-M1 Lavalier Microphone
Battery Compartment
ON/DSLR
Camcorders,etc.
OFF/Smartphone
Electret Condenser
Omni-directional
65Hz ~ 18KHz
74dB SPL
-30dB +/- 3dB / 0dB=1V/Pa, 1kHz
1000 Ohm or less
3.5mm (1/8") 4-pole gold plug
lapel clip, LR44 battery, foam windscreen, 1/4" adapter
LR44
Microphone: 18.00mmH x 8.30mmW x 8.30mmD
Cable: 6.0m
Microphone: 2.5g
Power Module: 18g
2013 BOYA inc. Visit us on the web at www.BOYA-mic.com
INSTRUCTION MANUAL
3.5 mm (1/8") glod 4-pole mini-plug
