MG 2516

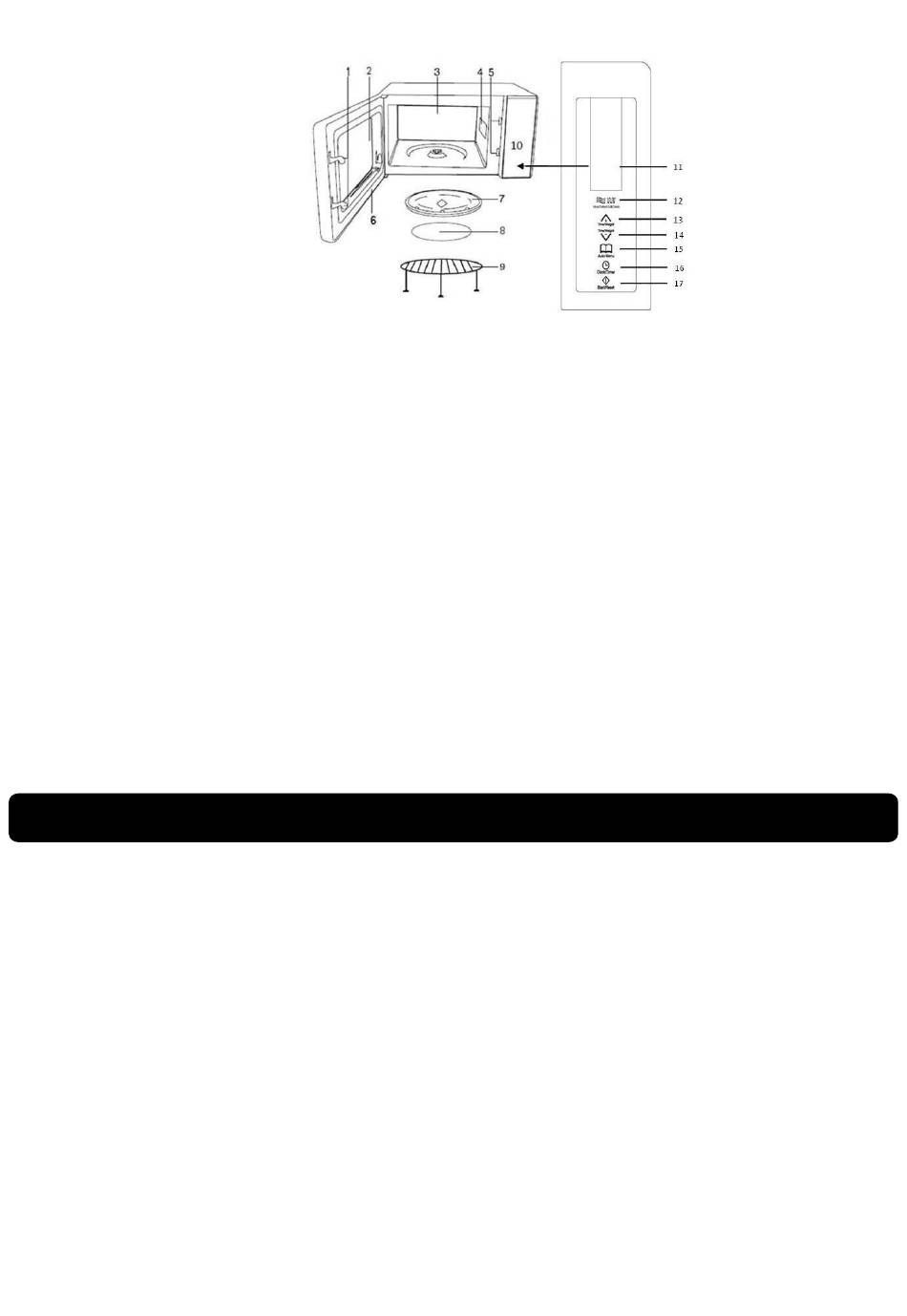

1. Door latch. When the door is closed, it will automatically lock shut. If the door is opened while the oven is operating,
the magnetron will automatically shut off.
2. Door screen-Allows viewing of food. The screen is designed so that light can pass through, but not the microwaves.
3. Oven cavity
4. Spatter shield-Protects the microwave outlet from splashes of cooking foods.
5. Auto shut off, Prevents the oven from operating while the door is opened.
6. Door seal, prevents microwave leakage.
7. Glass cooking tray-Made of special heat resistant glass. The tray must always be in proper position before operating
the oven. Do not cook food directly on the tray.
8. Roller guide, Supports the glass cooking tray. Must malways be in proper position before operating the oven.
9. Grill rack
10. Display panel
11. Display Window.
12. Micro/Grill/Defrost/Combi.
13. Time/Weight +.
14. Time/Weight –.
15. Auto Menu.
16. Clock Timer.
17. Start/Reset.
Attention: Please clean microwave oven often.Failure to do so may create a fire hazard and void the warranty.
•
Make sure all the packaging materials are removed from the inside of the oven.
•
Inspect the oven after unpacking for any visual damage such as:
•
Misaligned Door
•
Damaged Door
•
Dents of Holes in Door Window and Screen
•
Dents in Cavity
If any of the above is visible, DO NOT use the oven.
•
This microwave oven weighs around 16 kg and must be placed on a horizontal surface strong enough to support this
weight.
•
The oven must be placed away from high temperature and steam.
•
DO NOT place anything on top of the oven.
•
On the use of freestanding, leave a space of at least 10 cm from the rear, 8 cm from both sides of the wall and 15 cm
from the top to ensure proper ventilation.
•
On the use of a built-in (planted), adjust the distance by following the installation of an appropriate frame.
•
DO NOT remove the turn-table drive shaft.
•
As with any appliance, close supervision is necessary when appliance is used by children.
