Summary of Contents for Modena Agiato Series

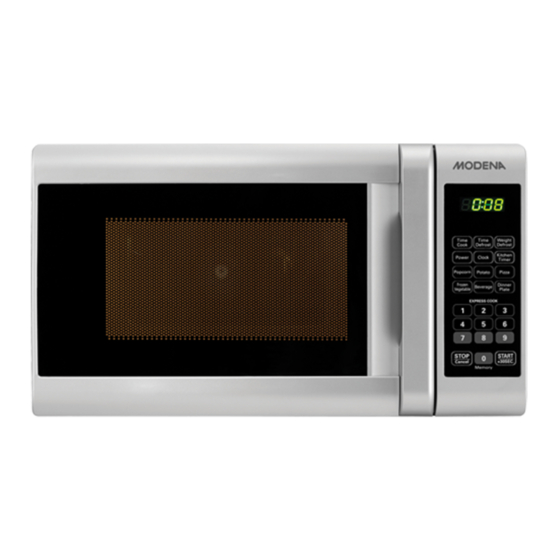

- Page 1 User Manual Book Microwave Oven Agiato Series MO 2004 MO 2305...
-
Page 2: Table Of Contents
How to Use MO 2305 Part 5: Maintenance Part 6: Troubleshooting Part 7: Precaution Part 8: Specification This guide book explains everything you need to know about your new product. Please contact our Customer Care should you need further assistance through www.modena.com... -
Page 3: Part 1: Safety Warnings
PART 1: SAFETY WARNINGS To reduce the risk of fire, electric shock, injury to persons or exposure to excessive microwave oven energy when using your appliance, follow basic precautions, including the following: • This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe... - Page 4 • If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. • Do not store or use this appliance outdoors. • Do not use this oven near water, in a wet basement or near a swimming pool.
-
Page 5: Part 2: Name Of Parts
• WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. • The microwave oven must be operated with the decorative door open (for ovens with a decorative door.) •... -
Page 6: Turntable Installation
Both glass tray and turntable ring assembly must always be used during cooking • All food and its containers are always placed on the glass tray on cooking process • If glass tray or turntable ring assembly breaks or cracks, contact MODENA call cente... -
Page 7: Part 3: Installation
PART 3: INSTALLATION • Make sure all the packing materials are removed from the inside of the door. • Inspect the oven after unpacking for any visual damage such as: Misaligned Door • Damaged Door • Dents of Holes in Door Window and Screen •... -
Page 8: Installation On The Table
Installation on the Table 1. Select a level surface that provide enough open space for the intake and/or outlet vents. The minimum installation height is 85cm. • The rear surface of appliance shall be placed against a wall. • Leave a minimum clearance of 30cm above the oven, a minimum clearance of 20cm is required between the oven and any adjacent walls. -
Page 9: Part 4: How To Use
PART 4: HOW TO USE How to Use MO 2004 Power Level 10 power levels are available Power option Oven Power 70% 60% 50% Screen PL10 PL9 PL4 PL3 Display 2. Clock Setting a. Press " CLOCK ". "00:00" will display. b. - Page 10 NOTE • The kitchen time is differ from 12-hour system, Kitchen Timer is a timer. • During kitchen timer, any program cannot be set. Microwave Cook a. Press "TIME COOK" once, LED will display "00:00". b. Press number keys to input the cooking time; the maximum cooking time is 99 minutes and 99 seconds.
- Page 11 Speedy Cooking a. In waiting state, instant cooking at 100% power level can be started by select a cooking time from 1 to 6 minutes by pressing number pads1 to 6. Press " START/+30SEC." to increase the cooking time; the maximum cooking time is 99 minutes and 99 seconds. b.
- Page 12 the picture at right. • If/When the popcorn bag expands and no longer rotates properly, please press STOP/CANCEL button once and open the oven door and adjust the bag position to ensure even cooking. Potato a. Press " POTATO " repeatedly until the number you wish appears in the display, "1","2","3"...
- Page 13 cooking finish, buzzer sounds five times and then turn back to waiting state Memory Function a. Press "0/MEMORY" to choose memory 1-3 procedure. The LED will display 1,2,3. b. If the procedure has been set, press " START/ +30 SEC." to use it. If not, continue to set the procedure.
- Page 14 3) Press "TIME COOK" once, then press "1","0","0","0" to set the cooking time; 4) Press "POWER" once, then press "6" to select 60% microwave power. 5) Press "START/ +30 SEC." to start cooking. Inquiring Function a. In cooking state, press " CLOCK ", the LED will display clock for three seconds.
-
Page 15: How To Use Mo 2305
How to Use MO 2305 Control Panel Microwave Weight Defrost Time Defrost Clock Kitchen Timer Stop/Clear Start/+30 Sec/Confirm Operation Instructions Clock Setting When the microwave oven is connected to the power, the oven will display “0:00” and the buzzer will ring once. a. - Page 16 NOTE • If the clock is not initially set, the clock function will not work. • During the process of setting the clock, if the appliance is idle for 1 minute, the oven will automatically go back to previous status. Microwave Cooking a.
- Page 17 Defrost by Weight a. Press once, the screen will display “dEF1”. b. Turn to select the food weight. The range of weight is 100-2000g. c. Press “Start/+30 Sec/Confirm” key to start defrosting. Multi-stage Cooking A maximum of two stages can be set. If one of the stages is defrosting, it should be put as the first stage.
- Page 18 Auto Menu a. In standby mode, rotate the to the right to choose the menu from “A-1” to “A-8”. b. Press “Start/+30 Sec/Confirm” to confirm the menu. c. Rotate to choose the food weight. d. Press “Start/+30 Sec/Confirm” to start cooking. After cooking is finished, the buzzer will ring for 5 times.
- Page 19 Menu Weight Display 200 g Pizza 400 g 250 g 350 g Meat 450 g 200 g 300 g Vegetabl 400 g 50g(with 450 ml cold water) Pasta 100g(with 800 ml cold water) 200 g 400 g Potato 600 g 250 g 350 g Fish...
-
Page 20: Part 5: Maintenance
PART 5: MAINTENANCE • Be sure to unplug the appliance from the power supply. • Clean the cavity of the oven after using with a slightly damp cloth. • Clean the accessories in the usual way in soapy water • The door frame and seal and neigh boring parts must be cleaned carefully with a damp cloth when they are dirty. -
Page 21: Part 7: Precaution
Do not operate the microwave oven if the power cord or plug is damaged, not working properly, the microwave oven is dropped or damaged for any reason. Bring to MODENA Service Center for examination and testing, setting back electrical or mechanical function and repair as necessary. -
Page 22: Part 8: Specification
• Do not use the microwave oven in open space. • Do not let the power cord hanging or nestled away on a side table or touch hot surfaces, including stove and etc. Measures to avoid the possibility of excessive exposure of the microwaves •... - Page 23 09/21 PT MODENA INDONESIA Jl. Industri Raya I Blok D-8, Jatiuwung, Tangerang 15135...
