Summary of Contents for Blaupunkt Alaska RDM168
- Page 2 ThummerTM III Steering Wheel Remote Control (sold separately) Commande B distance ThummerTM Ill (optionnelle) Funcionamiento del control remoto ThummerTM III (optional) Funcionamento do Controle Remoto ThummeP Ill (optional)
-
Page 3: Table Of Contents
Table of contents Equipment overview ... 5 Florida RD 168..5 Nevada RDM 168 ... 5 Alaska RDM 168..5 Quick reference ... 6 Important information ... 11 What you definitely should read ... 11 Traffic safety ... 11 Installation.. - Page 4 Specifications ... 27 Amplifier..27 Tuner..27 Cassette ... 27 CD ... 27 CD changer (optional, only for Alaska RDM168 and Nevada RDM168) ... 27 Troubleshooting Guide..28 General ... 28 Radio reception..28 Error Displays ... 29...
-
Page 5: Equipment Overview

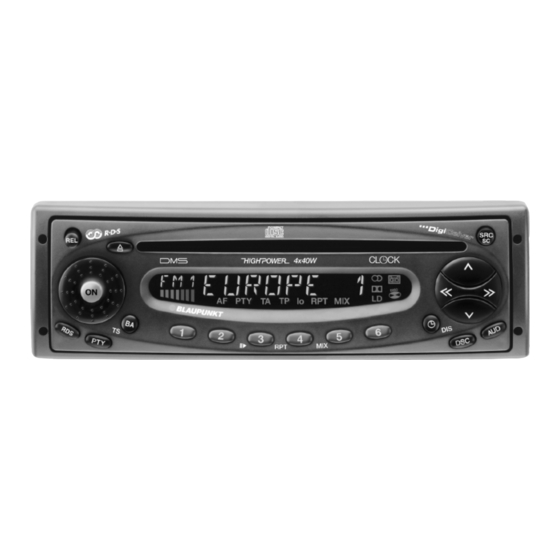

Equipment overview Florida RD 168 Florida RD 168 with multi-tone green dis- play Features: CD player 4 x 40 watt maximal output perform- ante 4-channel preamp-output (3V) Release panel (detachable electronic face) RDS (FM/AM) EON PTY (station search by program type) Codem D reception model 30 storage areas Clock (exact time controlled by RDS... -
Page 6: Quick Reference
Quick reference “Press” means a momentary press of less than l/2 second. All presses requiring more than II2 second are followed by a beep. (Beep for all button presses available through Direct software Control Menu.) @ Power On/Off: Press the On/Off button in the center of the level volume control or inserting a disc into the unit - the face must be installed and the ignition must be on. - Page 7 To switch between the storage leVelS/ frequency band areas FM 1, FM II, TS (Travelstore) AM, and AM Travelstore. Additional Travelstore features: To activate Travelstore press the BA key until you hear a beep and “T-STORE” appears. TS stores the six strongest stations. (c) Station keys 1 - 6 Radio ooeration At each storage level (I, II, and ‘7”) of...
- Page 8 MIX-ALL on: Hold “5/MIX” depressed. Press “5/MIX” to disactivate MIX. Clock display Press the DIS key when the unit is turned on and the current time will be shown for approximately 8 seconds. Additional features of the clock display Press and hold DIS key until it beeps which will result in a permanent time display.
- Page 9 In FM only: Scrolling through the station chains << >> when AF is on (e.g. NDR1,2,3,4. N-Joy . ..) CD ooeration Select title down pressing V once, the currently playing title will start from the beginning. >> Fast forward, audible Hold depressed as necessary CC Fast reverse, audible Hold depressed as necessary...
- Page 10 @ Display a) - Station name Frequency band area Peak/volume display Station keys (1 - 6) Alternative frequency with RDS Program type activated Sensitivity of station search CD repeat function activated CD mix operation activated Loudness function on CD in unit 1) - Program played in stereo m) -...
-
Page 11: Important Information
The display will then show “PHONE”. Accessories You should use only the accessories and replacement parts authorized by Blaupunkt. You can operate the following Blaupunkt products with this unit: Additional amplifiers All Blaupunkt amplifiers CD changer... -
Page 12: Anti-Theft Security System/Detachable Face
Anti-theft security system/detachable face The radio it is equipped with a detachable ’ ” face in order to prevent theft. Detaching face detach the face by pressing the REL button at the top left of the radio. The face will snap out of its mounting unit and can be detached from the radio. -
Page 13: Rds Radio Operation
RDS radio operation The radio data system improves the ease of listening to FM stations. More and more radio stations send RDS in- formation in addition to the program. As soon as station programs can be identi- fied, the abbreviated name of the station along with the abbreviation of the region (if available) will be displayed (e.g., NDR 1, NDS (Niedersachsen)). -
Page 14: Changing Storage Level (Fm)
Pressing c< >> enables you to chose the station. Changing storage level (FM) In order to store or call the stored stations, you may switch between the storage levels 1, 2, and T, as well as AM and AM Travel- store. -
Page 15: Changing Sensitivity Of Station Search
Changing sensitivity of station search You may change the sensitivity of the auto- matic station search. If “lo” is displayed, the search will only look for stations with good reception (low sensi- tivity). If “lo” is not displayed, the search will also include stations with lower reception quali- Under “Programming with DSC”... -
Page 16: Choosing Program Type
Choosing program type a) with the station keys: When PTY is turned on, the station keys 1- 6 select the program types de- termined by the factory. Press one of keys (1 6). The dis- play will show the selected program type for 2 seconds. -
Page 17: Cd Operation
- Station search started, no station with PTY-POP found. Display shows “NO PTY” and automati- cally switches back to NDR 3. NDR 2 is broadcasting PTY-POP; the unit switches within the station chain to NDR 2 for the duration of the program. Even during CD operation, the unit automat- ically switches within the station chain to the radio station broadcasting the selected pro-... -
Page 18: Cd Mix Ooeration
The toggle switch acts as a sequence switch; by pressing it several times several songs can be skipped. The display will indicate ‘7” (Track) and the respective number of the song just select- CD mix operation CD titles can be played in a random se- quence. -
Page 19: Playing Cds
Playing CDs Select the CD changer with the SRC key. Press the SRC key repeatedly until~ the display shows “CHANGER”. The first CD recognized by the changer will be played. Choosing titles When you first begin to play the CD the dis- play will indicate the information identifying the CD (e.g., number, name, or playing time). -
Page 20: Choosing The Display Mode
Choosing the display mode When playing CDs, you may select the dis- play mode: “DISC NO” - The number of the CD cur- rently being played is dis- played. “NAME” - The name entered (e.g., Madonna) will be displayed (only the Alaska RDM 168). - The number of minutes the ‘TIME”... -
Page 21: Deleting Cd Name Input
Deleting CD name input You may delete individual names, the CD magazine, or the complete name list of a player or changer. Deleting one CD name Select CD NAMING MODE. Choose the CD to which you would like to assign a new name. Select the mode CD NAME EDIT. -
Page 22: Clock /Time
Clock /time The unit is equipped with an internal clock for which the hours and minutes are set via RDS in order to assure a high degree of accuracy. This RDS control is only possible when an RDS station with CT (clock time) function can be received. -
Page 23: Equalizer Setting
Equalizer Setting The sound in a vehicle is determined to a greater extent by the acoustic characteris- tics of the interior than by the characteris- tics of the loudspeaker. Position, installation and the rear volume of, for example, the door or the rear shelf play a larger role. -
Page 24: Assistance In Setting Your Equalizer
Assistance in setting your equalizer Start to make your settings in the mid-range/treble and end it with the bass range. Frequency range Sound impression/problem Bass Bass reproduction too weak 30- 100 Hz Lower mid-range Unclear bass lOO-400Hz Playback reverberates Unpleasant pressure on the ears Mid-range sound Sound appears to be in the... -
Page 25: Dsc Programming
DSC programming The DSC (direct software control) function of the car radio offers you the opportunity to adjust some of the settings and functions according to your needs and to store these changes. The units are delivered with factory settings. An overview of the basic factory settings is provided below to enable you to return to these basic settings at any time. - Page 26 Equalizer setting used to HIGH EQ select and adjust the level of the upper frequency area. Refer to “Equalizer setting”. Reduces interference dur- HICUT ing poor reception by “cut- ting” the high levels. Settings: NO HICUT or HI- CUT 1, 2, or 3 (3 = most drastic cut of high levels).
-
Page 27: Overview Of The Basic Dsc Factory Settings
3 0 - 1 8 0 0 0 H z Frequency response: 20 - 20 000 Hz CD changer (optional, only for Alaska RDM168 and Nevada RDM168) This unit offers you the ability to conveniently control a Blaupunkt CDC-A08 or CDC-A071... -
Page 28: Troubleshooting Guide
Troubleshooting Guide The following check will assist in the correction of most problems which you may encounter with your unit. Before going through the check list below, refer back to the connection and operating procedures. General Trouble No sound. Radio reception Trouble Preset stations are not receivable. -
Page 29: Error Displays
Error Displays Trouble “CD ERR” “NO DISC” If the above mentioned solutions do not help to improve the situation, consult your nearest Blaupunkt dealer or in the United States call l-800-266-2528. Cause A disc such as an upside down or dirty disc, or a CD-ROM (computer) disc. - Page 30 Bosch Group Blaupunkt-Werke GmbH Postfach 77 77 77 D-31132 Hildesheim Germany Robert Bosch Corporation Sales Group - Blaupunkt Division 2800 South 25th Avenue, Broadview, Illi- nois 60153 l-800-266-2528 Made in Portugal Fabrique en Portugal Hecho en Portugal Fabricado en Portugal...
-
Page 31: Installation Instructions
Don’t assume that a seemingly-matching wire harness in the vehicle matches the receiver’s wire harness wire-for-wire. Make sure before you connect anything! Your Blaupunkt dealer may be able to sell you adapter harnesses for your vehicle, which can make connections much easier. - Page 32 Connect the black (power ground) lead to a grounded metal part on the vehicle. We recommend grounding all audio system black ground leads (receiver, changer,-additional amplifiers, etc.) to a common grounding point, preferably a non-painted surface under the instrument panel. Fig.
- Page 33 “speaker”) to each of the receivers’ four pairs of speaker leads. With the Blaupunkt preamp output adapter 7 607 893 093 (available separately], you can provide 4-channel preamp output to additional external amplifiers and power multiple speakers or speaker systems through those amplifiers.
- Page 34 If a changer is not connected, you can connect portable audio equipment to your receiver by purchasing Blaupunkt accessory harness 7 607 897 093. It connects to the right top block on the rear of the receiver. It includes a 2-meter aux-in cable with a 3.5 mm male plug for direct insert into your portable equipment.
- Page 35 The illustration below shows a typical installation, however, you may need to adjust the installation, depending on the receiver. If you have questions or need additional installation hardware, consult your Blaupunkt dealer. Make sure the receiver anchored (preferably at both front and back) and does not vibrate.
- Page 36 Installing the Receiver in a Japanese Car This receiver is designed for easy installation in most popular Japanese cars that have “ISO” (side- bracket) mounting system. If you have questions, ask your Blaupunkt dealer. Remove the vehicle’s “bezel” trim piece and the remove the existing radio.
- Page 37 Faceplate affixing screw goes here TROUBLESHOOTING - Refer to the receiver’s Owner’s Manual. If you have questions, please consult your Blaupunkt dealer or in the United States call l-800-266-2528. Installer - These Installation Instructions are the property of the consumer!
