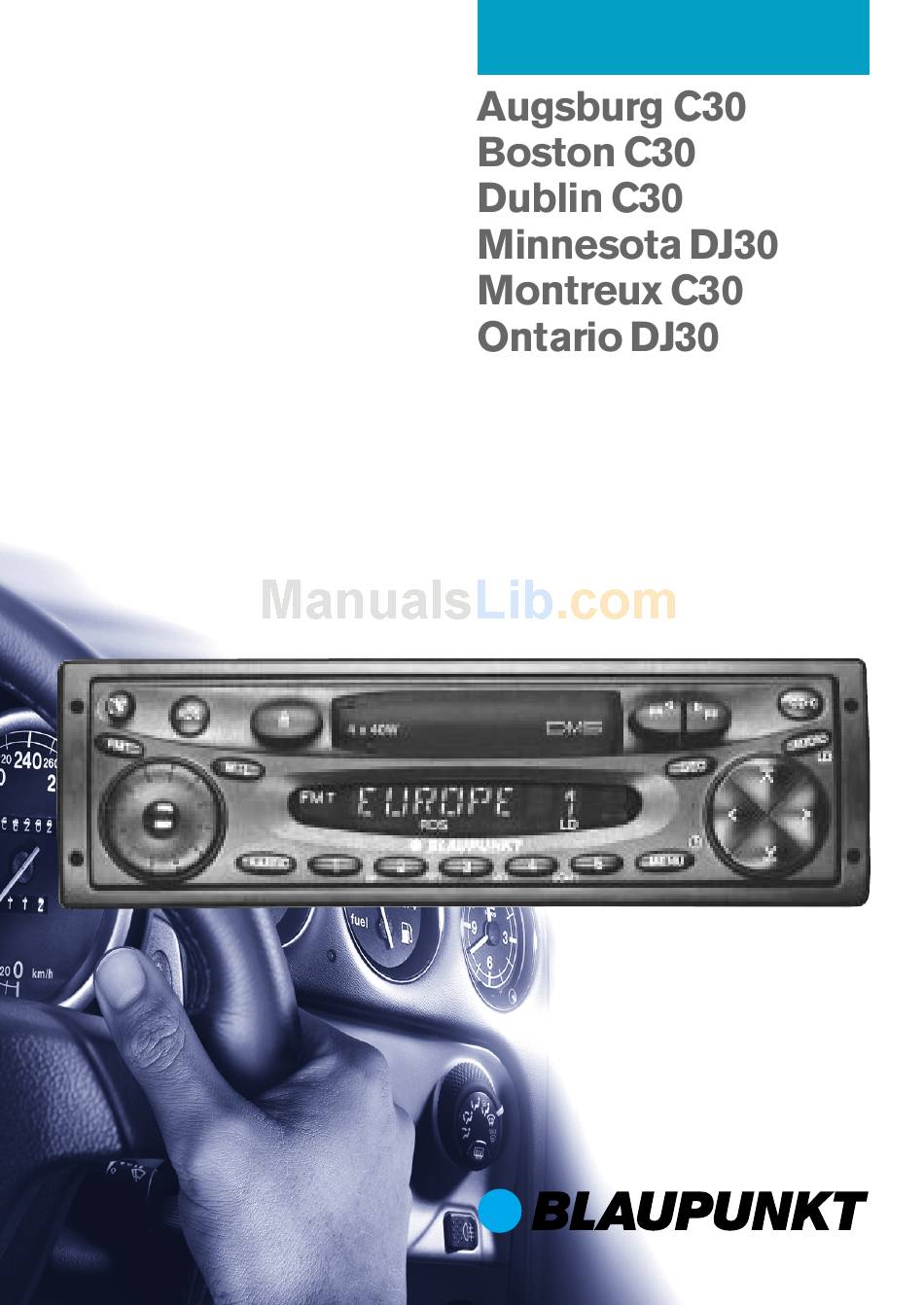

- Page 1 Radio / Cassette Operating instructions...
- Page 2 Bitte aufklappen Open here Ouvrir s.v.p. Aprite la pagina Hier openslaan a.u.b. Öppna Por favor, abrir Favor abrir...
- Page 4 (for the Boston C30, Dublin C30, Montreux C30 and Ontario DJ30 only) FM button, selects the FM mem- ory levels (for the Augsburg C30 and the Minnesota DJ30 only) Volume control ON button, switches the unit on/ off, mute RDS button, switches the RDS...
-
Page 5: Table Of Contents
Important information ... 26 Traffic safety ... 26 Installation ... 26 Accessories ... 26 Guarantee ... 26 International telephone information .. 26 Theft protection system ... 27 Removable front panel ... 27 Code theft protection ... 28 Switching the car audio system on/off ... -
Page 6: Important Information
We are happy that you decided to pur- chase a Blaupunkt car audio system and hope that you will enjoy your new sound system. This instruction manual was designed to help you use your new car audio sys- tem in the optimum way. Please take... -
Page 7: Theft Protection System
Your new car audio system (Boston C30, Dublin C30, Montreux C30 and Ontario DJ30) has been equipped with a removable front panel (release pan- el) to protect it against theft. Without this operating panel, the equipment is use- less to thieves. Protect your car audio system against theft and take the operating panel with you each time you leave the vehicle. -
Page 8: Activating/Deactivating Code
To protect your car audio system against theft, it has been equipped with a four- digit code number. This number has to be entered each time the car audio sys- tem is disconnected from its power sup- ply. The code inquiry is not activated for the car audio system at the factory, but you can activate it yourself. -
Page 9: System On/Off
To visibly indicate that the Augsburg C30 and the Minnesota DJ30 are equipped with theft protection, you can activate the code LED. The code LED will flash in key 4 when the car audio system is switched off. Press MENU ?. -
Page 10: Press Menu
Press 4 to switch the car audio system on. Press 4 for longer than two sec- onds to switch the car audio sys- tem off again. The system will then switch off. If the system is switched off and there is no cassette in the tape deck, insert a cassette into the tape deck with the open side facing towards... -
Page 11: Mute
You can reduce the volume of the car audio system immediately (mute). Press 4 briefly. “MUTE” will appear in the display. It is possible to select the mute level. Press MENU ?. “MENU” will appear in the display. > repeatedly until Press “MUTE LVL”... -
Page 12: Radio Operation
Using this car audio system, you can tune into radio stations on the FM, MW and LW (AM) wavebands (MW and LW are not available for the Augsburg C30 and the Minnesota DJ30). There are three memory banks for the FM wave- band and one memory bank each for MW and LW. -
Page 13: Tuning Into Radio Stations
MENU ?. Select the desired memory bank FM1, FM2, FMT or either MW or LW (MW and LW are not available for the Augsburg C30 and the Min- nesota DJ30). Tune the radio into the desired sta- tion. -
Page 14: Recalling Stored Radio Stations
You can automatically store the five ra- dio stations with the strongest reception in your current reception area (for FM only). These stations will be stored in the FMT memory bank. Note: Any stations stored previously in the memory bank will be deleted. Press and hold down FMT 2 for longer than two seconds or press TS 6 briefly (for the Augsburg... -
Page 15: Interference-Related Treble Cut
Note: If the radio is not able to find a station broadcasting the program type select- ed, you will hear a beep and “NO PTY” will appear briefly in the display. The station selected previously will then resume play. It is possible to select the language in which the program type is displayed. -
Page 16: Traffic Information
Press TRAFFIC A. Traffic information priority is activated when TRAFFIC lights up in the display. Note: You will hear a warning beep if you leave the reception area of the traffic information station you are tuned into. if you are listening to a cassette tape or a CD, leave the reception area of the traffic information sta- tion you are tuned into and the au-... -
Page 17: Tape Deck Operation
If there is no cassette in the tape deck, insert a cassette into the tape deck with the open side facing towards the right. Cassette playback will begin with the side facing upwards. The cassette sym- bol will light up in the display. If there already is a cassette insert- ed into the tape deck, press CD•C <... -
Page 18: Audible Fast Forward/Reverse
The Minnesota DJ30 and the Ontario DJ30 come included with the CDC A 08 CD changer. All of the CD changers list- ed in the section on “Accessories” can be used in combination with the Augs- burg C30, the Boston C30, the Dublin C30 and the Montreux C30. -
Page 19: Playing Tracks In Random Order (Mix)
To play the tracks of the currently selected CD in random order, press 4 (MIX) @ briefly. “MIX CD” will appear briefly in the dis- play, MIX will light up in the display. To play the tracks of all of the CDs in random order, press 4 (MIX) @ again. -
Page 20: Clock
Press and hold down MENU ( ? until the time appears in the dis- play. To set the time, press MENU ?. “MENU” will appear in the display. > repeatedly until Press “CLOCKSET” appears in the dis- play. >. Press The time will appear in the display. -
Page 21: Adjusting The Tone
To adjust the bass, press AUDIO “BASS” will appear in the display. > to alter the bass. Press Once you have made the settings, press AUDIO = twice. To adjust the treble, press AUDIO = repeatedly until “TREB” ap- pears in the display. >... -
Page 22: Adjusting The Balance And Fader
To adjust the balance, press GEO “BAL” will appear in the display. > to alter the bal- Press ance right/left. Once you have made the setting, press GEO ; twice. To adjust the fader, press GEO ; repeatedly until “FADER” appears in the display. -
Page 23: Specifications
87.5 - 108 MHz MW : 531 - 1602 kHz 153 - 279 kHz (MW and LW are not available for the Augsburg C30 and the Minnesota DJ30) FM frequency response: 30 - 15000 Hz Frequency response: 30 - 18000 Hz... - Page 24 01 610 39 0 015 762 241 026 130 04 41 800-266 25 28 006 535 054 47 042 175 873 212 Blaupunkt-Werke GmbH Bosch Gruppe K7/VKD 8 622 402 549 Fax: 0 51 21 49 40 02 02.525.54.48 014 010 73 20...
