Summary of Contents for GLITZHOME Console Table

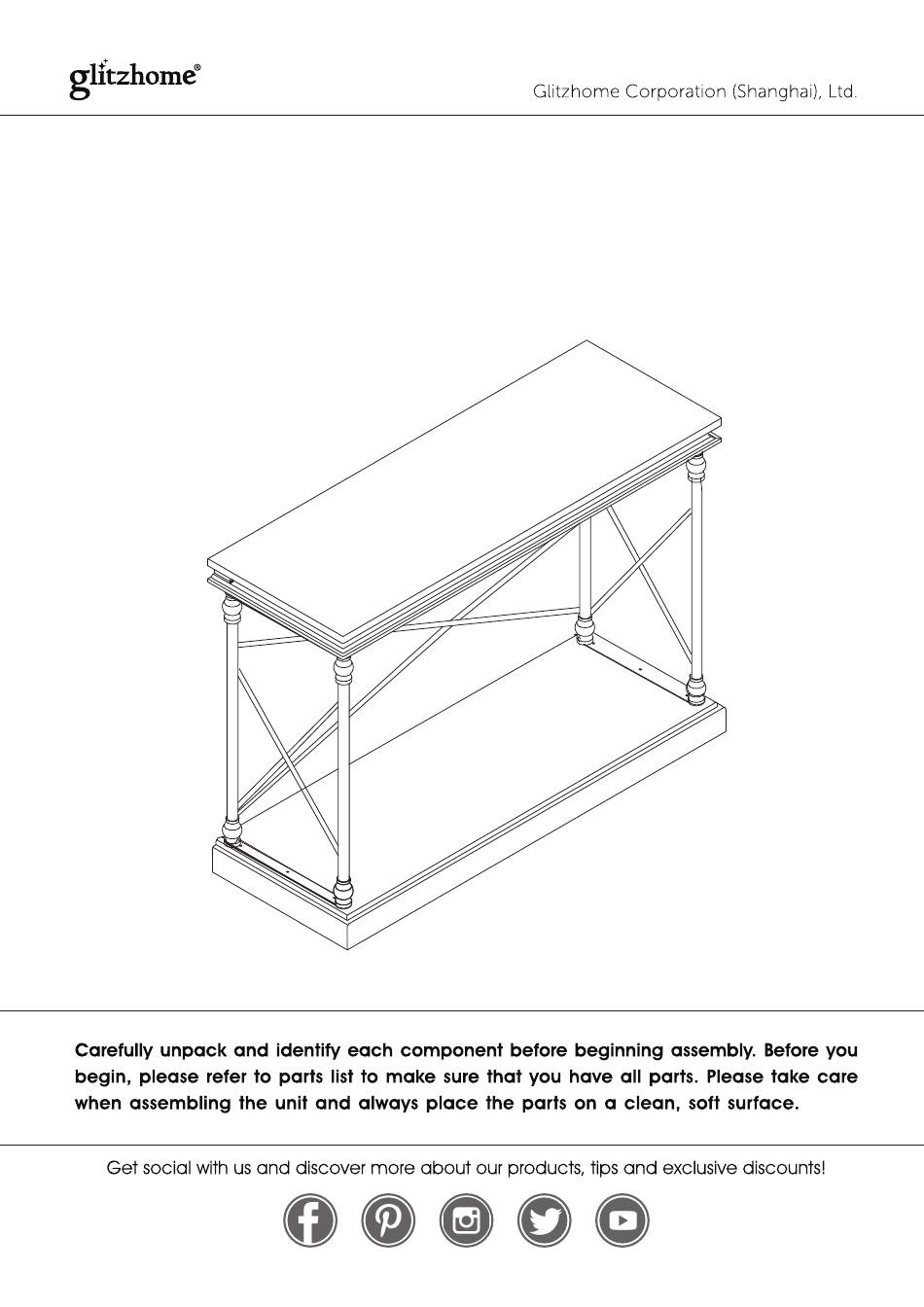

- Page 1 Assembly Instruction Console Table...
- Page 2 PRE-ASSEMBLY PREPARATION • CAUTION: Assembly will require at least 2 adults. DO NOT use power tools. Please inspect all items BEFORE assembly. If for any reason you need to return this item, please kindly return it in it's original packaging. •...
- Page 3 ANTI-TIPPING STRIP (M) WALL ANCHOR (N) PHILLIPS SCREW (O) STEEL PLATE (P) 5*200mm Ø8.5*30mm 4*25mm 22*19*20mm Qty: 1 Qty: 1 Qty: 1 Qty: 2 STEP 1 Attach the Base Panel (C) to the Legs (B) by using Bolt Lock (F), Spring Washer (K), Flat Washer (J) and Spanner (G).
- Page 4 STEP 2 Fix the Connecting Bar (D) to the Legs (B) by using Allen Bolt (H) and Allen Key (I). H x 4 I x 1 STEP 3 Attach the Top Panel (A) to both legs (B) by using Phillips Screws (E). E x 6...
- Page 5 STEP 4 Attach steel plate (P) to top panel (A) with screw (L) using screwdriver. Place assembled unit in desired position. Mark position of steel plate (P) on wall and remove unit. Drill one hole on the wall and then put wall anchor (N) into the predrilled hole. Attach steel plate (P) to wall anchor (N) with screw (O) using screwdriver.
