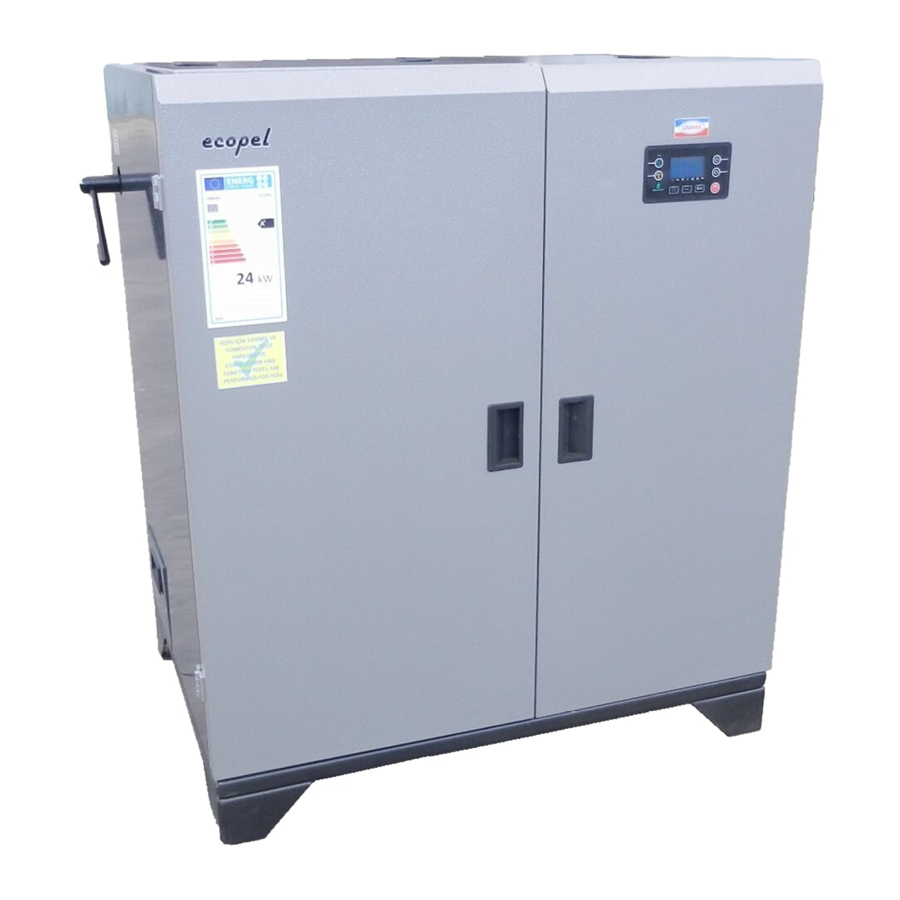

- Page 1 Compact Pellet Boiler Installation and User Manual ÜNLÜSOY Yapı Malzemeleri Sanayi ve Ticaret Ltd. Şti. Pancar Organize Sanayi Bölgesi, 2. Etap No:2, Torbalı – İZMİR Tel: 444 35 32, Faks: 0232 469 2412 www.unmak.com...
-
Page 2: Table Of Contents
Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e Manual INDEX INDEX ............................... 1 INTRODUCTION ............................3 SAFETY ..............................4 SHIPMENT AND TRANSPORTATION ......................5 INSTALLATION LOCATION SELECTION ..................... 6 SAFETY WARNINGS ..........................8 ELECTRICAL INSTALLATION INSTRUCTIONS................... - Page 3 Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e Manual This booklet is covers below models: ECOPEL 24-36-48 For Initial Start-up, Warranty Start-up and Failure Notices, please contact your local Authorized Service Centre Call +90 444 35 32 Contact our Call Centre.
-
Page 4: Introduction
P a g e Manual INTRODUCTION Thank you for choosing Ecopel wood pellet fueled boiler. Please read the user manual carefully before installing and operating your product and retain the user manual for the duration of the product. Do not touch or mix any part of the product other than those permitted in this manual. -
Page 5: Safety
Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e Manual SAFETY Hazard Warning Levels DANGER The hazardous situation is imminent and could cause serious injury or death if precautions are not taken. You must follow the instructions. WARNING Dangerous situations may occur and serious injury or death could result if precautions are not taken. -
Page 6: Shipment And Transportation
In order to prevent damage to boiler outer plates and boiler during transportation; help from the transport equipment such as forklift or pallet truck. The center of gravity of the Ecopel series of boilers is not in the middle, but is close to the left when viewed from the front. -
Page 7: Installation Location Selection
Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e Manual INSTALLATION LOCATION SELECTION Installation The space in which the boiler is installed must have sufficient space for the installation, combustion and maintenance of the boiler. For service requirements, the gear unit and the burner group to which the shaft is connected should be at a sufficient distance from the wall. - Page 8 A (cm) B (cm) C (cm) D (cm) Ecopel 24 Ecopel 36 Ecopel 48 DANGER There should not be any faulty and suspicious electrical line in the boiler room. The 230 V electrical connection from the control panel must be connected to the mains via an...
-
Page 9: Safety Warnings
Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e Manual SAFETY WARNINGS The boiler must be connected to a chimney in accordance with the specifications specified in the operating instructions and the relevant regulations. The flue must provide the required traction value of the connected boiler. - Page 10 Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e Manual Burning and flying fuel particles in the boiler, fuel ash from the open door to the outside environment will easily open the boiler door while operating the fan should never be opened. While the boiler is burning, the doors should not be opened and hand loading should not be done on the hob or inside the boiler.
-
Page 11: Electrical Installation Instructions
Manual ELECTRICAL INSTALLATION INSTRUCTIONS ÜNMAK Ecopel type boiler requires a 230 V ~50 Hz electrical supply. The regulator should be used where the mains voltage is less than 10 percent or greater than 10 percent. All the wiring and supplementary earth bonding external to the boiler must be in accordance with the local wiring regulations. -
Page 12: Information On Combustion
Never use perforated bricks in the chimney walls. Ideally, it is built with fire bricks. ÜNMAK Ecopel type boilers should be connected to an independent chimney which can provide minimum desired minimum draft. It should be measured in 20 Pa with a manometer. The part of the waste gas line between the boiler and the chimney should be insulated with glass wool. - Page 13 Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e | 12 Manual The size of the flue gas pipe and the flue must be greater than the flue gas outlet (smoke) dimensions of the boiler. The installed boiler chimney should be at least 1 meter above the highest point of the roof of the space and at least 0.4 meter above the tiled roofs.
-
Page 14: Boiler Specifications
Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e | 13 Manual BOILER SPECIFICATIONS TECHNICAL SPECIFICATIONS Ecopel 24 Ecopel 36 Ecopel 48 ÜNMAK - ECOPEL Fuel Specifications Wood Pellet Maximum Power Minimum Power 10,8 14,4 Efficiency at Max. Power 94,12... - Page 15 Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e | 14 Manual 1. Control panel 7. Circulation pump 13. Lid for additional feeding 2. Control card box 8. Fan 14. Ventilation 3. Rotary gearbox 9.
-
Page 16: Rules For Heating Installation
Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e | 15 Manual RULES FOR HEATING INSTALLATION When the hydronic connection of the boiler is made, the equipment such as circulation pump, expansion tank, safety valve is included with the boiler and you do not need to add to the installation separately. - Page 17 Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e | 16 Manual Systems to be installed with Single Serpentine Hot Water Storage Tank: In systems to be installed with a single-serpentine boiler, the hot water coming out of the tank should connected upper...
- Page 18 Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e | 17 Manual Systems to be installed with Hot Water Storage Tank and Accumulation Tank: underfloor heating systems, accumulation tank must be available in the installation.
- Page 19 Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e | 18 Manual Warning against frost protection: The heating system must be completely insulated. The outdoor parts of the installation should be more isolated than the inner parts. Considerations for new installations: System design and sizing should be done correctly to minimize the addition of fresh water.
-
Page 20: Control Panel And User Interface
Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e | 19 Manual CONTROL PANEL AND USER INTERFACE The system is opened by pressing the on/off button for 5 seconds. On/Off Button It is enough to press once to turn it off. After completing the shutdown procedure, the system will shut down. -
Page 21: User Menu Description
Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e | 20 Manual USER MENU DESCRIPTION Prepurge Power 3 I0.1 Gearbox feeding time (0.0-40.0 sec) P3.1 Gearbox feeding time (1.0-40.0 sec) I0.2 Gearbox standby time 0.0-2000 sec) P3.2 Gearbox standby time (0.0-2000 sec) I0.3... - Page 22 Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e | 21 Manual Cooling Circulation Pump Operating Values S2.1 Fan speed (0-3000 rpm) V4.1 Pump operating temperature (0-100 S2.2 Cooling time 2 (0-20000 sec) °C) S2.3 Cooling temperature (0-100 °C)
-
Page 23: Start Up
Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e | 22 Manual START UP Operate the boiler by pressing 5 seconds to ENTER button. Press the ENTER button again to set the desired boiler water temperature using the ARROW buttons then press the ENTER button to save the value. -
Page 24: Maintenance And Boiler Cleaning
Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e | 23 Manual MAINTENANCE and BOILER CLEANING DANGER DANGER Regular maintenance by Care must be taken when specialist teams is required for cleaning or servicing the feed the efficient operation of your gears. - Page 25 Steel Body, Automatic Wood Pellet Feed Hot Water Boiler Operation and Maintenance P a g e | 24 Manual Maintenance: Contracted service of the system before each working season; boiler, plumbing, electrical connections, chimney, we strongly recommend that you call our authorized service. Never carry out maintenance work without the assistance of an expert.
-
Page 26: Information On Use Errors
In case of power failure, do not open the front cover and the bunker cover, do not add water to the boiler. ÜNLÜSOY YAPI MALZEMELERİ SANAYİ ve TİCARET LİMİTED ŞİRKETİ Address: Pancar Organize Sanayi Bölgesi, 2. Etap No:2, Torbalı/İZMİR - TURKEY Tel: +90 444 35 32, Faks: +90232 469 2412 www.unmak.com...
