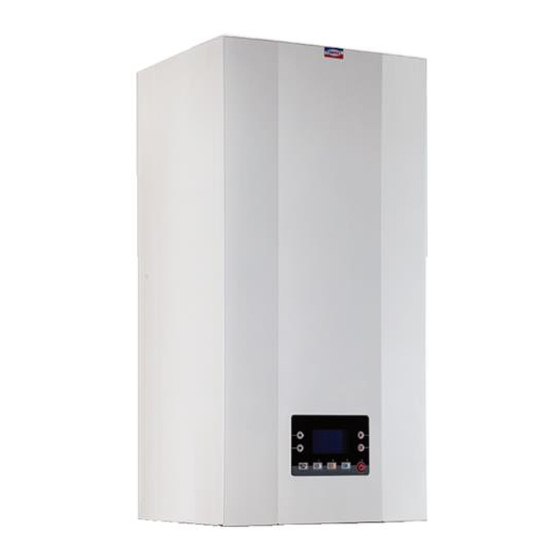

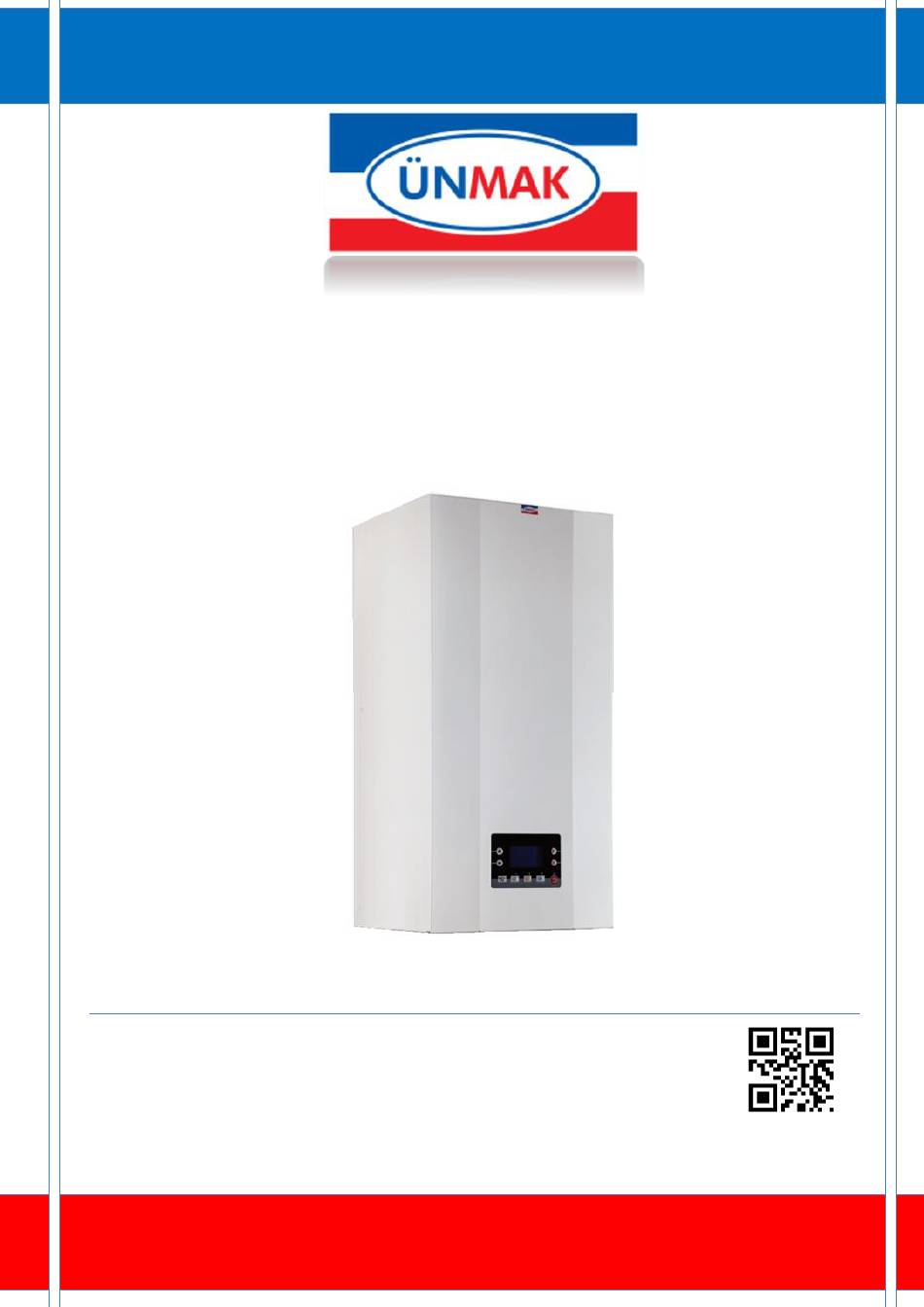

- Page 1 Electric Combi Boiler User Manual ÜNLÜSOY Yapı Malzemeleri Sanayi ve Ticaret Ltd. Pancar Organize Sanayi Bölgesi, 2. Etap No:2, Torbalı – İZMİR/TURKEY Tel: +90 444 35 32, Fax: +90 232 469 2412 www.unmak.com...
-
Page 2: Table Of Contents
Electric Combination Boiler User Manual P a g e INDEX INDEX NTRODUCTION ............................2 SHIPPING and TRANSPORTATION ......................3 SELECTION OF INSTALLATION PLACE ...................... 4 SAFETY PRECAUTIONS ..........................4 ELECTRIC INSTALLATION INSTRUCTIONS ....................5 COMBI FEATURES ............................ 6 WARNINGS .............................. 6 CONTROL PANEL AND USER INTERFACE .................... -
Page 3: Ntroduction
Electric Combination Boiler User Manual P a g e NTRODUCTION We would like to thank you for your choice of UNMAK brand, electric hot water combination boilers (electric boilers). Please read the user manual carefully before installing and operating your product and keep the user manual for the duration of the product use. -
Page 4: Shipping And Transportation
The boiler is programmed to operate every 24 hours (Calcification, air etc.) even if the boiler is left in the combi-off position as long as there is a power supply. UNMAK Electric combi boilers are hot water boilers with high efficiency and are designed to work only with electricity. -
Page 5: Selection Of Installation Place
Electric Combination Boiler User Manual P a g e SELECTION OF INSTALLATION PLACE Electric boilers do not require a chimney for installation, they can be installed in electrically suitable places. The minimum dimensions to be observed during installation are given in the figure below. If more than one combi boiler is connected, the space in which the boiler is installed must have sufficient free space for installation and maintenance of the boiler. -
Page 6: Electric Installation Instructions
Electric Combination Boiler User Manual P a g e The protective grounding line must be connected to the exposed metal parts of the other devices in the installation location and to the local and national requirements for the grounding line to which the device is installed. -
Page 7: Combi Features
Electric Combination Boiler User Manual P a g e COMBI FEATURES TABLE I: Cable cross-section areas and fuse power table according to the boiler powers Power MODEL kcal/h ÜEK 9 7.740 ¾” ¾” ½” ½” 3x10 230 Single Phase ÜEK 12 10.320 ¾”... - Page 8 Electric Combination Boiler User Manual P a g e Warning against Freeze Protection: The heating installation must be completely isolated. The open areas of the installation should be isolated more than the interior parts. Considerations in New Installations: To minimize the addition of fresh water, system design and sizing should be done correctly. None of the materials used in the installation must have gas permeability.
-
Page 9: Control Panel And User Interface
Electric Combination Boiler User Manual P a g e CONTROL PANEL AND USER INTERFACE Buttons and Descriptions Used to turn the device on and off. If you hold down this button for ON/OFF 4 seconds, the device is completely closed. Pressing the button button again opens the device. -
Page 10: Start-Up
Electric Combination Boiler User Manual P a g e 1- Summer mode set point 5- Operating heater stages 9- Room thermostat is active 2- Winter mode set point 6- Pump working 10- Water temp. in the device 3- Clock 7- Three way valve is open 4- Pressure in the device 8- DHW is open START-UP... -
Page 11: Timer And Clock Settings
Electric Combination Boiler User Manual P a g e | 10 Press the button to start the operation of the device. When the summer mode button is active, the led light will light up. The boiler pump will not operate while operating in summer mode. If there is a need for domestic hot water, the device and the pump will be activated. - Page 12 Electric Combination Boiler User Manual P a g e | 11 Press the buttons again to set ON, OFF and Degree. Confirm with the button To exit the menu, press button. TIMER SET:1 TIMER SET:2 TIMER SET:3 Sample setting: open close open close...
-
Page 13: Care And Boiler Cleaning
Electric Combination Boiler User Manual P a g e | 12 CARE AND BOILER CLEANING Regular maintenance is required by expert teams according to the manufacturer's instructions for the efficient operation of your system. Regular checks: The water level must always be checked. The pressure gauge must be marked after the first filling of the system. -
Page 14: Information On Usage Errors
ÜNLÜSOY YAPI MALZEMELERİ SANAYİ ve TİCARET LTD. Pancar Organize Sanayi Bölgesi, 2. Etap No:2, Torbalı – İZMİR/TURKEY Tel: +90 444 35 32, Fax: +90232 469 2412 www.unmak.com... - Page 15 Electric Combination Boiler User Manual P a g e | 14 ÜNLÜSOY YAPI MALZEMELERİ SANAYİ VE TİCARET LİMİTED ŞİRKETİ İzmir Pancar Organize Sanayi Bölgesi, 10. Cadde, No:2, Torbalı – İZMİR/TURKEY Tel: +90 444 35 32 www.unmak.com...
