Connected energy meter
4 120 15
Requires the installation of a :
Gateway module
Composition
Connected energy meter
U
+5°C
100-240V~
+45°C
50 / 60Hz
Imperative security precaution
Failure to strictly comply with the installation and use conditions
may result in risk of electric shock or fire.
I
F
measure
2,4 à
72A MAX
2,4835Ghz
under 63A
<100 mW
Connected Starter Pack
OR
Ø10.2 mm
+
Pay attention to the direction of the current
CE Directive
Accuracy
Measure
Compliant with the following European directive:
Low voltage directive
kWh
kWh
(LVD) 2014/35/UE
+/-1%
Electromagnetic compatibility
T
(CEM) n° 2014/30/UE
Global
"... with Netatmo"
Ø26.45 mm
Imax=72A AC

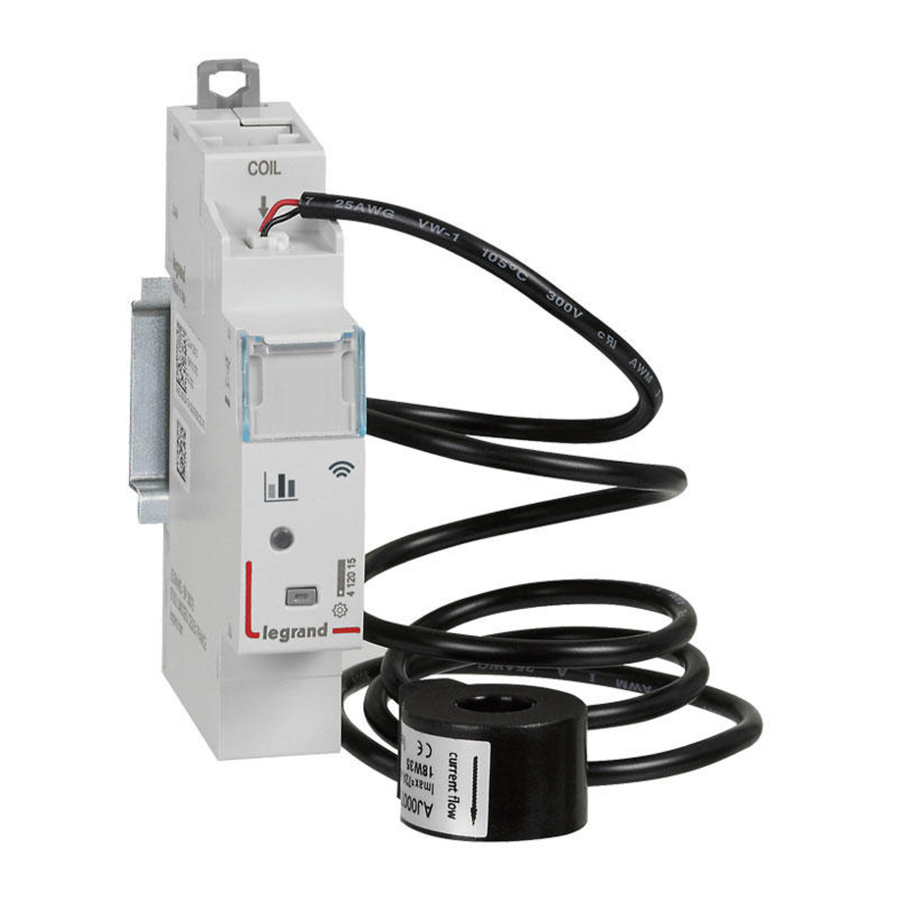

Measure coil
