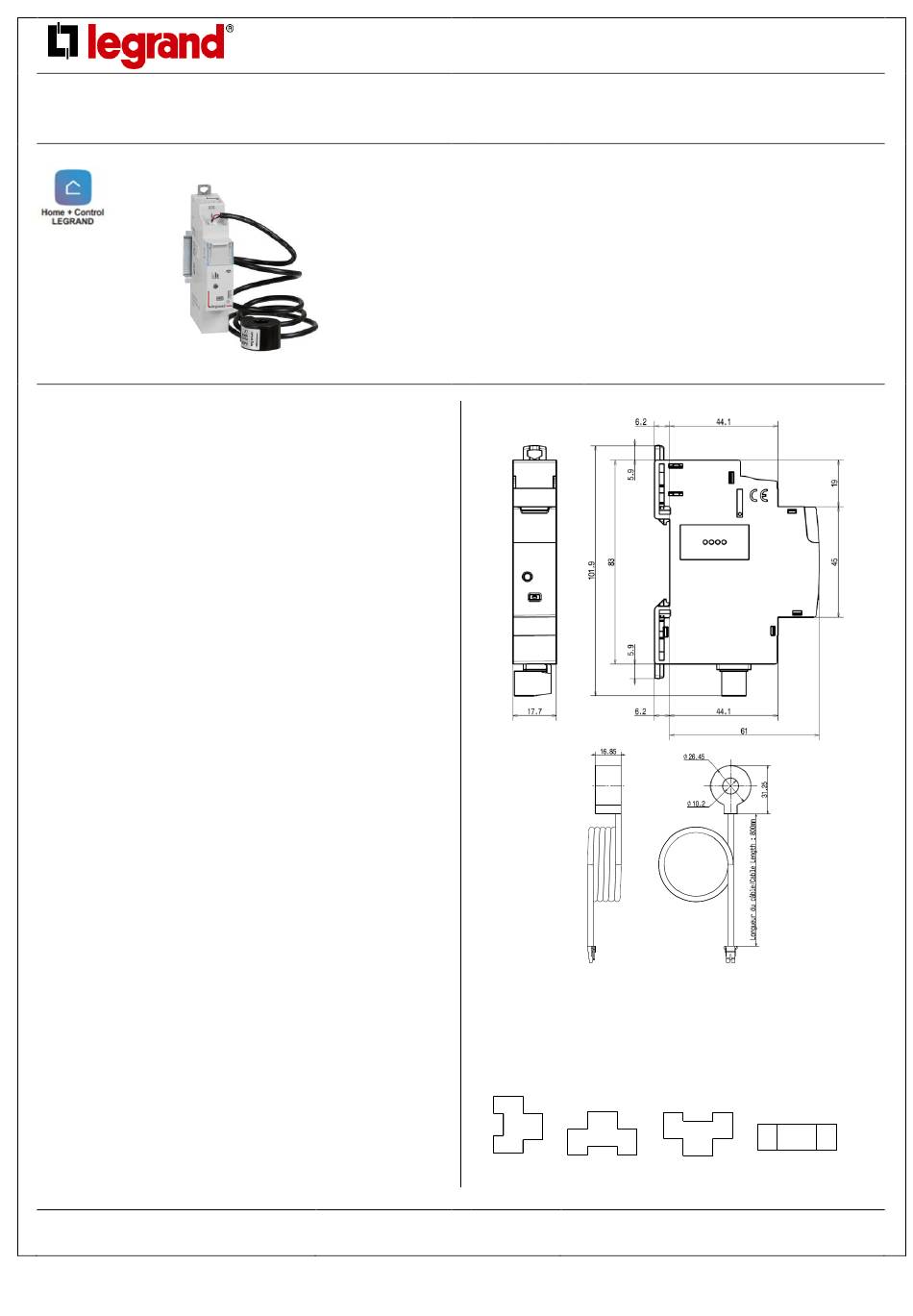

Connected energy meter
1. DESCRIPTION - USE
Use:
Allows to measure and view by smartphone with the Home +
Control app the electrical consumption of an alternating single-
phase circuit via the associated closed coil. This connected version
offers the functions of:
- Energy consumption: automatically energy consumption
information is available for the circuit to whom the Connected
Contactor is wired to.
- History of electricity consumption available via the HOME +
CONTROL application
Technology:
. Single-phase current measurement, by field effect using a
closed coil (delivered with the energy meter) and data
transmission by radio frequency to the connected network
2. RANGE
Width:
. 1 module. 17,7 mm wide.
Rated primary current:
. Ipn = 80A AC
Power consumption:
. 0.3W Maxi
Rated voltage:
. 100V to 240V AC
Rated frequency:
. 50Hz / 60Hz
Configuration and use:
Can be used with:
- Legrand smartphone app
« HOME + CONTROL»
. Available for free on Google Play or App Store
Technical data sheet: F03108EN/02
87045 LIMOGES Cedex - FRANCE
Telephone : +33 (0)5 55 06 87 87 - Fax : +33 (0)5 55 06 88 88
Cat. number : 4 120 15
Requires prior installation
of a "with Netatmo"
connected starter pack or
a Gateway module.
3. OVERALL DIMENSIONS
Mounting:
. On symmetrical rail EN / IEC 60715 or DIN 35.
Operating position:
. Vertical, Horizontal, Flat.
Updated on: 16/11/2020
Sommaire
1. Description - Use ..................................... 1
2. Range ......................................................... 1
3. Overall dimensions .................................. 1
4. Preparation - Connection ....................... 1
5. General characteristics ........................... 4
6. Compliance and approvals ..................... 5
Created on: 14/01/2020
Pages
1/5
