DESCRIPTION:
•
Stainless steel
•
Special design gives the anchor a incredible
5,000 lb ultimate breaking strength
•
Rotates 360 degrees
•
Flips 180 degrees
•
Used for steel flanges or concrete substrate
TECHNICAL:
Hardware for Concrete
Tensile Strength
Material
Hardware for Steel
LABEL LOCATIONS
5k Swivel Anchor
Stainless Steel
US-5082AC
Zinc Plated
Max Capacity:
Model: US-5082ACSS
Steel
(1) person 310-lbs
See page 3 for details.
5,000 lbs
Drop forged stainless steel
5/8" grade 8 bolt,
lock washer and nut
1-(800)-850-5914

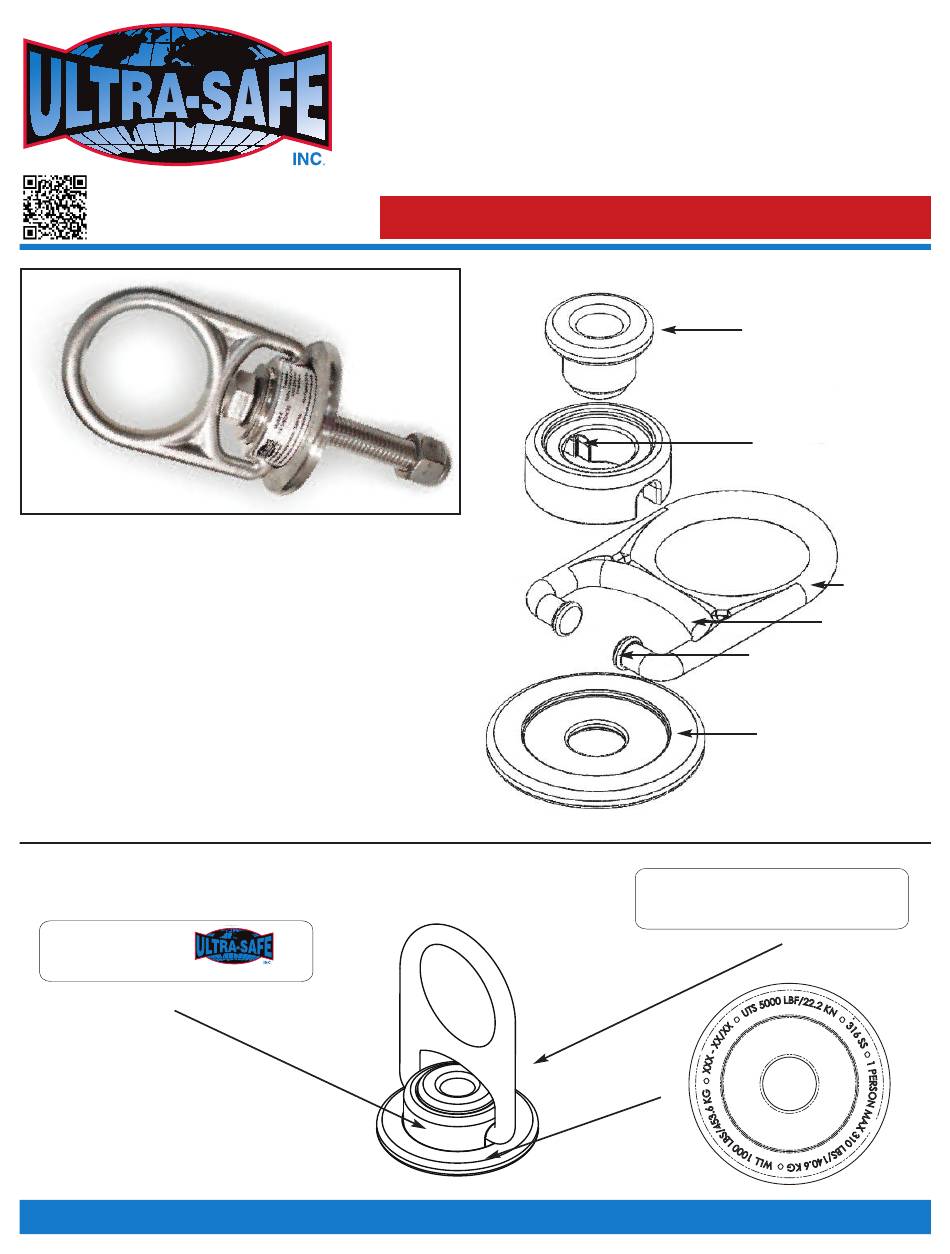

USER INSTRUCTION MANUAL
DESCRIPTION: Steel and Concrete Swivel Anchor
MODEL: US-5082ACSS
MEETS OSHA & ANSI Z359.11-2014
WATCH VIDEO 21 ON ULTRASAFEUSA.COM
Cap
Locking Cap Slots
Reinforced
Bridge
Locking
Cap
Base Plate
WARNING: All persons using this equipment must read,
understand and follow all instructions. Failure to do so may
result in serious injury or death.
(INSPECT BEFORE USE)
COMPLIANCE: OSHA 1910.66 & 1926.502 ANSI Z359.1-2007
Z359.7-2011
CE 0321 / EN 795:1996 (+A1:2000) Class B
D-Ring
313CS2
