Ultra-safe 96305QL User Instruction Manual

1-800-850-5914
PHOENIX, AZ USA
MODEL:
__________________________
SIZE: ____________________
DATE: ___________________
WARNING!
This product is part of a personal fall
arrest system. The user must read and
follow the manufacturer's instructions
for each component of the system.These
instructions must be provided to the user
of this product. The user must read and
understand these instructions before
using this product. Manufacturer's
instructions must be followed for proper
use and maintenance of this product.
Alteration or misuse of this product, or
failure to follow instructions may result
in serious injury or death.
USER INSTRUCTION MANUAL
MODEL: 96305QL, 96305NEQLMX, UX-96305NQL, UPF-96305WSQL, UPF-96305NQL,
UPF-96305FBQL, UPF-96305QL, UPF-96305WSQL, UPF-96096BFQL, UPFX-96305NQL,
UPFX-96305WSQL, UPFX-96096BFMSQL,UPFX-98305NQLMXTPTS, UPFX-98305WSQLMXTPTS,
UPFX-96305NQLTPTS, 96305NEQLMX, 96400QLNP

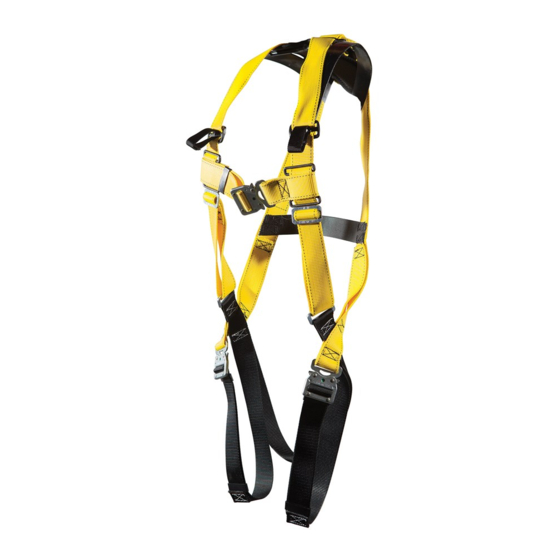

DESCRIPTION: QUICK RELEASE BUCKLE HARNESS
MEETS OSHA & ANSI Z359.11-2014
WATCH VIDEOS 6, 12, 25 & 30 ON ULTRASAFEUSA.COM
Anchorage: The anchorage to which this product is attached must
be capable of sustaining a static load in the direction applied by the
personal fall arrest system of at least 3600 lbs. with certification of a
qualified person or 5000 lbs. without certification. When more than
one personal fall arrest system is attached to the same structure,
the strength requirements stated above must be multiplied by the
number of personal arrest systems attached to the structure.
Plan your personal fall protection system.
Before installing and using this equipment, consider all factors
affecting your safety during use of this equipment.
Warning: Manufacturer's instructions supplied with this product at time of shipment must be
followed and provided to the end user. Failure to do so could result in serious injury or death.
Contact manufacturer if instructions are needed.
• Warnings and instructions must be read and understood before using equipment.
• Equipment must be used by trained personnel only.
• Users must understand all OSHA regulations, ANSI standards, and other relevant
regulations and standards pertaining to fall protection equipment.
This product is part of a personal fall arrest system; a fall arrest system is required if there is
any risk that a worker may fall from an elevated position. It is a requirement that the fall
arrest system be used any time a working height of six feet or more is reached. Working
height is defined as the distance from the walking/working surface to a grade or lower level.
This product shall require the user to have a rescue plan and the means at hand to implement
it when using the FBH for fall arrest. The following is recommended as part of fall arrest
system.
A. Full Body Harness Material: Nylon
1.
2.
3.
4.
5.
6.
7.
Note: See additional instructions on buckle adjustment for proper fit. Maximum free-fall
distance six feet or maximum fall arrest force of 1800 lbs. Avoid lower level contact.
1
1. Back 'D' ring is for fall arrest
2. Shoulder 'O' rings. (if present) are for
retrieval use only use locking snaps.
3. Side 'D' rings (if present) are for
positioning only.
4. Front 'D' ring (if present) are for falls
` less than 24" with a maximum impact
of 900 lbs.
5. Waist, rear attachment element
is for travel restraint
6. Park lanyard here
7. Load indicator
313H3
