Ultra-safe 96305 User Instruction Manual

1.877.711.1155
PHOENIX, AZ USA
MODEL:
__________________________
SIZE: ____________________
DATE: ___________________
WARNING!
This product is part of a personal fall
arrest system. The user must read and
follow the manufacturer's instructions
for each component of the system.
These instructions must be provided to
the user of this product. The user must
read and understand these instructions
before using this product. Manufacturer's
instructions must be followed for proper
use and maintenance of this product.
Alteration or misuse of this product, or
failure to follow instructions may result in
serious injury or death.
USER INSTRUCTION MANUAL

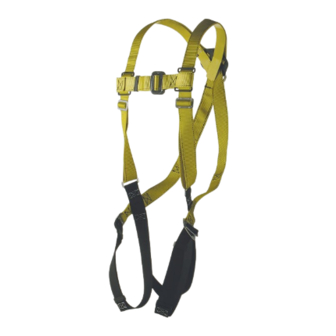

DESCRIPTION: PARACHUTE BUCKLE HARNESS
MODEL: 96305, 96307, 96305N, 96305FB, 96305F, 96305WS,
PF-96305N, PF-96305, UPF-96305, 96305NALK, UFX-96305NQL
MEETS OSHA & ANSI Z359.11-2021
WATCH VIDEOS 6, 12 & 25 ON ULTRASAFEUSA.COM
Anchorage: The anchorage to which this product is attached must
be capable of sustaining a static load in the direction applied by the
personal fall arrest system of at least 3600 lbs. with certification of a
qualified person or 5000 lbs. without certification. When more than
one personal fall arrest system is attached to the same structure,
the strength requirements stated above must be multiplied by the
number of personal arrest systems attached to the structure.
Plan your personal fall protection system:
Before installing and using this equipment, consider all factors
affecting your safety during use of this equipment.
WARNING: Manufacturer's instructions supplied with this product at time of shipment must
be followed and provided to the end user. Failure to do so could result in serious injury or
death. Contact manufacturer if instructions are needed.
• Warnings and instructions must be read and understood before using equipment.
• Equipment must be used by trained personnel only.
• Users must understand all OSHA regulations, ANSI standards, and other relevant
regulations and standards pertaining to fall protection equipment.
This product is part of a personal fall arrest system; a fall arrest system is required if there
is any risk that a worker may fall from an elevated position. It is a requirement that the fall
arrest system be used any time a working height of six feet or more is reached. Working
height is defined as the distance from the walking/working surface to a grade or lower level.
This product shall require the user to have a rescue plan and the means at hand to implement
it when using the FBH for fall arrest. The following is recommended as part of fall arrest
system.
A. Full Body Harness Material: Nylon
1.
2.
3.
4.
5.
6.
7.
NOTE: See additional instructions on buckle
adjustment for proper fit. Maximum free-fall
distance six feet or energy absorber arresting
force of 900 lbs per ANSI or maximum fall
arrest force of 1800 lbs per OSHA. Avoid
lower level contact.
1
1. Back 'D' ring is for fall arrest
2. Shoulder 'D' rings. (if present) are for
retrieval use only use locking snaps.
3. Side 'D' rings (if present) are for
positioning only.
4. Front 'D' ring (if present) is for fall arrest
(foot first falls only, 2 foot max free fall),
work positioning, travel restraint or rescue
5. Hip attachment elements are for work
positioning or travel restraint
6. Visual load indicator
7. Park lanyard here
NOTE: These instructions are good for all
98 Series Alumi-Safe & custom design
harnesses with all buckles.
313H1
