Select the Mounting Location

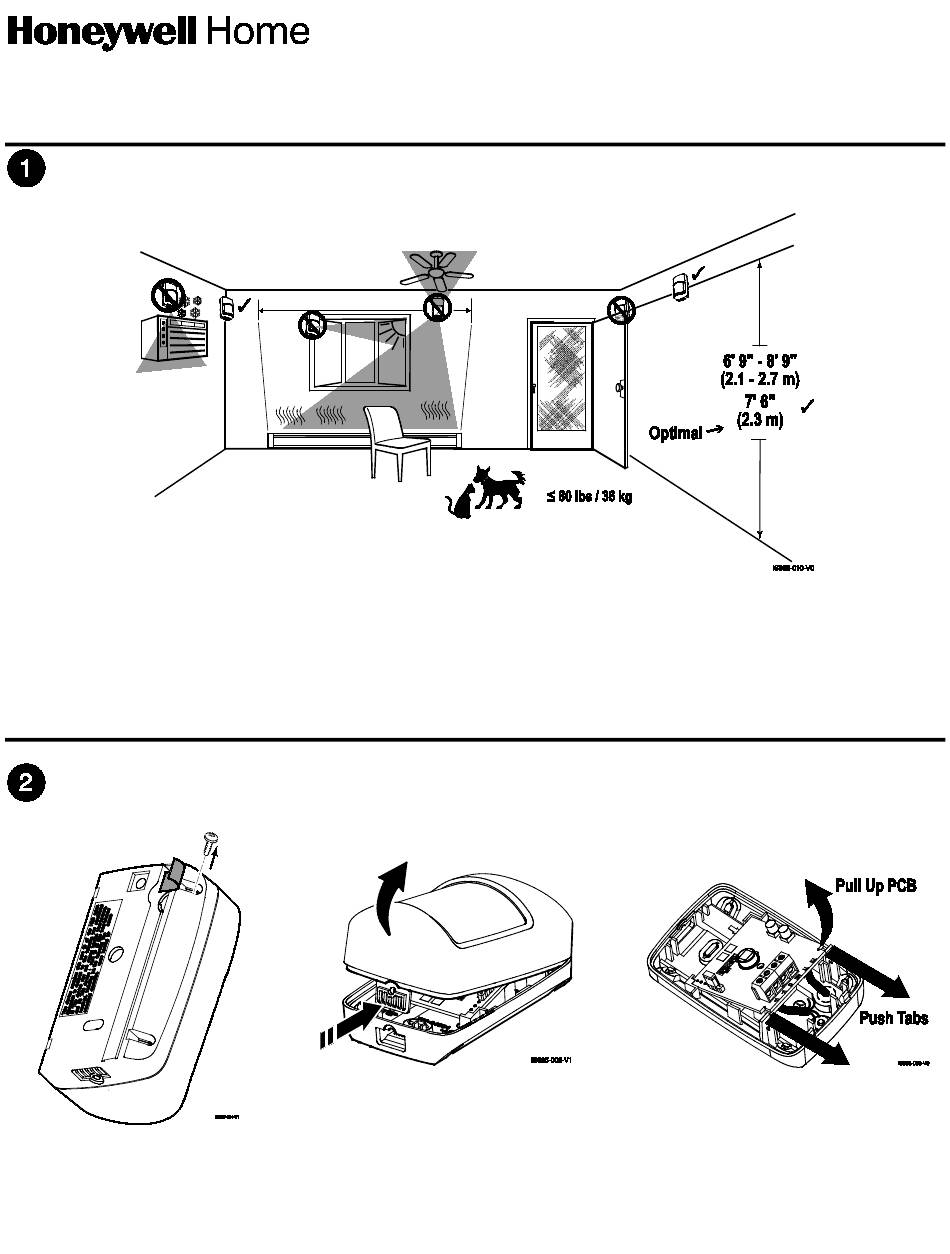

Mounting location guidelines:
• The optimal range is obtained at a mounting height of 7' 6" (2.3 m).
• Allow a clear line-of-sight to all areas to protect.
• Do not directly face windows.
• Avoid close proximity to moving machinery, fluorescent lights, and heating/cooling sources.
• For use in applications with pets up to 80 pounds (36 kilograms).
Retrieve Cover Locking Screw, Open Sensor and Remove Circuit Board
Remove tape from back housing
and retrieve cover locking screw.
Installation Instructions
1. Press firmly on housing latch.
2. Pull up to separate the front and rear
housing.
Passive Infrared Motion Sensor
IS335
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Honeywell Home IS335
Summary of Contents for Honeywell Home IS335
- Page 1 IS335 Passive Infrared Motion Sensor Installation Instructions Select the Mounting Location Mounting location guidelines: • The optimal range is obtained at a mounting height of 7’ 6” (2.3 m). • Allow a clear line-of-sight to all areas to protect. • Do not directly face windows.
- Page 2 Mount the Sensor *Not included • [A] = Wall mounting holes. • [B] = Corner mounting holes. oute Wires Reinstall Circuit Board Connect Wires / Set Pet Immunity (PI) Jumpers Assemble Front Cover...
- Page 3 Perform Walk Test Install Cover Locking Screw 1. Close the sensor and apply power to the sensor. Initialization is complete when the LED stops flashing slowly (less than 45 seconds). 2. Walk through the detection area and observe the LED. Detection Patterns RELAY OPERATION TROUBLESHOOTING...
- Page 4 For patent information, please go to: www.resideo.com/patent This product manufactured by Resideo and its affiliates. The Honeywell Home Trademark is used under license from Honeywell International Inc. 2 Corporate Center Drive, Suite 100 Ê800-19276-01C+Š P.O. Box 9040, Melville, NY 11747 ©...
