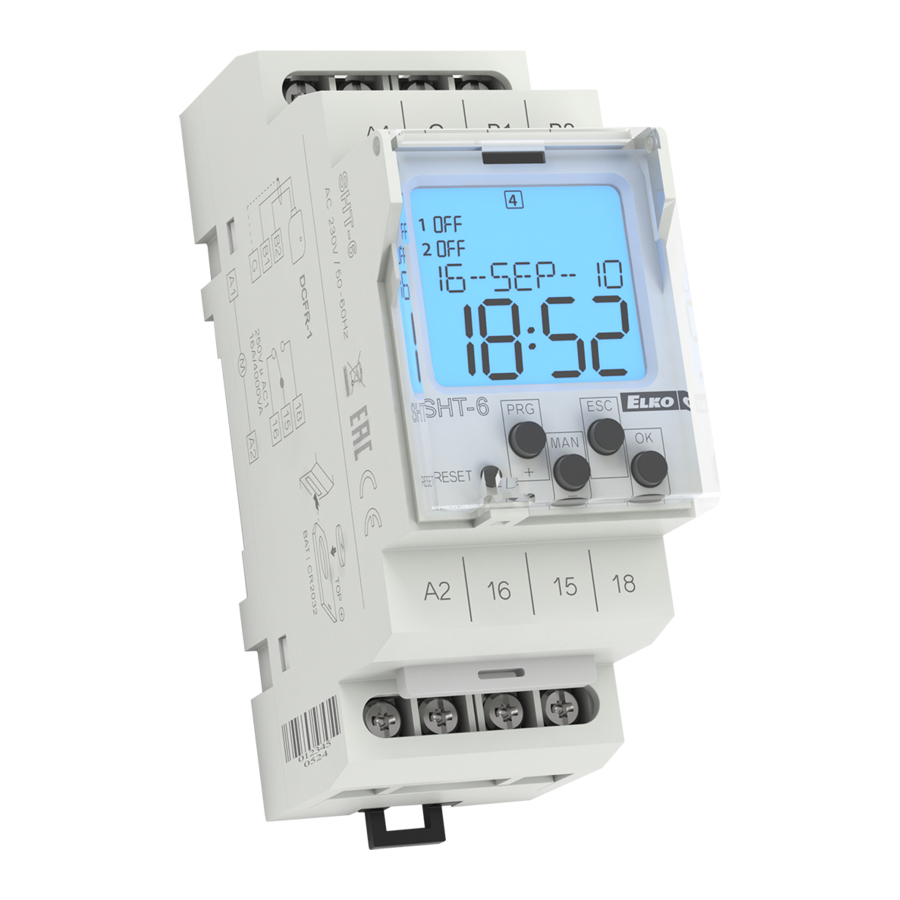

Elko SHT-6 Manual

Time switch with dcf control
Hide thumbs Also See for SHT-6:
Table of Contents

Advertisement

Quick Links

Download this manual
E
Time switch
N
with DCF control
SHT-6
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHT-6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Elko SHT-6

Summary of Contents for Elko SHT-6

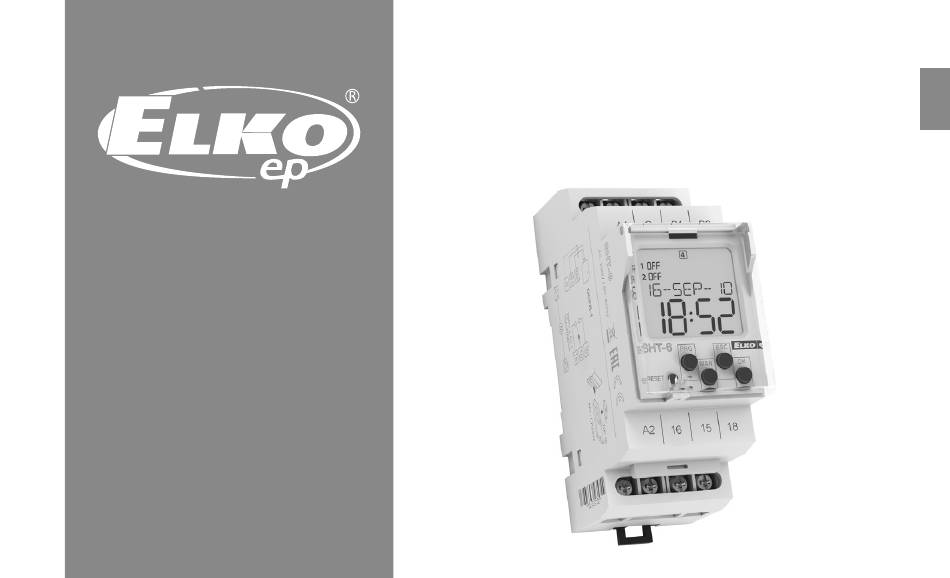

  • Page 1 Time switch with DCF control SHT-6...

  • Page 2: Table Of Contents

    Mode precedence, Language settings ............Menu overview ....................Control description ..................Time and date setting ................... Time program ....................Setting the switching modes ................ Setting options ....................Overview of time zones ................Reset ....................... An example of SHT-6 programming ............Battery replacement ..................

  • Page 3: Warning

    Warning Device is constructed for connection in 1-phase problematic function depends also on the way of transporta- main alternating current voltage and must be in- tion, storing and handling. In case of any signs of destruction, stalled according to norms valid in the state of deformation, non-function or missing part, don´t install and application.

  • Page 4: Characteristics

    EN). based on a pre-set programme. - Selection of automatic switching between summer / winter Time switch SHT-6 is synchronized by a DCF77 signal using ex- time based on location. ternal receiver DCRF-1. Time switch can operate independently - Backlit LCD display.

  • Page 5: Technical Parameters

    Technical parameters Supply terminals: A1 - A2 Other information Supply voltage: AC 230V / 50 - 60Hz Operating temperature: -10.. +55 °C Supply voltage tolerance: -15 %; +10 % Storage temperature: -30.. +70 °C Output Electrical strength: 4 kV (supply - output) Number of contacts: 1x changeover (AgSnO Operating position:...

  • Page 6: Device Description

    Device description Connectors for the DCFR-1 receiver Supply voltage terminal A1 Display with back-light Control buttons Place for seal Plug-In with battery backup Output - channel (16-15-18) Supply voltage terminal A2...
  • Page 7 - sunrise Indication of the switch Indication of date/setting menu* program Time display** Control button MAN2 / ESC SHT-6 Control button PRG / + Reset Control button OK Control button MAN1 / - CONTROL OF A DISPLAY WITH BACKLIGHT...

  • Page 8: Symbol, Connection, Load

    Symbol Connection A1 G B1 B2 DCFR-1 ↯ Sensing sensor on potential network A2 16 15 18 Load mains supply voltage. HAL.230V Type of load cos φ ≥ 0.95 AC5a AC5a Uncompensated AC5b Compensated 230V / 3A (690VA) Contact material AgSnO 230V / 3A (690VA) 250V / 16A 250V / 5A...

  • Page 9: Mode Precedence, Language Settings

    Mode precendence Mode precedence display output mode mode with the highest  ON / OFF manual control priority  ON / OFF  holiday mode  ON / OFF time program Prog Language settings Prog Prog ESPAnOL Auto Prog Prog Prog Prog Prog...

  • Page 10: Menu Overview

    Menu overview Auto Prog Prog Prog time/date time prog modes setting the time and date setting and adjusting switch modes the time program time AUTO setting the current time add a program setting the auto switching mode date holiday setting the date edit edit the program setting the holiday...

  • Page 11: Control Description

    Control description Device diff ers short and long enter the programming Prog Prog button press. In the manual options device options menu  marked as: - short button press (<1s) browsing in menu - long button press (>1s) language setting the language ...

  • Page 12: Time And Date Setting

    time/date Time and date setting It is possible only if DCF signal is not enabled (in the menu OPTIONS set – DCF signal enabled). Auto Prog Prog Prog Prog Prog time time time/date hour minute setting the time setting the hours setting the minutes Prog Prog...
  • Page 13 Prog Prog Prog Prog Prog Prog Prog Prog Prog week day week day setting the week day Prog 16 sep 10 Prog Prog Prog date form date form 16/sep/10 Prog 16--sep--10 date format Prog Prog Prog time form time form Prog time format Prog...

  • Page 14: Time Program

    time program Time program Prog Auto Prog Prog Prog Prog Prog time/date time prog prog day prog Prog add a program daily program display for channel Prog Prog year prog Prog yearly program display for channel Prog Prog Prog Prog edit prog day prog...
  • Page 15 Prog Prog Prog Prog Prog Prog Prog hour minute Prog Prog Prog Prog setting the hour setting the minutes setting the program activity on a week day Prog Prog Prog Prog Prog Prog year month hour minute setting the year setting the month setting the day setting the hours...
  • Page 16 Prog Prog year prog Prog adjusting the yearly program display for channel Prog Prog Prog delete prog delete delete the program choosing the program * Prog * By shortly pressing , you can toggle between the program number and the display of its settings. Use to toggle preset you can proceed with the required step - CHANGE / DELETE.
  • Page 17 Prog Prog Prog Prog Prog Prog year month hour minute adjusting the adjusting the adjusting the adjusting the adjusting the setting of the year setting of the month setting of the day setting of hours setting of minutes - long press (>1s) - short press (<1s)

  • Page 18: Setting The Switching Modes

    modes Setting the switching modes random Auto Prog Prog Prog Prog time/date modes auto auto Prog prog automatic switch mode choosing the switching program Prog Prog Prog Prog Prog year month holiday holiday mode setting the start of the holiday mode Prog Prog holiday...
  • Page 19 Prog Prog Prog Prog year month holiday setting the end of the holiday mode What you see on the display: - when a random mode is activated - Random - the symbol is lit . - vacation mode HOLIDAY: - the illuminated symbol  indicates the vacation mode. - the fl ashing symbol ...

  • Page 20: Setting Options

    options Settings options Prog Prog ESPAnOL Auto Prog Prog Prog Prog Prog time/date options language language Prog Prog Prog language choice Prog Prog clear operating Prog Prog operating show Prog Prog operating operating hours total number of hours of switching when the device is connected to the selected channel Prog...
  • Page 21 Prog allowed Prog Prog DCF signal DCF signal Prog forbidden the DCF mode settings Prog gtm 4 Prog Prog time zone time zone Prog gtm -3 time zone settings Prog - long press (>1s) - short press (<1s)

  • Page 22: Overview Of Time Zones

    Overview of time zones -11 -10 -9 -8 -7 -6 -5 -4 -3 -2 -1 0 +1 +2 +3 +4 +5 +6 +7 +8 +9 +10 +11 +12 The range of time zone settings...

  • Page 23: Reset

    Reset Auto Auto SHT-6 SHT-6 SHT-6 Performed by a short press of the hidden RESET button with a blunt-pointed object (e.g. a pencil or screw-driver with a diameter of at most 2 mm). The type of device and software version will be displayed for 1 second, then the device will enter default mode. This means that the...

  • Page 24: An Example Of Sht-6 Programming

    An example of SHT-6 programming Set-up the relay switch on at 8 AM and the relay switch off at 9 PM for days Mo – Fri. Prog Prog Prog Prog Prog Prog Auto Prog time/date options language DCF signal allowed...

  • Page 25: Battery Replacement

    Battery replacement CR2032 You can change the battery without disassembling the device. - remove the plug-in module with the battery - replace the original battery CAUTION - enter a new battery so that its upper edge (+) lines up with the - only change the battery when the device is disconnected plug-in module from power supply!!!
  • Page 26 ELKO EP, s.r.o. Palackého 493, 769 01 Holešov, Všetuly Czech Republic Tel.: +420 573 514 211 e-mail: elko@elkoep.com, www.elkoep.com 02-25/2017 Rev.: 1...
