Elko ATS-2D Quick Start Manual

ELKO EP, s.r.o.
Palackého 493
769 01 Holešov, Všetuly
Czech Republic
Tel.: +420 573 514 211
e-mail: elko@elkoep.com
www.elkoep.com
Made in Czech Republic
02-6/2021 Rev.: 0
Characteristics
• The mechanical time switch is a simple and inexpensive alternative to digital
time switches for controlling heating, ventilation, cooling, lighting systems
or pumps depending on real time.
• Daily or weekly program
• Selection of operating modes using the switch on the panel:
switches automatically according to the set program
permanently closes
permanently opens
• Power reserve after power off for up to 150 hours after fully charged.
• Sealable transparent front panel cover.
Connection
16 (4)A 250V
1 2 3
C
NC NO

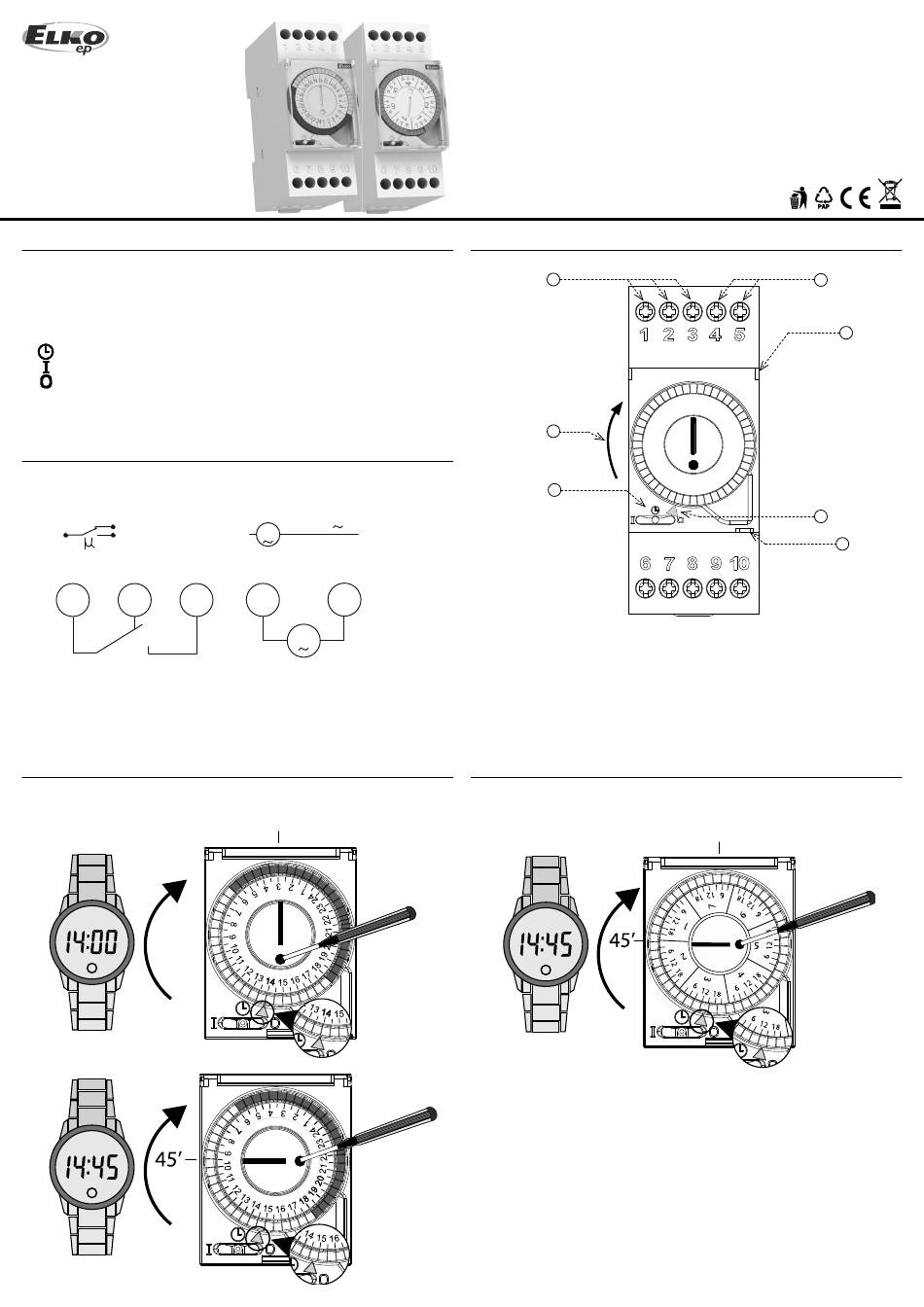

Time setting - daily program
Do not turn counter clockwise
230V
M
50/60 Hz
4 5
M
0´

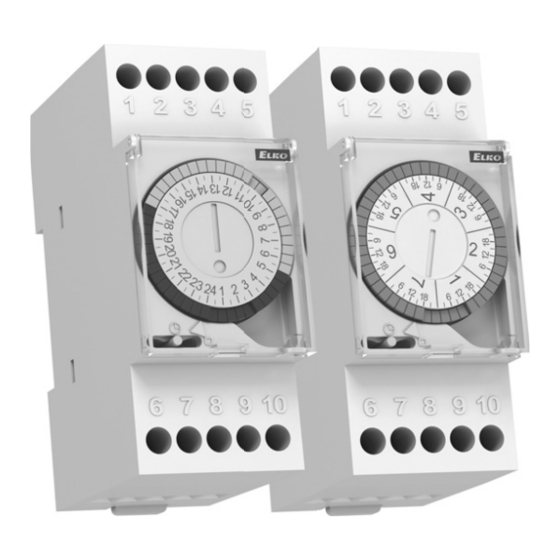

ATS-2D, ATS-2DR, ATS-2WR
Analog time switch
with daily/weekly program
Description
1
2
3
1. Output contact (1-2-3)
2. Direction of rotation of the
programming dial
3. Operating mode switch
4. Supply voltage terminals (4-5)
Day / time setting - weekly program
Do not turn counter clockwise
Example: 3 = Wednesday, 2:45 p.m.
1 / 2
EN
4
5
6
7
5. Transparent opening cover
6. Time indicator
7. Sealing spot
0´
