Page 2
Technologies LLC or its affiliates in the U.S. and other countries. Other names may be trademarks of their respective owners. This product may contain third-party software for which Veritas is required to provide attribution to the third party (“Third-party Programs”). Some of the Third-party Programs are available under open source or free software licenses.
Page 3
Japan CustomerCare_Japan@veritas.com Documentation Make sure that you have the current version of the documentation. Each document displays the date of the last update on page 2. The latest documentation is available on the Veritas website: https://www.veritas.com/content/support/en_US/dpp.Appliances.html Documentation feedback Your feedback is important to us. Suggest improvements or report errors or omissions to the documentation.
....31 About Veritas 5350 Appliance storage shelves ........31 Available appliance storage options ........... 32 About the Veritas 5U84 Storage Shelf disk drive drawers ....35 5U84 Primary Storage Shelf and the 5U84 Expansion Storage Shelf control panel ............47 About the 5U84 Primary Storage Shelf and 5U84 Expansion Storage Shelf rear components ............

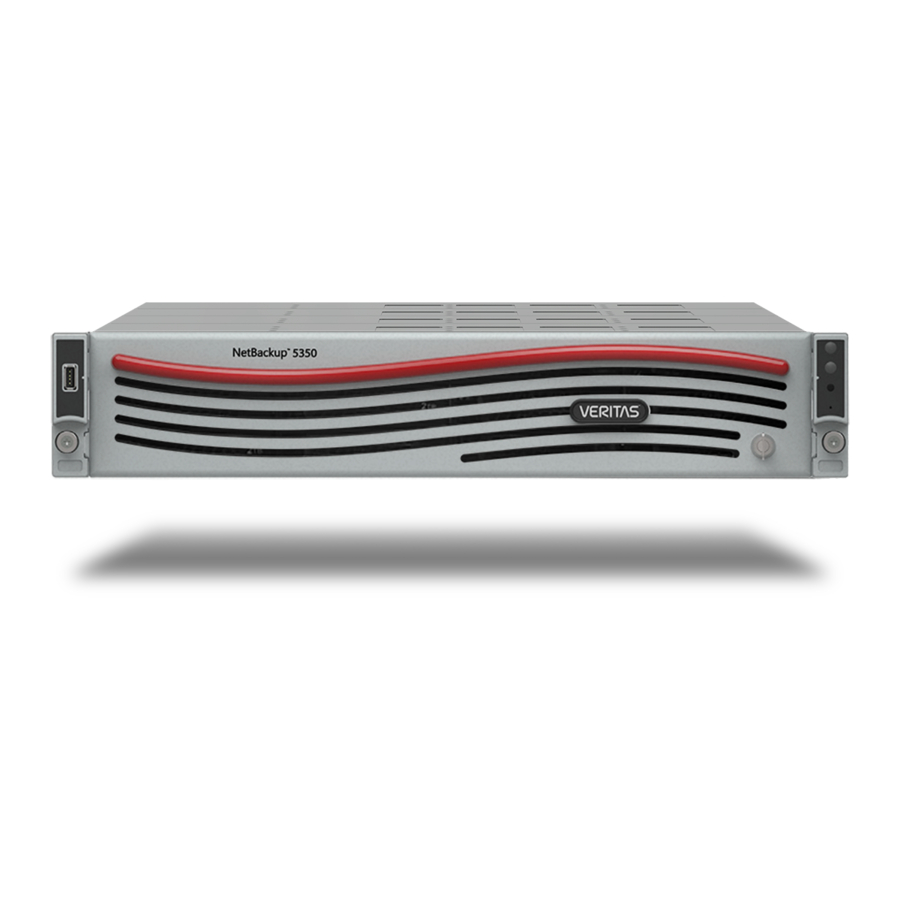

Veritas 5350 Appliance I/O configuration options ■ About the Veritas 5350 Appliance The Veritas 5350 Appliance is a media server solution designed for large workloads. It provides high performance with multiple service offerings and gets deployed in less than 60 minutes.
Page 7
1,920TiB (2,111TB) of usable backup capacity. It consists of one 2U 5350 Appliance compute node and one required externally attached 5U84 Primary Storage Shelf, which is used for data storage purposes. By itself, the 5350 Appliance compute node does not provide internal disk space for data storage. You can add up to three optional 5U84 Expansion Storage Shelves if you require additional data storage space.
About the Veritas 5350 Appliance Features and components of the appliance SAS-3 cables connect the 5350 Appliance compute nodes to 5U84 Primary Storage Shelf RAID controllers. SAS-3 cables also connect 5U84 Primary Storage Shelves to the optional 5U84 Expansion Storage Shelves.
About the Veritas 5350 Appliance Locating the appliance serial number Veritas 5350 Appliance features (continued) Table 1-1 Technical Veritas 5350 Appliance system Specification SAS RAID PCIe card installed in a appliance compute node PCIe riser assembly RAID levels RAID1 (mirroring) and RAID6 (block level striping with double...
Compute node disk drive configurations The Veritas 5350 Appliance compute node contains three 1.92 TB SATA SSDs. Each SSD is accessible from the compute node's front panel. An embedded RAID controller on the compute node's mainboard configures two of the three SATA SSDs into a RAID1 volume.
Operating system/log hot spare RAID1 blank About the compute node disk drive LEDs Each 5350 Appliance compute node disk drive module contains two LEDs on the left side of each module. 5350 Appliance compute node disk drive module LEDs Figure 1-2...
About the compute node front panel USB port The 5350 Appliance compute node front panel includes a USB 2.0-compliant port that supports a data transfer rate of up to 480 Mb/second.
About the Veritas 5350 Appliance About the compute node control panel About the compute node control panel Control panel Figure 1-3 Control panel system LED descriptions Table 1-4 Label System information Power button with integrated The Power button toggles the system on and off.
(NMI), and then triggers the non-maskable interrupt. All server data can be lost. Veritas recommends that you do not enable NMI by pressing the NMI button. System Cold Reset Button When depressed, the System Cold Reset button (recessed, tool required for re-boots and re-initializes the appliance.
Page 15
About the Veritas 5350 Appliance About the compute node control panel System Status LED control panel location Figure 1-4 System Status The following table provides a description of each LED state. System Status LED states Table 1-5 Color State Criticality...
Page 16
About the Veritas 5350 Appliance About the compute node control panel System Status LED states (continued) Table 1-5 Color State Criticality Description Green ~1 Hz blink Degraded System degraded: The system is Redundant loss, such as power supply or ■...
Page 17
About the Veritas 5350 Appliance About the compute node control panel System Status LED states (continued) Table 1-5 Color State Criticality Description Amber ~1 Hz blink Non-critical Non-fatal, although the system is likely to fail due to the following issues:...
About the Veritas 5350 Appliance About the compute node control panel System Status LED states (continued) Table 1-5 Color State Criticality Description Amber Solid on Critical, Uncorrectable Runtime memory error in ■ non-recoverable non-redundant mode – System is DIMM Thermal Trip or equivalent ■...
The rear panel of the appliance compute node has several access ports and other features. The rear panel of the Veritas 5350 Appliance contains three PCIe riser card assemblies. PCIe riser card assemblies 1 and 2 each support three standard PCIe...
Page 20
PCIe Riser # 2 PCIe Riser # 3 Veritas appliances may include grounding studs in case your lab environment has such a requirement. The studs are located on the rear panel of the appliance. You can use standard grounding practices to connect grounding wires to the studs.
The following section describes the on-board 1Gb network interface card (NIC) port and Ethernet (eth) port assignments. It also describes the PCIe-based 10Gb NIC port and Ethernet port assignments for each 5350 Appliance. Veritas 5350 Appliance rear panel details Figure 1-8...
Veritas 5350 Appliance I/O configuration options The rear panel of the Veritas 5350 Appliance contains three PCIe riser card assemblies. There are eight PCIe slots. The slots are labeled 1 to 8. Slots 1, 2, and...
Figure 1-9 assignments Available PCIe-based I/O configurations The Veritas 5350 Appliance supports multiple PCIe-based I/O configuration options. The following table shows the total number of I/O ports that are available with each 5350 Appliance I/O configuration. Available Veritas 5350 Appliance PCIe-based I/O configuration...
= Fiber optic cable Available I/O configurations by slot for Veritas 5350 Appliance installations You can use the supported Veritas 5350 Appliance I/O configurations to best serve the needs of your particular environment. The controller is installed in both non-shelf and with-shelf configurations The following table provides information on the make and model of each the PCIe cards that are available for use in each appliance I/O slot.
About the Veritas 5350 Appliance Veritas 5350 Appliance I/O configuration options RSP3GD016J storage adapter specifications Table 1-12 Item Specification Bracket height Low Profile Full Height Power consumption Typical: 10.57 watts Maximum: 11.18 watts Operating temperature 10°C to 55°C (50 F to 131 F) Storage temperature -40°C to +70°C (-40°F to +158°F)
About the Veritas 5350 Appliance Veritas 5350 Appliance I/O configuration options Mellanox ConnectX-4 Lx EN MCX4121A-ACAT Ethernet card Table 1-13 specifications Item Specification Bracket height Full Height Power consumption Typical: 9.6 watts Maximum: 15.0 watts Operating temperature 0°C to 55°C (32 F to 131 F) Storage temperature -40°C to +70°C (-40°F to +158°F)
Page 28
About the Veritas 5350 Appliance Veritas 5350 Appliance I/O configuration options QLE2692 dual-port 16Gb Fibre Channel host bus adapter Table 1-14 specifications Item Description Bracket Full Height height Form factor Low-profile PCIe card (6.6 inches × 2.731 inches) Power 9.3 W...
Page 29
4Gbps link / input-output (I/O) activity On/Blink 8Gbps link / input-output (I/O) activity On/Blink 16Gbps link / input-output (I/O) activity To purchase a QLE2692 dual-port 16Gb Fibre Channel host bus adapter for your appliance, contact your Veritas sales representative, or your Veritas Partner representative.
Page 30
About the Veritas 5350 Appliance Veritas 5350 Appliance I/O configuration options QLE2692 dual-port 16Gb Fibre Channel host bus adapter SKU Number Description 19441 QLOGIC 16Gb Fibre Channel host bus adapter...
About the 5U84 Primary Storage Shelf and 5U84 Expansion Storage Shelf rear ■ components About Veritas 5350 Appliance storage shelves Veritas offers two external storage shelf models for the Veritas 5350 Appliance. These include the: Veritas 5U84 Primary Storage Shelf (required) ■...
Instead, the 5350 Appliance uses the required Veritas 5U84 Primary Storage Shelf as the main data storage device. The 5U84 Primary Storage Shelf connects to the 5350 Appliance compute nodes and uses RAID 6 drive sets to protect the stored data.
Page 33
5U84 Expansion Storage Shelf use RAID 6 sets that are controlled by the 5U84 Primary Storage Shelf to protect the stored data. Note: Veritas does not support mixing 4TB and 8TB disk drives within a storage shelf. Usable Veritas 5350 Appliance 5U84 Storage Shelf storage...
Page 34
(1,056TB) (2,111TB) Veritas 5350 Appliance supports up to 960TiB (1,056TB) of usable MSDP storage capacity. For all storage configurations with an aggregate total of all MSDP pools equaling 960TB or larger, Veritas strongly recommends upgrading the memory capacity to 1536GB.
About the Veritas 5U84 Storage Shelves About Veritas 5350 Appliance storage shelves About the Veritas 5U84 Storage Shelf disk drive drawers This section discusses the 5U84 Primary Storage Shelf and 5U84 Expansion Storage Shelf disk drive drawers and the components that comprise the drawers.
Page 36
About the Veritas 5U84 Storage Shelves About Veritas 5350 Appliance storage shelves In the top drive drawer, the drive slots are numbered from left to right, beginning with the first compartment that is closest to the front panel. The drive slots in this compartment are numbered 0 to 13.
Page 37
About the Veritas 5U84 Storage Shelves About Veritas 5350 Appliance storage shelves Disk drive slot numbering Figure 2-4...
Page 38
About the Veritas 5U84 Storage Shelves About Veritas 5350 Appliance storage shelves Disk Drive In Carrier (DDIC) modules All storage shelf hard disk drives are housed in DDIC modules. Each disk drive drawer accepts a Disk Drive In Carrier (DDIC) module for each disk drive slot in the drawer.
Page 39
About the Veritas 5U84 Storage Shelves About Veritas 5350 Appliance storage shelves Disk Drive In Carrier (DDIC) module Figure 2-5...
Page 40
About the Veritas 5U84 Storage Shelves About Veritas 5350 Appliance storage shelves Disk Drive In Carrier (DDIC) module components and locations Figure 2-6 5U84 Storage Shelf DDIC component locations Table 2-2 Number Component Touch points Note: Touch points are used to facilitate the removal of the DDIC module from the storage shelf drawer.
Page 41
About the Veritas 5U84 Storage Shelves About Veritas 5350 Appliance storage shelves Disk Drive Drawer printed circuit board (PCB) assemblies Each disk drive drawer in a 5U84 storage shelf uses a printed circuit board (PCB) assembly to provide the electrical connectivity to the drawer's disk drives.
Page 42
About the Veritas 5U84 Storage Shelves About Veritas 5350 Appliance storage shelves Each PCB assembly contains two Drawer Sideplane cards. One Sideplane card mounts on the right side of the disk drawer, while the other card mounts on the left side of the drawer.
Page 43
About the Veritas 5U84 Storage Shelves About Veritas 5350 Appliance storage shelves Drawer Baseplane example Figure 2-9 Drawer Sideplane Status panels Drawer Sideplane Status panels are located on the front of the 5U84 storage shelves. These panels provide status and the activity information about the Sideplane card.
Page 44
About the Veritas 5U84 Storage Shelves About Veritas 5350 Appliance storage shelves 5U84 Primary Storage Shelf / 5U84 Expansion Storage Shelf Figure 2-11 Drawer Sideplane Status panel Drawer Sideplane Status panel descriptions Table 2-4 Number Item Sideplane card OK / Power good...
Page 45
About the Veritas 5U84 Storage Shelves About Veritas 5350 Appliance storage shelves Drawer Sideplane LED statuses (continued) Table 2-5 Status Power Drawer Fault Cable Fault Logical Fault Activity Bar Graph (Green) (Amber) (Amber) (Amber) (Green) Drive failure has occurred causing...
Page 46
About the Veritas 5U84 Storage Shelves About Veritas 5350 Appliance storage shelves Drawer Sideplane hot-swap LED location Figure 2-12 indicators Surrounding metal frame The following table describes the Drawer hot-swap Sideplane LED indicator statuses. Drawer Sideplane Hot-swap LED indicator statuses...
About the Veritas 5U84 Storage Shelves About Veritas 5350 Appliance storage shelves 5U84 Primary Storage Shelf and the 5U84 Expansion Storage Shelf control panel The control panel is installed on the left side of both the 5U84 Primary Storage Shelf and the 5U84 Expansion Storage Shelf. It is functionally the same for both systems.
About the Veritas 5U84 Storage Shelves About the 5U84 Primary Storage Shelf and 5U84 Expansion Storage Shelf rear components Control panel functions and descriptions Table 2-7 Number Function Description Unit Identification The Unit Identification Display is a dual digit display that Display provides information about the storage shelf.
Page 49
About the Veritas 5U84 Storage Shelves About the 5U84 Primary Storage Shelf and 5U84 Expansion Storage Shelf rear components Fan modules ■ Power Supply Units (PSUs) ■ 5U84 Primary Storage Shelf rear components Figure 2-15 5U84 Primary Storage Shelf rear component locations...
Page 50
Shelf disk drives. The RAID controllers also provide RAID data protection technology for the optional 5U84 Expansion Storage Shelves that you connect to the 5U84 Primary Storage Shelf. SAS-3 copper cables connect the 5350 Appliance compute nodes to the 5U84 Primary Storage Shelf through the storage shelf's RAID controllers.
55. Veritas 5U84 Primary Storage Shelf RAID controllers The Veritas 5U84 Primary Storage Shelf uses dual, hot swappable SAS-3 RAID controllers. These controllers create and manage the 5U84 Primary Storage Shelf disk drive RAID sets that contain backed up data. They also create and manage the RAID sets on 5U84 Expansion Storage Shelves when those are attached to the 5U84 Primary Storage Shelf.
Page 52
Storage Shelf and the first optional 5U84 Expansion Storage Shelf. Veritas 5U84 Primary Storage Shelf SAS-3 RAID controllers Figure 2-17 The following figure and table provides component details for the Veritas 5U84 Primary Storage Shelf SAS-3 RAID controller modules. Veritas 5U84 Primary Storage Shelf SAS-3 RAID Controller...
Page 53
Veritas does not use or support the Ethernet port. USB port Serial ports (Service only) Indicator LEDs SAS-3 RAID ports - connects to the 5350 Appliance compute nodes Activity LEDs Expansion SAS port Status Veritas 5U84 Primary Storage Shelf SAS-3 RAID Controller...
Page 54
About the Veritas 5U84 Storage Shelves About the 5U84 Primary Storage Shelf and 5U84 Expansion Storage Shelf rear components Veritas 5U84 Primary Storage Shelf SAS-3 RAID Controller Table 2-11 indicator LED details (continued) Description Definition Off - A controller issue has been detected, or the controller is turned off.
Definition When port is down, both LEDs are off Veritas 5U84 Expansion Storage Shelf Expansion I/O modules Veritas 5U84 Expansion Storage Shelf Expansion I/O modules provide SAS-3 data throughput and communications between one or more 5U84 Expansion Storage Shelves. Veritas 5U84 Expansion Storage Shelf Expansion I/O module...
Page 56
SAS-3 ports - A, B, and C Ethernet port Note: Veritas does not use or support the Ethernet port. SAS Activity LEDs Expansion I/O module Status LED location and conditions This section discusses the location of the Status LEDs on the Expansion I/O modules and the Status LED conditions.
Page 57
About the Veritas 5U84 Storage Shelves About the 5U84 Primary Storage Shelf and 5U84 Expansion Storage Shelf rear components Expansion I/O module icon and Status LED conditions (continued) Table 2-13 Condition Activety LED (green) Fault LED (amber) The Expansion I/O module is...
Veritas 5U84 Storage Shelf cooling modules The Veritas 5U84 Storage Shelves include five cooling modules. The cooling modules provide cooling to the entire unit, which is suitable to maintain the internal component temperatures below each components maximum temperature limits.
PSUs are hot-swappable. You can replace a faulty PSU while the storage shelf is running. However, you must complete the PSU replacement procedure within two minutes after you remove the faulty PSU. Veritas 5U84 Storage Shelf chassis are keyed to prevent PSUs from being inserted upside down.
Page 60
About the Veritas 5U84 Storage Shelves About the 5U84 Primary Storage Shelf and 5U84 Expansion Storage Shelf rear components 5U84 Storage Shelf Power Supply Unit Figure 2-25 The rear panel of the PSU includes a power switch, three status LEDs, and an AC socket for the power cord.
■ Power cables Each of the AC power modules in both the Veritas 5350 Appliance and the required Veritas 5U84 Primary Storage Shelf accept one AC power cable. The optional 5U84 Expansion Storage Shelf also uses one AC power cord in each of its AC power modules.
Page 62
Cable rating: 15A 250V Note: If your power distribution unit is not compatible with the IEC-60320-C14 plug, Veritas recommends that you purchase your power cable locally. Make sure that the power cable meets or exceeds the indicated power rating. “Veritas 5350 compute node technical specifications”...
Cable rating: 20A 250V Note: If your power distribution unit is not compatible with the IEC-60320-C20 plug, Veritas recommends that you purchase your power cable locally. Make sure that the power cable meets or exceeds the indicated power rating. “ Veritas 5U84 Storage Shelf technical specifications”...
65. SAS-3 cable SAS-3 data cables are used to connect the Veritas 5U84 Primary Storage Shelf to the 5350 Appliance compute nodes. SAS-3 cables also connect multiple 5U84 Expansion Storage Shelves to each other. SAS-3 cables have SAS-3 connectors on both ends.
65. Twinaxial copper cables The Veritas 5350 Appliance communicates with Ethernet networks through high speed Twinaxial copper cables. If you configure the appliance to communicate with 25 Gb or 10 Gb Ethernet networks, these cables connect to the Ethernet cards in the appliance.
Page 66
Veritas 5350 Appliance and 5U84 Storage Shelf cables Twinaxial copper cables “Power cables” on page 61. “Network cable” on page 63. “SAS-3 cable” on page 64.
Rack information 19" EIA standard The rack rails that are provided for the 5350 Appliance compute node are extensible to 36” (91.44cm). This distance is the maximum depth that is allowed between rack posts. If the distance between rack posts is longer than 36” (91.44cm) the rails and the appliance cannot be properly installed.
Page 69
Note: If your power distribution unit is not compatible with the IEC-60320-C14 plug, Veritas recommends that you purchase your power cable locally. Make sure the power cable meets or exceed the indicated power rating. “Power cables”...
Page 72
Expansion I/O module Maximum output power 1300 watts maximum continuous output power at high line voltage You can connect up to four storage shelves to the 5350 Appliance compute nodes. AC power requirements 200 - 240 VAC @ 6.67 A...
74. “Regulatory, compliance, and certification information” on page 75. Protocol standards The following table provides standards with which the Veritas 5350 Appliance and the Veritas 5U84 Primary/Expansion Storage Shelf comply. Veritas Appliance / Veritas 5U84 Primary/Expansion Storage Table A-4...
Technical specifications, Environmental/Protocol standards, and Compliance standards Regulatory, compliance, and certification information Veritas Appliance / Veritas 5U84 Primary/Expansion Storage Table A-4 Shelf standards compliance (continued) Standard Version SAS-3 ACPI Advanced Configuration and Power Interface Specification, Revision 3.0, September 2 RFC0791: Internet Protocol PCIe PCIe 3.0...
Technical specifications, Environmental/Protocol standards, and Compliance standards Product regulatory compliance Product regulatory compliance The NetBackup appliance, when correctly integrated per this guide, complies with the following safety and electromagnetic compatibility (EMC) regulations. Intended Application - This product was evaluated as Information Technology Equipment (ITE), which may be installed in offices, schools, computer rooms, and similar commercial type locations.
EN61000-3-3 - Voltage Flicker (Europe) ■ Note: For a complete list of regulatory notices please refer to this link: Veritas Safety and Compliance Guide Product environmental compliance Use of banned substances are restricted in accordance with world-wide regulatory requirements. Restrictions include quantity limitations on the following: Quantity limit of 0.1% by mass (1000 PPM) for: Lead, Mercury, Cadmium,...
Page 78
Technical specifications, Environmental/Protocol standards, and Compliance standards Product environmental compliance California Code of Regulations, Title 22, Division 4.5, Chapter 33: Best ■ Management Practices for Perchlorate Materials China - Restriction of Hazardous Substances (China RoHS) ■ India RoHS ■ EU WEEE Directive ■...
