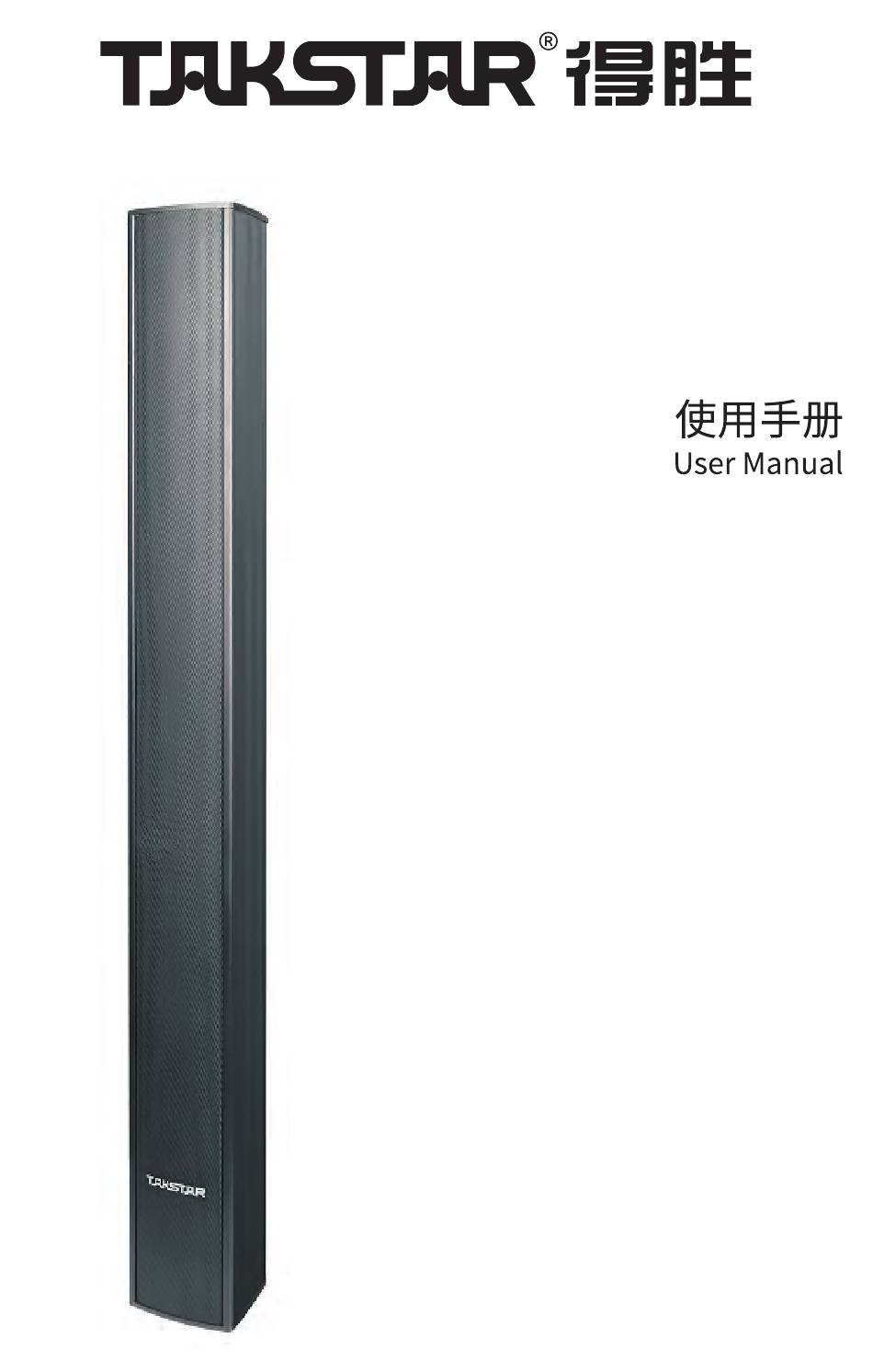

■ Preface Dear Customer, Thank you for purchasing TAKSTAR ESC-80A Active Column Speaker. Please read the user manual carefully before use and keep it for reference in future. If you have any questions or suggestions, please contact our local dealer.
Constant Voltage Input: 100V Digital Processing: 24-bit sigma-delta A/D, D/A converter, 32-bit DSP, 48 kHz sampling rate Net Weight: 13.7KG Note: The data is tested by Takstar Laboratory, and Takstar has the final interpretation right! ■ Dimensions (unit: mm) 130mm 130mm ■...
ESC-80A Active Column Speaker ■ Product Content Speaker 1 pc M6 Spring Washer 1 pc User Manual 1 pc M6 Plain Washer 1 pc Power Cord 1 p c M4X12 Screw 1 pc Bracket A 1 pc M5X60 Screw 1 pc...
ESC-80A Active Column Speaker ■ PC Software Tips: The required PC control software and product manual are saved in the attached CD. Steps to connect the Dante interface: network cable equipment Steps to connect the network cable 1. Click on and install the PC control software that comes with the CD, and press "Next"...
■ PC Software Description (1). Volume Control Interface 1. Menu Bar File----------------Open and save the preset parameters, upload the debug data to the computer and download the debug data to the machine. Link---------------Input and output channels can be combined arbitrarily to adjust all parameters.
Page 15
ESC-80A Active Column Speaker (2). Noise Gate Interface 1. Display the curve of the current noise gate status and the level indicator of the input channels. 2. The noise gate parameters of all input channels can be set as threshold value of -90dB-- 0dB, starting time of 1-999ms, recovery time of 1-3000ms, and continuously adjustable retention time of 10-999ms.
Page 16
ESC-80A Active Column Speaker (4). Delay Interface 1. Visually display the delay parameter status of all channels. 2. The delay parameters of all channels can be adjusted to a range of 0-625ms, and there are switching displays in milliseconds, meters, and inches.
ESC-80A Active Column Speaker ■ Safety Instructions To avoid possible personal injury or property damage caused by electric shock, high temperature, fire, radiation, explosion, mechanical hazards, and improper use, please read and observe the following items before using the product.
