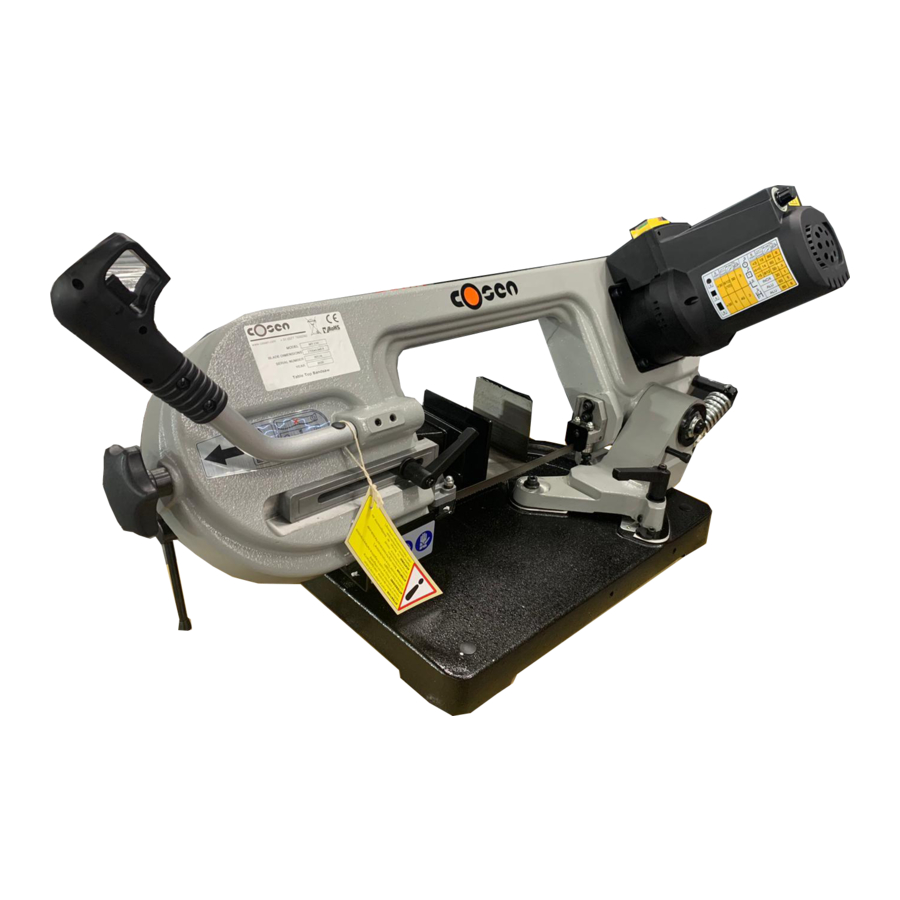

- Page 1 MT-105 MT-125 Table Top Bandsaws CE-Model Instruction Manual The Pinnacle of Cutting Performance Cosen Mechatronics Co., Ltd.
- Page 2 Fig.1 Fig.3 Fig.4 Fig.5 Fig.6 Fig.7 Fig.8 Fig.9 Pag.2...
-
Page 3: Getting Started
WARNING! Before starting the machine make sure that the blade is fitted correctly and make sure that the guards and covers are fitted correctly. Please adjust the blade with a suitable voltage to avoid dangers. INDEX 1.0 GETTING STARTED 1.0 GETTING STARTED Before starting work with your sawing machine please read this instruction manual in order to learn about the machine - how to use 1.1 LOCATION IN CORRESPONDENCE OF THE... -
Page 4: Installation
Weight = 18 Kg (MT-105) - 21.5 Kg(MT-125) If you want to get the best performance from your sawing Package dimensions MT-105 = cm 72x32x47h machine use the tools recommended in this manual. -
Page 5: Electrical Connection
to your cutting machine, you can make the cut while maintaining 2.5 ELECTRICAL CONNECTION the guided part of the blade and necessary to fully protect the unused processing. Check out the plant network on which the machine is connected to Loosen the handle Q and slide the blade guide P so closer or the ground as required by current safety regulations and check out farther away from the workpiece, as shown in the figure. -
Page 6: Maintenance
The following table specifies the cutting capabilities: - from 0 ° to 45 <5 ° for the MT-105, - from 0 ° to 60 ° for the MT-125 obtainable in normal conditions of use described in this manual , and without the tubes >5 <20... -
Page 7: Disposal Of The Machine
4. If the saw is not used for a long time please wipe blade and place, 6.2 DISPOSAL OF THE MACHINE if possible, in a place without humidity. It is a good idea, in this case, loosen the blade does not maintain When it is necessary, at the end of the normal operating cycle, unnecessarily tense. - Page 8 NOTES Pag.8...
-
Page 9: Main Switch
Electrical power supply scheme 1~(RECOM) 50Hz, 4.5A 230V MAIN SWITCH BUTTON 4.4A 105° C 230V Coil undervoltage stop button button start Power cable BROWN Running button BLUE Motor 1010 Watt YELLOW/GREEN Thermal magnetic protection Inverter Pag.9... - Page 10 NOTES Pag.10...
-
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY (DIRECTIVE 2006/42/CE, ENCLOSURE II, PART A) The undersigned Bruno de Bock as legal representative of the company Cosen European Distribution Centerl based in: Willem Barentszweg 20 5928LM Venlo, Netherlands declare that the band saw model: MT-105 Table Top Bandsaw... - Page 12 NOTES Pag.12...
- Page 13 MT-105 Pag.13...
- Page 14 MT-125 Pag.14...
- Page 15 Motor and Gearbox Pag.15...
- Page 16 Automatic bandsawing machines Semi-automatic bandsawing machines Miter bandsawing machines Workshop machines Vertical bandsaws Projects on measurement Roller tables Measuring & positioning systems Bandsaw blades en circular blades Lubricants for sawing Cleaning products Please visit our website www.cosenedc.com www.cosenedc.com...
